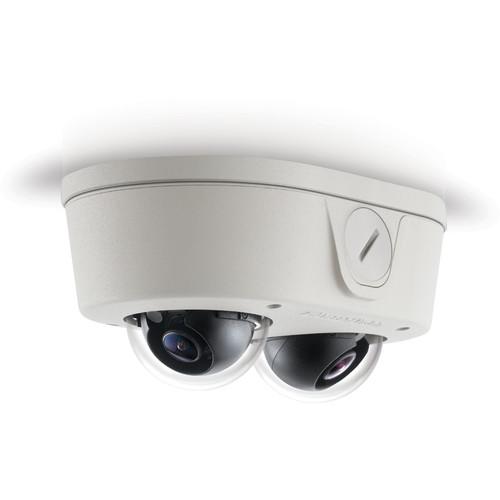

User Manual for Arecont Vision MicroDome Duo Series 4MP Outdoor Network Dome Camera with No Lenses Click to enlarge the picture
Contents of the user manual for the Arecont Vision MicroDome Duo Series 4MP
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MicroDome Duo Series 4MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The MicroDome Duo Series 4MP Outdoor Network Dome Camera from Arecont Vision features twin 1080p cameras in a compact housing, providing a total of 4MP resolution The MicroDome Duo camera offers true day/night functionality via dual mechanical IR cut filters. It also features CorridorView for better coverage of hallways and corridors. The camera uses SNAPstream (Smart Noise Adaptation and Processing) technology to reduce bandwidth Network usage without impacting image quality. The camera's built-in remote focus capability allows for rapid setup by clicking on short-range focus or full-range focus. Three-axis lens adjustment provides multiple placement options, allowing the unit to be mounted on a wall or ceiling, while allowing you to pan, tilt, and rotate its lenses in a variety of directions for a precise field of view. Its installer-friendly enclosure shortens the installation process. The MicroDome Duo camera comes in an IP66-rated surface mount, suitable for indoor or outdoor applications. It also features an IK10-rated impact-resistant cast aluminum housing with dual polycarbonate bubbles capable of withstanding the equivalent of 120 lb of force. - Two 1920 x 1080 sensors combine to give a total of 4MP resolution
- Multiple fixed lens options available separately
- SNAPstream (Smart Noise Adaptation and Processing) technology reduces bandwidth without impacting image quality
- True day/night functionality with mechanical IR cut filter
- CorridorView allows 90° image rotation for better coverage in hallways and corridors
- Dual encoding (H.264/MJPEG)
- Privacy masking, motion detection, flexible cropping, bit rate control, multi-streaming, multicasting, and forensic zooming
- All-in-one H.264 PoE solution
- IK10 impact-resistant housing
- IP66-rated for ingress protection, suitable for indoor and outdoor applications
In the Box Arecont Vision MicroDome Duo Series 4MP Outdoor Network Dome Camera with No Lenses Mounting Plate Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MicroDome Duo Series 4MP Outdoor Network Dome Camera with No Lenses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV4655 Specs | | | Image Sensor | 4 MP (2 x 1080p) CMOS | | Optical Format | 1/3" | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color (Day Mode): 0.2 lux
B&W (Night Mode): 0.02 lux, IR sensitive | | Resolution | Full FOV Resolution (H x V):
Total: 3840 x 1080
Per Sensor: 1920 x 1080
1/4 Resolution (H x V):
Total: 1920 x 540
Per Sensor: 960 x 540 | | Dynamic Range | 69.5 dB | | Frame Rates | At Maximum Resolution:
15 fps at 3840 x 1080
At 1/4 Resolution:
24 fps at 1920 x 590 | | | | Optics | M12 lens and remote focus module | | Picture-in-Picture | Simultaneous delivery of full field of view and zoomed images | | Shutter Speed | Programmable, controls motion blur (1 to 500 ms) | | Motion Detection | Real time, 1024 detection zones | | Privacy Masking | Unlimited | | Cropping | Flexible Cropping:
Any resolution multiple of 2 for H.264
Any image width multiple of 64 for JPEG full resolution
Any image width multiple of 128 for JPEG half resolution
No restriction on image height for JPEG | | Backlight Compensation | Reference windows for auto exposure and white balance | | Flicker Frequency | 50 / 60 Hz selectable | | Image Rotation | CorridorView (90, 180, and 270° image rotation) | | Noise Reduction | SNAPstream (Smart Noise Adaptation and Processing) technology | | Efficiency | Bit rate and bandwidth limitation control
Bandwidth and storage savings by running at 1/4 resolution | | Sharpness | Selectable enhancement level | | PTZ | Electronic | | Miscellaneous Features | Programmable resolution, brightness, saturation, gamma, tint | | | | Compression Type | H.264 (MPEG-4, Part 10) / MJPEG
21 levels of quality | | Network Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP | | Network Interface | 100Base-T Ethernet | | Multi-Streaming | 8 non-identical streams | | | | Alarm Input / Output | 1 x input / 1 x output
General purpose opto-coupled | | Power Over Ethernet | PoE 802.3af, Class 3 | | Maximum Power Consumption | 7.9 W (DC power) | | | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | Humidity | 0 to 90% (non-condensing) | | | | Industry Standards | ONVIF Profile S | | Listings | UL (CB) | | FCC Compliance | 47 CFR 15 Class A | | Environmental | RoHS, REACH, WEEE | | Marking | (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 | | | | Casing | Surface mount with die-cast aluminum housing and 2" ( cm) polycarbonate dome bubble
3/4" NPT | | Impact Resistance | IK10 | | Ingress Protection | IP66 | | Mount | Mount plate with electrical box adapter holes (included) | | Gimbal | 3-axis with 360° pan, 90° tilt, and 360° z-axis | | Dimensions | 2.83 x 4.06 x 6.42" (71.9 x 103 x 163 mm) | | Weight | 1.95 lb (0.88 kg) |
