Arecont Vision MicroDome Duo-Series 6MP Indoor

Search your instruction manual in PDF to download

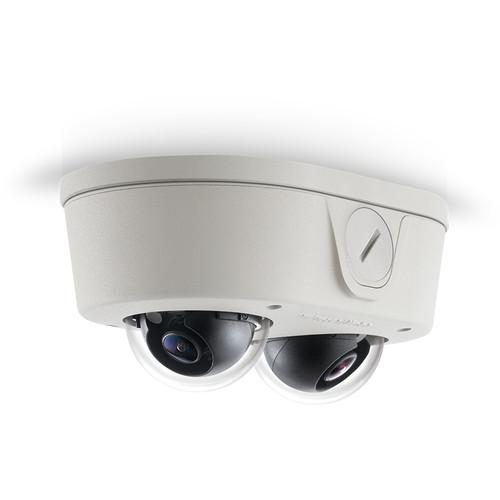

User Manual for Arecont Vision MicroDome Duo-Series 6MP Indoor Outdoor IP Dome Camera with Night Vision & WDR

Click to enlarge the picture
Arecont Vision MicroDome Duo-Series 6MP Indoor Outdoor IP Dome Camera with Night Vision & WDR Contents of the user manual for the Arecont Vision MicroDome Duo-Series 6MP Indoor
  • Product category: Wired IP Cameras Arecont Vision
  • Brand: Arecont Vision
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Arecont Vision Wired IP Cameras

User manual for the Arecont Vision MicroDome Duo-Series 6MP Indoor contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Arecont Vision product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!



Product description

The MicroDome Duo-Series 6MP IP Dome Camera from Arecont Vision features twin 3MP cameras in a compact housing, providing a total of 6MP resolution. The MicroDome Duo camera offers true day/night functionality via dual mechanical IR cut filters. Thanks to the Wide Dynamic Range (WDR) feature, this MicroDome Duo camera can produce clear images when used in areas having strong backlight, reflections from wet flooring/puddles, or contrast due to fog, mist, or glare. It also features CorridorView for better coverage of hallways and corridors. The camera uses SNAPstream (Smart Noise Adaptation and Processing) technology to reduce bandwidth without impacting the image quality. The camera's built-in remote focus capability allows for rapid set up by simply clicking on short-range focus or full-range focus. The three-axis lens adjustment provides multiple camera placement options, allowing the camera to be easily mounted on a wall or ceiling, while allowing you to pan, tilt, and rotate the lens in a variety of directions for a precise field of view. Its installer-friendly enclosure shortens the installation process. The MicroDome Duo camera comes in an IP66-rated surface mount, suitable for indoor as well as outdoor applications. It also features an IK10-rated impact-resistant cast-aluminum housing with dual polycarbonate bubbles, capable of withstanding the equivalent of 120 lb of force. This camera is suitable for applications like coverage of a hallway or walkway, monitoring POS terminals or ATMs, or for viewing of a single wide area or two distinct regions.
  • Two 3MP sensors combine to give a total of 6MP resolution
  • Multiple fixed lens options available separately
  • Strong low-light performance with binning mode
  • SNAPstream (Smart Noise Adaptation and Processing) technology reduces bandwidth without impacting image quality
  • True day/night functionality with mechanical IR cut filter
  • True WDR up to 100 dB at full resolution
  • CorridorView allows 90° image rotation for better coverage in hallways and corridors
  • Dual Encoder H.264/MJPEG
  • Remote focus module
  • Privacy mask, motion detection, flexible cropping, bitrate control, multi-streaming, multicasting, and forensic zooming
  • Network protocols include DHCP, and more
  • All-in-one H.264 total PoE solution
  • Easily adjustable 3-axis gimbal
  • Ultra low-profile design / small size
  • IK10 impact-resistant housing
  • IP66-rated for ingress protection, suitable for indoor as well as outdoor applications
  • Made in USA
In the Box Arecont Vision MicroDome Duo-Series 6MP Indoor/Outdoor IP Dome Camera with Night Vision & WDR (No Lens)
  • Mounting Plate
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Arecont Vision MicroDome Duo-Series 6MP Indoor Outdoor IP Dome Camera with Night Vision & WDR in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Arecont Vision AV6656 Specs

    Image Sensor 4 MP (2 x 1080p) CMOS
    Optical Format 1/3.2"
    Pixel Pitch 2.2 μm
    Minimum Illumination Color (Day Mode): 0.2 lux
    Color Binning (Day Mode): 0.1 lux
    B/W (Night Mode): 0.02 lux, IR sensitive
    Resolution Full FOV Resolution (H x V):
    Total: 4096 x 1536
    Per Sensor: 2048 x 1536

    1/4 Resolution (H x V):
    Total: 2048 x 768
    Per Sensor: 1024 x 768
    Dynamic Range WDR up to 100 dB
    Frame Rates At Maximum Resolution:
    10 fps (4096 x 1536)

    At 1/4 Resolution:
    17 fps (2048 x 768)

    Frame Rates Binning Mode:
    17 fps (2048 x 768)
    Optics M12 lens and remote focus module
    Low Light Capability Pixel binning mode
    Picture-in-Picture Simultaneous delivery of full field of view and zoomed images
    Shutter Speed Programmable, controls motion blur (1 to 500 ms)
    Motion Detection Real-time, 1024 detection zones
    Privacy Masking Unlimited
    Cropping Flexible Cropping:
    Any resolution multiple of 2 for H.264
    Any image width multiple of 64 for JPEG full resolution
    Any image width multiple of 128 for JPEG half resolution
    No restriction on image height for JPEG
    Backlight Compensation Reference windows for auto exposure and white balance
    Flicker Frequency 50 / 60 Hz selectable
    Image Rotation CorridorView (90°, 180°, and 270° image rotation)
    Wide Dynamic Range Auto switch control adjustment between WDR and LDR modes
    Noise Reduction SNAPstream (Smart Noise Adaptation and Processing) technology
    Efficiency Bitrate and bandwidth limitation control
    Bandwidth and storage savings by running at 1/4 resolution
    Sharpness Selectable enhancement level
    PTZ Electronic
    Miscellaneous Features Programmable resolution, brightness, saturation, gamma, tint
    Compression Type H.264 (MPEG-4, Part 10) / MJPEG
    21 levels of quality
    Network Protocols RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP
    Network Interface 100Base-T Ethernet
    Multi-Streaming 8 non-identical streams
    Alarm Input / Output 1 x Input
    1 x Output
    General purpose opto-coupled
    Power Over Ethernet PoE 802.3af, Class 3
    Maximum Power Consumption 7.9 W (DC power)
    Operating Temperature -40 to 122°F / -40 to 50°C
    Storage Temperature -40 to 140°F / -40 to 60°C
    Humidity 0 to 90% (non-condensing)
    Industry Standards ONVIF Profile S
    Listings UL (CB)
    FCC Compliance 47 CFR 15 Class A
    Environmental RoHS, REACH, WEEE
    Mechanical IP66 (EN60529), IK-10
    Marking (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1
    Casing Surface mount with die-cast aluminum housing and 2" / 5.1 cm polycarbonate dome bubble
    Tamper-resistant housing
    IK10-rated impact-resistant and IP66-rated weather-resistant
    3/4" NPT
    Mount Mount plate with electrical box adapter holes (included)
    Gimbal Easily adjustable, 3-axis with 360° pan, 90° tilt, and 360° z-axis
    Dimensions 2.83 x 4.06 x 6.42" / 71.9 x 103 x 163 mm
    Weight 1.95 lb / 0.88 kg

    Rating
