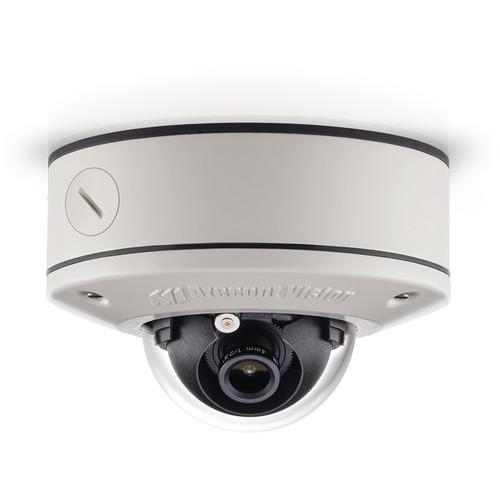

User Manual for Arecont Vision MicroDome G2 5MP Outdoor Vandal-Resistant Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision MicroDome G2 5MP Outdoor
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MicroDome G2 5MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The MicroDome G2 5MP Outdoor Vandal-Resistant Network Dome Camera from Arecont Vision utilizes a 1/2.5” CMOS image sensor and 2.8mm lens to deliver a 5MP resolution. With a day/night mechanical IR cut filter this camera is suitable for applications with challenging lighting conditions, regardless the time of day. This camera features an IK10-rated vandal-resistant cast-aluminum housing with a polycarbonate bubble making it capable of withstanding the equivalent to 120 lb of force. This MicroDome IP Camera delivers surveillance for a variety of network surveillance requirements. The remote focus module allows users to simply click “Short-range Focus” or “Full-range Focus”, saving time. The camera can be surface mounted. The MicroDome Camera is ONVIF Profile S (Open Network Video Interface Forum) and PSIA-compliant (Physical Security Interoperability Alliance), providing interoperability between network video products regardless of manufacturer. -
- 1/2.5” CMOS image sensor
- 5MP resolution
- True Day/Night functionality with mechanical IR cut filter
- CorridorView allows 90° image rotation for better coverage in hallways and corridors
- Dual encoder H.264/MJPEG
- Privacy mask, motion detection, flexible cropping, bit rate control, multi-streaming, and forensic zooming
- 2.8mm lens
- Surface mount housing
- Remote focus module
- Easily adjustable 3-axis gimbal
- All-in-one H.264 total Power over Ethernet (PoE) solution
- Ultra low-profile, compact design
- IK10 vandal-resistant housing
- Binning mode
UPC: 847778009541 In the Box Arecont Vision MicroDome G2 5MP Outdoor Vandal-Resistant Network Dome Camera (2.8mm Lens, Surface Mount) 3/8" NPT with 1/2" NPT Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MicroDome G2 5MP Outdoor Vandal-Resistant Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV5555 Specs | | | Image Sensor | 5 MP CMOS | | Sensor Size | 1/2.5" | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color (Day Mode): 0.3 lux
Color Binning (Day Mode): 0.15 lux
B&W (Night Mode): 0.03 lux, IR sensitive | | Resolution | Full FOV (H x V): 2592 x 1944
1/4: 1296 x 972 | | Dynamic Range | 70.1 dB | | Frame Rates | At Maximum Resolution: 14 fps (2592 x 1944)
Cropped: 21 fps (2048 x 1536), 29 fps (1920 x 1080), 41 fps (1280 x 1024)
Binning Mode: 34 fps (1296 x 972), 46 fps (1024 x 768), 64 fps (960 x 540) | | Lens | 2.8mm integrated, fixed iris, 1/2.5", f/2.0, board mount (M12)
Horizontal Field of View: 113° | | | | Optics | M12 lens and remote focus module | | Low Light Capability | Pixel Binning mode | | Picture-in-Picture | Simultaneous delivery of full field of view and zoomed images | | Shutter Speed | Programmable: Controls motion blur, 1 to 500 ms | | Motion Detection | Real-time, 1024 detection zones | | Privacy Masking | Unlimited | | Cropping | Flexible: Resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264 | | Backlight Compensation | Custom white balance | | Flicker Filter Control | 50/60 Hz selectable | | Image Rotation | CorridorView (90, 180, and 270° image rotation) | | Noise Reduction | Low light noise filter control | | Microphone | Integrated | | Efficiency | Bit rate and bandwidth limitation control
Bandwidth and storage saving by running at 1/4 resolution | | Sharpness | Selectable enhancement level | | Miscellaneous | Programmable resolution, brightness, saturation, gamma, tint, electronic PTZ (pan/tilt/zoom) | | | | Compression | G.711 PCM, 8 kHz | | Input | Microphone in | | | | Compression Type | H.264 (MPEG-4, part 10) / MJPEG
21 levels of quality | | Network Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP, QoS, IPv4, IPv6 | | Network Interface | 100Base-T Ethernet | | Multi-Streaming | 8 non-identical streams | | | | Industry Standards | ONVIF Profile S and PSIA-conformant | | Listings | UL (CB) | | FCC Compliance | 47 CFR 15 Class A | | Environmental | RoHS, REACH, WEEE | | Agency and Regulatory Marks | (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 | | Vandal Resistance | IK10 | | Ingress Protection | IP66 | | | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Humidity | 0 to 90% (non-condensing) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | | | Alarm Input / Output | General purpose opto-coupled, 1 input /1 output | | PoE | PoE 802.3af, Class 3 | | Power Consumption | 5.59 W (DC power) | | | | Casing | Tamper-resistant housing, IK-10 impact-resistant surface mount with die-cast aluminum cover and 2" polycarbonate dome bubble | | Gimbal | 3-axis camera adjustment with 359° pan, 90° tilt, and 360° z-axis | | Dimensions (Ø x H) | 4 x 3.1" (10 x 7.9 cm) | | Weight | 0.7 lb (0.3 kg) |
