Arecont Vision MicroDome G2 Outdoor Vandal-Resistant

Search your instruction manual in PDF to download

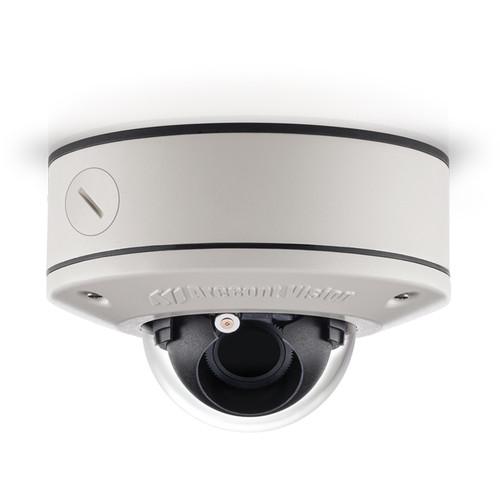

User Manual for Arecont Vision MicroDome G2 Outdoor Vandal-Resistant Network Dome Camera

Click to enlarge the picture
Arecont Vision MicroDome G2 Outdoor Vandal-Resistant Network Dome Camera Contents of the user manual for the Arecont Vision MicroDome G2 Outdoor Vandal-Resistant
  • Product category: Wired IP Cameras Arecont Vision
  • Brand: Arecont Vision
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Arecont Vision Wired IP Cameras

User manual for the Arecont Vision MicroDome G2 Outdoor Vandal-Resistant contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Arecont Vision product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!



Product description

The MicroDome G2 Outdoor Vandal-Resistant Network Dome Camera from Arecont Vision utilizes a 1/3.2" CMOS image sensor. With a day/night mechanical IR cut filter, this camera is suitable for applications in challenging lighting conditions, regardless the time of day. This camera features an IK10-rated vandal-resistant and IP66-rated weather-resistant surface mount with die-cast aluminum housing and 2" polycarbonate bubble, making it capable of withstanding a force equivalent to 120 lb. This MicroDome IP Camera delivers professional surveillance with ease of installation and setup, for a variety of network surveillance requirements. The remote focus module allows users to simply click "Short-range Focus" or "Full-range Focus" to save time. The 3-axis lens provides users with more camera placement options, allowing it to be mounted on a wall or ceiling so installers can adjust the lens in a variety of directions for a precise field of view. The WDR function of the camera allows you to use it in environments with strong backlighting, reflections from wet flooring/puddles, or contrast due to fog, mist, or glare. The MicroDome Camera is ONVIF Profile S (Open Network Video Interface Forum) and PSIA-compliant (Physical Security Interoperability Alliance), providing interoperability between network video products regardless of manufacturer.
    • 1/3.2" CMOS image sensor
    • True Day/Night functionality with mechanical IR cut filter
    • True WDR up to 100 dB at full resolution
    • NightView mode for improving performance under low light
    • CorridorView allows 90° image rotation for better coverage in hallways and corridors
    • Dual encoder H.264/MJPEG
    • Supports privacy masking, motion detection, flexible cropping, bit rate control, multi-streaming, and forensic zooming
    • Surface mount housing
    • IP66-rated housing for outdoor use
    • Remote focus module
    • Easily adjustable 3-axis gimbal
    • All-in-one H.264 Power over Ethernet (PoE) solution
    • Compact design
    • IK10-rated vandal-resistant housing
    • Made in the USA
UPC: 847778009435 In the Box Arecont Vision MicroDome G2 Outdoor Vandal-Resistant Network Dome Camera (No Lens, Surface Mount)
  • 3/8" NPT with 1/2" NPT Adapter
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Arecont Vision MicroDome G2 Outdoor Vandal-Resistant Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Arecont Vision AV2556 Specs

    Image Sensor 1080p CMOS sensor
    Sensor Size 1/3.2"
    Pixel Pitch 2.2 μm
    Minimum Illumination Color (Day Mode): 0.2 lux
    B&W (Night Mode): 0.02 Lux, IR sensitive
    Resolution Full FOV (H x V): 1920 x 1080
    1/4: 960 x 540
    Dynamic Range WDR up to 100 dB
    Frame Rates Maximum 30 fps (1920 x 1080)
    Cropped: 41 fps (1280 x 1024)
    Lens No lens
    Optics M12 lens and remote focus module
    Picture-in-Picture Simultaneous delivery of full field of view and zoomed images
    Shutter Speed Programmable: Controls motion blur, 1 to 500 ms
    Motion Detection Real time, 1024 detection zones
    Privacy Masking Unlimited
    Cropping Flexible: Resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264
    Backlight Compensation Custom white balance
    Flicker Filter Control 50/60 Hz selectable
    Image Rotation CorridorView (90, 180, and 270° image rotation)
    Wide Dynamic Range Auto switch control adjustment between WDR and LDR modes
    Noise Reduction Low light noise filter control
    Efficiency Bit rate and bandwidth limitation control
    Bandwidth and storage saving by running at 1/4 resolution
    Sharpness Selectable enhancement level
    Miscellaneous Programmable resolution, brightness, saturation, gamma, tint, electronic PTZ (pan, tilt, zoom)
    Compression G.711 PCM, 8 kHz
    Compression Type H.264 (MPEG-4, part 10) / MJPEG
    21 levels of quality
    Network Protocols RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP, QoS, IPv4, IPv6
    Network Interface 100Base-T Ethernet
    Multi-Streaming 8 non-identical streams
    Industry Standards ONVIF Profile S and PSIA-conformant
    Listings UL (CB)
    FCC Compliance 47 CFR 15 Class A
    Environmental RoHS, REACH, WEEE
    Agency and Regulatory Marks (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1
    Ingress Protection IP66
    Vandal Resistance IK-10
    Country of Origin Made in the USA
    Operating Temperature -40 to 122°F (-40 to 50°C)
    Humidity 0 to 90% (non-condensing)
    Storage Temperature -4 to 140°F (-20 to 60°C)
    Alarm Input / Output General purpose opto-coupled
    1 x Input
    1 x Output
    PoE PoE 802.3af, Class 3
    Power Consumption 5.59 W (DC power)
    Casing Tamper-resistant housing, IK-10 impact-resistant surface mount with die-cast aluminum housing and 2" (50.8 mm) polycarbonate dome bubble
    Gimbal 3-axis camera adjustment with 359° pan, 90° tilt, and 360° z-axis
    Dimensions (Ø x H) 4.0 x 3.1" (10.0 x 7.9 cm)
    Weight 0.7 lb (0.3 kg)
