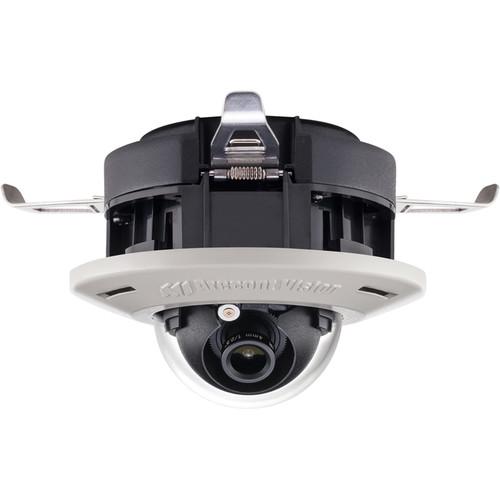

User Manual for Arecont Vision MicroDome G2 Series 3MP Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision MicroDome G2 Series 3MP
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MicroDome G2 Series 3MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The MicroDome G2 Series 3MP Network Dome Camera (Flush Mount) from Arecont Vision features a 1/3" CMOS sensor and 2.8mm fixed lens for capturing videos at a maximum resolution of 2048 x 1536. This day/night camera provides 24-hour surveillance thanks to the mechanical IR cut filter. The IP camera comes in an in-ceiling housing, making it suitable for indoor applications.Enclosed in an IK10-rated vandal-resistant, cast-aluminum housing with a polycarbonate bubble, the camera is capable of withstanding force up to 55 lb. The IP camera delivers surveillance for a variety of network surveillance requirements. The remote focus module allows users to select “Short-range Focus” or “Full-range Focus” to save installation time.3-axis lens adjustment allows the camera to be mounted on a wall or ceiling for panning, tilting, and rotation of the lens in a variety of directions for a precise field of view. Incorporating a spring arm design, the camera can be installed by sliding it through the hole and securing the magnetized cover ring with a single screw. No additional hardware is required. The camera is ONVIF Profile S and PSIA (Physical Security Interoperability Alliance) compliant, thereby providing interoperability between network video products regardless of manufacturer. - 1/3" CMOS sensor and 2.8mm, f/2.0 fixed lens
- True day / night functionality with mechanical IR cut filter
- CorridorView allows 90° image rotation for better coverage in hallways and corridors
- Privacy Masking, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, and Forensic Zooming
- Easily adjustable 3-axis gimbal
- All-in-one H.264 total PoE solution
- Ultra low-profile design and small size
- IK-10 impact-resistant housing for withstanding force up to 50 lb
In the Box Arecont Vision MicroDome G2 Series 3MP Network Dome Camera (Flush Mount) Ceiling Template 4-Position I/O Connector Flat-Head Screwdriver Philips Head Screwdriver Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MicroDome G2 Series 3MP Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV3555 Specs | | | Image Sensor | 3 MP CMOS | | Sensor Size | 1/3" | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color (Day Mode): 0.2 lux
Color Binning (Day Mode): 0.1 lux
B/W (Night Mode): 0.02 Lux, IR sensitive | | Resolution | Full FOV (H x V): 2048 x 1536
1/4: 1024 x 768 | | Dynamic Range | 69.5 dB | | Frame Rates | At Max Resolution: 21 fps (2048 x 1536)
Cropped: 30 fps (1920 x 1080), 41 fps (1280 x 1024)
Binning Mode: 46 fps (1024 x 768), 64 fps (960 x 540) | | Lens | 2.8 mm integrated, fixed iris, 1/2.5", f/2.0, board mount (M12)
Horizontal Field of View: 89° | | | | Optics | M12 lens and remote focus module | | Low Light Capability | Pixel Binning mode | | Picture-in-Picture | Simultaneous delivery of full field-of-view and zoomed images | | Shutter Speed | Programmable: Controls motion blur, 1 to 500 ms | | Motion Detection | Real-time, 1024 detection zones | | Privacy Masking | Unlimited | | Cropping | Flexible: Resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264 | | Backlight Compensation | Custom white balance | | Flicker Filter Control | 50/60 Hz selectable | | Image Rotation | CorridorView (90°, 180°, and 270° image rotation) | | Noise Reduction | Low light noise filter control | | Microphone | Integrated | | Efficiency | Bit rate and bandwidth limitation control
Bandwidth and storage saving by running at 1/4 resolution | | Sharpness | Selectable enhancement level | | Miscellaneous | Programmable resolution, brightness, saturation, gamma, tint, electronic PTZ (pan, tilt, zoom) | | | | Compression | G.711 PCM, 8 kHz | | Input | Microphone in | | | | Compression Type | H.264 (MPEG-4, part 10) / Motion JPEG
21 levels of quality | | Network Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP, QoS, IPv4, IPv6 | | Network Interface | 100Base-T Ethernet | | Multi-Streaming | 8 non-identical streams | | | | Industry Standards | ONVIF Profile S and PSIA conformant | | Listings | UL (CB) | | FCC Compliance | 47 CFR 15 Class A | | Environmental | RoHS, REACH, WEEE | | Agency and Regulatory Marks | (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 | | Vandal Resistance | IK-10 | | Ingress Protection | IP66 | | Country of Origin | Made in the USA | | | | Operating Temperature | 23 to 122°F (-5 to 50°C) | | Humidity | 0 to 90% (non-condensing) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | | | Alarm Input / Output | General purpose opto-coupled, 1 input /1 output | | PoE | PoE 802.3af, Class 3 | | Power Consumption | 5.59 W (DC power) | | | | Casing | Tamper-resistant housing, IK-10 impact-resistant in-ceiling mount with die-cast aluminum cover and 2" polycarbonate dome bubble | | Gimbal | 3-axis camera adjustment with 359° pan, 90° tilt, and 360° z-axis | | Dimensions (Ø x H) | 4 x 3.1" (10 x 7.9 cm) | | Weight | 0.7 lb ( 0.3 kg) |
