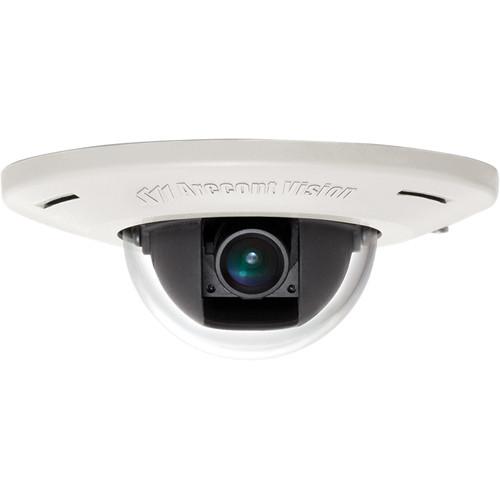

User Manual for Arecont Vision MicroDome Series 2.07MP Day Night Flush-Mounted Dome Camera with 4mm Fixed Lens Click to enlarge the picture
Contents of the user manual for the Arecont Vision MicroDome Series 2.07MP Day
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MicroDome Series 2.07MP Day contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The MicroDome Series 2.07MP Day/Night Flush-Mounted Dome Camera from Arecont Vision is a high-definition IP camera that delivers 1920 x 1080 resolution at 30 fps. H.264 and MJPEG compression formats maximize storage space, and a Wide Dynamic Range mode enables the camera to capture clear videos under difficult lighting conditions. Programmable motion detection and privacy masking features provide up to 1024 detection zones for customizing your viewing and alarm preferences.
The camera is constructed with an IK10-rated housing for impact and vandal resistance, and it is flush-mounted for inconspicuous surveillance. Digital pan, tilt, and zoom, as well as 180° image flip provides a variety of viewing angles. PoE technology enables you to power the camera using Ethernet cables for minimizing the amount of wires needed. A spring arm design makes installation easy and effortless, simply slide the camera through the hole and secure the magnetized cover ring with a single screw. The camera is ONVIF-compliant for a wide range of compatible devices. - Flush mounted for low profile design
- 1080p resolution with frame rates up to 30 fps
- True Day/Night functionality with a mechanical IR cut filter
- H.264 and MJPEG video compressions
- Motion detection and privacy mask features with up to 1024 detection zones
- Auto adjusts between WDR and LDR modes
- MoonLight mode provides extended exposure and noise cancellation
- Low light noise filter control
- Bit rate and bandwidth limitation control
- Backlight compensation and multi-matrix white balance
- 50/60 Hz selectable flicker control
- Digital pan, tilt, and zoom as well as 180° image flip
- Programmable resolution, brightness, saturation, gamma, sharpness, and tint
- ONVIF and PSIA conformant for maximum interoperability
In the Box Arecont Vision MicroDome Series 2.07MP Day/Night Flush-Mounted Dome Camera with 4mm Fixed Lens Limited 3-Year Warranty Brochure PDF 391.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MicroDome Series 2.07MP Day Night Flush-Mounted Dome Camera with 4mm Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV2456 Specs | | | Image Sensor | 1/3.2" 2.07 MP CMOS | | Resolution | 1080p | | Lens | 4mm fixed
Field of View: 59° (horizontal) | | Frame Rates | At Maximum Resolution: 30 fps (1920 x 1080)
Cropped: 41 fps (1280 x 1024) | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color: 0.3 lux at f/1.6
>Day / Night: 0 lux, IR sensitive | | Cropped (FOV) Resolution | 960 x 540 (H x V) | | Shutter Speed | 1 to 500 ms | | Dynamic Range | WDR up to 100 dB | | PTZ | Digital | | | | Compression Type | H.264 (MPEG-4, Part 10) / MJPEG
21 levels of quality | | Transmission Protocol | RTSP, RTP / TCP, RTP / UDP, HTTP, TFTP, DHCP | | Data Rate | Bit rate control from 100 Kb/s to 10 Mb/s 100Base-T Ethernet network interface | | Multi-Streaming | 8 non-identical streams | | Motion Detection | 1024 zones, privacy masking | | | | Standard | Industry Standard: PSIA and ONVIF conformant | | Listings | UL (CB) | | FCC Compliance | 47 CFR 15 Class A | | Environmental | RoHS, REACH, WEEE | | Marking | (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 | | | | Temperature | Operating Temperature: 23 to 140°F (-5 to 50°C)
Stable Image Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 90% (non-condensing) | | | | Input & Output | General purpose opto-coupled | | PoE | 802.3af, Class 3 | | Maximum Power Consumption | 5.59 W | | | | Casing | In-ceiling mount with die-cast aluminum cover and 2.00" (5.08 cm) polycarbonate dome bubble
vandal resistant | | Lens | 4 mm board mount (M12), fixed iris, f/1.6 mm aperture | | Gimbal | Easy 2 axis camera adjustment with 359° pan and 90° tilt | | Dimensions (Ø x H) | 4.00 x 3.10" (10.16 x 7.87 cm) | | Weight | 0.7 lb (0.3 kg) | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 5.8 x 5.8 x 3.7" |
