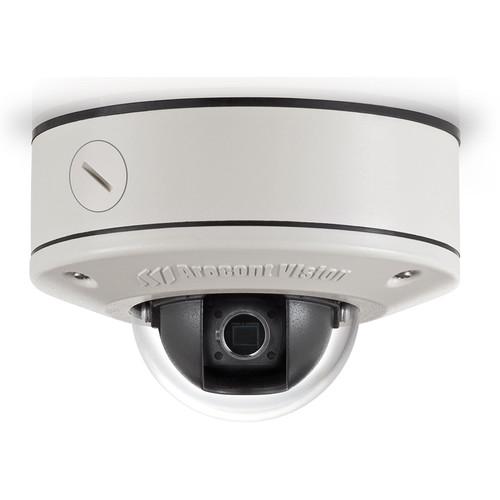

User Manual for Arecont Vision MicroDome Series 3MP Surface Mount Indoor Outdoor Vandal-Resistant Day Night Dome IP Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision MicroDome Series 3MP Surface
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision MicroDome Series 3MP Surface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The MicroDome Series 3MP Surface Mount Indoor/Outdoor Vandal-Resistant Day/Night Dome IP Camera (No Lens) from Arecont Vision is capable of capturing images with resolutions up to 2048 x 1536 at full video frame rates of 21 fps and 1920 x 1080 at 29 fps. It offers H.264 and MJPEG dual compression support with simultaneous streaming for reduced bandwidth and storage requirements, while delivering full frame rates and resolution without sacrificing image quality. With bit rate control, the CPU load is decreased at both the client (decompression) side and the server/storage side, allowing relatively lower bandwidth utilization and storage requirements as compared to MJPEG. Real Time Streaming Protocol (RTSP) allows for compatibility with media players such as Apple QuickTime, VLC, and others.The camera features integrated Day/Night capability with adaptive noise-cancellation that automatically switches from color to black/white operation to increase sensitivity at night or in unlit spaces. Additionally, the MoonLight mode can be activated in low-light areas for extended exposure to capture detailed images. The multi-streaming feature enables you to stream up to 8 concurrent non-identical streams with different frame rates, bit rates, resolutions, and picture quality. With the ability to digitally Pan-Tilt-Zoom (PTZ) images, you can view the details you need to see at any time, such as license plates, faces, and other objects of interest.You can easily control and fine tune your camera settings remotely with a user-friendly web interface management system that is loaded with easy-to-use menus. In addition, slider bars and numeric text boxes allow complete control of image settings such as video compression, H.264 stream settings, network options, motion detection, privacy mask settings, administration, and view camera details. The camera features color binning mode, privacy masking, 1024-zone motion detection, and flexible cropping.The MicroDome camera can be installed in the surface mount configuration both indoors and outdoors. Small but tough, this camera is housed in an IK10 rated vandal-resistant, IP66 rated weatherproof die-cast aluminum housing and comes with a 2" polycarbonate dome bubble. The camera can withstand dust and water ingress as well as forceful blows. This PSIA and PoE compliant surface mount camera measures 2.6" from the ceiling and is 4" wide and is suitable for use in retail stores, schools, banks, and office locations. - Enhanced Low-Light Performance: Captures images even in total darkness with IR corrected lens (sold separately)
- Motion detection and privacy masking with up to 1024 detection zones
- Programmable shutter speed to help control motion blur
- MoonLight mode for extended exposure and noise cancellation
- 1080p sensor capable of recording in up to 1920 x 1080 resolution at full video frame rates of 31 fps
- Binning mode for efficient low-light performance
- Supports H.264 and MJPEG dual compression with simultaneous streaming
- Flexible cropping (resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264)
- Low-light noise filter control
- Bit rate and bandwidth limitation control
- Backlight compensation and multi-matrix white balance
- 50/60 Hz selectable flicker control
- Electronic pan, tilt, zoom (PTZ) and image flip 180°
- Programmable resolution, brightness, saturation, gamma, sharpness, tint
- Easy installation / factory focused
- Supports PoE and requires no external power
- True day/night functionality with mechanical IR cut filter
- IK10 rated vandal-resistant and IP66 rated weatherproof housing
- Surface mount with die-cast aluminum housing and 2" polycarbonate dome bubble
- Gimbal: Easy 2-axis camera adjustment with 359° pan and 90° tilt
In the Box Arecont Vision MicroDome Series 3MP Surface Mount Indoor/Outdoor Vandal-Resistant Day/Night Dome IP Camera (No Lens) Ceiling Template 6 x Mounting Screw 3/8" NPT Male to 1/2" NPT Female Adapter Network Patch Cable 3 x Security Torx Dome Cover Fastener Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision MicroDome Series 3MP Surface Mount Indoor Outdoor Vandal-Resistant Day Night Dome IP Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV3455 Specs | Image Sensor | 3 mp CMOS | | Optical Format | 1/2.5" | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color: 0.3 lux
Color Binning: 0.15 lux
Day/Night: 0 Lux, IR sensitive | | Resolution | Full FOV Resolution: 2048 H x 1536 V
1/4 Resolution: 1024 H x 768 V | | Dynamic Range | 70.1 dB | | Lens | Sold separately | | Frame Rates | At Max Resolution: 21 fps (2048 x 1536)
Cropped: 29 fps (1920 x 1080) & 41 fps (1280 x 1024)
Binning Mode: 46 fps (1024 x 768) & 64 fps (960 x 540) | | Compression Type | H.264 (MPEG-4, Part 10) / Motion JPEG
21 levels of quality | | Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, TFTP, DHCP | | Data Rate | Bit rate control from 100 Kb/s to 10 Mb/s | | Network Interface | 100Base-T Ethernet network interface | | Multi-Streaming | 8 non-identical streams | | Compliance | Industry Standard: PSIA Conformant
Listings: UL (CB)
FCC Compliance: 47 CFR 15 Class A
Environmental: RoHS, REACH, WEEE
Markings: (CE) EN55022 Class A, EN55024,EN61000-3-2, EN61000-3-3, EN60950-1
Mechanical: IP66 (EN60529) | | Input/Output | General purpose opto-coupled | | Power Over Ethernet | PoE 802.3af, Class 3 | | Power Consumption | 5.59 W maximum | | Casing | IK-10 Vandal-resistant and tamper-resistant housing
Surface mount with die-cast aluminum housing and 2" polycarbonate dome bubble
IP66 weather proof
3/8" NPT with 1/2" NPT adapter | | Gimbal | Easy 2 axis camera adjustment with 359° pan and 90° tilt | | Operating Temperature | Operating: -40 to 122°F (-40 to 50°C) | | Stable Image Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 90% (non-condensing) | | Dimensions (Ø x H) | 4.0 x 3.1" (10.0 x 7.8 cm) | | Weight | 0.7 lb (0.3 kg) |
