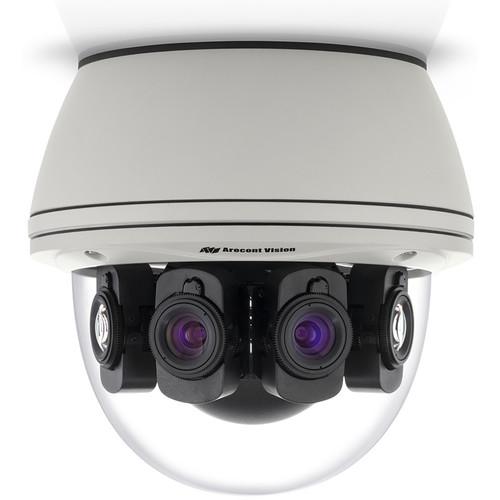

Product description The SurroundVideo G5 12MP Network Panoramic Dome Camera from Arecont Vision comes with four 3MP sensors, each with a 2048 x 1536 resolution, for a total resolution of 12MP. It features four factory-installed 5.3mm fixed IR corrected lenses with remote focus for improved depth of field and image clarity to provide precise performance from each individual sensor. For added flexibility, users can view the camera's four sensors individually or all images blended together for a full 180° panoramic view. The camera is factory aligned with a slight image overlap to ensure you never miss a thing. For an optimal image, each sensor can be adjusted individually for the optimal exposure ratio per sensor. Equipped with a day/night mechanical IR cut filter, the camera is suitable for applications with challenging lighting conditions. Once mounted, the operator can focus the camera remotely, eliminating the need to adjust the camera on site. Enclosed in an IP66-rated housing, the camera is suitable for use in both indoor and outdoor applications. The IK10-rated dome housing is resistant to vandalism, since it can withstand the equivalent of 120 lb of force. - 8192 x 1080 at 10 fps (maximum resolution)
- Individual or seamless situational awareness
- True day/night functionality with mechanical IR cut filter
- Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, and Multi-Streaming
- Four integrated motorized 5.3mm P-iris lenses with remote focus
- Adjustable two-axis camera gimbals with 360° pan and 90° tilt
- ±5° electrical vertical alignment to locate each sensor position
- Binning mode for strong low-light performance
- 12 to 48 VDC / 24 VAC PoE and auxiliary power
In the Box Arecont Vision SurroundVideo G5 12MP Outdoor Vandal-Resistant Network Panoramic Dome Camera Mounting Template 4 x Mounting Wood Screws 4 x Mounting Dry Wall Anchors RJ45 Female to Female Coupler Security L-Key Hex Key Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision SurroundVideo G5 12MP Outdoor Vandal-Resistant Network Panoramic Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV12585 Specs | Image Sensor | 4 x 3 MP, 1/3" CMOS | | Horizontal Field-of-View | 180° | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color (Day Mode): 0.2 lux
Color Binning (Day Mode): 0.1 lux
B&W (Night Mode): 0.02 lux, IR sensitive | | Resolutions | Full Field of View (H x V):
Total: 8192 x 1536
Per Sensor: 2048 x 1536
1/4 Resolution (H x V):
Total: 4096 x 768
Per Sensor: 1024 x 768 | | Dynamic Range | 69.5 dB | | Frame Rates | At Max Resolution: 12 fps at 8192 x 1080
1/4" Resolution: 30 fps at 4096 x 768
Binning Mode: 29 fps at 4096 x 768 | | | | Lens Type | 4 x remote focus P-iris, IR corrected lens | | Focal Length | 5.3mm | | Aperture | f/1.2 | | Horizontal Field-of-View | 47° | | Lens Mount | CS | | Maximum Distance | Distance to Pixel Density:
30 ppf (98 ppm): 82' (25 m)
60 ppf (197 ppm): 39.5' (12 m)
90 ppf (295 ppm): 24.5' (7.5 m) | | | | Optics | Remote focus and P-iris control | | Low Light Capability | Pixel Binning mode | | Picture-in-Picture | Simultaneous delivery of full field of view and zoomed images | | Shutter Speed | Programmable; controls motion blur | | Motion Detection | Real time, 1024 detection zones per sensor | | Privacy Masking | 1024 zones (per sensor) | | Cropping | Flexible: Resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264 | | Backlight Compensation | Supported | | Flicker Frequency | 50/60 Hz selectable | | Sensor Positions | ±5° Digital Vertical Alignment to adjust images | | Image Rotation | 180° image flip | | Efficiency | Bit rate and bandwidth limitation control
Bandwidth and storage savings by running at 1/4 resolution | | Sharpness | Selectable enhancement level | | Additional Features | Programmable resolution, brightness, saturation, gamma, tint
Electronic pan, tilt, zoom (PTZ) | | | | Compression | H.264 (MPEG-4, Part 10) / MJPEG
21 levels of quality | | Network Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP, IPv4 | | Network Interface | 100Base-T Ethernet | | Multi-Streaming | 8 non-identical streams (2 per sensor) | | | | Alarm Input / Output | General purpose opto-coupled, 1 x input / 1 x output | | Power Over Ethernet | PoE 802.3af, Class 3 | | Power Input | Auxiliary: 18 to 48 VDC, 24 VAC
Heater: 12 to 35 VDC / 24 VAC (separate power required, not included) | | Maximum Power Consumption | Auxiliary: 11.2 W
Heater: 11 W (DC) / 13 W (AC) | | | | Listings | UL (CB) | | FCC Compliance | 47 CFR 15 Class A | | Environmental | RoHS, REACH, WEEE | | Marking | (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, IK10 (EN62262), IP66 (EN60529) | | | | Operating Temperature | Camera:
-40 to 122°F (-40 to 50°C) with heater
32 to 122°F (0 to 50°C) without heater
Motorized Lens:
-4 to 122°F (-20 to 50°C) | | Humidity | 0 to 90% (non-condensing) | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | Heater | Switch On/Off:
On: 62.6°F (17°C)
Off: 86°F (30°C) | | Vandal Resistance | IK10 | | Ingress Protection | IP66 | | | | Casing | Die-cast aluminum chassis with 5.5" (140 mm) polycarbonate dome bubble | | Gimbal | Adjustable, 2-axis with 360° pan, 90° tilt | | Dimensions (Ø x H) | Camera: 6.9 x 6.55" (175 x 166 mm)
Bubble Only: 5.5 x 3.4" (140 x 87 mm) | | Weight | 3.5 lb (1.6 kg) |
