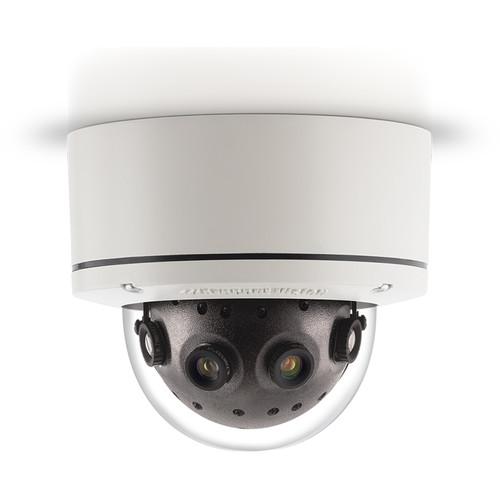

Product description The Arecont Vision SurroundVideo G5 20MP Mini Dome IP Camera comes with four 5MP sensors, each with a 2560 x 1920 resolution, for a total resolution of 20MP. It features four 6.7mm fixed lenses that provide a full 180° panoramic view. This camera has the ability to zoom into multiple regions of interest. It supports dual encoding in H.264 and MJPEG formats. Enclosed in an IP66-rated housing, the camera is suitable for use in both indoor and outdoor applications. The IK10-rated dome housing is suitable for withstanding vandalism. The camera is also PoE-capable to minimize cable installation. - True day/night functionality with electro-mechanical IR cut filter
- Four integrated 6.7mm M12 lenses
- Dual encoder supports H.264 and MJPEG formatting with multi-streaming
- Forensic Zooming offers live zooming or zooming in after an event while recording full field of view in HD
- Binning mode for strong low-light performance
- Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, and Multicasting
- Supports PoE and 12 to 48 VDC / 24 VAC auxiliary power
- Easily adjustable two-axis camera gimbals with 360° pan and 90° tilt
- ±5° electrical vertical alignment to locate each sensor position
- IP66-rated for indoor as well as outdoor applications
- IK10-rated impact-resistant housing
In the Box Arecont Vision SurroundVideo G5 20MP 180° Panoramic Mini Dome IP Camera with Night Vision Dome Cover Mounting Plate Input / Output Cable AC & DC Auxiliary Power Cable Software CD Mounting Template Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision SurroundVideo G5 20MP 180° Panoramic Mini Dome IP Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV20585 Specs | Image Sensor | 4 x 5 MP, 1/2.5" CMOS | | Horizontal Field-of-View | 180° | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color (Day Mode): 0.3 lux
Color Binning (Day Mode): 0.15 lux
B/W (Night Mode): 0.03 lux, IR sensitive | | Resolutions | Full Field of View:
Total: 10,240 (H) x 1920 (V)
Per Sensor: 2560 (H) x 1920 (V)
1/4 Resolution:
Total: 5120 (H) x 960 (V)
Per Sensor: 1280 (H) x 960 (V) | | Dynamic Range | 70.1 dB | | Frame Rates | At Max Resolution: 7 fps (10,240 x 1920))
1/4" Resolution: 10 fps (5120 x 960)
Binning Mode: 24 fps (5120 x 960) | | Lens | 4 x 6.7mm f/2 | | Lens Mount | M12 | | | | Optics | Pixel Binning mode | | Shutter Speed | Programmable; controls motion blur
1 to 500 ms | | Motion Detection | Real-time, privacy mask, 1024 detection zones per sensor | | Mode | MoonLight Mode: Extended exposure and proprietary noise cancellation | | Cropping | Flexible: Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264 | | Backlight Compensation | Auto multi-matrix white balance | | Flicker Frequency | 50/60 Hz selectable | | Position Sensor | ±5° digital vertical alignment to adjust images | | Noise Reduction | Low-light noise filter control | | Efficiency | Bit rate and bandwidth limitation control
Bandwidth and storage savings by running at 1/4 resolution | | Sharpness | Selectable enhancement level | | Additional Features | Programmable resolution, brightness, saturation, gamma, tint
Electronic pan, tilt, zoom (PTZ)
Simultaneous delivery of full field-of-view and zoomed images | | | | Compression | H.264 (MPEG-4, Part 10) / MJPEG
21 levels of quality | | Network Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP | | Network Interface | 100Base-T Ethernet | | Multi-Streaming | 8 non-identical streams (2 per sensor) | | | | Listings | UL (CB) | | FCC Compliance | 47 CFR 15 Class A | | Environmental | RoHS, REACH, WEEE | | Marking | (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, IP66 (EN60529) | | Protection Rating | IP66 water/dust protection rating
IK10 impact-resistant polycarbonate dome | | | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Humidity | 0 to 90% (non-condensing) | | Storage Temperature | -40 to 140°F / -40 to 60°C | | | | Alarm Input / Output | General purpose opto-coupled, 1 input / 1 output | | Power Over Ethernet | PoE 802.3af, Class 3 | | Auxiliary Power Input | 18 to 48 VDC, 24 VAC | | Maximum Power Consumption | 12.1 W (DC power) | | | | Casing | Die-cast aluminum cover and 4" / 10.2 cm polycarbonate dome bubble | | Gimbal | Adjustable, 2-axis with 360° pan, 90° tilt | | Dimensions (Ø x H) | Camera: 5.8 x 5" / 146.7 x 128 mm
Bubble Only: 4 x 2.4" / 102 x 62 mm | | Weight | 3 lb / 1.4 kg | | | | Package Weight | 3.95 lb | | Box Dimensions (LxWxH) | 6.9 x 6.9 x 5.9" |
