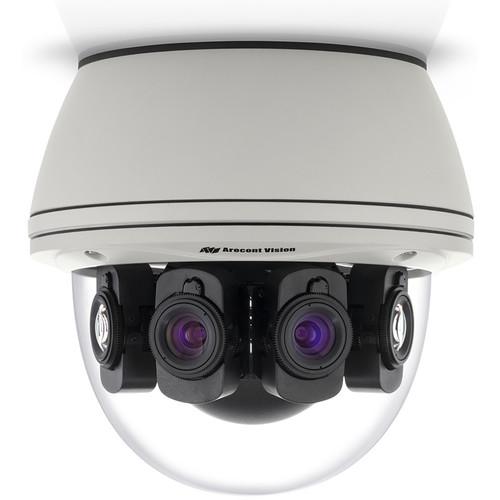

Product description The SurroundVideo G5 5MP Network Dome Camera from Arecont Vision comes with four 1.2MP sensors, each with a 1280 x 960 resolution, for a total resolution of 5MP. It features four factory-installed 5.6mm fixed IR-corrected lenses for improved depth of field and image clarity to provide precise performance from each individual sensor. For added flexibility, users can view the camera's four sensors individually or as a smooth transition of all images blended together for a full 180° panoramic view. The camera is factory-aligned with a slight image overlap to ensure you never miss a thing. For an optimal image, each sensor can be adjusted individually for the optimum exposure ratio per sensor. Equipped with a day/night mechanical IR cut filter, the camera is suitable for applications with challenging lighting conditions. Once mounted, the operator can focus the camera remotely, eliminating the need to adjust the camera on-site. The camera features STELLAR (Spatio Temporal Low Light Architecture), which reduces motion blur, noise, and storage requirements, while enhancing contrast and allowing color imaging in near complete darkness. Enclosed in an IP66-rated housing, the camera is suitable for use in both indoor and outdoor applications. The IK10-rated dome housing is suitable for withstanding vandalism, since it can withstand the equivalent of 120 lb of force. The camera is also PoE-capable to minimize cable installation. - Individual or seamless situational awareness
- True day/night functionality with mechanical IR cut filter
- Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, and Multi-Streaming
- Four integrated motorized 5.6mm P-iris lenses with remote focus
- Easily adjustable two-axis camera gimbals with 360° pan and 90° tilt
- ±5° electrical vertical alignment to locate each sensor position
- STELLAR (Spatio Temporal Low Light Architecture) reduces motion blur, noise, and storage requirements
- 12 to 48 VDC / 24 VAC PoE and auxiliary power
In the Box Arecont Vision SurroundVideo G5 5MP Outdoor Vandal-Resistant Network Dome Camera with STELLAR Mounting Template 4 x Mounting Wood Screws 4 x Mounting Dry Wall Anchors RJ45 Female to Female Coupler Security L-Key Hex Key Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision SurroundVideo G5 5MP Outdoor Vandal-Resistant Network Dome Camera with STELLAR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV5585 Specs | Image Sensor | 4 x 1.2 MP, 1/3" CMOS | | Horizontal Field-of-View | 180° | | Pixel Pitch | 3.75 μm | | Minimum Illumination | Color (Day Mode): 0.02 lux
B/W (Night Mode): 0.002 lux, IR sensitive | | Resolutions | Full Field of View (H x V):
Total: 5120 x 960
Per Sensor: 1280 x 960
1/4 Resolution (H x V):
Total: 2560 x 480
Per Sensor: 640 x 480 | | Dynamic Range | 83.5 dB | | Frame Rates | At Max Resolution: 12 fps (5120 x 960)
1/4" Resolution: 30 fps (2560 x 480) | | | | Lens Type | 4 x Remote focus P-iris, IR-corrected lenses | | Focal Length | 5.6mm | | Aperture | f/1.2 | | Horizontal Field-of-View | 47° | | Lens Mount | CS | | Maximum Distance | Distance to Pixel Density:
30 ppf (98 ppm): 50' / 15.2 m
60 ppf (197 ppm): 23' / 7 m
90 ppf (295 ppm): 12' / 3.7 m | | | | Optics | Remote focus and P-iris control | | Low Light Capability | STELLAR (Spatial Temporal Low Light Architecture) | | Picture-in-Picture | Simultaneous delivery of full field of view and zoomed images | | Shutter Speed | Programmable; controls motion blur | | Motion Detection | Real-time, 1024 detection zones per sensor | | Privacy Masking | 1024 zones (per sensor) | | Cropping | Flexible: Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264 | | Backlight Compensation | Supported | | Flicker Frequency | 50/60 Hz selectable | | Position Sensor | ±5° Digital Vertical Alignment to adjust images | | Image Rotation | 180° image flip | | Efficiency | Bit rate and bandwidth limitation control
Bandwidth and storage savings by running at 1/4 resolution | | Sharpness | Selectable enhancement level | | Additional Features | Programmable resolution, brightness, saturation, gamma, tint
Electronic pan, tilt, zoom (PTZ) | | | | Compression | H.264 (MPEG-4, Part 10) / MJPEG
21 levels of quality | | Network Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP, IPv4 | | Network Interface | 100Base-T Ethernet | | Multi-Streaming | 8 non-identical streams (2 per sensor) | | | | Alarm Input / Output | General purpose opto-coupled, 1 x input / 1 x output | | Power Over Ethernet | PoE 802.3af, Class 3 | | Power Input | Auxiliary: 18 to 48 VDC, 24 VAC
Heater: 12 to 35 VDC / 24 VAC (separate power required, not included) | | Maximum Power Consumption | Auxiliary: 10 W
Heater: 11 W (DC) / 13 W (AC) | | | | Listings | UL (CB) | | FCC Compliance | 47 CFR 15 Class A | | Environmental | RoHS, REACH, WEEE | | Marking | (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, IK10 (EN62262), IP66 (EN60529) | | | | Operating Temperature | Camera:
-40 to 122°F / -40 to 50°C with heater
32 to 122°F / 0 to 50°C without heater
Motorized Lens:
-4 to 122°F (-20 to 50°C) | | Humidity | 0 to 90% (non-condensing) | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Heater | Switch On/Off:
On: 62.6°F / 17°C
Off: 86°F / 30°C | | Rating | IP66 and IK10 | | | | Casing | Die-cast aluminum chassis with 5.5" / 140 mm polycarbonate dome bubble | | Gimbal | Adjustable, 2-axis with 360° pan, 90° tilt | | Dimensions (Ø x H) | Camera: Ø6.9 x 6.55" / Ø175 x 166 mm
Bubble Only: Ø5.5 x 3.4" / Ø140 x 87 mm | | Weight | 3.5 lb / 1.6 kg |
