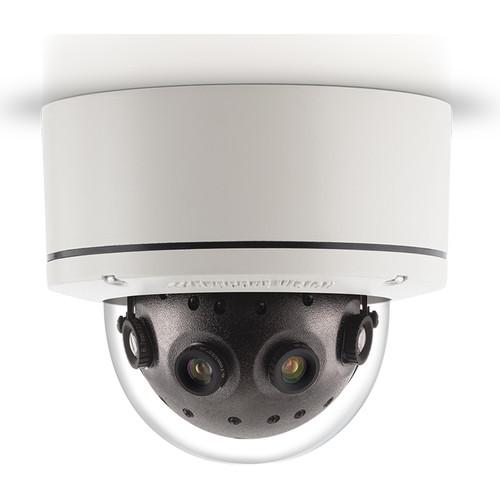

User Manual for Arecont Vision SurroundVideo G5 Mini 12MP Outdoor 180° Panoramic Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision SurroundVideo G5 Mini 12MP
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision SurroundVideo G5 Mini 12MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The SurroundVideo G5 Mini 12MP Outdoor 180° Panoramic Network Dome Camera from Arecont Vision features four 1/3" progressive scan sensors and four 5.4mm fixed lenses to capture images at a maximum resolution of 8192 x 1536. Enclosed in an IP66- and IK10-rated housing, the camera is suitable for both indoor and outdoor applications. The camera offers +/-5° digital vertical alignment to locate each sensor position, allowing for easy image adjustment. In addition, the camera features the Pixel Binning mode for enhanced low-light performance. - 12MP, 8192 x 1536 resolution
- True day/night functionality with electro-mechanical IR cut filter
- Forensic Zooming: zoom live or after the event while recording full field of view in HD
- Can be powered via a PoE connection or 18 to 48 VDC / 24 VAC power supply
- Easily adjustable 2-axis camera gimbal with 360° pan and 90° tilt
- IP66-rated weather-resistant and IK10-rated vandal-resistant enclosure
- Programmable shutter speed for controlling motion blur
- Real-time motion detection with 1024 detection zones per sensor and privacy masking
- MoonLight mode for extended exposure and noise cancellation
- Flexible Cropping: resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264
- Backlight Compensation: auto multi-matrix white balance
- 50/60 Hz selectable flicker control
- Low-light noise filter control
- Bit rate and bandwidth limitation control
- Bandwidth and storage savings by running at 1/4 resolution
- Sharpness: selectable enhancement level
- Programmable resolution, brightness, saturation, gamma, and tint
- Electronic pan, tilt, and zoom (PTZ)
- Simultaneous delivery of full field of view and zoomed images
In the Box Arecont Vision SurroundVideo G5 Mini 12MP Outdoor 180° Panoramic Network Dome Camera Dome Cover Mounting Plate Installation Hardware Security L-Key Mounting Template I/O Cable AC and DC Auxiliary Power Cable Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision SurroundVideo G5 Mini 12MP Outdoor 180° Panoramic Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV12585 Specs | | | Image Sensor | 12 MP (4 x 3 MP) | | Horizontal Field-of-View | 180° | | Optical Format | 1/3" progressive scan | | Shutter Speed | Programmable: 1 to 500 ms | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color: 0.2 lux
Color Binning: 0.1 lux
True Day/Night: 0.02 lux | | Resolution (H x V) | Full FOV
Total: 8192 x 1536
Per Sensor: 2048 x 1536
1/4 Resolution
Total: 4096 x 768
Per Sensor: 1024 x 768 | | Dynamic Range | 69.5 dB | | Frame Rates | Full Resolution: 10 fps (8192 x 1536)
1/4 Resolution: 14 fps (4096 x 768)
Binning Mode: 29 fps (5120 x 960) | | Lens | 4 x 5.4mm fixed, M12, f/2.0, 1/3.2" | | | | Compression Type | H.264 (MPEG-4, Part 10)/MJPEG, 21 levels of quality | | Transmission Protocol | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP | | Network Interface | 100Base-T Ethernet | | Multi-Streaming | 8 non-identical streams (2 per sensor) | | Compliance | Listings: UL (CB)
FCC Compliance: 47 CFR 15 Class A
Environmental: RoHS, REACH, WEEE
Markings: (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1
Mechanical: IP66 (EN60529) | | | | Alarm I/O | General purpose opto-coupled, 1 input / 1 output | | Power Over Ethernet | PoE 802.3af, Class 3 | | Auxiliary Power Required | 18 to 48 VDC, 24 VAC | | Maximum Power Consumption | 12.1 W maximum DC power | | | | Protection Features | IP66 water/dust protection rating
IK10 impact-resistant polycarbonate dome | | Operating Temperature | -40 to 122°F / -40 to +50°C | | Humidity | 0 to 90% (non-condensing) | | Storage Temperature | -40 to 140°F / -40 to +60°C | | | | Casing | Die-cast aluminum cover and 4" / 101.6 mm polycarbonate dome bubble | | Gimbal | Easily adjustable, 2-axis with 360° pan and 90° tilt | | Dimensions (Ø x H) | Unit: 5.77 x 5" / 146.7 x 128 mm
Bubble Only: 4 x 2.4" / 102 x 62 mm | | Weight | 3 lb / 1.36 kg |
