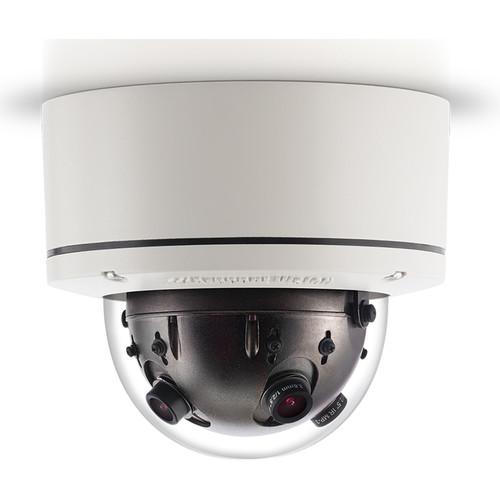

Product description The SurroundVideo G5 Mini 20MP Outdoor 360° Panoramic Network Dome Camera from Arecont Vision features four 1/2.5" CMOS scan sensors and four 3.6mm fixed lenses to capture images at a maximum resolution of 10,240 x 1920. Enclosed in an IP66- and IK10-rated housing, the camera is suitable for both indoor and outdoor applications. The camera offers +/- 7° mechanical tilt adjustment to locate each sensor angle. In addition, the camera features the Pixel Binning mode for enhanced low-light performance. - 20MP, 10,240 x 1920 resolution
- True day/night functionality with electro-mechanical IR cut filter
- Forensic Zooming: zoom live or after the event while recording full field of view in HD
- Can be powered via a PoE connection or 18 to 48 VDC / 24 VAC power supply
- Easily adjustable 2-axis camera gimbal with 360° pan and 90° tilt
- IP66-rated weather-resistant and IK10-rated vandal-resistant enclosure
- Programmable shutter speed for controlling motion blur
- Real-time motion detection with 1024 detection zones per sensor and privacy masking
- MoonLight mode for extended exposure and noise cancellation
- Flexible Cropping: resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264
- Backlight Compensation: auto multi-matrix white balance
- 50/60 Hz selectable flicker control
- Low-light noise filter control
- Bit rate and bandwidth limitation control
- Bandwidth and storage savings by running at 1/4 resolution
- Sharpness: selectable enhancement level
- Programmable resolution, brightness, saturation, gamma, and tint
- Electronic pan, tilt, and zoom (PTZ)
- Simultaneous delivery of full field of view and zoomed images
In the Box Arecont Vision SurroundVideo G5 Mini 20MP Outdoor 360° Panoramic Network Dome Camera Dome Cover Mounting Plate Input / Output Cable AC & DC Auxiliary Power Cable Software CD Mounting Template Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision SurroundVideo G5 Mini 20MP Outdoor 360° Panoramic Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV20565 Specs | Image Sensor | 4 x 5 MP, 1/2.5" CMOS | | Horizontal Field-of-View | 360° | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color: 0.3 lux
Color Binning: 0.15 lux
True Day/Night: 0.03 lux | | Resolutions | Full Field of View:
Total: 10,240 (H) x 1920 (V)
Per Sensor: 2560 (H) x 1920 (V)
1/4 Resolution:
Total: 5120 (H) x 960 (V)
Per Sensor: 1280 (H) x 960 (V) | | Dynamic Range | 70.1 dB | | Frame Rates | At Max Resolution: 7 fps (10,240 x 1920))
1/4" Resolution: 10 fps (5120 x 960)
Binning Mode: 24 fps (5120 x 960) | | Lens | 4 x 3.6mm, f/1.8 | | Lens Mount | M12 | | Shutter Speed | 1 to 500 ms | | | | Compression | H.264 (MPEG-4, Part 10) / MJPEG
21 levels of quality | | Network Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP | | Network Interface | 100Base-T Ethernet | | Multi-Streaming | 8 non-identical streams (2 per sensor) | | | | Listings | UL (CB) | | FCC Compliance | 47 CFR 15 Class A | | Environmental | RoHS, REACH, WEEE | | Marking | (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, IP66 (EN60529) | | Protection Rating | IP66 water/dust protection rating
IK10 impact-resistant polycarbonate dome | | | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Humidity | 0 to 90% (non-condensing) | | Storage Temperature | -40 to 140°F / -40 to 60°C | | | | Alarm Input / Output | General purpose opto-coupled, 1 input / 1 output | | Power Over Ethernet | PoE 802.3af, Class 3 | | Auxiliary Power Input | 18 to 48 VDC, 24 VAC | | Maximum Power Consumption | 12.1 W (DC power) | | | | Casing | Die-cast aluminum cover and 4" / 10.2 cm polycarbonate dome bubble | | Gimbal | Adjustable, 2-axis with 360° pan, 90° tilt | | Dimensions (Ø x H) | Camera: 5.8 x 5" / 146.7 x 128 mm
Bubble Only: 4 x 2.4" / 102 x 62 mm | | Weight | 3 lb / 1.4 kg | | | | Package Weight | 3.95 lb | | Box Dimensions (LxWxH) | 7.1 x 6.9 x 5.9" |
