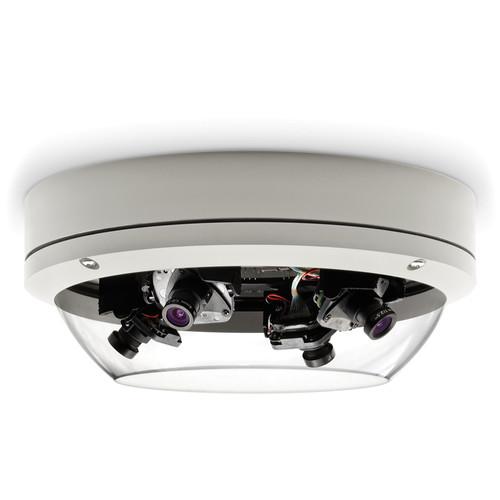

Product description The Arecont Vision SurroundVideo Omni AV20175DN-NL 20MP H.264 All-in-One Omni-Directional User-Configurable Multi-Sensor Day/Night Indoor/Outdoor Dome IP Camera integrates four 5MP imagers with IR corrected lenses (available separately) into a single IP66-rated/IK10 impact-resistant dome housing. The camera provides resolutions up to 2048 x 1536 (per sensor) and forensic zooming for details in live and recorded video. The camera's track design allows up to four individual sensor gimbals to be independently placed in nearly any configuration, including at the intersection of hallways or in a 270° view at the corner of a building. H.264 compression reduces bandwidth and storage requirements while delivering full frame rates and full resolution without sacrificing the image quality. - Omni-directional track with four 5MP sensors
- Can be used with fixed lenses from 2.8 to 16mm (available separately)
- Up to 4 individual camera gimbals can be independently placed in any orientation around a 360° track with extra positions for looking straight down
- 270° field of view capable
- Maximum frame rate of up to 3.5 fps at 10240 x 1920 resolution
- True day/night functionality with mechanical IR cut filter
- Pixel binning mode for strong low-light performance
- Forensic Zooming offers live zooming or zooming in after an event while recording full field-of-view in HD
- Dual encoder supports H.264 & MJPEG (multi-streaming)
- Privacy mask, motion detection, flexible cropping, bit rate and bandwidth limit control, and multi-streaming
- On-camera real-time motion detection with up to 1,024 detection zones (per sensor)
- AE (Auto Exposure) and AGC (Auto Gain Control) >120 dB
- Auto multi-matrix white balance
- 50 / 60 Hz selectable flicker control
- Offers electronic PTZ (Pan, Tilt, Zoom)
- Programmable shutter speed to help control motion blur
- MoonLight Mode allows extended exposure and proprietary noise cancellation
- Programmable resolution, brightness, saturation, gamma, sharpness, tint
- Simultaneous delivery of full field-of-view and zoomed images
- Saves bandwidth and storage by running at 1/4 resolution
- Supports PoE and 12 to 48 VDC / 24 VAC auxiliary power
- Discrete, low-profile housing
- IP66 outdoor-rated and IK10 impact-resistant housing
In the Box Arecont Vision SurroundVideo Omni AV20175DN-NL 20MP H.264 All-in-One Omni-Directional User-Configurable Multi-Sensor Day/Night Indoor/Outdoor Dome IP Camera (No Lens) Ceiling Template 3 x Mounting Screw (#6x1" for Wood or Sheet Metal) 3 x Drywall / Masonry Mounting Anchor Ceiling Gasket Network Patch Cable Security Torx Tool Power Cable Aux Power Cord I/O Cable Digital Input & Output Adapter Installation Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision SurroundVideo Omni AV20175DN-NL 20MP H.264 All-in-One Omni-Directional User-Configurable Multi-Sensor Day Night Indoor Outdoor Dome IP Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV20175 Specs | | | Image Sensor | 4 x 5 MP CMOS | | Optical Format | 1/3.2" | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color: 0.3 lux
Color Binning: 0.15 lux
Day/Night: 0 lux, IR sensitive | | Resolution | Full Field of View:
Total (H x V): 10240 x 1920
Per Sensor (H x V): 2560 x 1920
1/4 Resolution:
Total (H x V): 5120 x 960
Per Sensor (H x V): 1280 x 960 | | Dynamic Range | 70.1 dB | | Video Frame Rate | Maximum 3.5 fps (10240 x 1920)
11 fps (5120 x 960) | | | | Compression Type | H.264 (MPEG-4, Part 10)/Motion JPEG
21 levels of quality | | Network Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP | | Network Interface | 100Base-T Ethernet | | Multi-Streaming | 8 non-identical streams (2 per sensor) | | | | Motion Detection | Up to 1,024 detection zones (per sensor) | | Cropping | Flexible Cropping: Resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264 | | Control | Flicker Control: 50/60 Hz selectable | | PTZ | Electronic | | Shutter Speed | Programmable | | | | Listings | UL (CB) | | FCC Compliance | 47 CFR 15 Class A | | Environmental | RoHS, REACH, WEEE | | Protection Rating | IP66 water/dust protection rating
IK10 impact-resistant | | | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Humidity | 0 to 90% (non-condensing) | | Stable Image Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | | | Input/Output | General purpose opto-coupled | | Power Over Ethernet | PoE 802.3af, Class 3 | | Auxiliary Power Input | 12 to 48 VDC and 24 VAC | | Maximum Power Consumption | 14 W (auxiliary power) | | | | Casing | Die-cast aluminum chassis with polycarbonate dome bubble
IP66 weatherproof standard impact-resistant, IK10 rated | | | | Package Weight | 4.15 lb | | Box Dimensions (LxWxH) | 8.5 x 8.5 x 5.2" |
