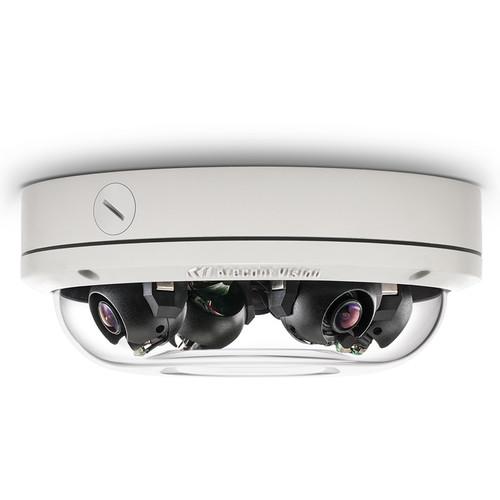

User Manual for Arecont Vision SurroundVideo Omni G2 12MP Outdoor Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision SurroundVideo Omni G2 12MP
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision SurroundVideo Omni G2 12MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The Arecont Vision SurroundVideo Omni G2 12MP Outdoor Network Dome Camera comes with four 3MP sensors, each with a 2048 x 1536 resolution, for a total resolution of 12MP (lenses available separately). The camera incorporates four individual gimbals, allowing each of the sensors to be placed in any orientation around a 360° track for numerous viewing angles. Once the camera is mounted, the operator can focus and position it remotely, eliminating the need to adjust the camera on-site.
Equipped with a day/night mechanical IR cut filter, the camera is designed to capture high-quality images regardless of time of day. When lighting is poor, Binning Mode boosts the camera's low-light performance by combining pixels so that more light can be collected. SNAPstream (Smart Noise Adaptation and Processing) technology and H.264 encoding reduce bandwidth use without sacrificing video quality.
The camera is enclosed in an IP66-rated weatherproof and IK10-rated impact-resistant dome housing for use outdoors and in high-risk areas. Power can be supplied via a single Power-over-Ethernet network cable or an 18 to 48 VDC / 24 VAC power supply. The AV IP Utility tool can be used to quickly configure multiple cameras at one time. The camera is ONVIF compliant, ensuring compatibility with a wide range of network video devices. - Four 3-Axis gimbals can be placed independently in any orientation around a 360° track
- Multiple lens options from 2.1 to 16mm (available separately)
- SNAPstream technology reduces bandwidth use
- True day/night functionality with mechanical IR cut filter
- Forensic Zooming: Zoom live or after the event
- Privacy Masking, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, and Multi-Casting
- PoE and 18 to 48 VDC / 24 VAC auxiliary power
- Outdoor-rated IP66 and IK10 impact-resistant housing
- Supports a variety of mounting options (available separately)
- Binning mode for low-light performance
In the Box Arecont Vision SurroundVideo Omni G2 12MP Outdoor Network Dome Camera (No Lens) Mounting Template Mounting Hardware Ceiling Gasket Aux Power Cord Network Patch Cable Security L-Key Tether Plate Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision SurroundVideo Omni G2 12MP Outdoor Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV12275 Specs | | | Sensor | 4 x 3 MP 1/3" CMOS | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.1 Lux
B&W: 0.02 Lux | | Shutter Speed | 1/1000 to 1/2 Seconds | | | | Streaming Resolution | 8192 x 1536 at 10 fps
4096 x 768 at 29 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 8 Streams | | Automatic Gain Control | Yes | | | | Security | HTTPS | | Supported Protocols | DHCP, HTTP, IPv4/v6, ONVIF Profile S, RTP, RTSP, TCP, UDP | | | | Event Trigger | None | | Data Streaming | Yes | | | | Recording Media | None | | Pan/Tilt | Remote Pan: 360°
Remote Tilt: 90° | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45 | | Certifications | IEC60950-1, UL, EN 55024, FCC (Part 15 Class A), as per Manufacturer | | Internal Storage | None | | Power Source | DC, PoE 802.3af | | Power Consumption | 14 W | | Material of Construction | Aluminum, Polymer | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
