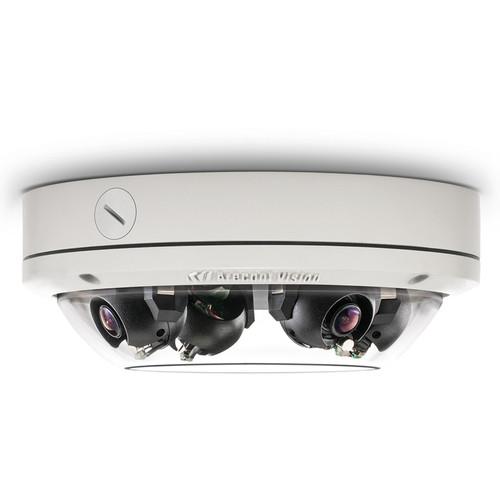

User Manual for Arecont Vision SurroundVideo Omni G2 Series 12MP Dome Camera with 4 Sensors Click to enlarge the picture
Contents of the user manual for the Arecont Vision SurroundVideo Omni G2 Series
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision SurroundVideo Omni G2 Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The multi-sensor design of the SurroundVideo Omni G2 Series 12MP Dome Camera from Arecont Vision provides maximum viewing flexibility, enabling you to reduce the number of cameras required to cover your desired field of view. It consists of four sensors, each with a 2048 x 1536 resolution, for a total resolution of 12MP. The sensors use 2.8mm lenses for four 88° fields of view, and the camera can capture a 270° total field of view. With four individual gimbals, each of the sensors can be placed in any orientation around a 360° track for numerous viewing angles, and remote focus capability offers easy adjustments to your viewing field during installation. The camera is constructed with an IP66-rated weatherproof and IK10-rated impact-resistant dome housing for use outdoors and in high-risk areas.
The camera features true wide dynamic range, even at full resolution, allowing you to capture clear images in shaded and bright light conditions simultaneously. Additionally, programmable resolution, brightness, saturation, gamma, sharpness, and tint enable you to configure your camera based on various environments. Furthermore, a MoonLight Mode provides extended exposure and maximum noise cancellation, and a programmable shutter speed assists in controlling motion blur. There are up to 1024 detection zones per sensor for real-time motion detection, and privacy masking allows you to customize your field of view. The camera can be powered using PoE technology for a minimum of wires during setup or it can be powered with an included power adapter. - Four 3MP sensors provide a total resolution of 12MP
- Up to 4 individual camera gimbals can be independently placed in any orientation around a 360° track
- Each sensor has a 2.8mm lens for four 88° horizontal fields of view
- A mechanical IR cut filter provides true day/night functionality
- True wide dynamic range allows you to capture clear images in varied lighting
- Binning mode for strong performance in low-light environments
- Simultaneous delivery of full field of view and zoomed images
- Programmable shutter speed controls motion blur from 1 ms up to 500 ms
- Real-time motion detection in up to 1024 detection zones per sensor
- Unlimited privacy masking for customizing your field of view
- MoonLight mode for extended exposure and noise cancellation
- Flexible cropping down to 1x1 pixel for JPEG formatting and 2x2 pixels for H.264 formatting
- Auto multi-matrix white balance and backlight compensation
- 50/60 Hz selectable flicker control
- Auto switch adjustment between WDR and LDR modes
- Bit rate and bandwidth limitation control for efficiency
- Bandwidth and storage savings by running at 1/4 resolution
- Selectable sharpness enhancement levels
- Programmable resolution, brightness, saturation, gamma, and tint
- Forensic zooming allows you to zoom live video or after the event while you are recording
- IP66-rated and IK10-rated housing for use outdoors and in high risk areas
In the Box Arecont Vision SurroundVideo Omni G2 Series 12MP Dome Camera with 4 Sensors Mounting Template 3 x Mounting Wood Screws 3 x Mounting Dry Wall Anchors Ceiling Gasket Aux Power Cord Network Patch Cable Security L-Key Tether Plate Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision SurroundVideo Omni G2 Series 12MP Dome Camera with 4 Sensors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV12276 Specs | Image Sensor | 4 x 3 MP 1/3.2" CMOS | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color (Day Mode): 0.2 lux
Color Binning (Day Mode): 0.1 lux
B/W (Night Mode): 0.02 lux, IR sensitive | | Resolutions | Full Field of View:
Total: 8192 (H) x 1536 (V)
Per Sensor: 2048 (H) x 1536 (V)
1/4 Resolution:
Total: 4096 (H) x 768 (V)
Per Sensor: 1024 (H) x 768 (V) | | Dynamic Range | 100 dB | | Frame Rates | At Max Resolution: 10 fps (8192 x 1536)
1/4" Resolution: 14 fps (4096 x 768)
Binning Mode: 29 fps (4096 x 768) | | Lens | 2.8mm | | Aperture | f/1.8 | | Field of View | 88° | | | | Optics | Remote focus, pixel binning mode | | Picture-in-Picture | Simultaneous delivery of full field of view and zoomed images | | Shutter Speed | Programmable; controls motion blur from 1 ms to 500 ms | | Motion Detection | Real-time, 1024 detection zones | | Privacy Masking | Unlimited | | Cropping | Flexible: Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264 | | Backlight Compensation | Auto multi-matrix white balance | | Wide Dynamic Range | Auto switch control adjustment between WDR and LDR modes | | Efficiency | Bit rate and bandwidth limitation control
Bandwidth and storage savings by running at 1/4 resolution | | Sharpness | Selectable enhancement level | | Additional Features | MoonLight Mode: Extended exposure and noise cancellation
Flicker Control: 50/60 Hz selectable
Programmable resolution, brightness, saturation, gamma, tint
Simultaneous delivery of full field of view and zoomed images
Electronic pan, tilt, zoom (PTZ)
Auto exposure (AE) and gain control (AGC) > 120 dB
Programmable shutter speed to help control motion blur | | | | Compression | H.264 (MPEG-4, Part 10) / MJPEG
21 levels of quality | | Network Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP, IPv4, IPv6, QoS | | Network Interface | 100Base-T Ethernet | | Multi-Streaming | 8 non-identical streams | | | | Industry Standards | PSIA conformant | | Listings | UL (CB) | | FCC Compliance | 47 CFR 15 Class A | | Environmental | RoHS, REACH, WEEE | | Marking | (CE) EN 55022:2010 Class A, EN 55024:2010, EN 61000-3-2:2006+A1:2009+A2:2009, EN61000-3-3: 2008, EN60950-1:2006+A11:2009+A1:2010+A12:2011, (UL) IEC 60950-1 (ed. 2) and IEC 60950-22 (ed. 1) | | | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Humidity | 0 to 90% (non-condensing) | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | | | Alarm Input / Output | 1 input / 1 output | | Power Over Ethernet | PoE 802.3af, Class 3 | | Auxiliary Power Required | 18 to 48 VDC, 24 VAC | | Max Power Consumption | Aux: 14 W (max) | | | | Casing | Die-cast aluminum chassis with polycarbonate dome bubble
IP66-rated weatherproof standards
Impact resistant, IK10-rated | | Gimbal | Adjustable, 3-axis with 360° pan, 90° tilt, 360° z-axis | | Dimensions (Ø x H) | Camera: 7.7 x 3.1" / 196 x 78.5 mm
Bubble Only: 6.7 x 1.3" / 169.2 x 33.4 mm | | Weight | 2.8 lb / 1.3 kg | | | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 8.4 x 8.4 x 5.0" |
