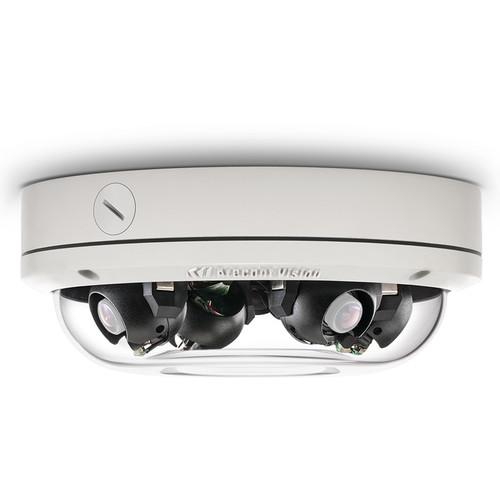

User Manual for Arecont Vision SurroundVideo Omni G2 Series 20MP Outdoor Vandal-Resistant Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Arecont Vision SurroundVideo Omni G2 Series
- Product category: Wired IP Cameras Arecont Vision
- Brand: Arecont Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arecont Vision Wired IP Cameras
|
User manual for the Arecont Vision SurroundVideo Omni G2 Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arecont Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arecont Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arecont Vision product will considerably shorten its lifespan!
|
Product description The Arecont Vision SurroundVideo Omni G2 Series 20MP Outdoor Vandal-Resistant Network Dome Camera comes with 4 x 5MP sensors, each with a 2560 x 1920 resolution, for a total resolution of 20MP. With four individual gimbals, each of the sensors can be placed in any orientation around a 360° track for numerous viewing angles, and remote focus capability offers easy adjustments to your viewing field after installation.
Equipped with a mechanical day/night IR cut filter, the camera is suitable for applications with challenging lighting conditions. For applications with poor lighting conditions, Binning Mode increases the camera’s low light performance by combining pixels so that more light can be collected.
Once mounted, the operator can quickly focus the camera remotely, eliminating the need to adjust the camera on-site. Enclosed in an IP66-rated housing, the camera is suitable for use in both indoor and outdoor applications. The IK10-rated dome housing is suitable for resisting vandals since it can withstand impacts of 120 lb of force.
The camera offers improved streaming capabilities and transmits H.264 video to avoid straining the network. Power can be supplied via a single PoE-compliant network cable or from an 18 to 48VDC/24VAC power supply.
The AV IP Utility tool allows users to configure multiple cameras at one time. The camera is PSIA-compliant (Physical Security Interoperability Alliance), providing interoperability between network video products regardless of manufacturer. - 3-Axis Gimbal: 4 individual camera gimbals can be independently placed in any orientation around a 360° track with extra positions
- Multiple lens options in a single camera housing from 2.1 up to 16mm
- True day/night functionality with mechanical IR cut filter
- Forensic Zooming: Zoom live or after the event while recording full field of view in HD
- Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, and Multi-Streaming
- PoE and Auxiliary Power: 18 to 48VDC/24VAC
- Outdoor-rated IP66 and IK-10 impact-resistant housing
- Supports a variety of mounting options
- Binning mode for strong low-light performance
UPC: 847778005420 In the Box Arecont Vision SurroundVideo Omni G2 Series 20MP Outdoor Vandal-Resistant Network Dome Camera (No Lens) Mounting Template 3 x Mounting Wood Screw 3 x Mounting Dry Wall Anchor Ceiling Gasket Aux Power Cord Network Patch Cable Security L-Key Tether Plate Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision SurroundVideo Omni G2 Series 20MP Outdoor Vandal-Resistant Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV20275 Specs | Image Sensor | 4 x 5 MP, 1/2.5" CMOS | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color (Day Mode): 0.3 lux
Color Binning (Day Mode): 0.15 lux
B/W (Night Mode): 0.03 lux, IR sensitive | | Resolutions | Full Field of View:
Total: 10240 (H) x 1920 (V)
Per Sensor: 2560 (H) x 1920 (V)
1/4 Resolution:
Total: 5120 (H) x 960 (V)
Per Sensor: 1280 (H) x 960 (V) | | Dynamic Range | 70.1 dB | | Frame Rates | At Max Resolution: 7 fps @ 10240 x 1920
1/4" Resolution: 10 fps @ 5120 x 960
Binning Mode: 24 fps @ 5120 x 960 | | | | Optics | Remote focus, pixel binning mode | | Picture-in-Picture | Simultaneous delivery of full field of view and zoomed images | | Shutter Speed | Programmable; controls motion blur from 1 to 500 ms | | Motion Detection | Real-time, 1024 detection zones | | Privacy Masking | Unlimited | | Cropping | Flexible: Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264 | | Backlight Compensation | Auto multi-matrix white balance | | Flicker Filter Control | 50/60 Hz selectable | | Efficiency | Bit rate and bandwidth limitation control
Bandwidth and storage savings by running at 1/4 resolution | | Sharpness | Selectable enhancement level | | Mode | MoonLight Mode: Extended exposure and noise cancellation | | Additional Features | Programmable resolution, brightness, saturation, gamma, tint
Simultaneous delivery of full field of view and zoomed images
Electronic pan, tilt, zoom (ePTZ)
Auto exposure (AE) and gain control (AGC) > 120 dB
Programmable shutter speed to help control motion blur | | | | Compression | H.264 (MPEG-4, Part 10) / MJPEG
21 levels of quality | | Network Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP, IPv4, IPv6, QoS | | Network Interface | 100Base-T Ethernet | | Multi-Streaming | 8 non-identical streams | | | | Industry Standards | PSIA-conformant | | Listings | UL (CB) | | FCC Compliance | 47 CFR 15 Class A | | Environmental | RoHS, REACH, WEEE | | Marking | (CE) EN 55022:2010 Class A, EN 55024:2010, EN 61000-3-2:2006+A1:2009+A2:2009, EN61000-3-3: 2008, EN60950-1:2006+A11:2009+A1:2010+A12:2011, (UL) IEC 60950-1 (ed. 2) and IEC 60950-22 (ed. 1) | | | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Humidity | 0 to 90% (non-condensing) | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | | | Alarm Input / Output | 1 input / 1 output | | Power Over Ethernet | PoE 802.3af, Class 3 | | Auxiliary Power Required | 18 to 48 VDC, 24 VAC | | Max Power Consumption | Aux: 14 W (max) | | | | Casing | Die-cast aluminum chassis with polycarbonate dome bubble
IP66-rated weatherproof standards
Impact resistant, IK10-rated | | Gimbal | Adjustable, 3-axis with 360° pan, 90° tilt, 360° z-axis | | Dimensions (Ø x H) | Camera: 7.7 x 3.1" / 196 x 78.5 mm
Bubble Only: 6.7 x 1.3" / 169.2 x 33.4 mm | | Weight | 2.8 lb / 1.3 kg | | | | Box Dimensions (LxWxH) | 8.4 x 8.4 x 5.0" |
