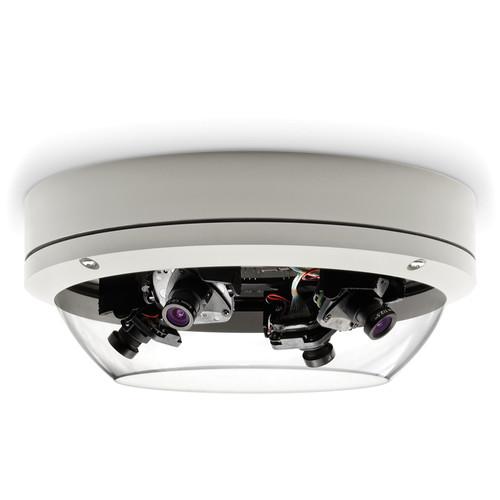

Product description The SurroundVideo Omni Series 12MP Outdoor Omni-Directional Dome Camera from Arecont Vision consists of four sensors, each with a 2048 x 1536 resolution, for a total resolution of 12MP. The sensors use 2.8mm IR corrected lenses for four 88° fields of view, and the camera has the capability to capture a 270° total field of view. With four individual gimbals, each of the sensors can be placed in any orientation around a 360° track for numerous viewing angles, and extra positions along the track allow the lenses to look straight down as well. The camera is housed in a single IP66-rated weatherproof and IK10-rated impact-resistant dome housing for use outdoors and in high-risk areas. The camera features true wide dynamic range, even at full resolution, allowing you to capture clear images in shaded and brightly lit conditions simultaneously. Additionally, programmable resolution, brightness, saturation, gamma, sharpness, and tint enable you to configure your camera based on various environments. Furthermore, MoonLight Mode provides extended exposure and maximum noise cancellation, and a programmable shutter speed assists in controlling motion blur. There are up to 1024 detection zones per sensor for real-time motion detection, and privacy masking allows you to customize your field of view. The camera can be powered using PoE technology for a minimum of wires during setup, or it can be powered with an included power adapter. - Omnidirectional track with four 3MP sensors for a total resolution of 12MP
- Four 2.8mm fixed lenses, each with f/1.6 apertures
- Up to 4 camera gimbals can be independently placed in any orientation around a 360° track
- Gimbals can also be positioned to look straight down for additional viewing angles
- 88° field of view per lens; with capability for 270° total field of view
- True WDR at full resolution for clear images in scenes with both shaded and bright light conditions
- Auto adjustment between WDR and LDR modes
- Maximum frame rate of up to 5.2 fps at 8192 x 1536 resolution
- True day/night functionality with mechanical IR cut filter
- Pixel binning mode for low-light performance
- Forensic Zooming offers live zooming or zooming in after an event while recording full field-of-view in HD
- Dual encoder supports H.264 and MJPEG formatting with multi-streaming
- On-camera real-time motion detection with up to 1,024 detection zones (per sensor)
- Privacy masking and flexible cropping features, as well as bit rate and bandwidth limit control
- AE (Auto Exposure) and AGC (Auto Gain Control) >120 dB
- Auto multi-matrix white balance
- 50 / 60 Hz selectable flicker control
- Offers electronic PTZ (Pan, Tilt, Zoom)
- Programmable shutter speed to help control motion blur
- MoonLight Mode allows extended exposure and proprietary noise cancellation
- Programmable resolution, brightness, saturation, gamma, sharpness, and tint
- Simultaneous delivery of full field-of-view and zoomed images
- Saves bandwidth and storage by running at 1/4 resolution
- Supports PoE and 12 to 48 VDC / 24 VAC auxiliary power
- IP66 outdoor-rated and IK10 impact-resistant housing
- Various mounting options for use in a wide range of settings
In the Box Arecont Vision SurroundVideo Omni Series 12MP Outdoor Omni-Directional Dome Camera with 4 Sensors Ceiling Template 3 x Mounting Screw (#6x1" for Wood or Sheet Metal) 3 x Drywall / Masonry Mounting Anchors Ceiling Gasket Network Patch Cable Security Torx Tool Aux Power Cord Digital Input & Output Adapter Limited 3-Year Warranty User Manual PDF 1.5mbcwxwsdfrzraetzruydxszaedduyayuvf Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision SurroundVideo Omni Series 12MP Outdoor Omni-Directional Dome Camera with 4 Sensors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV12176 Specs | | | Image Sensor | 4 x 3 MP CMOS | | Optical Format | 1/3.2" | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color: 0.5 lux
Color Binning: 0.15 lux
Day/Night: 0 lux, IR sensitive | | Resolution | Full Field of View:
Total (H x V): 8192 x 1536
Per Sensor (H x V): 2048 x 1536
1/4 Resolution:
Total (H x V): 4096 x 768
Per Sensor (H x V): 1024 x 768 | | Dynamic Range | Up to 100 dB at full resolution | | Lens | 2.8mm | | Aperture | f/1.6 | | Horizontal Field-of-View | 88° per lens | | Video Frame Rate | Maximum 5.2 fps (8192 x 1536)
16.7 fps (4096 x 768) | | | | Compression Type | H.264 (MPEG-4, Part 10) / MJPEG
21 levels of quality | | Network Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP | | Network Interface | 100Base-T Ethernet | | Multi-Streaming | 8 non-identical streams (2 per sensor) | | | | Motion Detection | Up to 1,024 detection zones (per sensor) | | Cropping | Flexible Cropping: Resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264 | | Control | Flicker Control: 50/60 Hz selectable | | PTZ | Electronic | | Shutter Speed | Programmable | | | | Listings | UL (CB) | | FCC Compliance | 47 CFR 15 Class A | | Environmental | RoHS, REACH, WEEE | | Protection Rating | IP66 water/dust protection rating
IK10 impact-resistant | | | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Humidity | 0 to 90% (non-condensing) | | Stable Image Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | | | Input/Output | General purpose opto-coupled | | Power Over Ethernet | PoE 802.3af, Class 3 | | Auxiliary Power Input | 12 to 48 VDC and 24 VAC | | Maximum Power Consumption | 14 W (auxiliary power) | | | | Casing | Die-cast aluminum chassis with polycarbonate dome bubble
IP66 weatherproof standard impact-resistant, IK10-rated | | Gimbal | Easily adjustable, 2-axis with 360° pan and 90° tilt | | Dimensions (Ø x H) | 7.7 x 3.1" (196 x 78.5 mm) | | Weight | 2.8 lb / 1.3 kg | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 8.5 x 8.4 x 5.0" |
