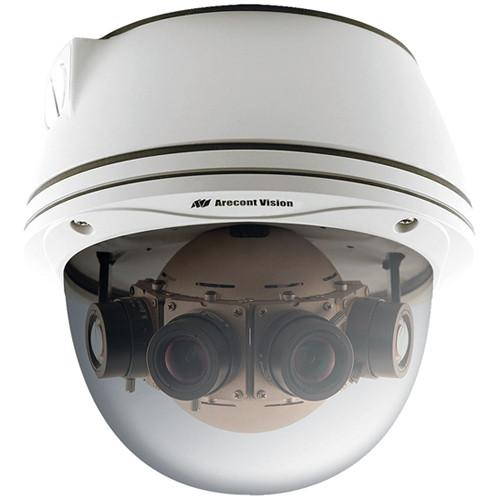

Product description The SurroundVideo Series 20MP Outdoor Dome Camera from Arecont Vision consists of four sensors, each with a 2560 x 1920 resolution, for a total resolution of 20MP. The sensors use 6.2mm lenses with f/1.8 apertures for four 47° fields of view, and the camera has the capability to capture a 180° panoramic field of view. Furthermore, an electrical vertical alignment function allows you to locate each sensor position within ±5°, and an easily adjustable 2-axis gimbal enables each sensor to pan 360° and tilt 90°. The camera is housed in a single IP66-rated weatherproof and IK10-rated impact-resistant dome cover for use outdoors and in high-risk areas. ONVIF Profile S compliance provides compatibility with a wide variety of surveillance items for connecting the camera to an NVR or NAS.
The camera features backlight compensation and auto multi-matrix white balance for capturing high-quality images in ambient lighting. Additionally, programmable resolution, brightness, saturation, gamma, sharpness, and tint enable you to configure your camera based on various environments. A programmable shutter speed assists in controlling motion blur, and a flexible cropping setting allows you to crop the picture down to 1x1 pixel using JPEG formatting and down to 2x2 pixels using H.264 formatting. There are up to 1024 detection zones per sensor for real-time motion detection, and privacy masking offers customization of your viewing field. The camera can be powered using PoE technology for a minimum of wires during setup, or it can be powered with a traditional auxiliary power cord. - Four 5MP sensors offer a total resolution of 20MP
- Four 6.2mm fixed lenses, each with f/1.8 apertures
- 47° field of view per lens; with capability for 180° total field of view
- Easily adjustable 2-axis gimbal with 360° panning and 90° tilting
- Mechanical IR cut filter provides true day/night imaging for use in low-light situations
- Forensic Zooming offers live zooming or zooming in after an event while recording full field-of-view in HD
- Pixel binning mode for strong low-light performance
- ±5° electrical vertical alignment to locate each sensor position
- Dual encoder supports H.264 and MJPEG formatting with multi-streaming
- On-camera real-time motion detection with up to 1,024 detection zones (per sensor)
- Privacy masking and flexible cropping features as well as bit rate and bandwidth limit control
- Backlight compensation and auto multi-matrix white balance
- 50 / 60 Hz selectable flicker control
- Offers electronic PTZ (Pan, Tilt, Zoom) and 180° image flip
- Programmable shutter speed to help control motion blur
- Programmable resolution, brightness, saturation, gamma, sharpness, and tint
- Simultaneous delivery of full field-of-view and zoomed images
- Saves bandwidth and storage by running at 1/4 resolution
- Supports PoE and 12 to 48 VDC / 24 VAC auxiliary power
- IP66 outdoor-rated and IK10 impact-resistant housing
- Various mounting options for use in a wide range of settings
In the Box Arecont Vision SurroundVideo Series 20MP Outdoor Dome Camera with 4 Sensors Mounting Template RJ45 Female to Female Coupler Hex Key Security L-Key 4 x Wood Screws 4 x Dry Wall Anchors Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision SurroundVideo Series 20MP Outdoor Dome Camera with 4 Sensors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV20185 Specs | | | Sensor | 4 x 5 MP 1/2.5" CMOS | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color: 0.3 lux
Color Binning: 0.15 lux
True Day/Night: 0 lux, IR sensitive | | Resolutions | Full Field of View:
Total: 10240 (H) x 1920 (V)
Per Sensor: 2560 (H) x 1920 (V)
1/4 Resolution:
Total: 5120 (H) x 960 (V)
Per Sensor: 1280 (H) x 960 (V) | | Dynamic Range | 70.1 dB | | Frame Rates | Full Resolution: 3.5 fps (10240 x 1920), 4.2 fps (10240 x 1600)
1/4 Resolution: 11 fps (5120 x 960)
Binning Mode: 13 fps (5120 x 960) | | Lens | 6.2mm | | Aperture | f/1.8 | | Lens Mount | CS type | | Field of View | Panoramic: 180°
Horizontal: 47° | | | | Compression | H.264 (MPEG-4, Part 10) / MJPEG
21 levels of quality | | Network Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP | | Network Interface | 100Base-T Ethernet | | Multi-Streaming | 8 non-identical streams (2 per sensor) | | | | Motion Detection | Up to 1,024 detection zones (per sensor) | | Cropping | Flexible Cropping: Resolution windowing down to 1 x 1 pixel for JPEG and 2 x 2 pixels for H.264 | | Control | Flicker Control: 50/60 Hz selectable | | PTZ | Electronic | | Image Flip | 180° | | Shutter Speed | Programmable | | | | Industry Standards | ONVIF Profile S Compliant | | Listings | UL (CB) | | FCC Compliance | 47 CFR 15 Class A | | Environmental | RoHS, REACH, WEEE | | Marking | (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 | | Mechanical | IK-10 (EN62262), IP66 (EN60529) | | | | Input & Output | General purpose opto-coupled | | Power Over Ethernet | PoE 802.3af, Class 3 | | Auxiliary Power Required | 12 to 48 VDC, 24 VAC | | Power Consumption | 9 W DC power | | | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Humidity | 0 to 90% (non-condensing) | | Stable Image Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | | | Data Rate | Bit rate control from 100 Kbps to 10 Mbps
Unthrottled data rate up to 50 Mbps | | Housing | Die-cast aluminum chassis with 5.5" (139.7 mm) vandal resistant polycarbonate dome bubble | | Gimbal | Easy adjustable, 2-axis with 360° pan and 90° tilt | | Conduit | 3/4" NPT standard | | Dimensions (ØxH) | Ø6.9 x 6.55" (175 x 166 mm)
Bubble only: 5.5 x 3.4" (140 x 87 mm) | | Weight | 3.81 lb (1.75 kg) | | | | Package Weight | 4.7 lb | | Box Dimensions (LxWxH) | 8.9 x 8.7 x 5.9" |
