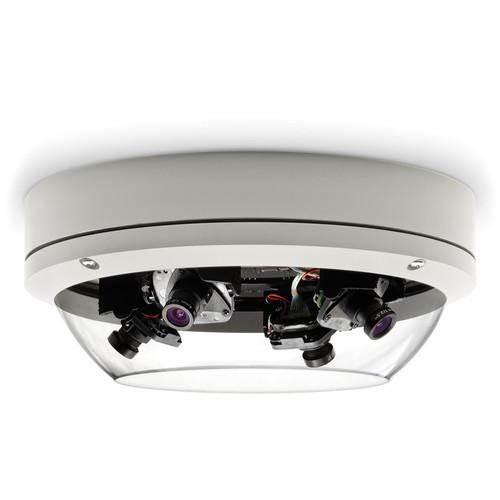

Product description The SurroundVideo Series 20MP Outdoor Omni-Directional Dome Camera from Arecont Vision consists of four sensors, each with a 2560 x 1920 resolution, for a total resolution of 20MP. The sensors use 8mm IR-corrected lenses for four 43° fields of view, and the camera has the capability to capture a 270° total field of view. With four individual gimbals, each of the sensors can be placed in any orientation around a 360° track for numerous viewing angles, and extra positions along the track allow the lenses to look straight down as well. The camera is housed in a single IP66-rated weatherproof and IK10-rated impact-resistant dome housing for use outdoors and in high-risk areas.
The camera features true wide dynamic range, even at full resolution, allowing you to capture clear images in shaded and bright light conditions simultaneously. Additionally, programmable resolution, brightness, saturation, gamma, sharpness, and tint enable you to configure your camera based on various environments. Furthermore, a MoonLight Mode provides extended exposure and maximum noise cancellation, and programmable shutter speed assists in controlling motion blur. There are up to 1024 detection zones per sensor for real-time motion detection, and privacy masking allows you to customize your field of view. The camera can be powered using PoE technology for a minimum of wires during setup, or it can be powered with an included power adapter. - Four 5MP sensors offer a total resolution of 20MP
- Four 8mm fixed lenses provide four 43° horizontal fields of view
- Up to 4 individual camera gimbals can be independently placed in any orientation around a 360° track
- Extra positions along the track enable the lenses to look straight down
- Easily adjustable 2-axis gimbal with 360° panning and 90° tilting per sensor
- Mechanical IR cut filter provides true day/night imaging for use in low-light situations
- True WDR (up to 100 dB) at full resolution allows you to see clearly in shaded and brightly lit conditions simultaneously
- Forensic Zooming offers live zooming or zooming in after an event while recording full field-of-view in HD
- Pixel binning mode for strong low-light performance
- Dual encoder supports H.264 and MJPEG formatting with multi-streaming
- On-camera real-time motion detection with up to 1,024 detection zones (per sensor)
- Privacy masking and flexible cropping features as well as bit rate and bandwidth limit control
- MoonLight Mode extends exposure time and provides noise cancellation
- 50 / 60 Hz selectable flicker control
- Offers electronic PTZ (Pan, Tilt, and Zoom)
- Programmable shutter speed to help control motion blur
- Programmable resolution, brightness, saturation, gamma, sharpness, and tint
- Simultaneous delivery of full field-of-view and zoomed images
- Bit rate and bandwidth limit control
- Saves bandwidth and storage by running at 1/4 resolution
- Supports PoE and 12 to 48 VDC / 24 VAC auxiliary power
- IP66 outdoor-rated and IK10 impact-resistant housing
- Various mounting options for use in a wide range of settings
UPC: 847778005291 In the Box Arecont Vision SurroundVideo Series 20MP Outdoor Omni-Directional Dome Camera with 4 Sensors Ceiling Template 3 x Mounting Screws 3 x Drywall / Masonry Mounting Anchors Ceiling Gasket Network Patch Cable Security Torx Tool Aux Power Cord Digital Input & Output Adapter Limited 3-Year Warranty Brochure PDF 572.5kbyrbzfcaqdbwwewfzrvcu Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision SurroundVideo Series 20MP Outdoor Omni-Directional Dome Camera with 4 Sensors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV20175 Specs | | | Sensor | 4 x 5 MP 1/2.5" CMOS | | Pixel Pitch | 2.2 μm | | Minimum Illumination | Color: 0.3 lux
Color Binning: 0.15 lux
True Day/Night: 0 lux, IR sensitive | | Resolutions | Full Field of View:
Total: 10240 (H) x 1920 (V)
Per Sensor: 2560 (H) x 1920 (V)
1/4 Resolution:
Total: 5120 (H) x 960 (V)
Per Sensor: 1280 (H) x 960 (V) | | Dynamic Range | 70.1 dB | | Lens | 8mm | | Aperture | f/1.6 | | Field of View | Horizontal: 43° | | Frame Rates | Max: 3.5 fps (10240 x 1920)
11 fps (5120 x 960) | | | | Compression | H.264 (MPEG-4, Part 10) / MJPEG
21 levels of quality | | Network Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP | | Network Interface | 100Base-T Ethernet | | Multi-Streaming | 8 non-identical streams (2 per sensor) | | | | Wide Dynamic Range | Auto adjustment between WDR and LDR modes | | White Balance | Auto multi-matrix | | Automatic Gain Control | Auto Exposure (AE) and Gain Control (AGC) > 120 dB | | Motion Detection | Up to 1,024 detection zones (per sensor) | | Privacy Masking | Yes | | Cropping | Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264 | | Control | Flicker Control: 50/60 Hz selectable | | PTZ | Electronic | | Shutter Speed | Programmable: Controls motion blur, 1 to 500 ms | | | | Listings | UL (CB) | | FCC Compliance | 47 CFR 15 Class A | | Environmental | RoHS, REACH, WEEE | | ONVIF Conformance | Profile S | | Protection Rating | IP66-rated water/dust protection rating
IK10-rated impact-resistant polycarbonate dome | | | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Humidity | 0 to 90% (non-condensing) | | Stable Image Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | | | Input & Output | 1/1 | | Power Over Ethernet | PoE 802.3af, Class 3 | | Auxiliary Power Required | 12 to 48 VDC, 24 VAC | | Power Consumption | Max: 14 W (auxiliary power) | | | | Housing | Die-cast aluminum chassis with 4" / 10.2 cm polycarbonate dome bubble | | Gimbal | Adjustable, 2-axis with 360° pan and 90° tilt | | Dimensions (ØxH) | Camera: 7.7 x 3.1" / 19.6 x 7.9 cm
Bubble Only: 6.7 x 1.3" / 17.0 x 3.3 cm | | Weight | 2.8 lb / 1.3 kg |
