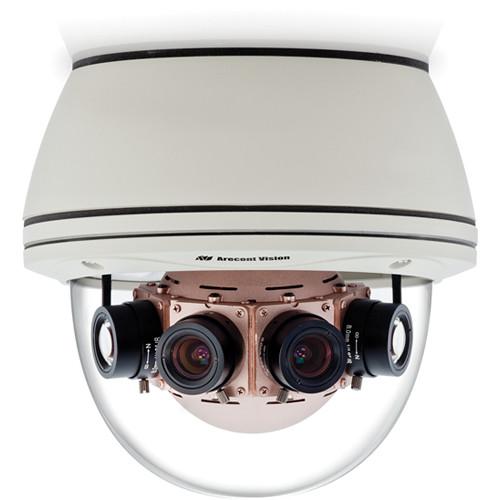

Product description The SurroundVideo Series AV40185DN-HB 40 Mp H.264 Day / Night 180° Panoramic IP Camera from Arecont Vision serves as an all-in-one solution for wide area video surveillance. Featuring 4 high-sensitivity 10 Mp sensors, a 7.2mm lens, vandal-resistant, IP66-rated water- and dust-proof dome enclosure. It also comes with a heater and blower. This camera comes in a 180° panoramic view configuration with a resolution of 40 Mp. Also, it has the ability to zoom into multiple regions of interest and can perform the task of multiple conventional cameras. Additionally, the dual encoder (H.264 & MJPEG) network camera is PoE (IEEE 802.3af) compliant.
Using the MegaVideo technology, this camera offers bandwidth and storage efficiency, and is able to output multiple image formats allowing the simultaneous viewing of a full resolution field-of-view and regions of interest for high-definition forensic zooming. Furthermore, the binning technique improves low-light performance, increases sensitivity, and produces enhanced SNR by combining and averaging pixels. General Features - 40 Mp 180° Panoramic megapixel camera
- True day / night functionality with mechanical IR cut filter
- Dual encoder H.264 / MJPEG
- Indoor / outdoor IP66, vandal-resistant camera with IK-10 rated dome
- Binning mode for strong low-light performance at 40 Mp resolution
- Easily adjustable 2-axis camera gimbal with 360° pan and 90° tilt
- ±5° electrical vertical alignment to locate each sensor position
- Bit rate control, privacy mask, and multi-streaming
- PoE & auxiliary power: 12 to 48VDC / 24VAC
- Complete mounting possible
- Extended motion detection offers a high granularity grid of 1,024 distinct motion detection zones
- High resolution & panoramic field-of-view deliver comprehensive coverage and forensic detail, all without the need for an operator to direct it or the propensity to be facing the wrong way when an incident occurs
- Privacy mask enables selection of multiple regions to shape and block the video and is supported by both HTTP and TFTP protocols, and features an on-board web interface.
Compliant H.264 Compression - Implementation of H.264 allows full frame rates and full resolution without sacrificing image quality
- Decreases the CPU load both at the client (decompression) and the server / storage
- Lower bandwidth and storage relative to MJPEG
- Bit rate control to maintain desired bandwidth and storage size
- RTSP (Real Time Streaming Protocol) allows for compatibility with media players such as Apple QuickTime, VLC, and others
Programmability - Flexible Cropping (resolution windowing down to 1x1 pixel for JPEG and 2 x 2 pixels for H.264)
- Low light noise filter control
- Backlight compensation and auto multi-matrix white balance
- 50 / 60 Hz selectable flicker control
- Electronic pan, tilt, zoom (PTZ), and 180° image flip
- Programmable resolution, brightness, saturation, gamma, sharpness, tint
- Bandwidth and storage savings by running at 1/4 resolution
- Simultaneous delivery of full field-of-view and zoomed images
- Programmable shutter speed to help control motion blur
Compliance - Industry Standard: ONVIF Conformant
- FCC Compliance: 47 CFR 15 Class A
- Environmental: RoHS, REACH, WEEE
- Markings: (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1
- Mechanical: IK-10 (EN62262), IP66 (EN60529)
In the Box Arecont Vision SurroundVideo Series AV40185DN-HB 40 Mp H.264 Day / Night 180 Panoramic IP Camera with Heater & Blower Mounting Template RJ-45 Female to Female Coupler Hex Key Security L-Key Pack of 4 Wood Screws & 4 Dry Wall Anchors Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision SurroundVideo Series AV40185DN-HB 40 Mp H.264 Day Night 180 Panoramic IP Camera with Heater & Blower in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV40185 Specs | | | Image Sensor | 40 Mp: 4 x 10 Mp | | Horizontal Field-of-View | 180° | | Optical Format | 1/2.3" | | Pixel Pitch | 1.67 μm | | Minimum Illumination | Color: 0.42 lux
Color Binning: 0.21 lux
Day / Night: 0 lux, IR sensitive | | Resolution (H x V) | Full FOV:
Total: 14592 x 2752
Per Sensor: 3648 x 2752
1/4 Resolution:
Total: 7296 x 1376
Per Sensor: 1824 x 1376 | | Dynamic Range | 57.2 dB | | Frame Rates | At Full Resolution: 1.5 fps (14592 x 2752)
At 1/4 Resolution: 5.5 fps (7296 x 1376)
In Binning Mode: 6.5 fps (7296 x 1376) | | Lens | CS, F2.4, 7.2mm
HFOV: 47° | | | | Compression Type | H.264 (MPEG-4, Part 10) / Motion JPEG
21 levels of quality | | Protocols | RTSP, RTP / TCP, RTP / UDP, HTTP, DHCP, TFTP | | Network Interface | 100 Base-T Ethernet | | Multi-Streaming | 8 non-identical streams (2 per sensor) | | | | Input & Output | General purpose opto-coupled | | Power Over Ethernet | PoE 802.3af, Class 3 | | Power | Auxiliary Power: 12 to 48 VDC, 24 VAC | | Maximum Power Consumption | 11.7 W DC power | | | | Voltage Input | 12 V to 20 VDC / 24 VAC A separate power source is required. | | Power Output | Maximum 11 W (12 VDC)
Maximum 13 W (24 VAC) | | Heater Switch | On: 62.6°F (17°C)
Off: 86°F (30°C) | | Blower | Switch:
On: 50°F (10°C), Off: 59°F (15°C)
On: 122°F (50°C), Off: 113°F (45°C) | | | | Casing | Die-cast aluminum chassis with 5.5" (139.7 mm) polycarbonate dome bubble
IP66 weatherproof standard
Vandal-resistant, IK-10 rated | | Gimbal | Easily adjustable, 2-axis with 360° pan, and 90° tilt | | | | Operating Temperature | -22 to +122°F (-30 to +50°C) | | Stable Image Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -22 to +140°F (-30 to +60°C) | | Humidity | 0 to 90% (non-condensing) | | | | Dimensions (Ø x H) | Unit: 6.90 x 6.55 (175.26 x 166.37 mm)
Bubble Only: 5.5 x 3.4" (139.7 x 86.3 mm) | | Weight | 3.81 lb (1.72 kg) | | | | Package Weight | 4.7 lb | | Box Dimensions (LxWxH) | 8.9 x 8.7 x 8.4" |
