User Manual for Armasight by FLIR 1x Apollo 320 30Hz Clip-On Thermal Weapon Sight Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR 1x Apollo 320
- Product category: Thermal Scopes Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Thermal Scopes
|
User manual for the Armasight by FLIR 1x Apollo 320 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|

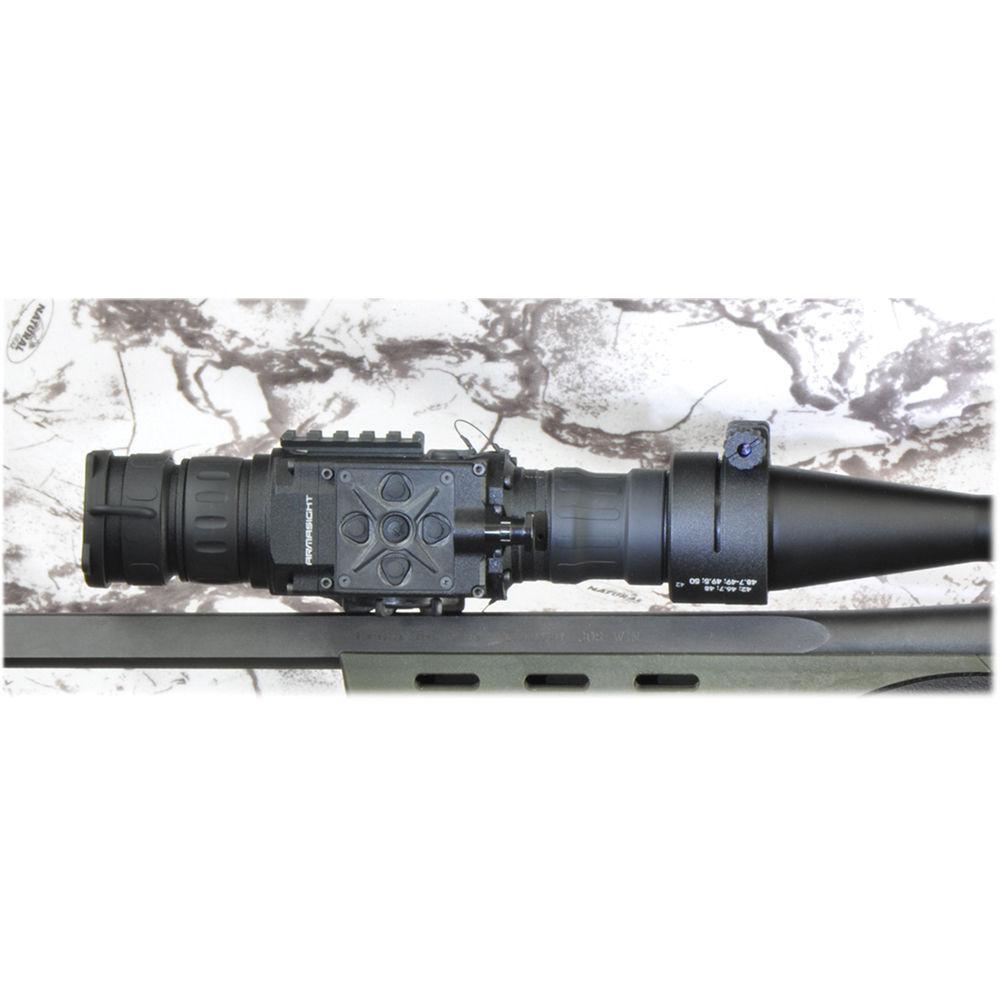

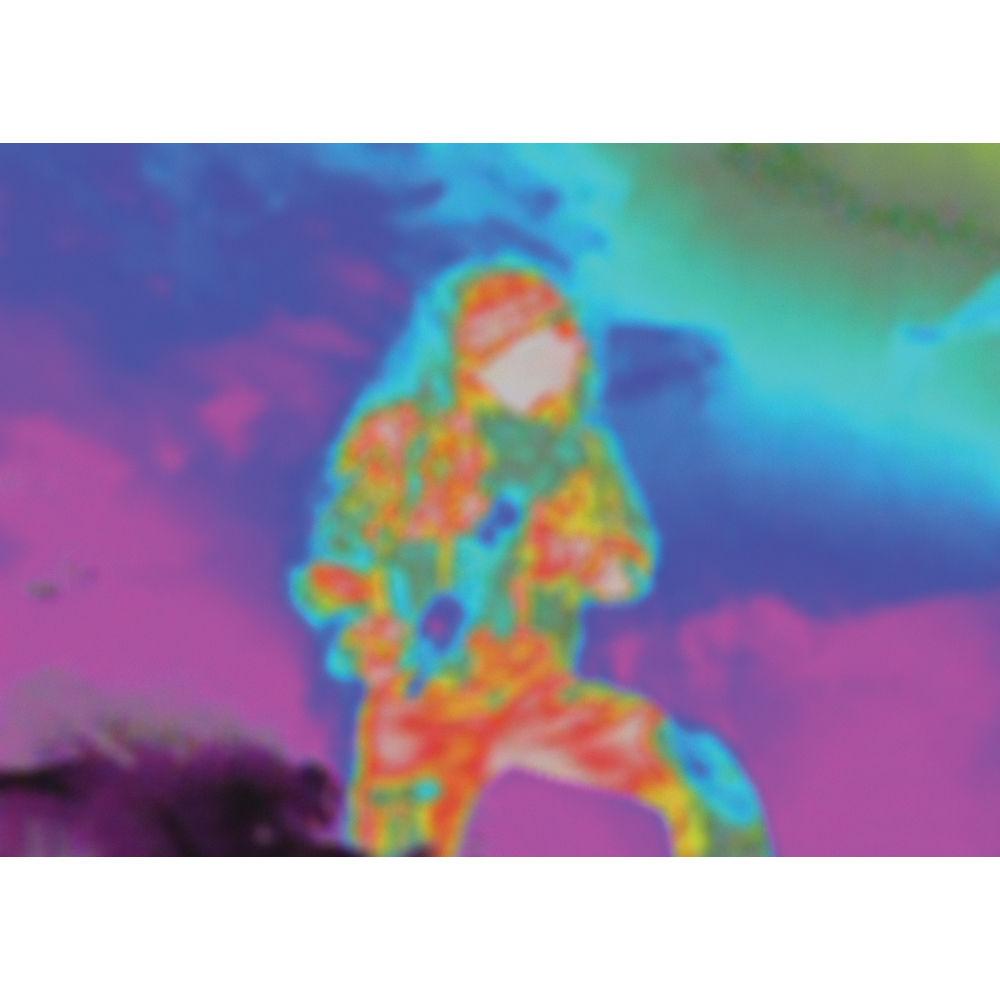

Product description The 1x Apollo 320 60Hz Clip-On Thermal Weapon Sight from Armasight is an unmagnified accessory optic that mounts in front of a standard day scope. This multi-purpose thermal imager features a 42mm f/1.0 lens system, analog video output, and weather-sealed aluminum alloy housing. By distinguishing slight differences in the heat of objects within the field of view, thermal imagers are capable of seeing through smoke, fog, and dust—day or night.An uncooled FLIR Tau 2 thermal detector captures 324x256 resolution images at 60Hz, giving this Apollo configuration the imaging prowess needed for tactical engagements and intelligence gathering at close to mid-range distances. The integrated Picatinny rail permits the attachment of a laser aiming device or other compact rail-mountable accessory. Complementing the imaging performance and versatility of the Apollo thermal weapon sight is a shock-resistant aerospace aluminum alloy housing that is nitrogen-filled for fogproof and waterproof performance. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce - Imaging Performance
-
- 324x256 uncooled Tau 2 detector, 17µm pixel size
- 60Hz refresh rate
- Optical magnification: 1x
- Objective lens: 42mm diameter
- Germanium glass objective lens
- Lens system: 42mm f/1.0
- Angle of view: 11°
- 25mm exit pupil
- 16 ft close focus distance
- System Features
-
- 640x480 OLED color display
- NTSC/PAL analog video output
- Accepts 6V DC external power supply
- Tethered flip-down objective cover
- Mounts in front of day optic
- Return to zero mounting ability
- Construction Details
-
- Anodized aerospace aluminum alloy housing
- Nitrogen-filled for fogproof and waterproof performance
- Includes throw-lever quick-release Picatinny mount
- Integrated accessory Picatinny rail
- Operating temperature: -40 to 122°F
- Weight: 23 oz without batteries
In the Box Armasight by FLIR 1x Apollo 320 30Hz Clip-On Thermal Weapon Sight Carrying Case 2 x CR123A Batteries Objective Cover Lens Cloth Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR 1x Apollo 320 30Hz Clip-On Thermal Weapon Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR Apollo Specs Array Configuration | 324 x 256 FLIR Tau 2 | Pixel Size | 17 µm | Refresh Rate | 60 Hz | Magnification | 1.0x | Angle of View | 11° | Objective Lens Diameter | Not specified by manufacturer | Lens System | 42 mm f/1.0 | Minimum Focus Distance | 16 ft (5 m) | Diopter Correction | Not specified by manufacturer | Eye Relief | Not specified by manufacturer | Exit Pupil | 25 mm | Display | 640 x 480 OLED | Video Output Format | NTSC / PAL | Power Source | (2) CR123A batteries | Runtime | Up to 4 hours of continuous operation | Start-Up Time | Approximately 3 seconds | Operating Temperature | -40 to 122°F (-40 to 50°C) | Waterproof Depth | 33 ft (10 m) for 30 minutes | Dimensions | 7.9 x 3.1 x 2.6" (20 x 8 x 7 cm) | Weight | 22.9 oz (650 g) | | Package Weight | 1.0 lb | Box Dimensions (LxWxH) | 17.0 x 12.0 x 10.0" |
