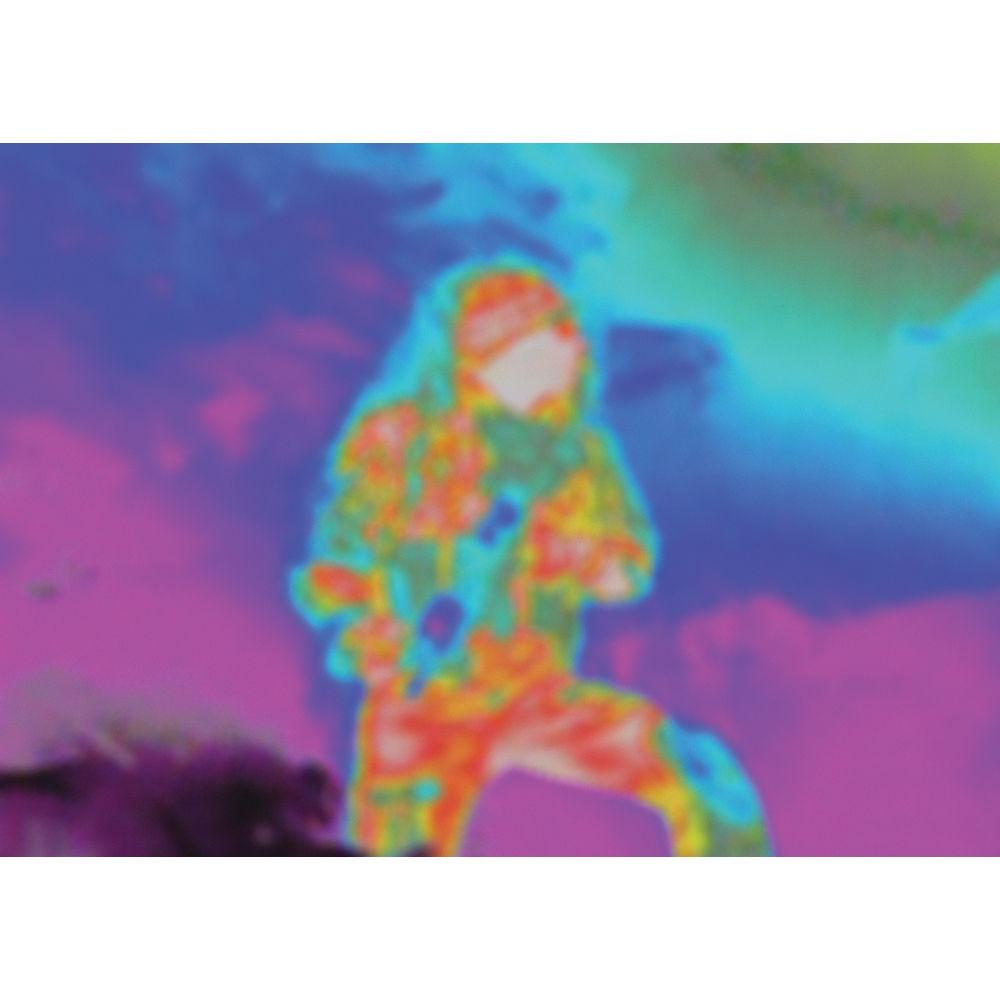

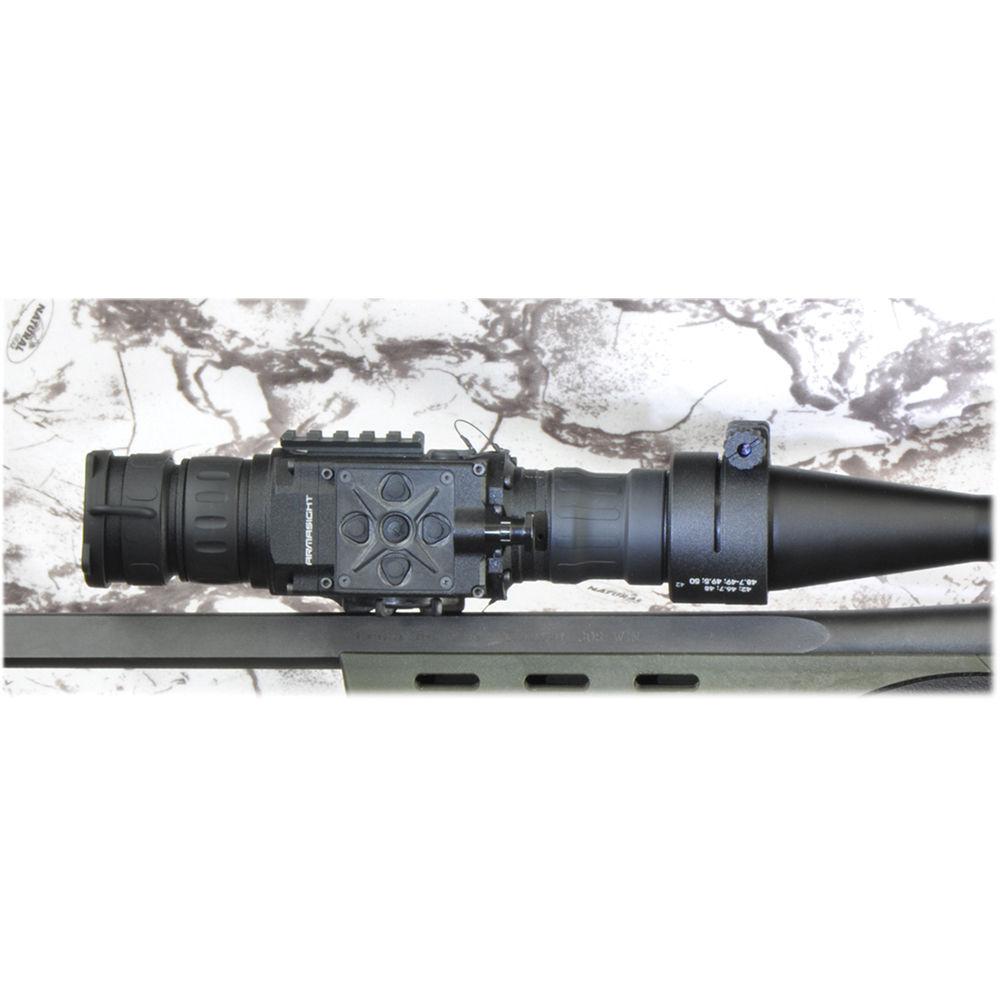

Product description The 1x Apollo 640 30Hz Clip-On Thermal Weapon Sight from Armasight is an unmagnified accessory optic that mounts in front of a standard day scope. This multi-purpose thermal imager features a 42mm f/1.0 lens system, analog video output, and weather-sealed aluminum alloy housing. By distinguishing slight differences in the heat of objects within the field of view, thermal imagers are capable of seeing through smoke, fog, and dust—day or night.An uncooled FLIR Tau 2 thermal detector captures 640x512 resolution images at 30Hz, giving this Apollo configuration the imaging prowess needed for tactical engagements and intelligence gathering at almost any distance. The integrated Picatinny rail permits the attachment of a laser aiming device or other compact rail-mountable accessory. Complementing the imaging performance and versatility of the Apollo thermal weapon sight is a shock-resistant aerospace aluminum alloy housing that is nitrogen-filled for fogproof and waterproof performance. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Imaging Performance
-
- 640x512 uncooled Tau 2 detector, 17µm pixel size
- 30Hz refresh rate
- Optical magnification: 1x
- Objective lens: 42mm diameter
- Germanium glass objective lens
- Lens system: 42mm f/1.0
- Angle of view: 11°
- 25mm exit pupil
- 16 ft close focus distance
- System Features
-
- 640x480 OLED color display
- NTSC/PAL analog video output
- Accepts 6V DC external power supply
- Tethered flip-down objective cover
- Mounts in front of day optic
- Return to zero mounting ability
- Construction Details
-
- Anodized aerospace aluminum alloy housing
- Nitrogen-filled for fogproof and waterproof performance
- Includes throw-lever quick-release Picatinny mount
- Integrated accessory Picatinny rail
- Operating temperature: -40 to 122°F
- Weight: 23 oz without batteries
In the Box Armasight by FLIR 1x Apollo 640 30Hz Clip-On Thermal Weapon Sight Carrying Case 2 x CR123A Batteries Objective Cover Lens Cloth Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR 1x Apollo 640 30Hz Clip-On Thermal Weapon Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR Apollo Specs | Array Configuration | 640 x 512 FLIR Tau 2 | | Pixel Size | 17 µm | | Refresh Rate | 30 Hz | | Magnification | 1.0x | | Angle of View | 11° | | Objective Lens Diameter | Not specified by manufacturer | | Lens System | 42 mm f/1.0 | | Minimum Focus Distance | 16 ft (5 m) | | Diopter Correction | Not specified by manufacturer | | Eye Relief | Not specified by manufacturer | | Exit Pupil | 25 mm | | Display | 640 x 480 OLED | | Video Output Format | NTSC / PAL | | Power Source | (2) CR123A batteries | | Runtime | Up to 4 hours of continuous operation | | Start-Up Time | Approximately 3 seconds | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Waterproof Depth | 33 ft (10 m) for 30 minutes | | Dimensions | 7.9 x 3.1 x 2.6" (20 x 8 x 7 cm) | | Weight | 22.9 oz (650 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 17.0 x 12.0 x 10.0" |
