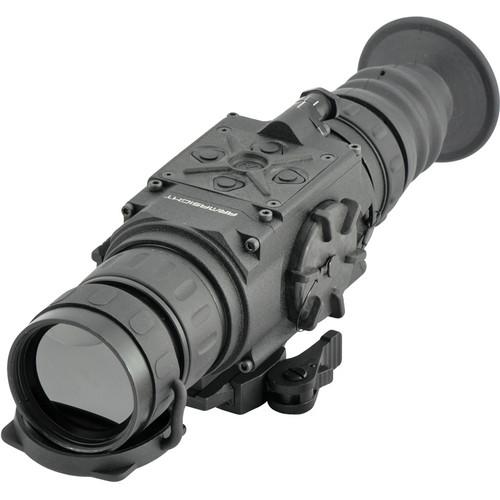

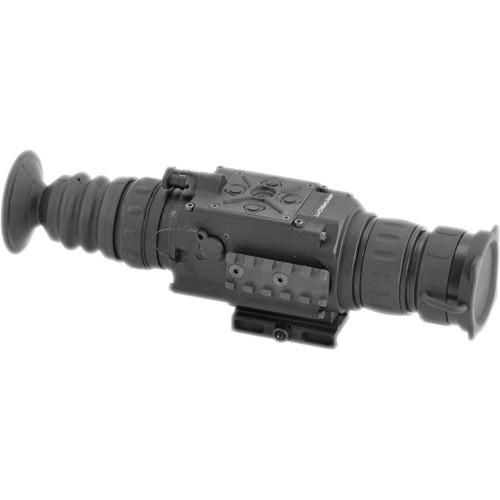

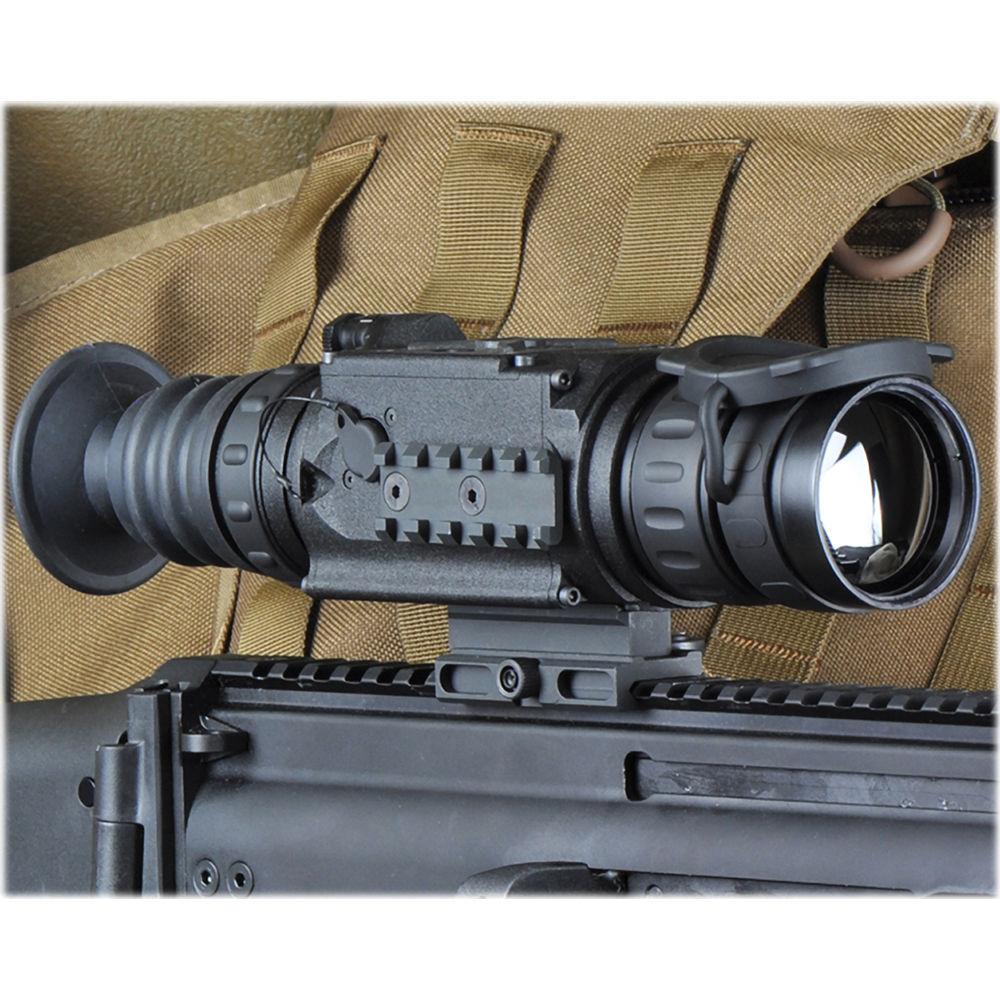

Product description The 3x42 Zeus 336 60Hz Thermal Weapon Sight from Armasight is a multi-purpose thermal imager featuring a 50mm f/1.0 lens system, analog video output, and weather-sealed aluminum housing. An uncooled FLIR Tau 2 thermal detector captures 336x256 resolution images at 60Hz, giving this Zeus configuration the imaging prowess needed for close and mid-range tactical engagements as well as real time surveillance and intelligence gathering. By distinguishing slight differences in the heat of objects within the field of view, thermal imagers are capable of seeing through smoke, fog, and dust—day or night.Armasight equipped the Zeus thermal sight with a range of image adjustment functions that allow the operator to optimize the transmitted image for their targeting or recording task. In addition to Black Hot and White Hot polarity modes, the thermal signature within view can be transposed into a false-color image by selecting one of ten color palette options. Six reticle patterns, each selectable in black, white, red, or cyan, allows the operator to select a color-pattern combination that maximizes contrast and reticle visibility against the thermal landscape. The aiming point of the reticle is digitally adjustable in 1.3 MOA increments; for surveillance tasks and video recording, the reticle can be deactivated.A Picatinny rail integrated with the Zeus housing permits the attachment of a laser aiming device or other compact rail-mountable accessory. Included with the Zeus thermal weapon sight is a wireless remote control and a dedicated mount for convenient integration with the scope housing. Complementing the imaging performance and versatility of the Zeus thermal weapon sight is a shock-resistant aerospace aluminum housing that is nitrogen-filled for fogproof and waterproof performance. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Imaging Performance
-
- 336x256 uncooled Tau 2 detector, 17µm pixel size
- 60Hz refresh rate
- Optical magnification: 3x
- Digital zoom: 2x and 4x
- Objective lens: 50mm diameter
- Germanium glass objective lens
- Lens system: 50mm f/1.0
- Angle of view: 7.8x5.9°
- 16 ft close focus distance
- 45mm eye relief
- System Features
-
- 800x600 AMOLED SVGA color display
- NTSC/PAL analog video output
- Accepts 6V DC external power supply
- Tethered flip-down objective cover
- Shuttered rubber eyecup minimizes light splash
- Wireless remote control with dedicated Picatinny mount
- Interface and Controls
-
- Polarity modes: White Hot, Black Hot, 11 color modes
- Reticle options: 4 MOA Dot, Line-Dot, Floating Cross, Cross-Dot, Crosshair, No reticle
- Reticle color: Black, White, Red, Cyan
- Hunting and CQB detection modes
- 1.3 MOA digital impact point correction
- 8-level brightness adjustment
- Drop-down menu navigation
- Construction Details
-
- Anodized aerospace aluminum housing
- Nitrogen-filled for fogproof and waterproof performance
- Includes throw-lever quick-release Picatinny mount
- Integrated accessory Picatinny rail
- Operating temperature: -40 to 134°F
- Weight: 24.7 oz without batteries
UPC: 849815001525 In the Box Armasight by FLIR 3x50 Zeus 336 60Hz Thermal Weapon Sight Hard Carrying Case Soft Carrying Case Wireless Remote Control Picatinny Adapter for Remote Control Quick-Release Picatinny Mount 2 x CR123A Batteries Objective Cover Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR 3x50 Zeus 336 60Hz Thermal Weapon Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR Zeus 3 Specs | Array Configuration | 336 x 256 FLIR Tau 2 | | Pixel Size | 17 µm | | Refresh Rate | 60 Hz | | Magnification | 2.8x (NTSC), 3.4x (PAL) | | Angle of View | 7.8 x 5.9° | | Objective Lens Diameter | 50 mm | | Lens System | 50 mm f/1.0 | | Minimum Focus Distance | 16 ft (5 m) | | Diopter Correction | ±5 | | Eye Relief | 45 mm | | Exit Pupil | 10 mm | | Digital Zoom | 2x / 4x | | Impact Point Correction | 1.3 MOA | | Display | 800 x 600 AMOLED SVGA | | Video Output Format | NTSC / PAL | | Power Source | (2) CR123A batteries | | Runtime | Up to 4 hours of continuous operation | | Start-Up Time | Approximately 3 seconds | | Waterproof Depth | 33 ft (10 m) for 30 minutes | | Dimensions | 10 x 3.2 x 2.8" (25.5 x 8 x 7 cm) | | Weight | 24.7 oz (700 g) | | | | Package Weight | 8.35 lb | | Box Dimensions (LxWxH) | 14.0 x 12.6 x 6.5" |
