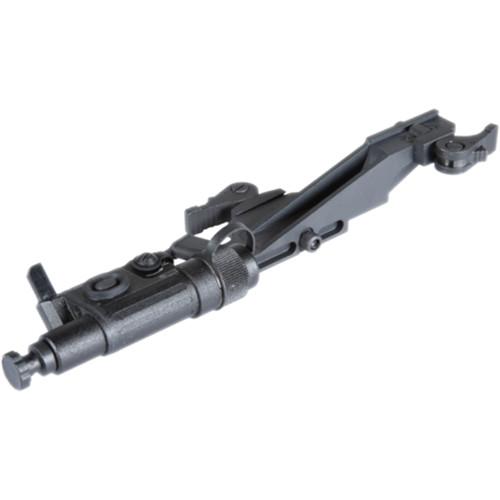

User Manual for Armasight by FLIR AIM Pro-L with Adapter Ring #62 Advanced Integrated Mount Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR AIM Pro-L with
- Product category: Bases & Mounts Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Bases & Mounts
|
User manual for the Armasight by FLIR AIM Pro-L with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|
Product description The AIM Pro-L with Adapter Ring #62 Advanced Integrated Mount by Armasight allows the operator to convert a night vision monocular into a riflescope by projecting a reticle display directly into your night vision scope. The mount is incorporated into a low-profile housing that has an integral MIL-STD-1913 Picatinny rail grabber mount on the underside and a dovetail mount on the top. By mounting the system onto your rifle and fitting it with a night vision monocular (sold separately), the mount can be bore-sighted to your rifle. This allows the operator to switch between day and night modes as required, without having to readjust.When the mount projects the reticle directly into a night vision monocular lens, the reduced field of view that you might get when mounting a night vision scope inline with an optical scope is avoided. The small HUD-type prism on the front of the mount projects a 65 MOA circle and a single 3.2 MOA center aiming dot directly into the night vision lens.This version of the AIM Pro includes a bracket specifically for mounting the AIM Pro to a PVS-14 night vision monocular. It also allows the user to mount a 3x night vision monocular (sold separately) directly onto their riflescope for a magnified viewing range. - Converts standard night vision monocular into passive NV riflescope
- Allows for rapid and easy sighting
- Eliminates the need for IR laser or co-witnessed red dot sight
- No obstructing optics or parts in your field of view
- Digital reticle brightness adjustment
- Fits any MIL-STD-1913 Picatinny or Weaver rails with adjustable, locking, quick-detach mount
UPC: 849815002195 In the Box Armasight by FLIR AIM Pro-L with Adapter Ring #62 Advanced Integrated Mount Adapter Ring #62 CR123A Lithium Battery Adjustment Disk Screwdriver 1.5mm Hex Key Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR AIM Pro-L with Adapter Ring #62 Advanced Integrated Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR ANKI000P49 Specs | Reticle Pattern | 65 MOA Circle with 3.2 MOA Dot | | Range | ±1.5° | | Adjustments | Reticle Illumination: Digital | | Level | Reticle Brightness: 11 | | Battery Type | CR123A (3 V) Lithium
or Alkaline AA (1.5 V) | | Battery Life | Up to 2,000 hours for CR123A | | Mount Type | Picatinny or Weaver | | Storage Temperature | -58 to 122°F / - 50 to 50° | | Operating Temperature | -40 to 122°F / -40 to 50° | | Waterproof | 3.3' / 1 m for 30 minutes | | Overall Dimensions | 10.60 x 3.40 x 1.65" / 270.0 x 87.0 x 42.0 mm | | Weight | 8.9 oz / 252.0 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 10.0 x 5.0 x 5.0" |
