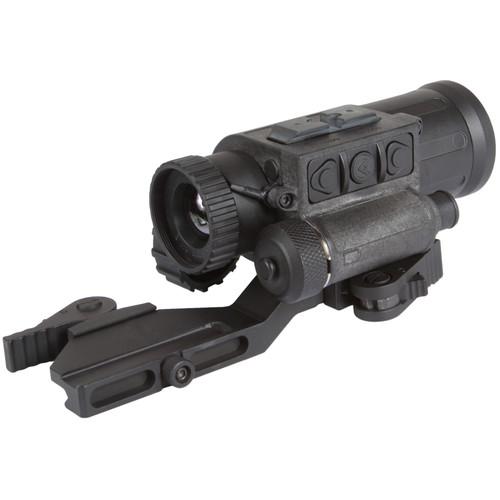

Product description Bluetooth-capable, the Apollo Mini 1-4x 336 Thermal Imaging Clip-On from Armasight is a clip-on attachment that converts a daytime riflescope into a thermal imaging device. Its FLIR Quark 2 uncooled microbolometer detects long-wave infrared and allows you to see heat emanating from humans, animals, jet or combustion engines. It also offers visibility in total darkness through fog, smoke, foliage, and dust. The sensor has resolution of 336x256, 17µm pixel size, and refresh rate of 30 Hz. The optical system features a 19mm f/1.25 germanium lens with 1x magnification and digital zoom of up to 4x. Because this device is intended to be used as a clip-on attachment, the focus is fixed at infinity. To help you with aiming and fast target acquisition, this device offers a multi-color digital reticle.
The built-in OLED SVGA video display features 800x600-pixel resolution and allows several viewing palettes: White Hot, Black Hot, Sepia, and OEM Custom. For documenting your observations, the scope is capable of relaying videos through a video-out port in NTSC and PAL formats. Use the 9-pin connector cable for updating the device software and to relay videos. Additionally, the operating system allows you to enhance video outputs with a selection of imaging filter algorithms.
To add versatility, this imager also features Bluetooth compatibility, a wireless remote control, digital compass, digital inclinometer, and a battery status indicator.

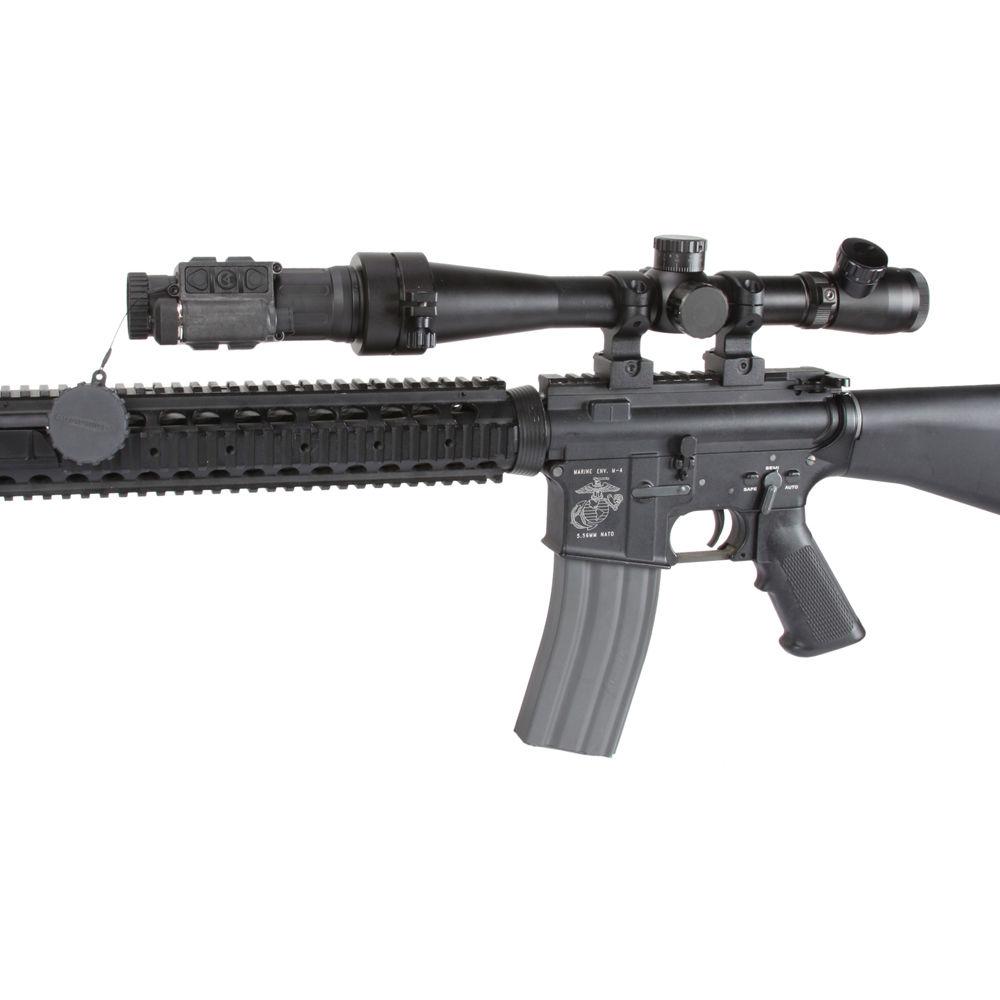

To enable you to use it on any of your missions, the device is designed to withstand extreme temperatures and offers water-resistant performance. You can mount it on a Picatinny or Weaver-style rails and detach via a quick-release. This thermal imager can be powered by one CR-123 alkaline or rechargeable battery, compatible external battery pack, or an optional 6-12V power supply with a current output of 600mAh. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Thermal Imager
-
- FLIR Quark 2 Focal Plane Array
- Resolution: 336x256 pixels
- Pixel size: 17µm
- Refresh rate: 30 Hz
- Optical Performance
-
- Lens system: 19mm, f/1.25
- Fixed focus at infinity
- Germanium objective lens
- Optical magnification: 1x
- Digital zoom: 2x, 4x
- Video Features
-
- 800x600 OLED SVGA 060 color display

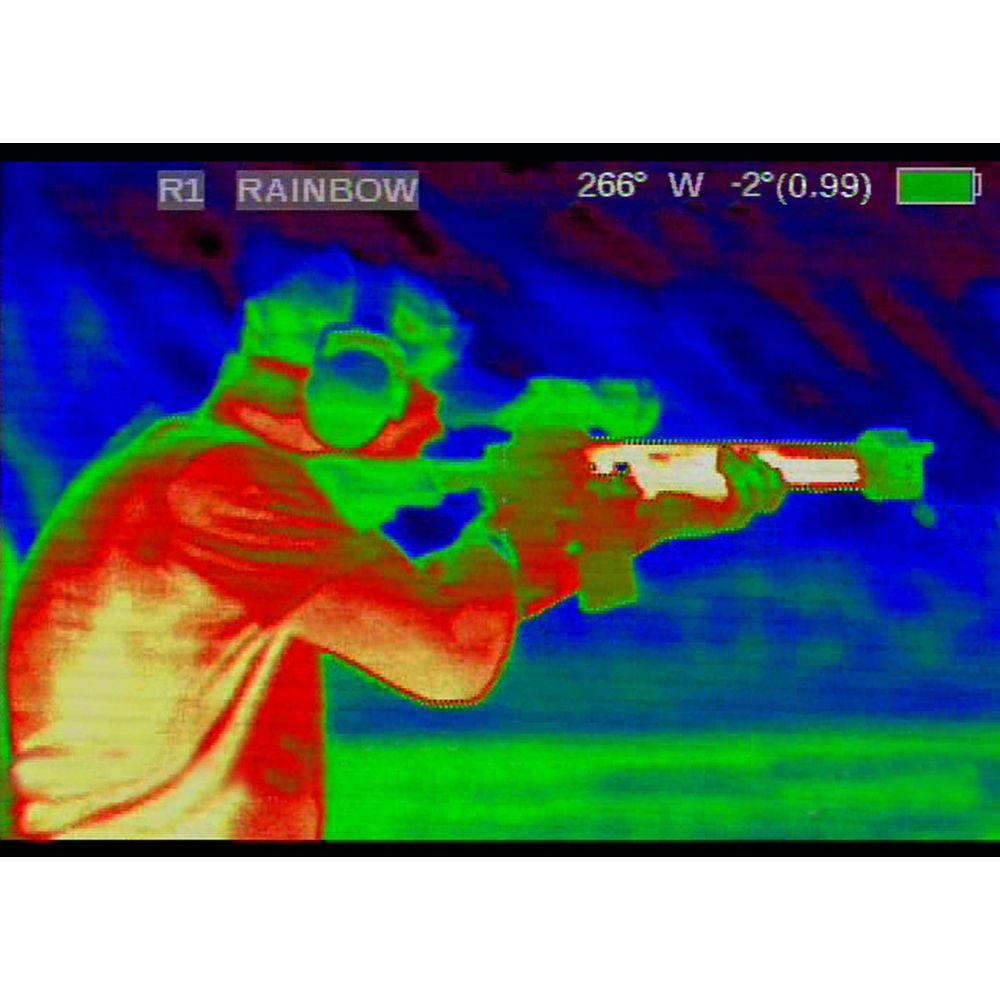

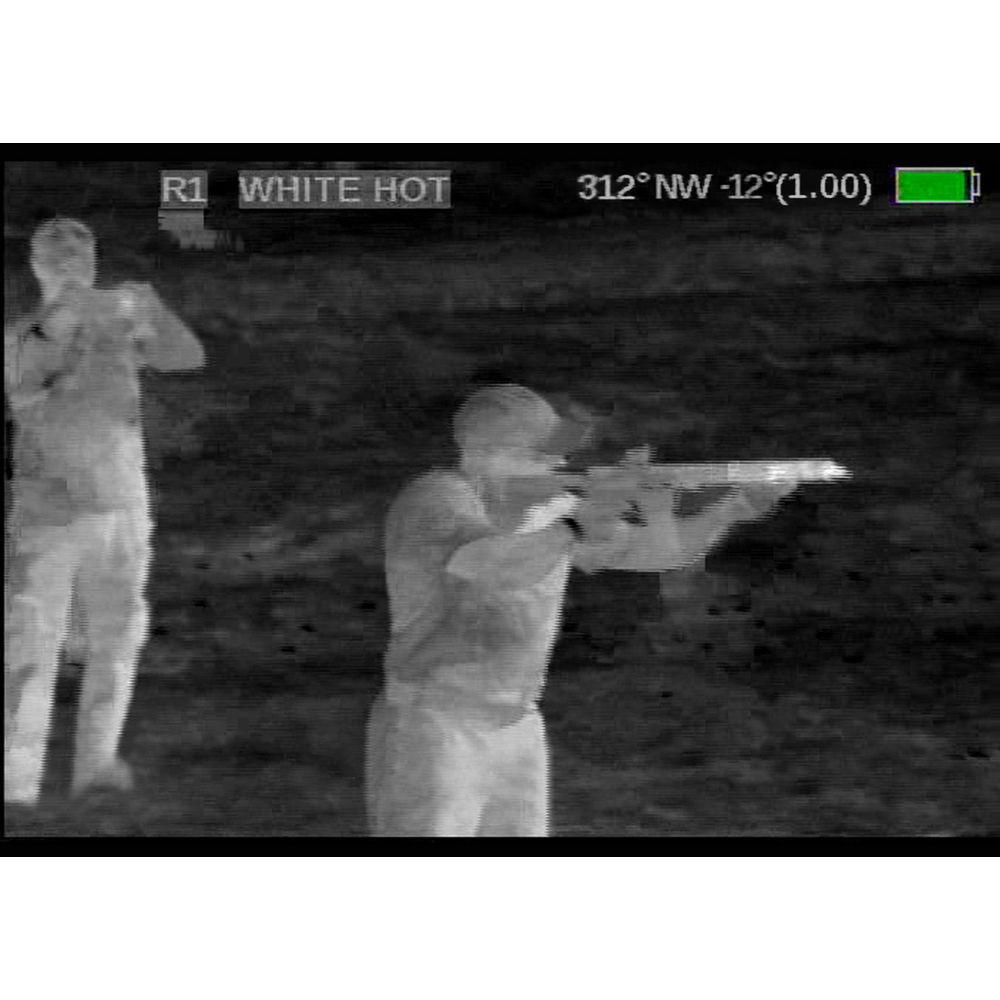

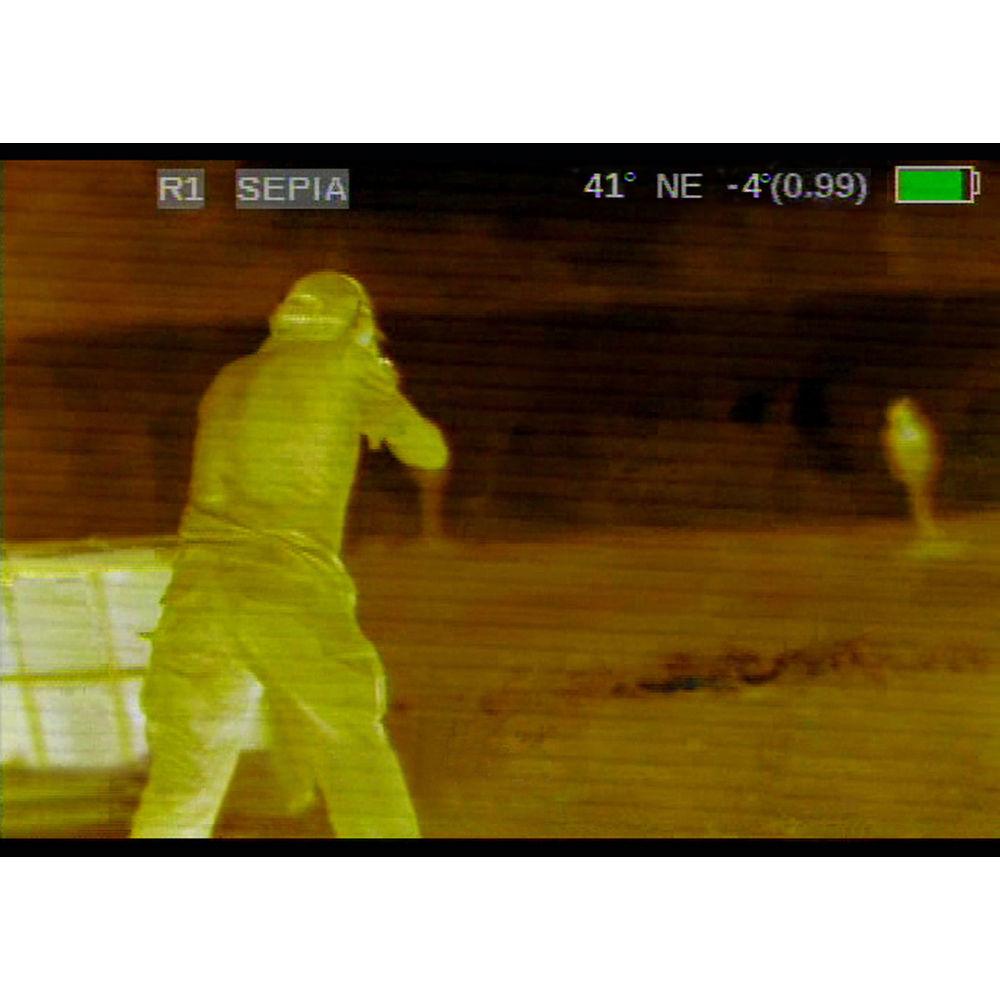

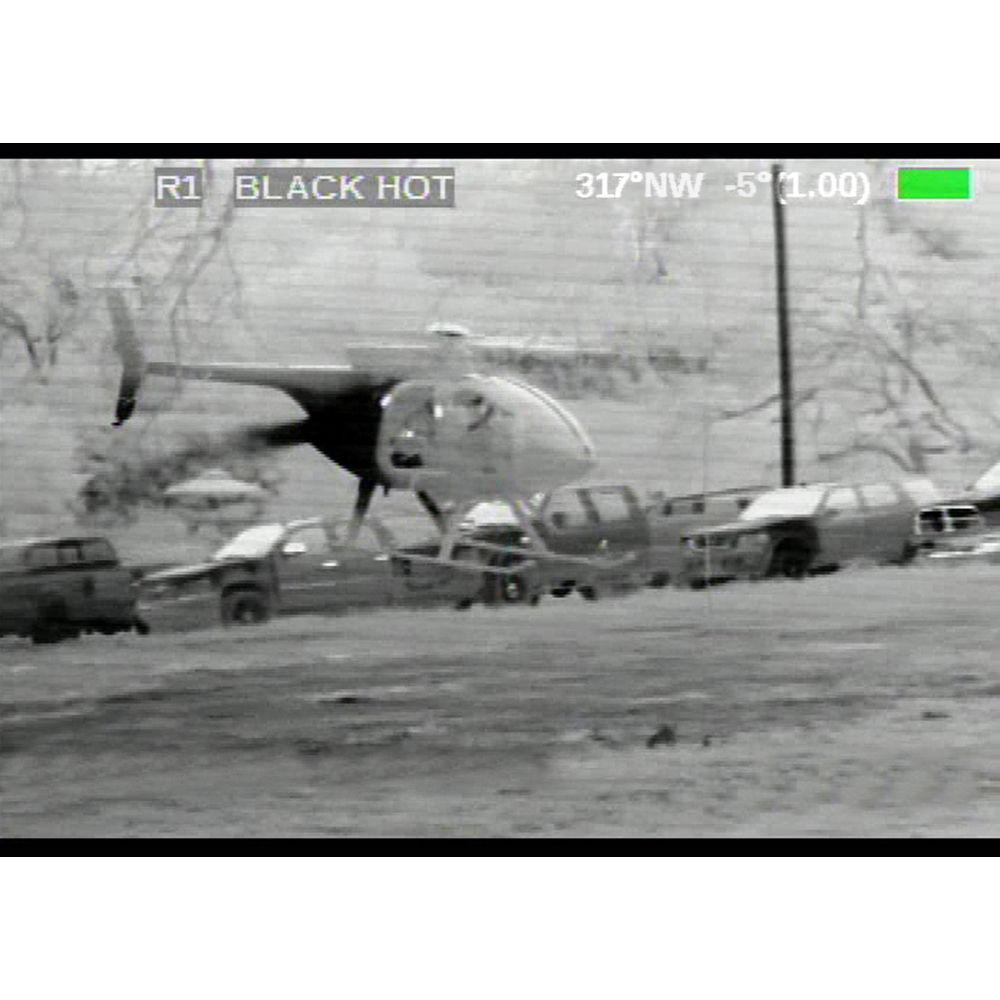

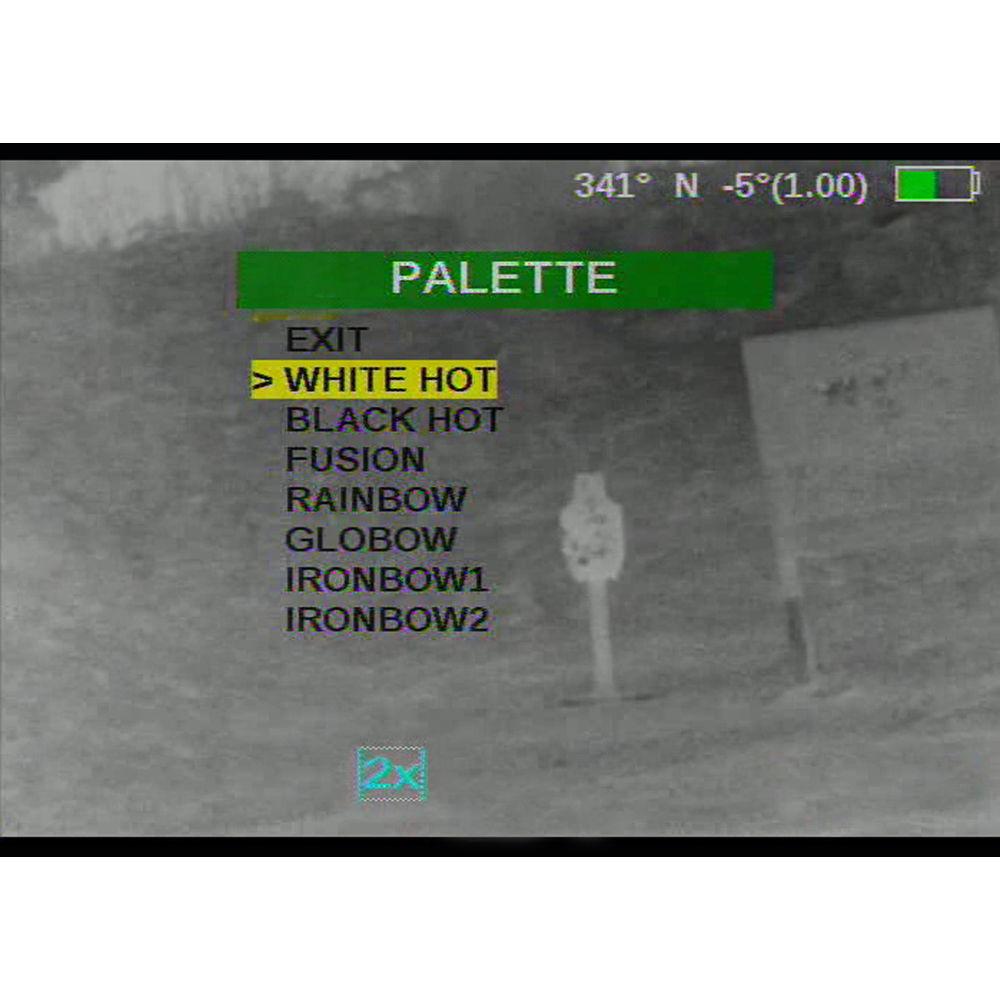

- Selectable White Hot, Black Hot, Sepia, OEM Custom palettes
- Video output formats: 640×480 pixels NTSC and 768×574 pixels PAL

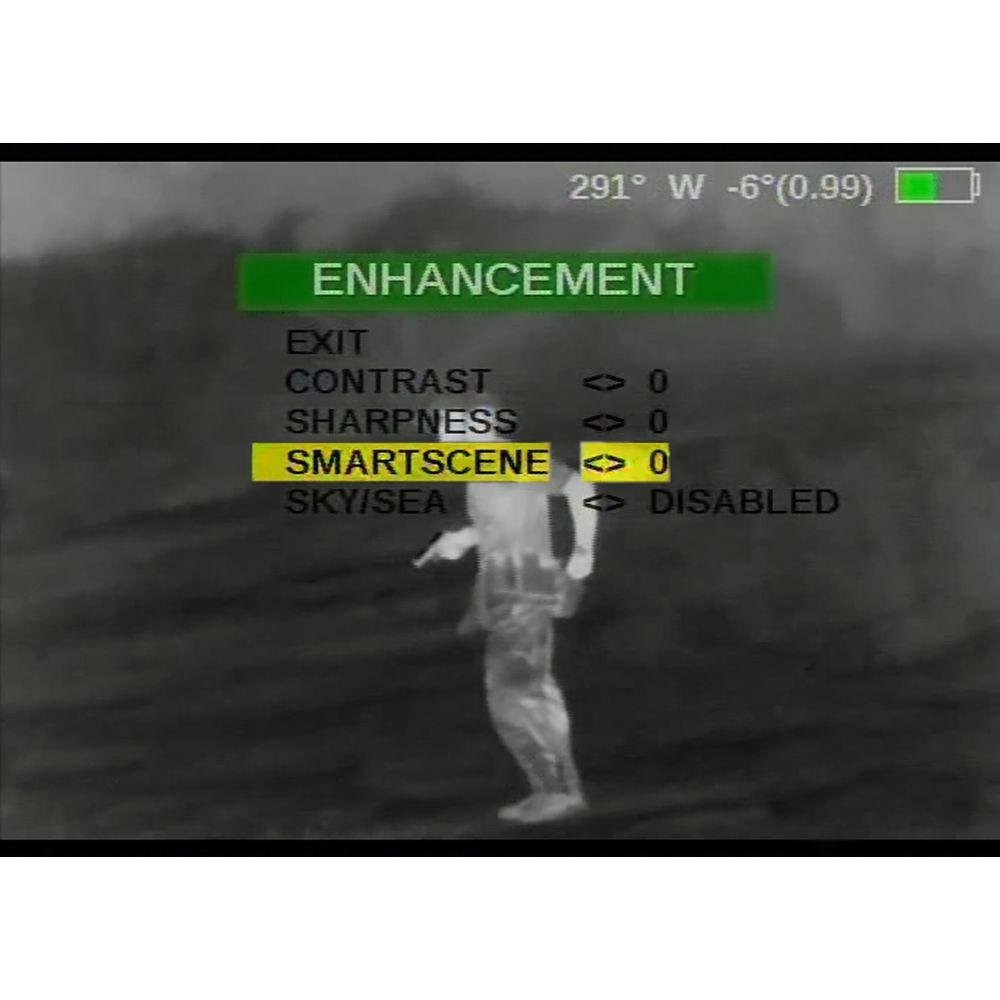

- Imaging Filter Algorithms
-
- Active Contrast Enhancement (ACE)
- Smart Scene Optimization (SSO)
- Information Based Histogram Equalization (IBHEQ)
- Second Generation Digital Detail Enhancement (DDE)
- Silent Shutterless Non-uniformity Correction (SSN)
- User-Controlled Manual Non-Uniformity Correction/Flat-Field Correction (UCMNUC/FFC)
- Linear Automatic Gain Control
- Use and Handling
-
- Bluetooth capability allows connecting to compatible devices
- Digital compass
- Digital inclinometer
- Simple, intuitive 3-button control
- Five-button wireless remote control
- Battery status indicator
- Construction Details
-
- Durable and lightweight aluminum alloy housing

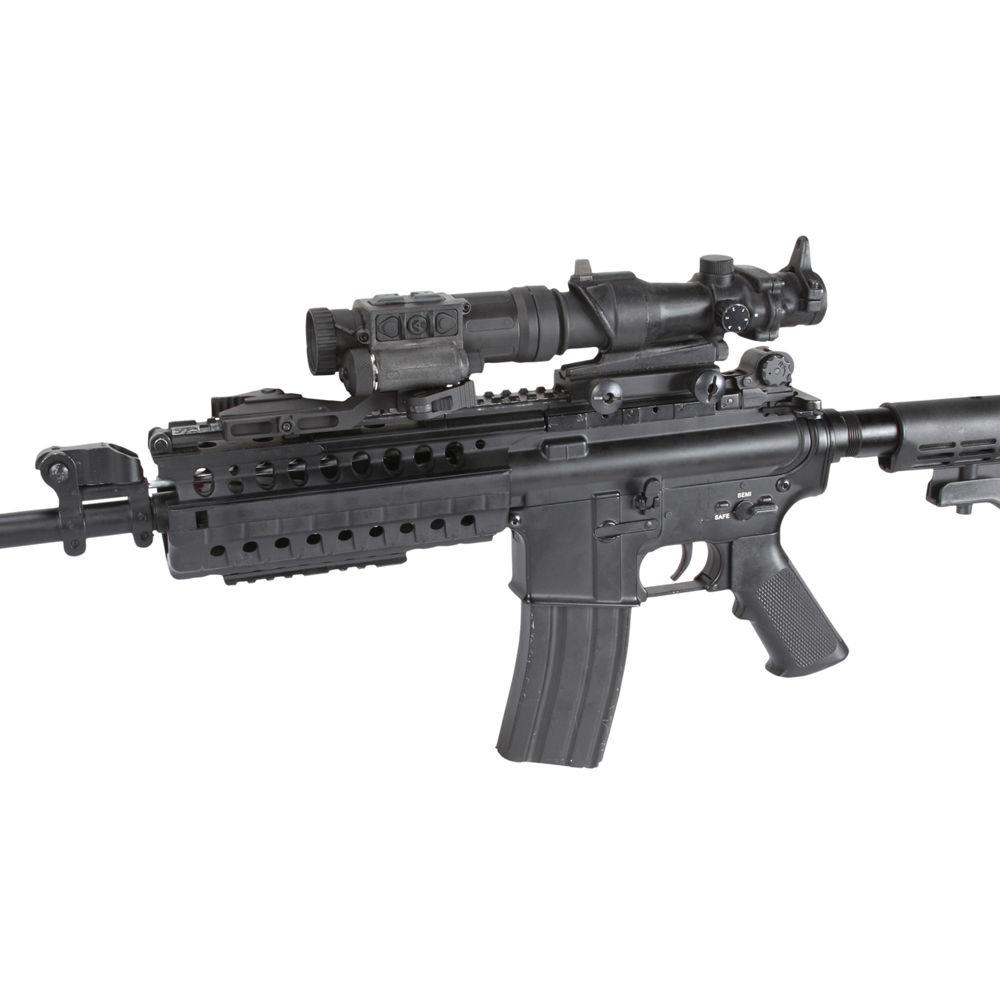

- Mounts in front of day riflescope on Picatinny/Weaver rail
- Can be attached directly to an objective bell of daylight riflescope
- Picatinny/Weaver quick-release mount with two levers
- Picatinny/Weaver accessory or headgear mounting point on the top
- Water-resistant and fog-resistant

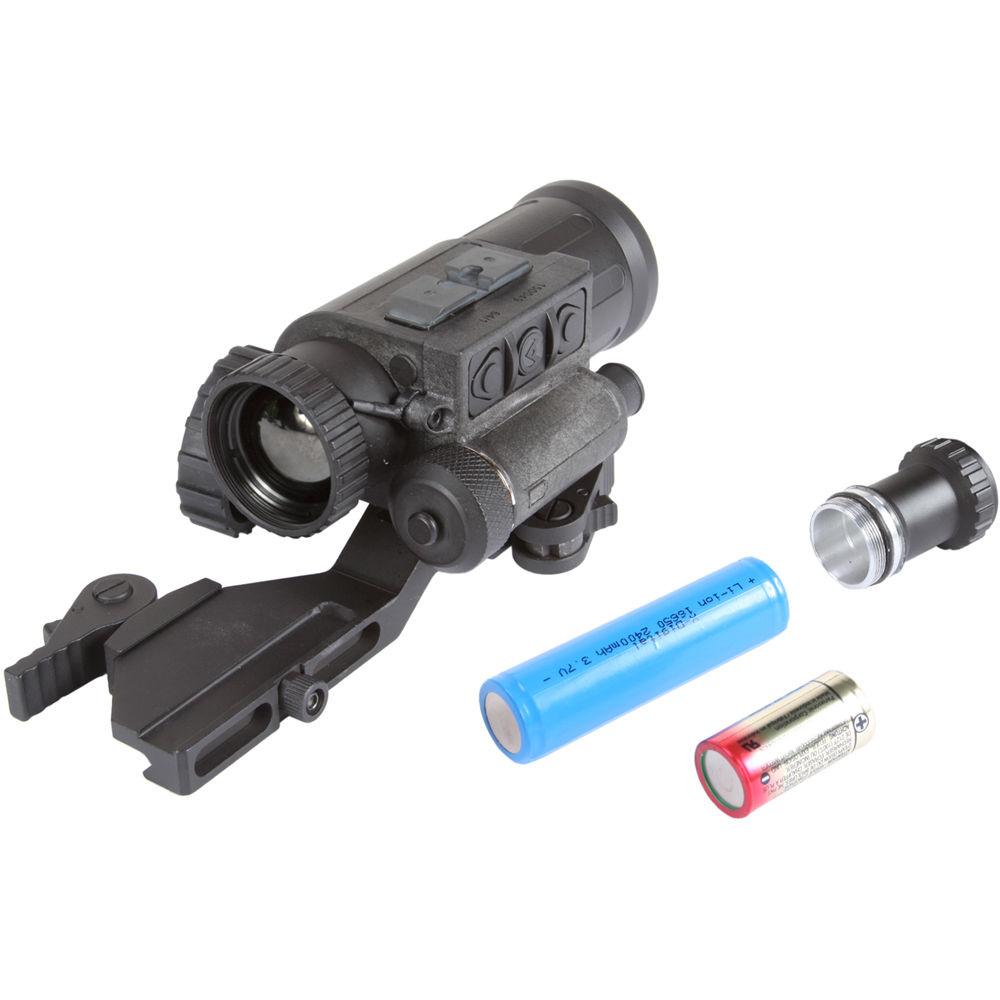

In the Box Armasight by FLIR Apollo Mini 336 1-4x Thermal Imaging Clip-On System (30 Hz) - Objective Lens Cap
- Remote Control
- Picatinny Adapter
- Light Suppressor 1
- Light Suppressor 2
- Light Suppressor 3
- Daylight Riflescope Light Suppressor
- CR-123 Battery
- 16650 Rechargeable Battery
- Battery Adapter for 16650 Battery
- Charger for 16650 Rechargeable Battery
- Hard Shipping Storage Case #101
- Soft Carrying Case
- Video Cable
- Limited 3-Year Warranty
- Limited 10-Year Warranty on FLIR Detector
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Apollo Mini 336 1-4x Thermal Imaging Clip-On System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR Apollo Mini 336 Specs | Array Configuration | 336x256 FLIR Quark 2
Uncooled microbolometer | | Spectral Range | 7-14 µm | | Pixel Size | 17 µm | | Refresh Rate | 30 Hz | | Magnification | Optical: 1x
Digital Zoom: 2x, 4x | | Lens System | Focal Length: 19mm
f/1.25 | | Angular Field of View | 17.2 x 13.2° | | Eye Relief | 27 mm | | Display | AMOLED SVGA 060 | | Power Source | 1 x CR-123 battery / Runtime: 1.5 h
1 x CR-123 650 mAh Rechargeable Battery / Runtime: 1 h
1 x 16650 2000 mAh Rechargeable Battery / Runtime: 2.6 h
External Power Supply: 6 V-12 V, 600 mAh
Compatible External Battery Pack / Runtime: up to 8 h | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Storage Temperature | -58 to 158°F (-50 to 70°C) | | Mount Compatibility | Picatinny or Weaver style rails | | Tripod | No | | Weatherproofing | Water-resistant and fog-resistant | | Dimensions | 4.9 x 2.4 x 2' (124 x 63 x 49 mm) | | Weight | 8.1 oz (250 g) |
