User Manual for Armasight by FLIR Apollo-Pro LR 640 Thermal Imaging Riflescope Clip-On Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR Apollo-Pro LR 640
- Product category: Thermal Imagers Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Thermal Imagers
 |
User manual for the Armasight by FLIR Apollo-Pro LR 640 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|

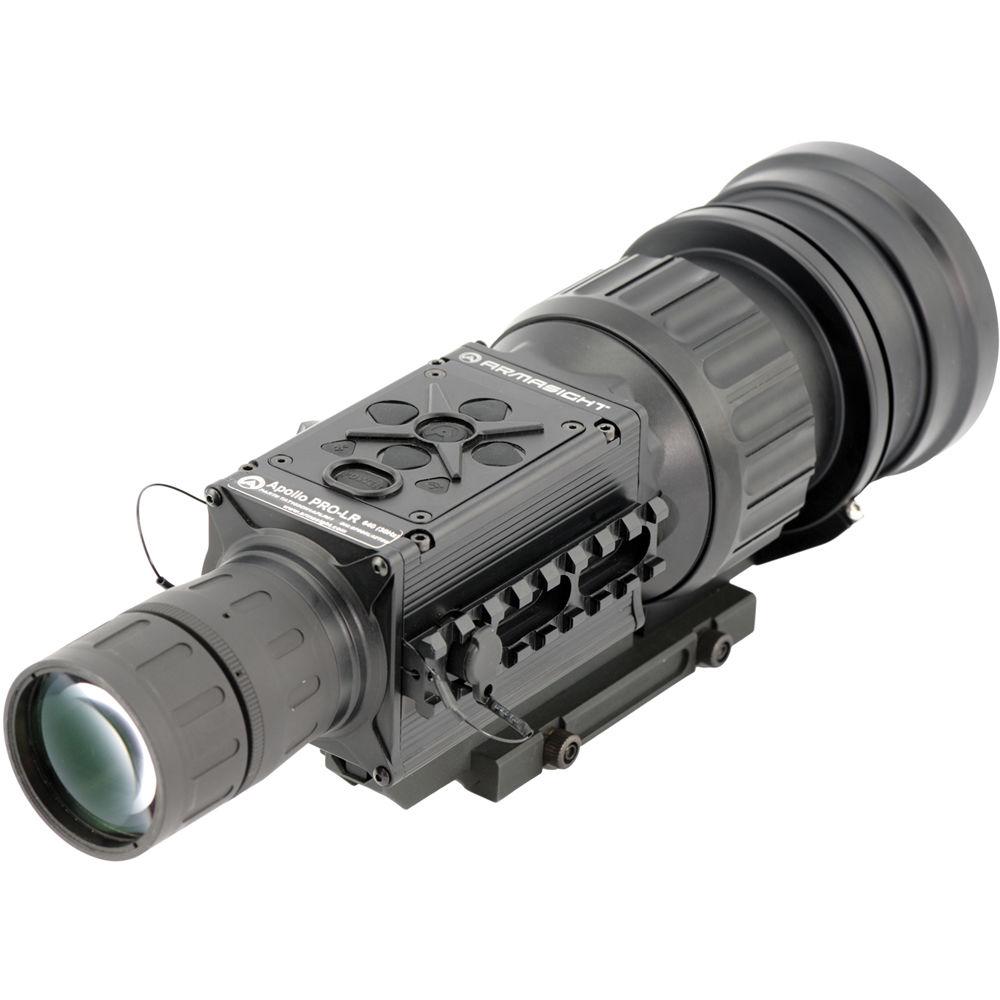

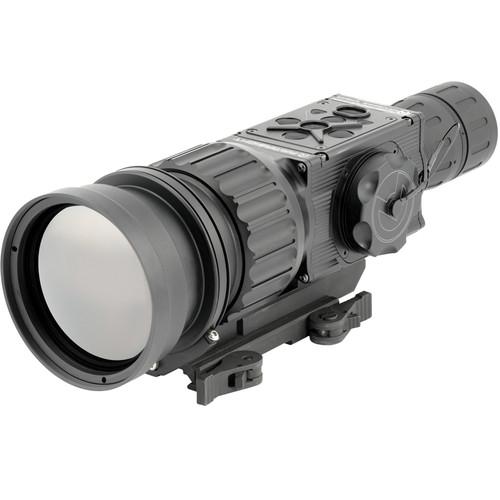

Product description Bluetooth-capable, the Apollo-Pro LR 640 Thermal Imaging Riflescope Clip-On from Armasight is a clip-on attachment that converts a daytime riflescope into a thermal imaging device. Its FLIR Tau-2 uncooled microbolometer detects long-wave infrared and allows you to see unilluminated heat sources in complete darkness through fog, smoke, foliage, and dust. The sensor has resolution of 640x512, 17µm pixel size, and refresh rate of 60 Hz. The optical system features a 100mm f/1.4 germanium lens with 1x magnification and digital zoom of up to 8x. Because this device is intended to be used as a clip-on attachment, the focus is fixed at infinity. To help you with aiming and fast target acquisition, this device offers multi-color digital reticles.
The built-in OLED SVGA video display features 800x600 pixel resolution and allows several viewing palettes: White Hot, Black Hot, Sepia, and OEM Custom. For documenting your observations, the scope is capable of relaying videos through a video-out port in NTSC and PAL formats. Use the 9-pin connector cable for updating the device software and to relay videos. Additionally, the operating system allows you to enhance video outputs with a selection of imaging filter algorithms.
To enhance versatility, this imager also features a Bluetooth compatibility, a wireless remote control, digital compass, digital inclinometer, and a battery status indicator.
To enable you to use it on any of your missions, the device is designed to withstand extreme temperatures and submersion to 66' for maximum of 2 hours. You can mount it on a Picatinny or Weaver style rails and detach via a quick-release. This thermal imager can be powered by four CR123A batteries, four AA batteries with a cartridge, or optional 6V power supply with current output of 1A. A special power management feature allows operating Apollo Pro on one CR123A battery for one hour. - Imaging Performance
-
- Uncooled microbolometer: FLIR Tau-2
- Resolution: 640x512 pixels
- Pixel size: 17µm
- Refresh rate: 60 Hz
- Optical Performance
-
- Lens system: 100mm, f/1.4
- Fixed focus at infinity
- Germanium objective lens
- Optical magnification: 1x
- Digital zoom: 2x, 4x, 8x
- Digital multi-color reticle
- Video Features
-
- 800x600 OLED SVGA 060 color display
- Selectable White Hot, Black Hot, Sepia, OEM Custom palettes
- VGA video output port
- Includes 9-pin connector
- Upgradable software
- Imaging filter algorithms
-
- Active Contrast Enhancement (ACE)
- Smart Scene Optimization (SSO)
- Information Based Histogram Equalization (IBHEQ)
- Second Generation Digital Detail Enhancement (DDE)
- Silent Shutterless Non-uniformity Correction (SSN)
- Use and Handling
-
- Bluetooth capability allows connecting to compatible devices
- Digital compass
- Digital inclinometer
- Five-button wireless remote control
- Battery status indicator
- Construction Details
-
- Mounts in front of day riflescope
- Accessory rail is attached on the right side
- Waterproof, submersible to 66'
- Operating temperature: -59 to 134°F
- Picatinny or Weaver mount with a quick-release

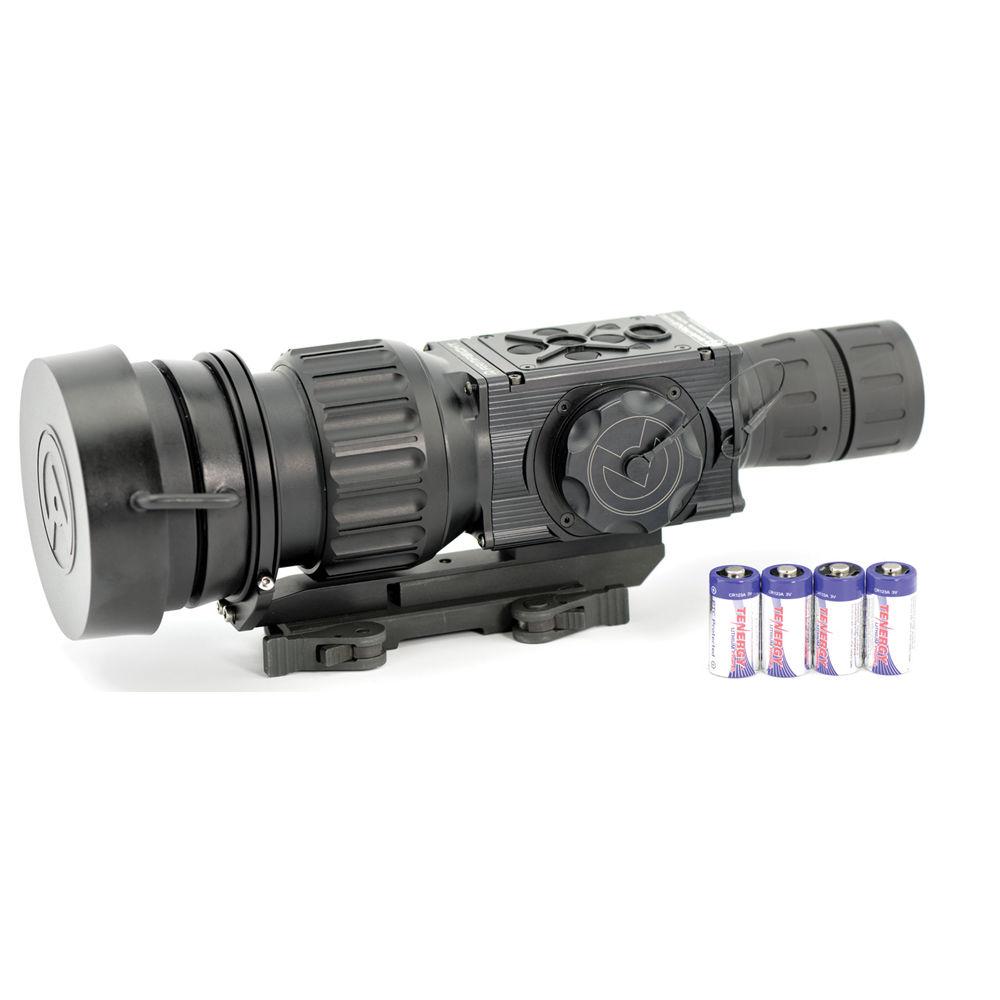

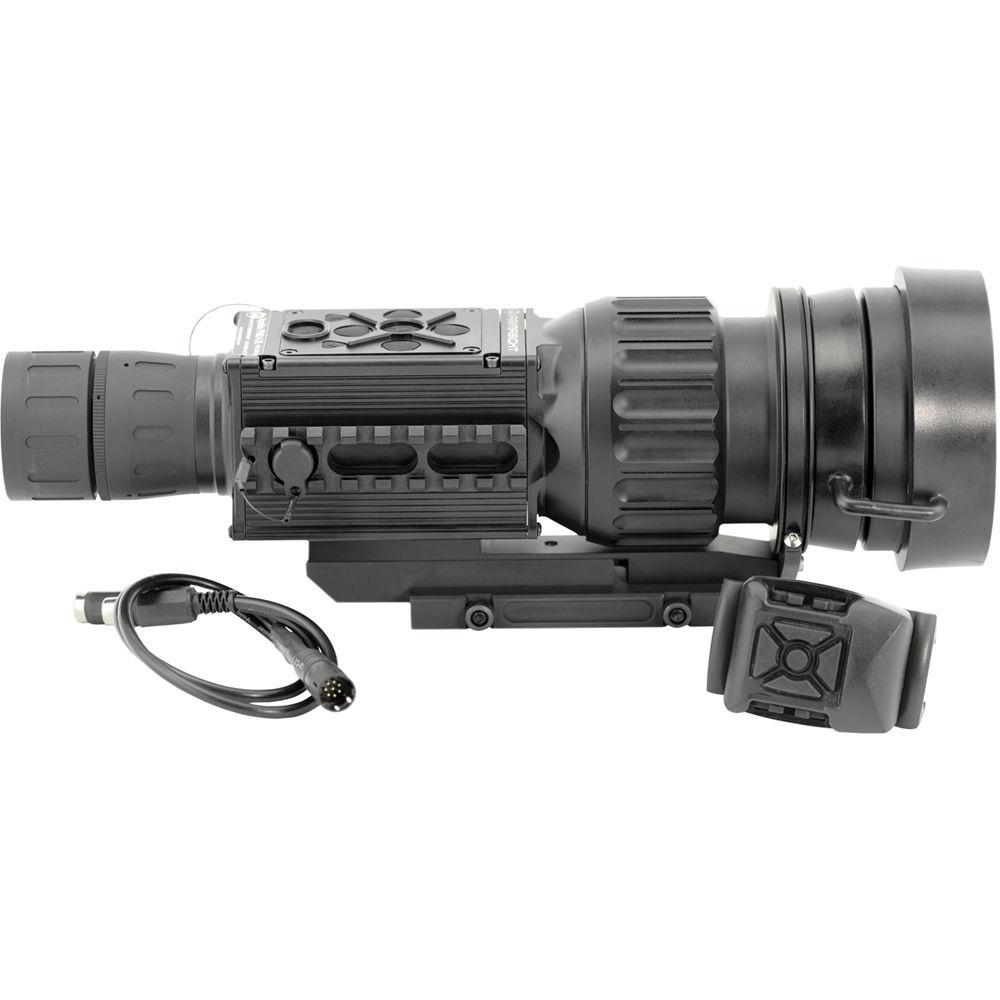

UPC: 849815005264 In the Box Armasight by FLIR Apollo-Pro LR 640 Thermal Imaging Riflescope Clip-On (60 Hz, 100mm) - 2 x CR123A Battery
- Soft Carrying Case
- Packing Box
- Light Suppressor for Day Scope
- Lens Tissue
- Limited 3-Year Warranty
- Limited 10-Year Warranty on FLIR Detector
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Apollo-Pro LR 640 Thermal Imaging Riflescope Clip-On in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR TAT166CN1APLR01 Specs | Array Configuration | 640x512 FLIR Tau-2
Uncooled microbolometer | | Spectral Range | 7 - 14 µm | | Pixel Size | 17 µm | | Refresh Rate | 60 Hz | | Magnification | Optical: 1x
Digital zoom: 2x, 4x, 8x | | Lens System | Focal length: 100mm
f/1.4 | | Display | AMOLED SVGA 060 | | Power Source | 4 x CR-123A (3V) batteries
4 x AA batteries
6 V, 1 A external power supply | | Runtime | Normal mode: 6 hr max
Optional mode: 14 hr max | | Operating Temperature | -59 to 134°F (-51 to 57°C) | | Storage Temperature | -70 to 185°F (-57 to 85°C) | | Mount Compatibility | Picatinny or Weaver style rails | | Tripod | No | | Weatherproofing | Waterproof, submersible to 66' (20 m) for two hr max | | Dimensions | 11.3 x 4 x 3.5' (287 x 100 x 90 mm) | | Weight | 45.1 oz (1.28 kg) |
