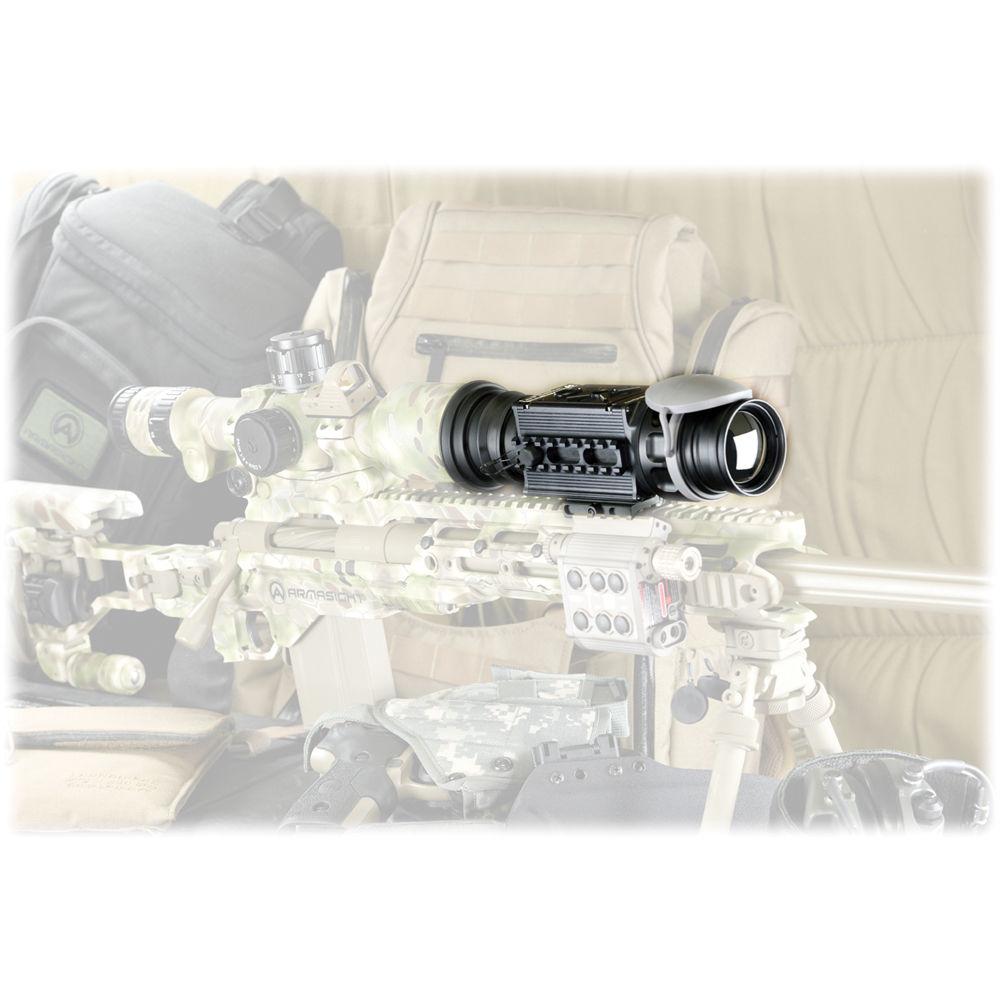

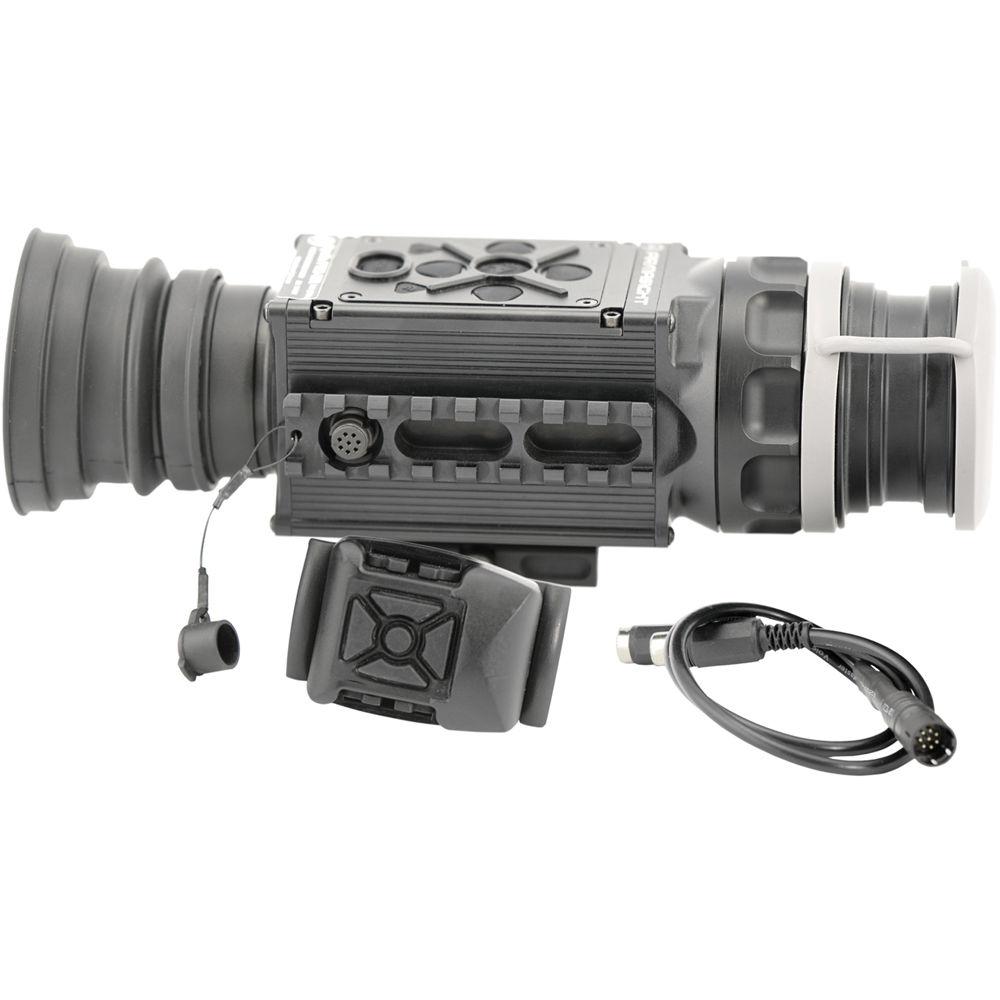

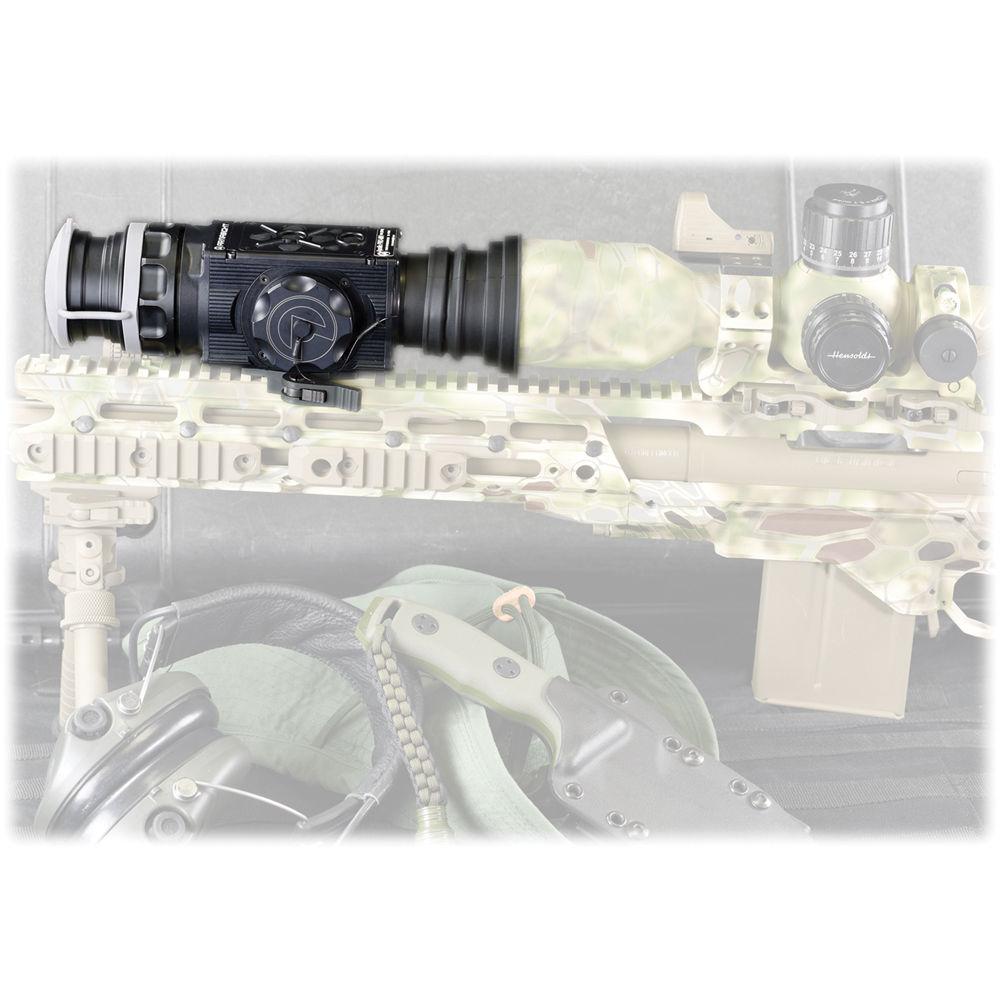

Product description Bluetooth-capable, the Apollo-Pro MR 640 Thermal Imaging Clip-On from Armasight is a clip-on attachment that converts your daytime riflescope into a thermal imaging device. Its FLIR Tau-2 uncooled microbolometer detects long-wave infrared spectrum and allows you to see unilluminated heat sources in complete darkness through fog, smoke, foliage, and dust. The sensor has resolution of 640 x 512, 17µm pixel size, and refresh rate of 30 Hz. The optical system features a 50mm f/1.4 germanium lens with 1x magnification and digital zoom of up to 8x. Because this device is intended to be used as a clip-on attachment, the focus is fixed at infinity. To help you with aiming and fast target acquisition, it offers a multi-color digital reticle.
The built-in OLED SVGA video display features 800 x 600 pixel resolution and allows several viewing palettes: White Hot, Black Hot, Sepia, and OEM Custom. For documenting your observations, the imager is capable of relaying videos through a video-out port in NTSC and PAL formats. Use the 9-pin connector cable for updating the device software and to relay videos. Additionally, the operating system allows you to enhance videos with a selection of filter algorithms.
To enhance versatility, this thermal imager also features a Bluetooth, a wireless remote control, digital compass, digital inclinometer, and a battery status indicator.
To enable you to use it on any of your missions, it is designed to withstand extreme temperatures and submersion to 66' for maximum of 2 hours. You can mount it on Picatinny- or Weaver-style rails and detach via a quick release. It can be powered by four CR123A batteries, four AA batteries with a cartridge, or optional 6V power supply with current output of 1A. A special power management feature allows operating Apollo Pro on one CR123A battery for one hour. - Imaging Performance
-
- Uncooled microbolometer: FLIR Tau-2
- Resolution: 640 x 512 pixels
- Pixel size: 17µm
- Refresh rate: 30 Hz
- Optical Performance
-
- Lens system: 50mm, f/1.4
- Fixed focus at infinity
- Germanium objective lens
- Optical magnification: 1x
- Digital zoom: 2x, 4x, 8x
- Digital multi-color reticle
- Video Features
-
- 800 x 600 OLED SVGA 060 color display
- Selectable White Hot, Black Hot, Sepia, OEM Custom palettes
- VGA video output port
- Includes 9-pin connector
- Upgradable software
- Imaging filter algorithms
-
- Active Contrast Enhancement (ACE)
- Smart Scene Optimization (SSO)
- Information Based Histogram Equalization (IBHEQ)
- Second Generation Digital Detail Enhancement (DDE)
- Silent Shutterless Non-uniformity Correction (SSN)
- Use and Handling
-
- Bluetooth capability allows connecting to compatible devices
- Digital compass
- Digital inclinometer
- Five-button wireless remote control
- Battery status indicator
- Construction Details
-
- Mounts in front of day riflescope
- Accessory mounting rail on the right side
- Waterproof, submersible to 66'
- Wide and long rubberized riflescope objective light suppressor
- Operating temperature: -59 to 134°F
- Lockable Picatinny or Weaver mount with a quick release
UPC: 849815005233 In the Box Armasight by FLIR Apollo-Pro MR 640 Thermal Imaging Clip-On (30 Hz, 50mm) - 2 x CR123A Battery
- Objective Lens Cap
- Soft Carrying Case
- Packing Box
- Light Suppressor for Day Scope
- Lens Tissue
- Limited 3-Year Warranty
- Limited 10-Year Warranty on FLIR Detector
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Apollo-Pro MR 640 Thermal Imaging Clip-On in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR TAT163CN5APMR01 Specs | Array Configuration | 640 x 512 FLIR Tau-2
Uncooled microbolometer | | Spectral Range | 7 - 14 µm | | Pixel Size | 17 µm | | Refresh Rate | 30 Hz | | Magnification | Optical: 1x
Digital Zoom: 2x, 4x, 8x | | Lens System | Focal Length: 50mm
f/1.4 | | Display | AMOLED SVGA 060 | | Power Source | 4 x CR123A (3 V) batteries
4 x AA batteries
6 V, 1 A external power supply | | Runtime | Normal Mode: 6 h max
Optional Mode: 14 h max | | Operating Temperature | -59 to 134°F / -51 to 57°C | | Storage Temperature | -70 to 185°F / -57 to 85°C | | Mount Compatibility | Picatinny or Weaver style rails | | Tripod | No | | Weatherproofing | Waterproof, submersible to 66' / 20 m for two hours, max | | Dimensions | 8.5 x 3 x 3' / 217 x 76 x 76 mm | | Weight | 25.4 oz / 720 g | | | | Box Dimensions (LxWxH) | 17.0 x 13.0 x 7.0" |
