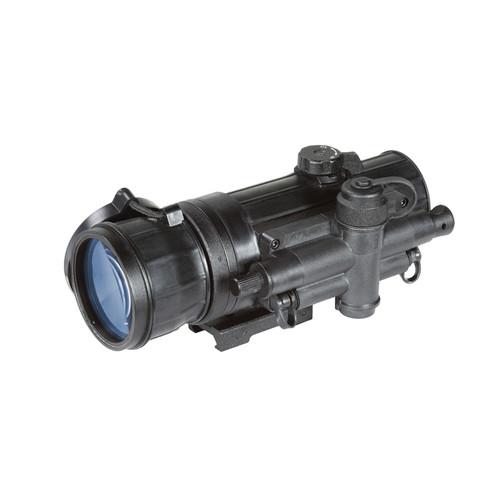

User Manual for Armasight by FLIR Armasight CO-MR 2nd Gen HD Night Vision Riflescope Clip On Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR Armasight CO-MR 2nd
- Product category: Day/Night Systems Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Day/Night Systems
|
User manual for the Armasight by FLIR Armasight CO-MR 2nd contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|
Product description Recommended for use with day riflecopes of 6x-7x, the Armasight CO-MR 2nd Gen HD Night Vision Riflescope Clip On is a night vision device that can be attached to a rifle scope or other optic and is designed to assist in night observing and target acquisition. It can be wirelessly operated and features a 2nd generation intensifier tube. The Armasight second generation intensifier tube technology incorporates a microchannel plate, multi-alkaline photocathode, built-in power supply, and 18 mm format screen, which improve reliability, image brightness, and quality compared to first generation devices. The High Definition (HD) feature offers green images and resolution of 55 - 72 lp/mm. To extend the life of the intensifier tube and to protect it from overexposure to bright light or accidental turn-on during daylight, the device is equipped the Bright Light Cut-off function.
The CO-MR, when attached to a rifle scope, eliminates the requirement of removing your existing day scope from your rifle, to replace it with a dedicated night vision sight, which would also involve re-zeroing. The CO-MR simply mounts in front of your own standard day optical sight and is factory bore-sighted to tolerances of less than 1 MOA. This allows the user to maintain consistent eye relief and shooting position.
A wireless remote control unit can be placed anywhere on the weapon, allowing activation of the CO-MR. The Armasight CO-MR is equipped with a quick-disconnect mounting system which provides the user with an easy and quick way to attach or detach the unit. - Image Intensifier
-
- 2nd Gen, High Definition (HD)
- 55-72 lp/mm resolution
- Multi-alkali tube displays standard green NV image
- Automatic Brightness Control optimizes image brightness
- Bright Light Cut-Off protects tube and viewer's eyes from sudden flashes of light
- Optical Performance
-
- 1x magnification
- 80mm f/1.2 objective lens
- Field of view: 12.6°
- Exit Pupil Diameter: 21 mm
- 32' close focus
- Use and Handling
-
- Wireless remote with mount
- Detachable long-range, wide-angle IR illuminator
- Objective lens focus ring
- Construction Details
-
- Nitrogen-filled, submersible to 32' for 30 min and fogproof
- Picatinny rail and platform ring for accessories
- Picatinny or Weaver style rail mount
UPC: 818470010357 In the Box Armasight by FLIR Armasight CO-MR 2nd Gen HD Night Vision Riflescope Clip On - IR850W Detachable Wide Range Angle Adjustable Long Range Infrared Illuminator tvrcbcfqyeedzs
- Single Lever-Lock Quick Release Picatinny Mount #27
- 2 x М4×8 Flat Head Socket Cap Screw
- Advanced Wireless Remote Control
- Picatinny Adaptor for Advanced Wireless Remote Control
- Light Suppressor 1
- Light Suppressor 2
- Light Suppressor 3
- Light Suppressor for Day Scope
- Mount for IR illuminator
- Special Wrench
- 2 x CR123А Battery
- Carrying Case
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Armasight CO-MR 2nd Gen HD Night Vision Riflescope Clip On in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR NSCCOMR00123DH1 Specs | Intensifier Tube | 2nd generation
High Definition
Resolution: 55 - 72 lp/mm | | Resolution | 55-72 lp/mm | | Magnification | 1x | | Field of View | 12.6° | | Lens | 80mm f/1.2 | | Exit Pupil Diameter | 21 mm | | Range of Focus | 32' / 10 m to infinity | | Battery Type | Single CR123A (3 V) or AA (1.5V) | | Battery Life | 60 hr | | Environmental Rating | Waterproof 32' / 10 m for 30 minutes | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -40 to 122°F / -40 to 50°C | | Dimensions | 7.1 x 3.2 x 3.2" / 180 x 80 x 80 mm | | Weight | 1.5 lb / 0.69 kg with mount | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 17.0 x 12.0 x 6.0" |
