User Manual for Armasight by FLIR Avenger 10x 2nd Generation QS MG White Phosphor Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR Avenger 10x 2nd
- Product category: NV Monoculars & Multi-Systems Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR NV Monoculars & Multi-Systems
 |
User manual for the Armasight by FLIR Avenger 10x 2nd contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|

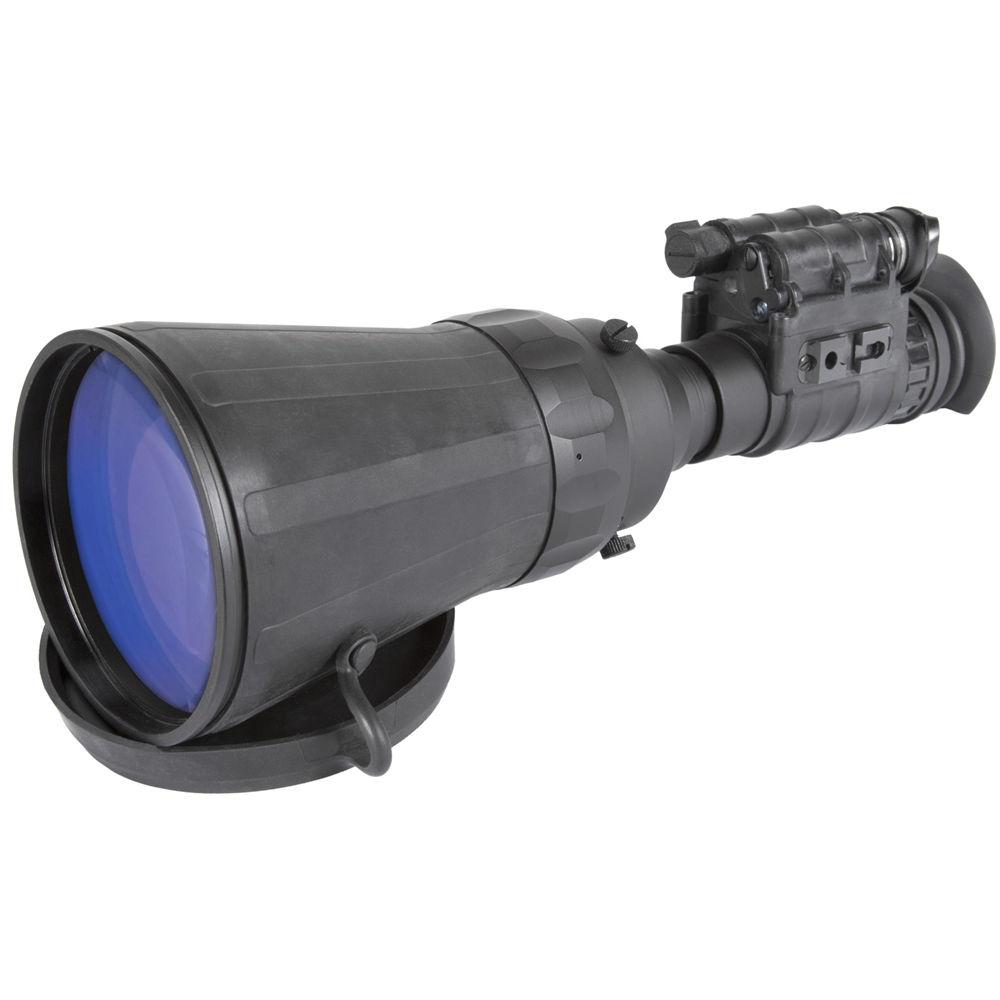

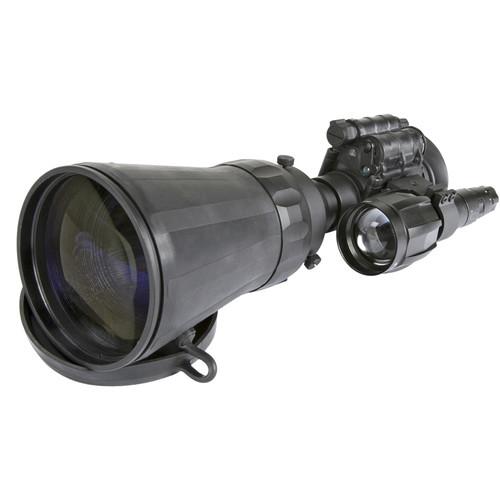

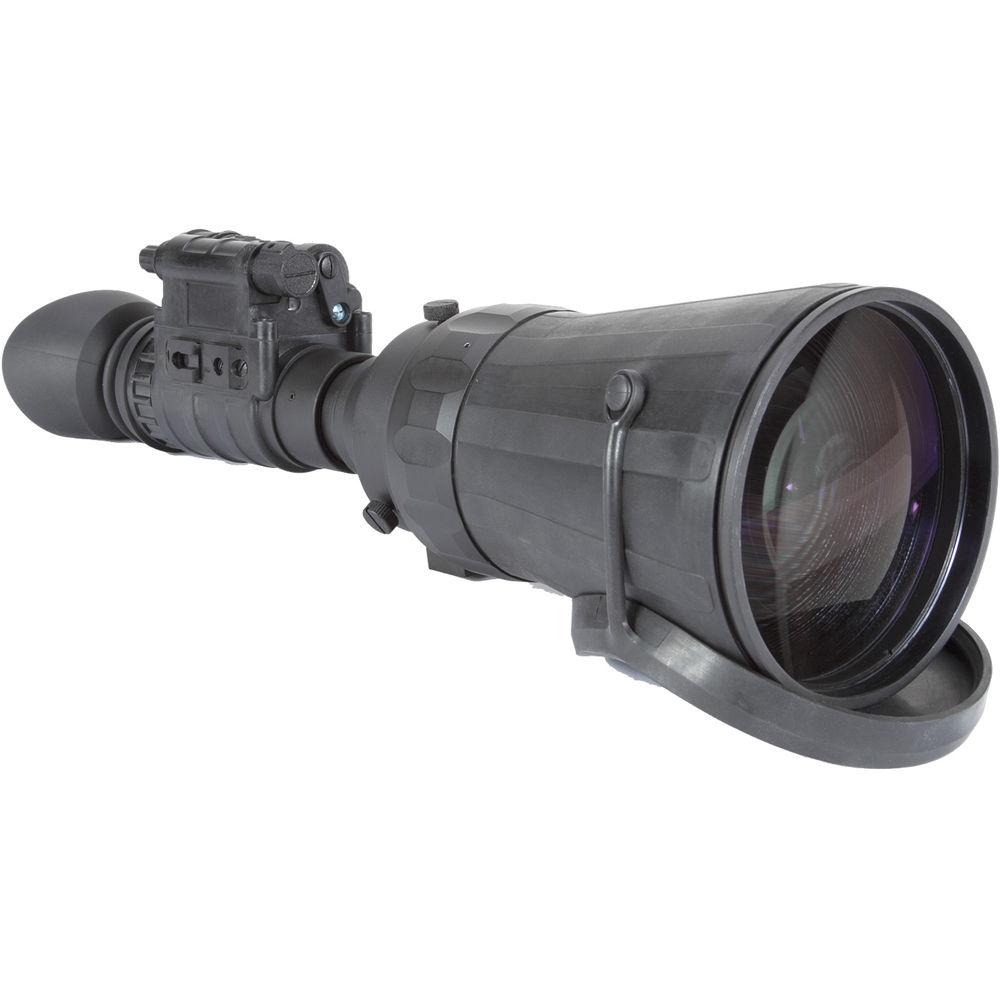

Product description Intended for long-range night observations, the Avenger 10x 2nd Generation QS MG White Phosphor Night Vision Monocular from Armasight features a 2nd generation intensifier tube and a wide 10x objective lens. The Armasight second generation intensifier tube technology incorporates a microchannel plate and a multi-alkaline photocathode, which improve reliability, image brightness, and quality compared to first generation devices. The High Definition (HD) feature offers a resolution of 55-72 lp/mm. With the Quick Silver (QS) white phosphor screen, you will see black and white images rather than green. The manual gain allows you to control image brightness or detail when you are experiencing varying levels of ambient infrared illumination. The lens system with an F-number of f/2.13 and a focal length of 192mm provides a wide aperture for collecting infrared light, which results in better visibility and image brightness. For long-range night observations or visibility in total darkness, the scope carries the XLR-IR850 infrared illuminator that casts additional infrared light on your targets. It is detachable and includes a rechargeable battery and a charger. To help you reduce image jitter due its size and shaking hands, the monocular can be attached to a 1/4"-20 tripod. The optical system also offers a 5.2° angular field of view, a 164' minimum focus distance, and a -5 to +5 diopter adjustment.
The composite housing is lightweight, durable, and resistant to saltwater, rain, fog, high humidity, and extreme temperatures. It also features two accessory mounting points on each side, wide winged eyecup and tethered objective lens cover. Also supplied are a CR-123 battery, a hard packing box, and lens tissue. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Intensifier Tube and Illuminator
-
- 2nd generation intensifier tube
- High Definition (HD)
- Resolution of 55-72 lp/mm
- Quick Silver (QS) White Phosphor technology produces black and white images
- XLR-IR850 detachable infrared illuminator included
- Optical Performance
-
- Magnification: 10x
- Lens system: 192mm f/2.13
- Field of view: 5.2°
- Close focus: 55 yd
- Construction Details
-

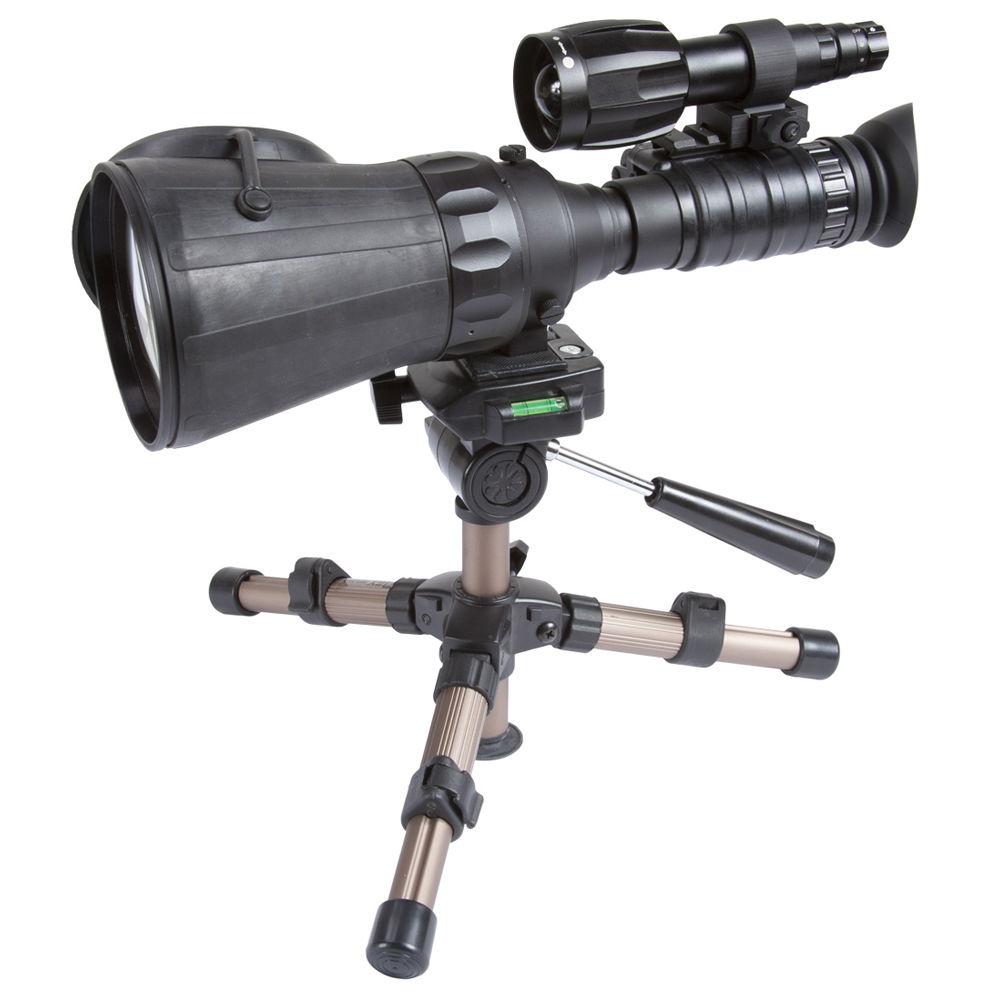

- Mountable to 1/4"-20 tripod
- Withstands extreme temperatures
- Wide rubber eyecup
- Tethered objective cover
- Water-resistant
- Fog-resistant
In the Box Armasight by FLIR Avenger 10x 2nd Generation QS MG White Phosphor Night Vision Monocular - XLR-IR850 X-Long Range Illuminator (Dovetail to Weaver Adapter #21)
- Tethered Objective Cover
- CR-123 Battery
- Hard Packing Box
- Lens Tissue
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Avenger 10x 2nd Generation QS MG White Phosphor Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR Avenger Specs | Intensifier Tube | 2nd generation
High Definition
Resolution: 55-72 lp/mm
Quick Silver (QS) White Phosphor | | Magnification | 10x | | Angle/Field of View | Angular: 5.2°
Linear: 27.4' @ 100 yd (9.1 @ 100 m) | | Lens System | f/2.13
Focal length: 192 mm | | Minimum Focus Distance | 164' (50 m) | | Dioptric Correction | ±5 | | Infrared Illuminator | Yes | | Battery / Runtime | 1 x CR-123
1 x AA battery
Runtime/60 h max | | Weatherproofing | Resistant to saltwater
Fog-resistant | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Storage Temperature | -58 to 158°F (-50 to 70°C) | | Dimensions | 11.3 x 4 x 4" (288 x 100 x 100 mm) | | Weight | 47 oz (1.33 kg) |
