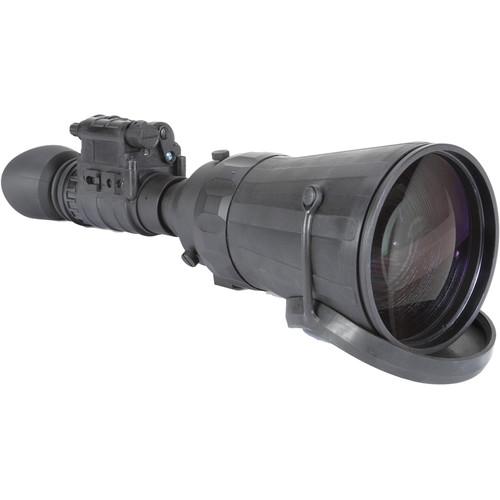

User Manual for Armasight by FLIR Avenger 10x 3rd Gen Bravo MG Long Range Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR Avenger 10x 3rd
- Product category: NV Monoculars & Multi-Systems Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR NV Monoculars & Multi-Systems
|
User manual for the Armasight by FLIR Avenger 10x 3rd contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|
Product description The Avenger 10x 3rd Gen Bravo MG Long Range Night Vision Monocular from Armasight features a 3rd generation Bravo image intensifier tube with a Gallium Arsenide photocathode, resolution range of 57 to 64 lp/mm, and an SNR of 16-30.
If you are moving through environments with changing infrared lighting conditions and need to adjust the brightness and detail of your images, you can use a manual gain control. With 10x magnifications and the included XLR-IR850 infrared illuminator, you can make long range observations at night, in complete darkness and without ambient infrared illumination. The illuminator is detachable and includes a rechargeable battery and a charger. To help you gain stability and reduce image jitter due to shaking hands, which becomes very prominent at higher magnifications, the monocular can be adapted to a 1/4"-20 tripod socket. The 192mm f/2.13 lens system features a large aperture, which collects more infrared light and further increases image brightness. The optical system also offers a 5.2° angular field of view, a 164' minimum focus distance, and a -5 to +5 diopter adjustment. The device can be powered by alkaline, lithium-ion, or rechargeable AA or CR123 batteries.
The rugged and durable composite housing is resistant to saltwater, rain, fog, high humidity, and temperature extremes. The housing also features two accessory mounting points on each side, a wide winged eyecup, and a tethered objective lens cover. This night vision monocular includes a CR123 battery, a hard packing box, and a lens tissue. - Intensifier Tube and Illuminator
-
- 3rd generation Bravo image intensifier tube
- Gallium Arsenide photocathode
- Resolution range of 57-64 lp/mm and SNR of 16-30
- XLR-IR850 detachable infrared Illuminator included
- Optical Performance
-
- Magnification: 10x
- Lens system: 192mm f/2.13
- Field of view: 5.2°
- Close focus: 55 yd
- Construction Details
-
- Mountable to 1/4"-20 tripod
- Withstands extreme temperatures
- Wide rubber eyecup
- Tethered objective cover
- Water resistant
- Fog resistant
UPC: 849815004519 In the Box Armasight by FLIR Avenger 10x 3rd Gen Bravo MG Long Range Night Vision Monocular - XLR-IR850 X-Long Range Illuminator (Dovetail to Weaver Adapter #21) fcdfxcbtywacrzcsqtx
- CR123 Lithium-Ion Battery
- Hard Packing Box
- Lens Tissue
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Avenger 10x 3rd Gen Bravo MG Long Range Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR NSMAVENGE039DB1 Specs | Intensifier Tube | 3rd generation Bravo
Gallium Arsenide photocathode
Resolution range: 57-64 lp/mm, SNR: 16-30 | | Magnification | 10x | | Angle/Field of View | Angular: 5.2° Linear: 27.4' @ 100 yd (9.1 @ 100 m) | | Lens System | f/2.13
Focal length: 192 mm | | Minimum Focus Distance | 164' (50 m) | | Eye Relief | Not provided by manufacturer | | Dioptric Correction | ±5 | | Interpupillary Adjustment | 64-72 mm | | Infrared Illuminator | Yes | | Battery / Runtime | 1 x AA alkaline battery / 60 hr max
1 x CR123 lithium-ion
Compatible with rechargeable AA or CR123 batteries with voltage range from 1.2 V to 3.2 V | | Weatherproofing | Water-resistant
Fog-resistant | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Dimensions | 11.3 x 4 x 4" (288 x 100 x 100 mm) | | Weight | 47 oz (1.33 kg) |
