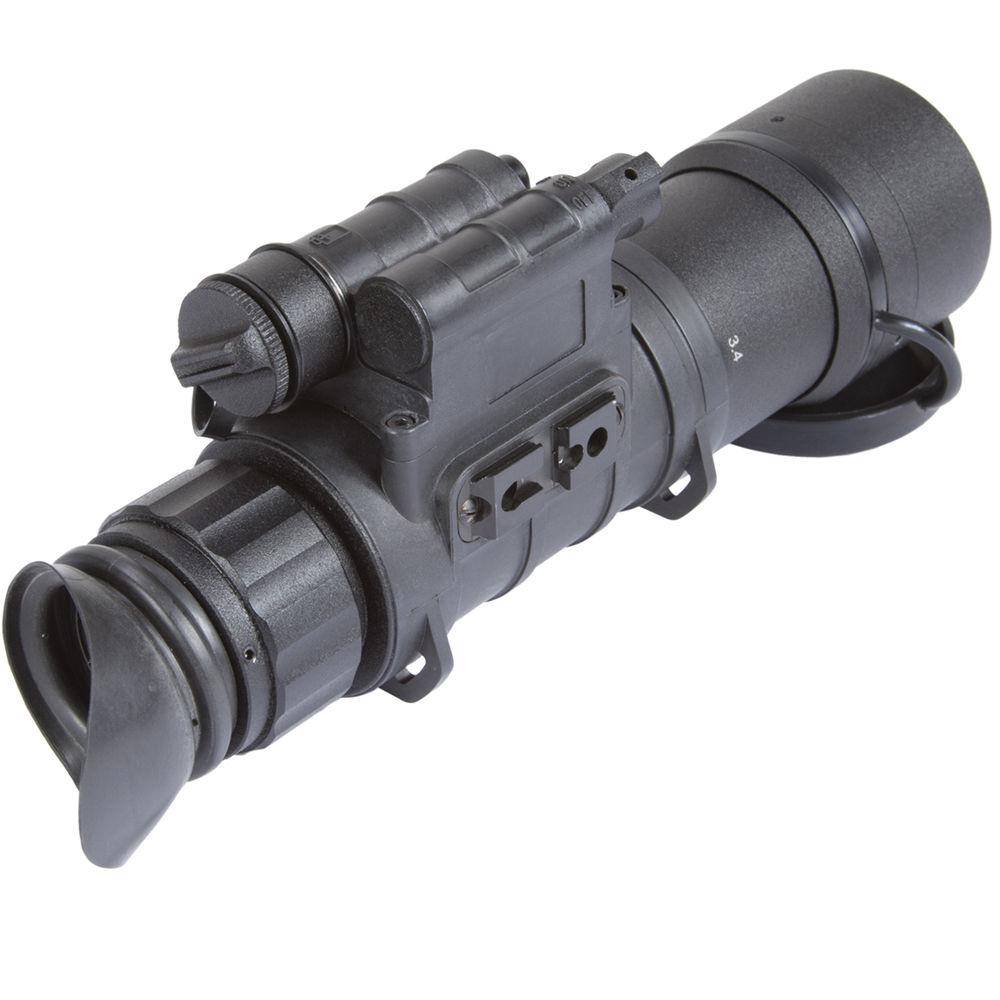

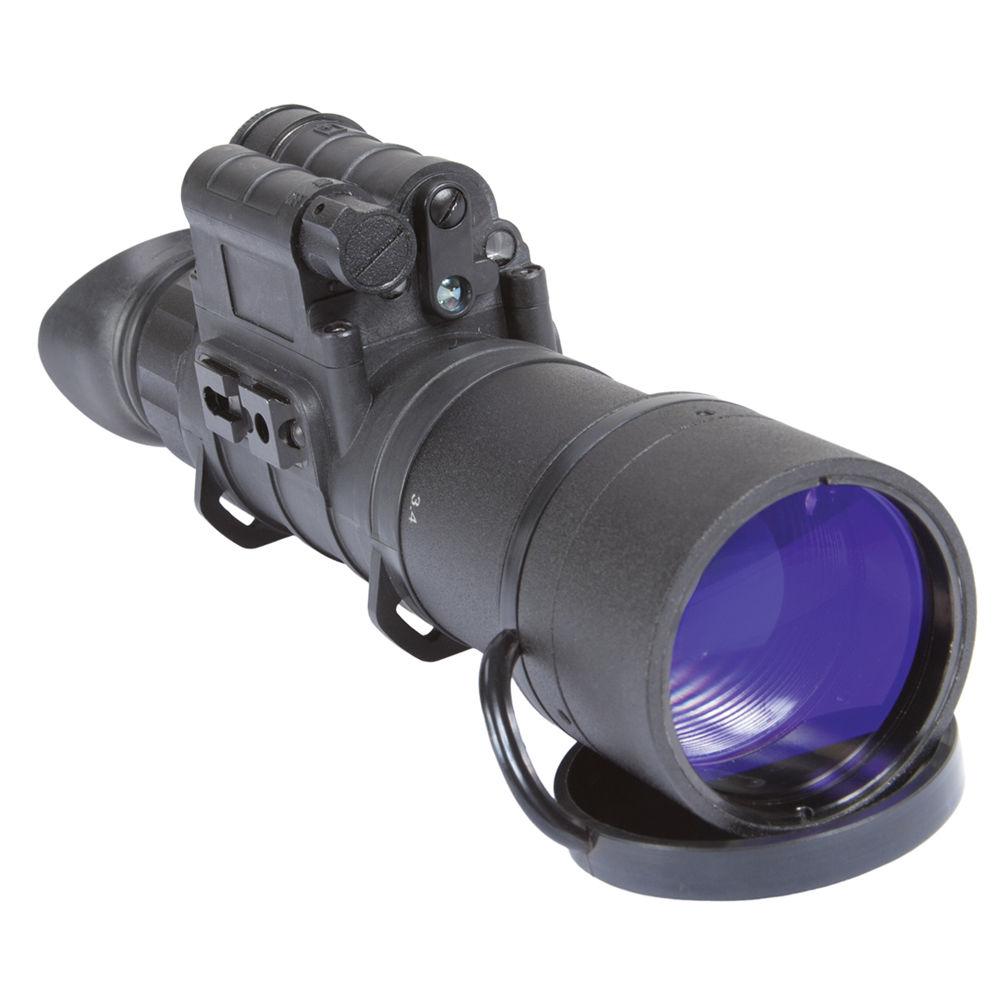

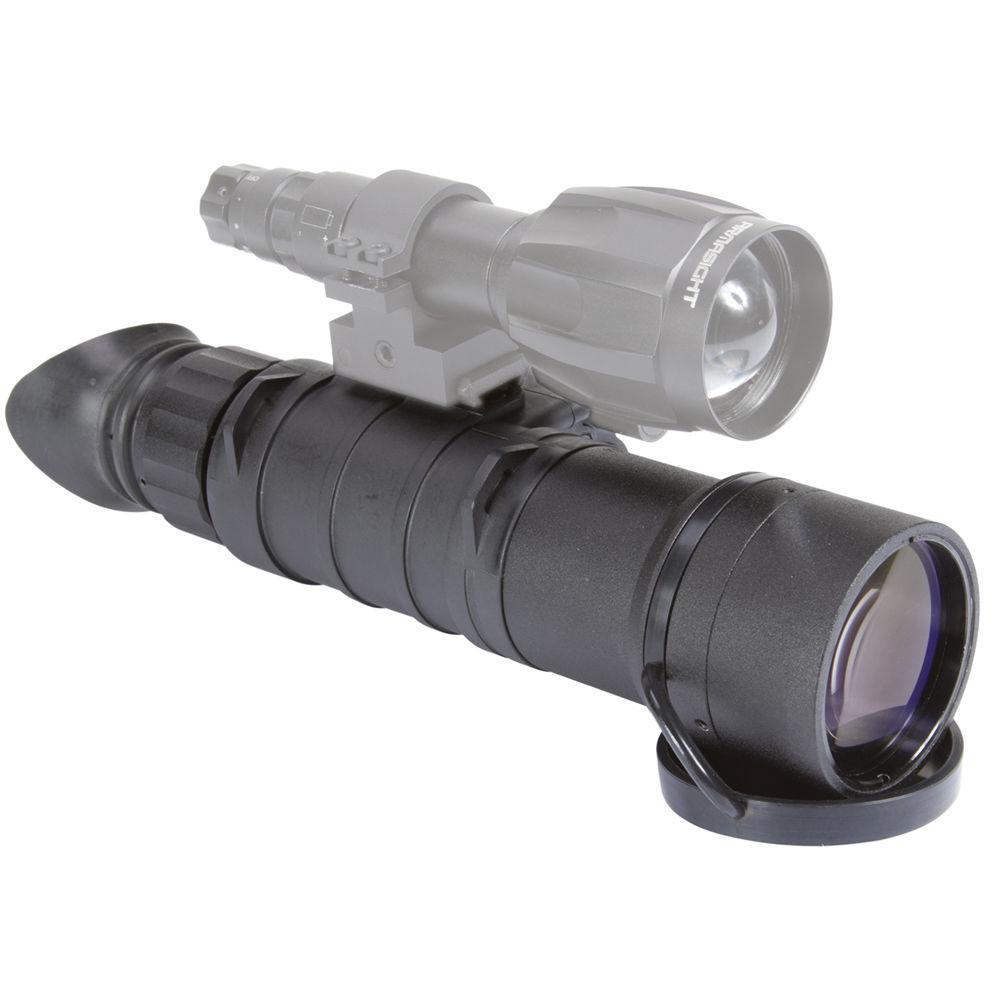

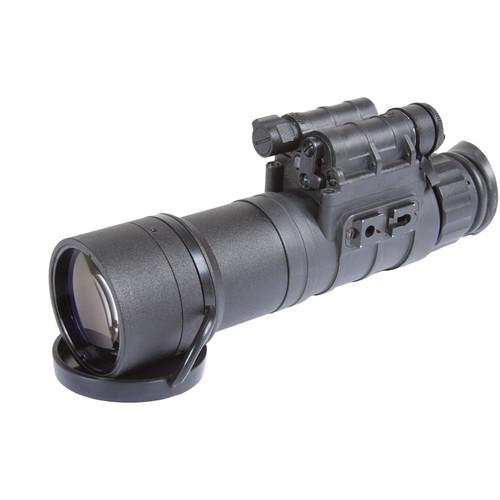

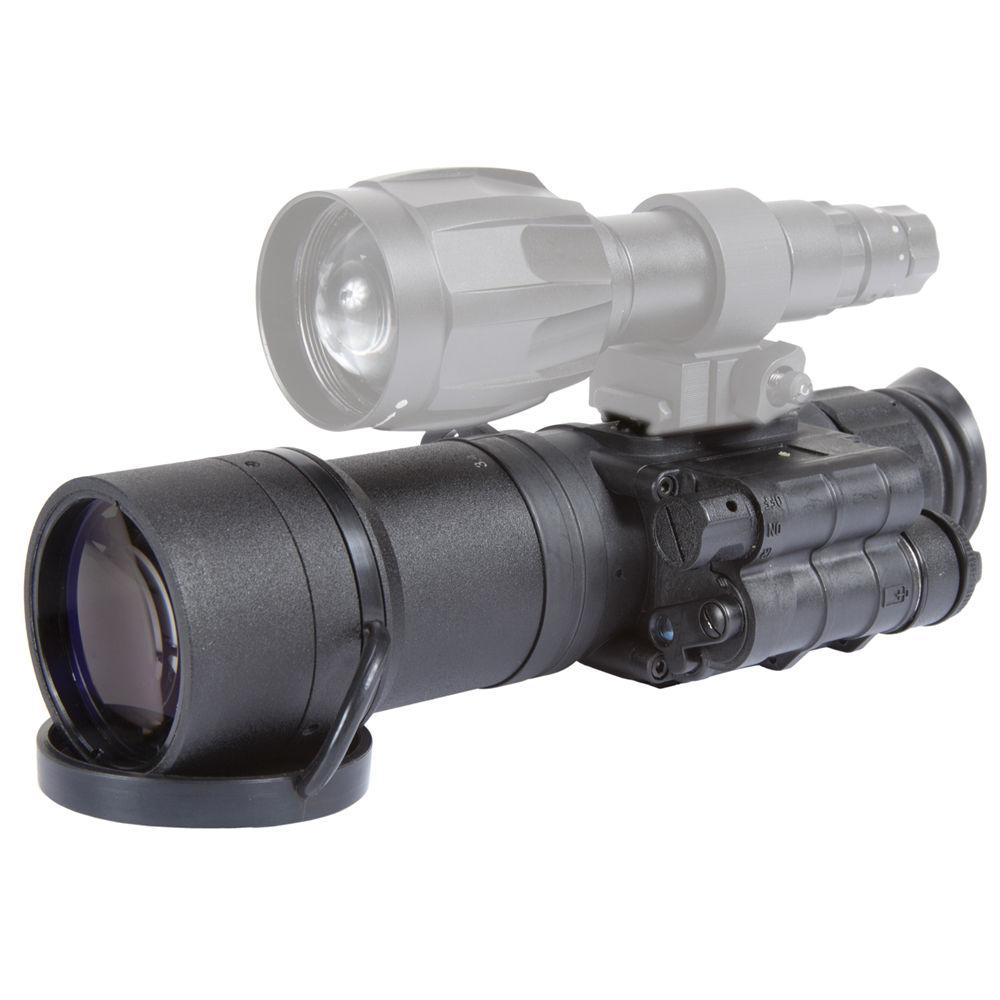

User Manual for Armasight by FLIR Avenger 3x Gen 2 QS Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR Avenger 3x Gen
- Product category: NV Monoculars & Multi-Systems Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR NV Monoculars & Multi-Systems
 |
User manual for the Armasight by FLIR Avenger 3x Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|
Product description The Avenger 3x Gen 2+ QS Night Vision Monocular from Armasight is a generation 2+ NVD capable of up to 54 lp/mm resolution. The Armasight Gen 2+ QS multi-alkali photocathode features a white phosphor black and white screen. It also features Automatic Brightness Control, which continuously adjusts image brightness to optimize the displayed image quality. This night vision device comes with a hand strap, neck strap, and features a standard 1/4"-20 tripod mount.A 50mm f/1.2 lens system displays an 18° field of view and can be focused as close as 10', making the Avenger Gen 2+ QS monocular ideal for close-range and other viewing tasks. Combined with a built-in IR illuminator and weather-resistant housing, this monocular is well-equipped for observations—low light or no light, indoor or outdoor. - Optical Performance
-
- Magnification: 3x
- Lens system: 50mm f/1.2; multi-coated, all-glass optics
- Field of view: 18°
- Focus range: 10' to infinity
- Image Intensifier
-
- Gen 2+ "Quick Silver" intensifier tube
- 47-54 lp/mm resolution
- Displays white phosphor B&W NV image
- Automatic Brightness Control dynamically optimizes image brightness
- Bright Light Cut-Off protects tube and viewer's eyes from excessive light levels
- Use and Handling
-
- In-view low-battery indicators
- Built-in IR illuminator with flood lens
- Tripod mountable (1/4"-20 socket)
- Hand and neck straps
- Construction Details
-
- Operating temperature: -40 to 122°F
UPC: 818470019640 In the Box Armasight by FLIR Avenger 3x Gen 2+ QS Night Vision Monocular Lens Cap Eye Cup CR123A Lithium Battery Soft Case for Storage and Carry Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Avenger 3x Gen 2 QS Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR NSMAVENGE3QGDI1 Specs | Intensifier Tube | Gen 2+ QS Multi-Alkaili | | Resolution | 47-54 lp/mm | | Magnification | 3x | | Field of View | 18° | | Lens System | 50mm f/1.2 | | Focus Range | 10' / 3.0 m to infinity | | Dioptric Correction | ±5 | | Infrared Illuminator | Yes | | Power Supply | Single CR123 lithium 3 V or AA alkaline 1.5 V | | Runtime | Up to 40 hrs | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Dimensions | 8.2 x 2.9 x 2.3" / 210 x 75 x 60 mm | | Weight | 1.4 lbs / 0.65 kg | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.0 x 5.0 x 5.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 61 owners. Add your rating and experience with the product.
