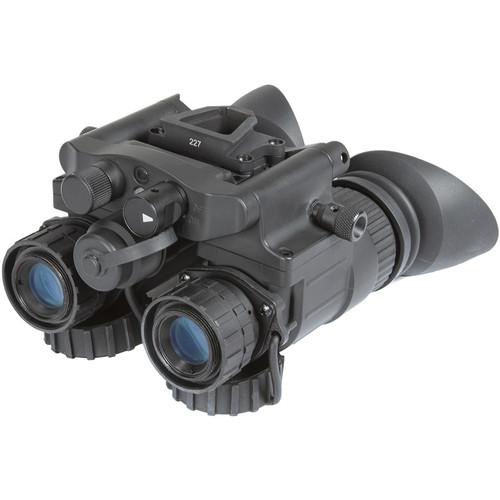

User Manual for Armasight by FLIR BNVD-40 3G 3rd-Generation Dual-Tube Night Vision Binocular Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR BNVD-40 3G 3rd-Generation
- Product category: Night Vision Binoculars Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Night Vision Binoculars
|
User manual for the Armasight by FLIR BNVD-40 3G 3rd-Generation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|
Product description Go on your next mission with the FLIR BNVD-40 3G 3rd-Generation Dual-Tube Night Vision Binocular. The device detects (invisible to the naked eye) near-infrared images of your surroundings, people, and objects. Its images have a high enough resolution to allow identification of individuals and fine artifacts at considerable distances. To provide this penetrating night vision capability, FLIR outfitted the device with two black-and-white 3rd-generation image intensifier tubes (IITs) (one for each optical path) that generate high-resolution black-and-white images. This dual-tube (binocular) configuration also provides better perception of depth, which can be a valuable asset in quickly changing hunting or tactical situations. Their white phosphor (ghost) screens produce black-and-white images, which are preferred by some operators.
This version of night vision technology offers users a manual gain control for adjusting image brightness and contrast, a bright light cutoff function for preventing tube overload and burnout, and an automatic-off function for saving battery power when not in use. The multi-coated 1x optical system offers a generous 40° field of view, a diopter adjustment, and an interpupillary adjustment. In addition to viewing distant targets, the opto-mechanics allow you to focus as close as 0.8' away, which is helpful for reading maps or instructions without stowing away the binocular. To improve the effectiveness of close-range visibility in very low light, this night vision device also has a built-in infrared LED illuminator with a fixed flood lens. With the help of internal electronics and in-view indicators, you can monitor the battery life and status of the infrared illuminator.
To accompany you on your missions and adventures, the binocular is outfitted with a strong, lightweight, and water-resistant composite body. It is also slip-free, thanks to an ergonomic design. For comfort and ease of adjustments, the focusing and diopter rings are heavily knurled. The device is ready to use out of the box, as it ships with a battery and two headgear mounting adapters. Also included are two demist shields and two sacrificial windows to protect the external lenses from damage, and a soft carrying case for storage and transport. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Image Intensifier Tubes
-
- 3rd-generation tubes
- IITs produce black-and-white images
- GaAS photocathode
- Manual gain control
- Bright light cutoff
- Infrared illuminator with pivotal flood lens for reading maps
- Maximum built-in IR illuminator range is 10'
- Optical Performance
-
- 27mm, f/1.3 lens system
- 1x magnification
- Compatible with optional 3x objectives
- Multi-coated optics
- Wide 40° angular field of view
- Binocular configuration provides improved perception of depth
- 0.82' minimum focus distance
- Use and Handling
-
- Auto shut-off function
- Individual focusing
- 25mm eye relief
- +2 to -6 diopter range
- 54 - 78 mm interpupillary range
- Low battery indicator
- Infrared-on indicator
- Construction Details
-
- Composite housing
- Lightweight and durable
- Integrated interface shoe for mounting on headgear or helmets
- Bayonet/horn interface shoe included
- Knurled focusing and diopter rings
- Tethered battery compartment cap
- Rubber winged eyecups
- Tethered objective covers
UPC: 849815009323 In the Box Armasight by FLIR BNVD-40 3G 3rd-Generation Dual-Tube Night Vision Binocular (Matte Black) - Headgear Interface Shoe
- Bayonet/Horn Interface Shoe
- CR-123A Battery
- 2 x Sacrificial Windows
- 2 x Demist Shields
- Soft Carrying Case
- Lens Cloth
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR BNVD-40 3G 3rd-Generation Dual-Tube Night Vision Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR BNVD 40-3G Specs | Intensifier Tube | 3rd generation
White phosphor | | Photocathode Type | GaAs | | Magnification | 1x | | Angle/Field of View | 40° | | Lens System | 27mm, f/1.3 | | Minimum Focus Distance | 0.82' / 0.25 m | | Eye Relief | 25 mm | | Dioptric Correction | +2 to -6 | | Interpupillary Adjustment | 54 - 78 mm | | Infrared Illuminator | Built-in infrared LED illuminator
Maximum Range: 9.8' / 3.0 m | | Battery / Runtime | 1 x AA battery / up to 20 hours (at 68°F / 20°C)
1 x 123A battery / up to 20 hours (at 68°F / 20°C)
Optional external battery pack / up to 80 hours (at 68°F / 20°C) | | Weatherproofing | Water and fog resistant | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -58 to 122°F / -50 to 50°C | | Dimensions | 4.6 x 4.5 x 2.8" / 11.8 x 11.5 x 7.3 cm | | Weight | 22.8 oz / 645.0 g |
