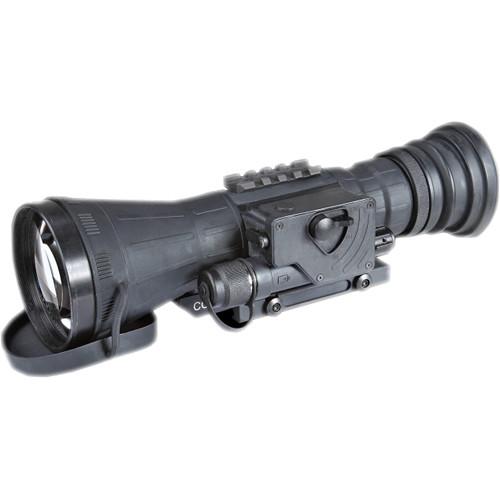

User Manual for Armasight by FLIR CO-LR GEN 2 HD Day & Night Vision Clip-On System Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR CO-LR GEN 2
- Product category: Day/Night Systems Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Day/Night Systems
|
User manual for the Armasight by FLIR CO-LR GEN 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|
Product description The ARMASIGHT CO-LR GEN 2+ HD Day & Night Vision Clip-On System is a night vision unit that mounts in front of an existing day scope, and converts the day scope into night vision one up to ranges of 1,000 yards. It is suitable for use with most commercial and military specified day-time sights, telescopes, or binoculars (up to 12x magnification).
The CO-LR (Clip on – Long Range) system can be mounted / dismounted on a standard Picatinny rail in seconds and with no tools required. Because the CO-LR system is mounted in front of your own day scope, the shooter’s eye relief is not altered, and shot release and follow-through remain intuitive. Moreover, the unit is factory bore-sighted to more than 1 MOA accuracy, so no alteration in zero is experienced, and it is as simple as mount-focus-shoot, just as in daytime.
The CO-LR Clip-On System is primarily intended for use by a demanding hunter or long-range target shooter. Its MIL-STD-810 housing makes it suitable for outdoor use. The system features variable gain control, bright light shut-off, and wireless remote control. This night vision clip-on system is designed to make long range night shooting just as easy and accurate as shooting over the same terrain during daylight hours with your day scope alone. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Controls and/or the U.S. Department of Commerce. - Simple and quick conversion of daytime scope, sight, or binoculars to night vision scope
- Mounts in front of a riflescope with no re-zeroing required
- Equipped with wireless remote control and variable gain control
- Powered by a single alkaline 1.5V AA or 3V CR123A lithium battery
- Bright-light cut-off system
UPC: 818470010463 In the Box Armasight by FLIR CO-LR GEN 2+ HD Day & Night Vision Clip-On System AWReC (Advanced Wireless Remote Control) CR123A, 3V / 1x 2AA 1.5V Battery Adapter IR850 Detachable Long Range Infrared Illuminator Lens Cap Lens Tissue Light Suppressor CR123A Lithium Battery Picatinny Adapter for AWReC Soft Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR CO-LR GEN 2 HD Day & Night Vision Clip-On System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR CO-LR Specs | IIT Generation | Gen 2+ | | Resolution | 55 to 72 lp/mm | | Magnification | 1x (recommended to use with up to 10x day time optics) | | Lens System | F1:1.51, 112 mm | | Field of View | 9° | | Range of Focus | 15 m to infinity | | Diopter Adjustment | No | | Controls | Direct | | Bright Light Cut-off | Yes | | Infrared Illuminator | Detachable long range IR illuminator | | Indicators | Low Battery: Yes | | Power Supply | 1 x 1.5 V AA-type battery or 1 x 3 V CR123A-type battery | | Environmental Rating | Waterproof | | Operating Temperature | -59.8 to 120.2°F (-51 to 49°C) | | Storage Temperature | -59.8 to 120.2°F (-51 to 49°C) | | Dimensions (L x W x H) | 9.25 x 3.80 x 3.14" (235.00 x 97.00 x 80.00 mm) | | Weight | 2.00 lb (0.91 kg) | | | | Package Weight | 4.75 lb | | Box Dimensions (LxWxH) | 12.7 x 7.2 x 4.6" |
