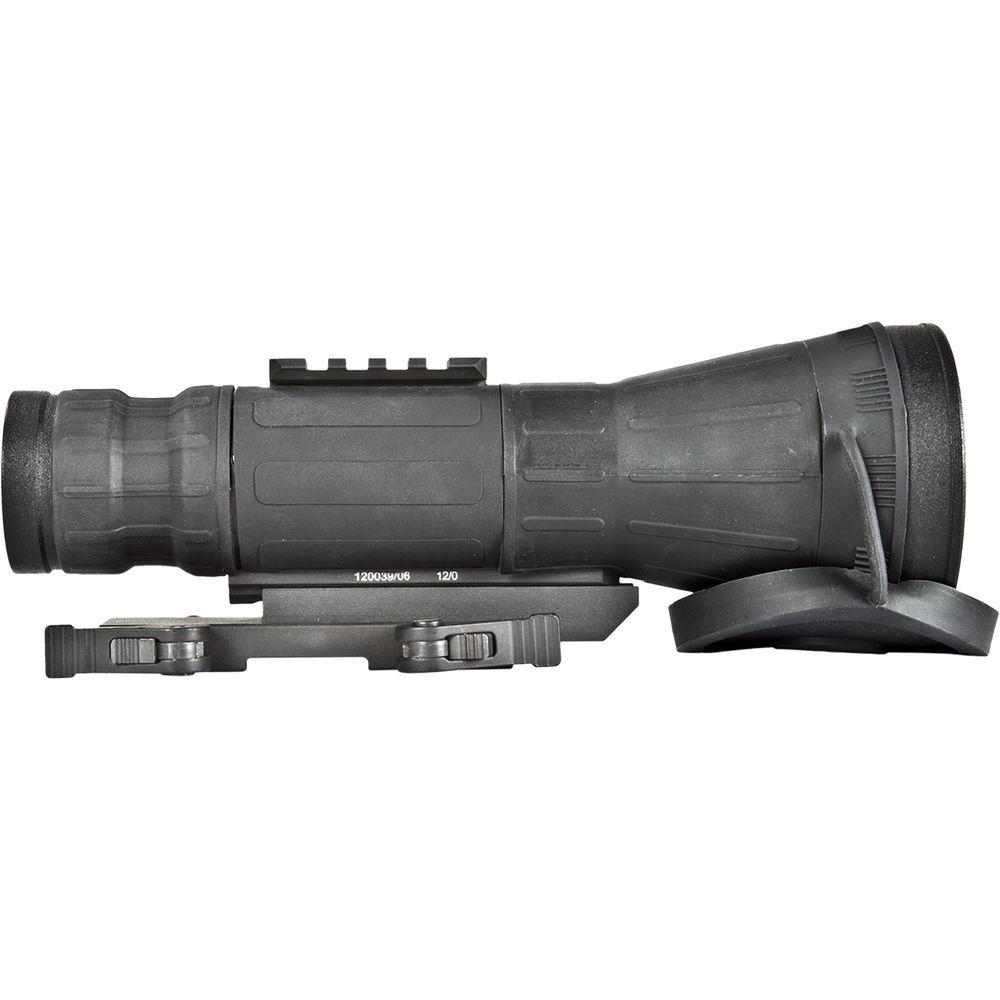

Product description Armasight's CO-LR-LRF 3rd Gen MG Night Vision Long-Range Clip-On allows you to expand your operations to nighttime by adding a night vision capability to your day riflescope. At the core of the device is a 3rd generation intensifier tube with a Gallium Arsenide photocathode and Manual Gain control (MG). The device is built around an industry-leading Pinnacle intensifier tube, which provides a high-quality performance and reliability. To extend the life of this device and protect it from an accidental burnout from bright light, the device is equipped the bright light cut-off function. The 1x optical system, expandable up to 12x with optional objective lenses, has an f/1.54 F-number and a focal length of 108mm, and provides a wide aperture for collecting more infrared light to improve visibility. Enabling you to make operations in total darkness, this night vision device includes a XLR-IR850 infrared illuminator that can cast additional infrared light of your targets.
To withstand the rigors of harsh environments and demanding situations, the device is outfitted with a housing that is durable, waterproof, and resistant to extreme temperatures. Its design allows you to mount the clip-on directly to the objective bell of your day riflescope or on a Picatinny rail. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Intensifier Tube and Illuminator
-
- 3rd gen ITT Pinnacle
- MG - Manual Gain
- Gallium Arsenide photocathode
- Resolution of 64-72 lp/mm
- XLR-IR850 detachable infrared Illuminator included
- Industry-leading Pinnacle IIT provides highest quality and reliability
- Optical Performance
-
- Magnification: 1x
- Recommended optional objective: up to 2x
- Lens system: 108mm f/1.54
- Field of view: 7°
- Close focus: 27 yd
- Use and Handling
-
- Bright light cut-off function
- Wireless remote control
- Bright light indicator
- Low battery indicator

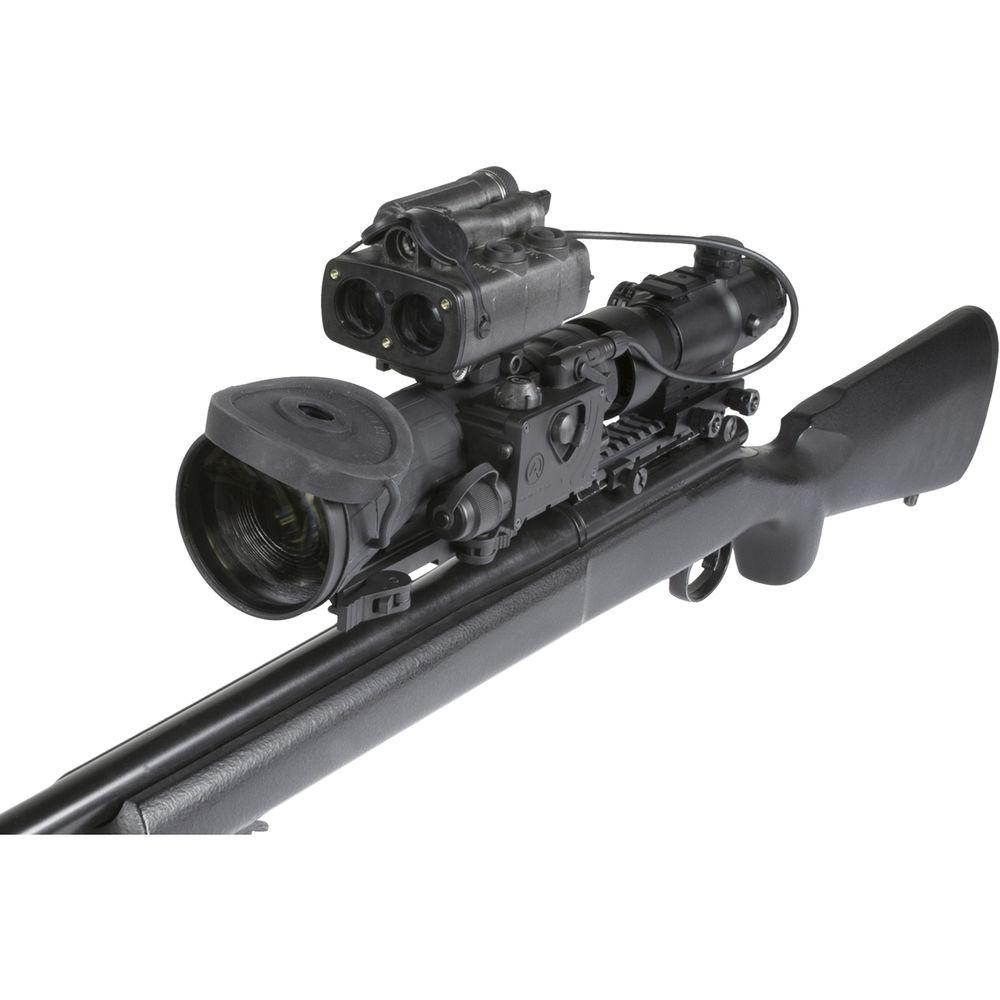

- Compatible with optional AMRF2200 Advanced Modular Range Finder
- Construction Details
-
- Compatible with Picatinny rails
- Withstands extreme temperatures
- Tethered objective cover
- Lockable quick release mount
- Waterproof
UPC: 849815006391 In the Box Armasight by FLIR CO-LR-LRF 3rd Gen MG Night Vision Long-Range Clip-On (ITT Pinnacle, Matte Black) - XLR-IR850 X-Long Range Illuminator (Dovetail to Weaver Adapter #21) xzwafayczvfbsfswxsfafxraxqfr
- Soft Carrying Case
- CR-123 Lithium-Ion Battery
- QR Picatinny Mount
- Battery Adapter for CR-123A/AA

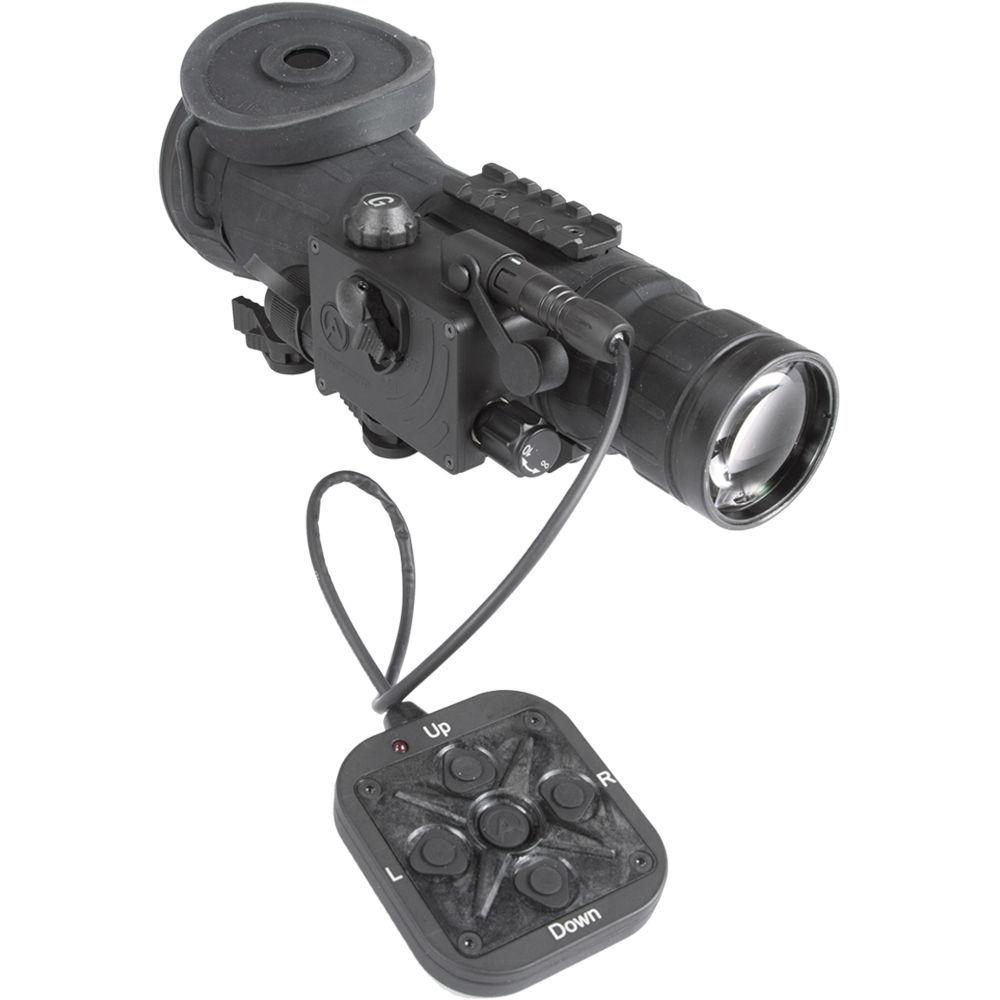

- Wireless Remote Control
- Picatinny Adaptor Wireless Remote Control
- Light-Suppressor
- Adjustment-Control-Device
- Special Wrench
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR CO-LR-LRF 3rd Gen MG Night Vision Long-Range Clip-On in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR NSCCOLRF01P9DA1 Specs | Intensifier Tube | 3rd gen ITT Pinnacle
MG - Manual Gain
Gallium Arsenide photocathode
Resolution: 64-72 lp/mm | | Magnification | 1x
12x recommended | | Angular Field of View | 7° | | Lens System | f/1.54
Focal length: 108mm | | Exit Pupil Diameter | 50 mm | | Minimum Focus Distance | 27 yd / 25 m | | Infrared Illuminator | LED
850 nm
500 mW
Beam divergence: 8 - 12°
Water-resistant
Battery: 1 x CR-123A/High: 1.5 h, Low: 14 h max | | Battery / Runtime | 1 x AA alkaline battery/60 h max
1 x CR-123A battery/60 h max | | Weatherproofing | Waterproof | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -58 to 122°F / -50 to 50°C | | Dimensions | 12 x 4 x 3.7' / 304 x 104 x 94 mm
Height of Optical Axis Above Rail: 1.57" / 40 mm | | Weight | 2.9 lb / 1.3 kg |
