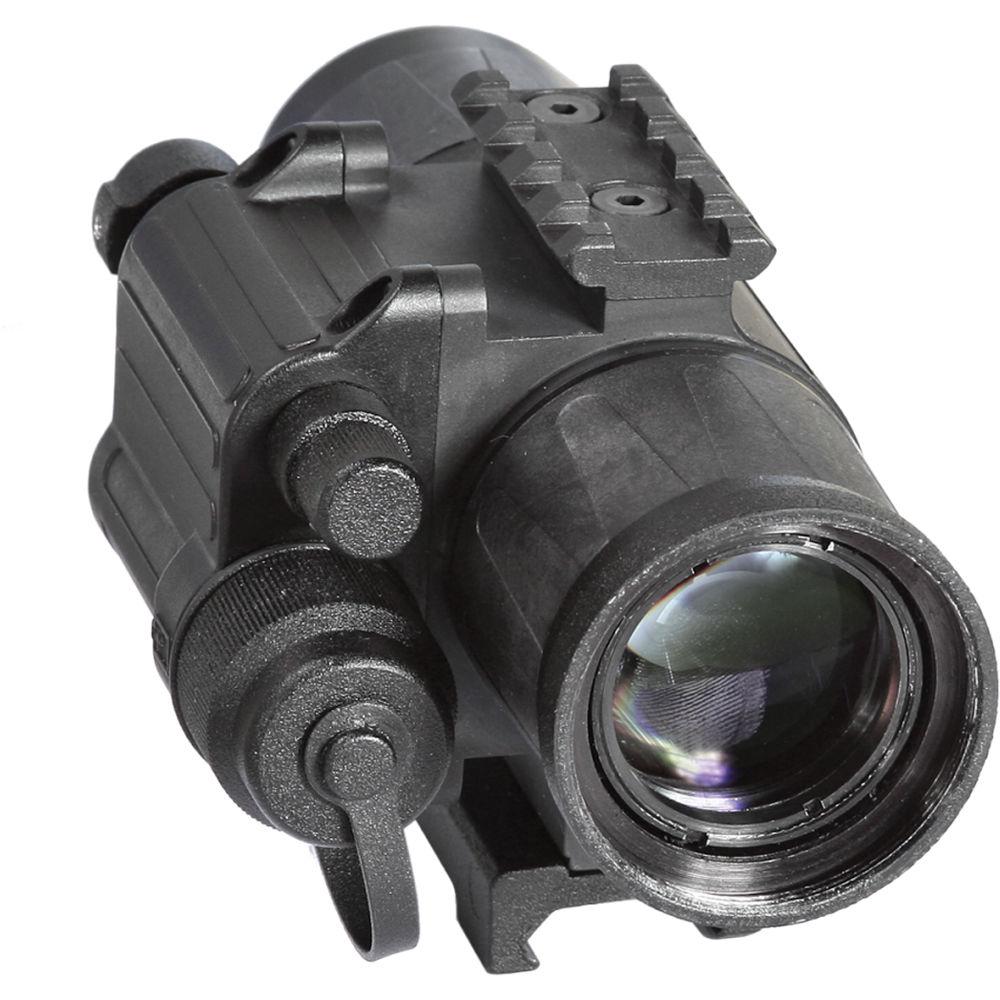

User Manual for Armasight by FLIR CO-Mini 2nd Gen High Definitin MG Night Vision Riflescope Clip-On System Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR CO-Mini 2nd Gen
- Product category: Day/Night Systems Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Day/Night Systems
 |
User manual for the Armasight by FLIR CO-Mini 2nd Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|

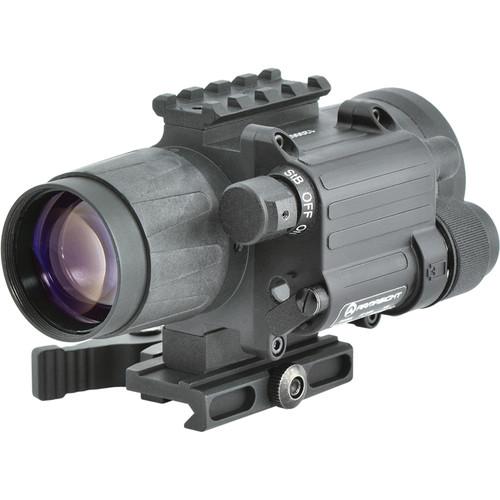

Product description The CO-Mini 2nd Gen High Definitin MG Night Vision Riflescope Clip-On System from Armasight adapts a day vision rifle scope to low-light or no-light missions or training. It features a High Definition (HD) Generation 2 intensifier tube, a detachable infrared illuminator, and a quick clip-on capability, which is factory bore-sighted to better than 1 MOA accuracy. The Armasight second generation intensifier tube technology incorporates a microchannel plate, multi-alkaline photocathode, built-in power supply, and 18 mm format screen, which improve reliability, image brightness, and quality compared to first generation devices. The High Definition (HD) feature offers resolution of 55-72 lp/mm. The manual gain allows you to control image brightness and detail when you are experiencing varying levels of ambient infrared illumination. To provide visibility in total darkness, this night vision is outfitted with the included IR850 Infra Red illuminator. In event when there is enough ambient infrared to see well without illumination, the illuminator can be easily detached from the main unit. Other optical performance parameters are 1x magnification, 22° angular field of view, and a minimum focus of 66'.
Beyond these optical highlights, this NVD is has a number of useful handling functions. To prevent the intensifying tube from burning out, it has a Bright Light Cut-Off function. When the device is exposed to light intensities above safe threshold level, it will automatically turn off. Additionally, it comes with a remote control to allow you a quick motionless operation. The device has a waterproof housing and can be mounted directly to the rifle scope or the barrel in front of it. - Optical Performance
-
- 1x magnification
- 38mm f/1.26 objective lens
- Field of view: 22°
- Exit pupil diameter: 27.5 mm
- 66' close focus
- Image Intensifier
-
- 2nd Generation High Definition (HD) intensifier tube
- 55-72 lp/mm resolution
- Green images
- Manual gain control
- Bright Light Cut-Off protects tube and viewer's eyes from excessive light levels
- Use and Handling
-
- Wireless remote with mount
- Detachable IR illuminator
- Mountable to a rifle scope or a Picatinny rail
- Construction Details
-
- Waterproof

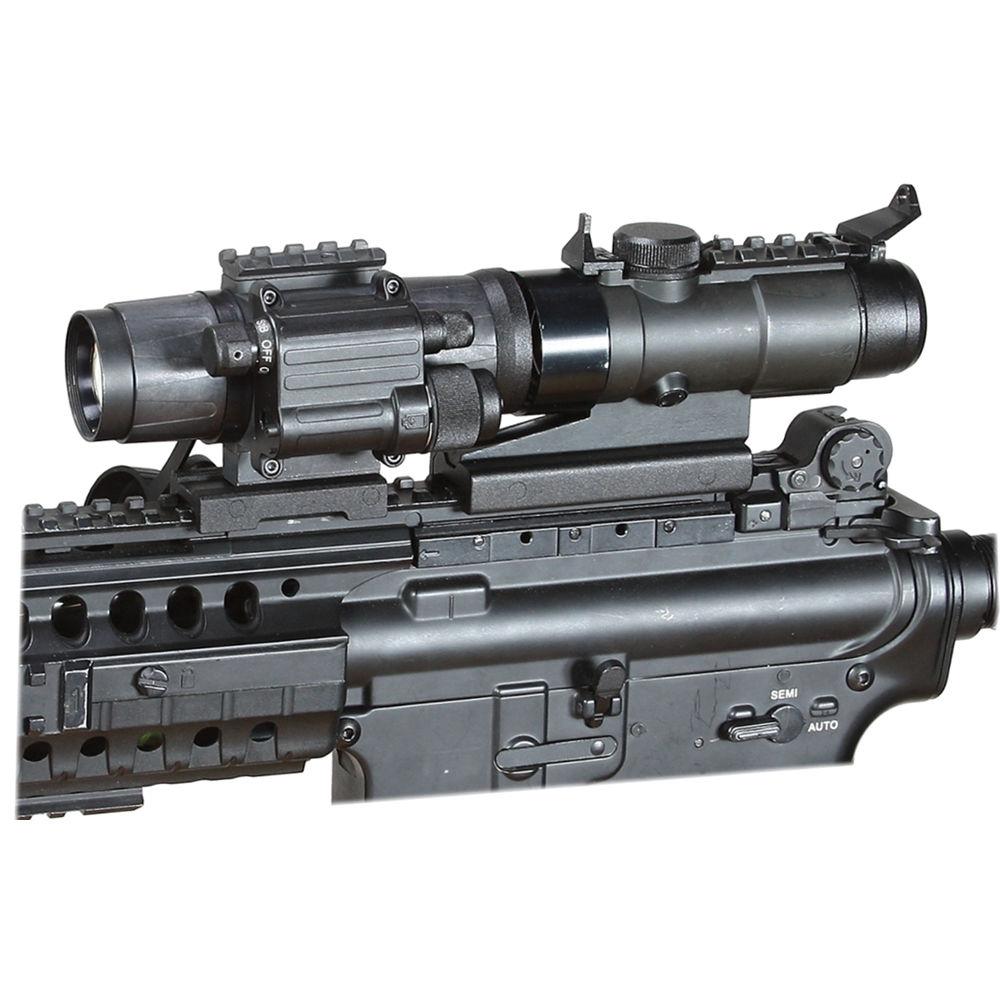

- Mounts in front of rifle scope with no re-zeroing required
- Clip-on device is factory bore-sighted to better than 1 MOA
- Simple and quick conversion of scope, sight or binoculars to night vision
- Quick Release Mount
UPC: 849815003970 In the Box Armasight by FLIR CO-Mini 2nd Gen High Definitin MG Night Vision Riflescope Clip-On System - IR850 INFRA-RED ILUMINATOR f/NYX7C
- Quick Release Mount
- CR123A - 2AA Battery Adapter
- Advanced Wireless Remote Control
- Adaptor for Wireless Remote Control
- Light Suppressor 1
- Light Suppressor 2
- Light Suppressor 3
- Light Suppressor for Day Scope
- Mount for IR illuminator
- CR-123A Battery
- Packing Box
- Soft Carrying Case
- Special Wrench
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR CO-Mini 2nd Gen High Definitin MG Night Vision Riflescope Clip-On System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR NSCCOMINI129DH1 Specs | Intensifier Tube | 2nd Gen 2 High Definition (HD)
Bright Light Cut-Off | | Resolution | 55-72 lp/mm | | Magnification | 1x | | Field of View | 22° | | Lens System | 38mm, f/1.26 | | Exit Pupil Diameter | 27.5 mm | | Minimum Focus Distance | 66' (20 m) | | Infrared Illuminator | Yes, detachable | | Battery / Runtime | 1 x CR-123A (3 V)/ 60 hr max or
1 x AA (1.5 V) / 30 hr max | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Storage Temperature | -58 to 122°F (-50 to 50°C) | | Waterproof | Yes | | Dimensions | 4.9 x 2.7 x 2.2" (124 x 68 x 56 mm) | | Weight | 15.2 oz (0.43 kg) | | | | Package Weight | 3.65 lb | | Box Dimensions (LxWxH) | 12.7 x 7.3 x 4.6" |
