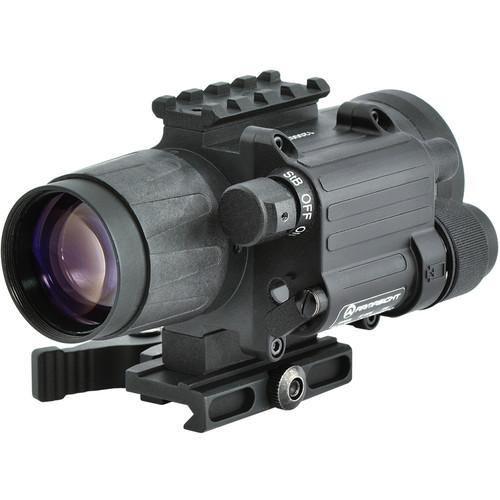

User Manual for Armasight by FLIR CO-Mini GEN 3 Ghost MG Day Night Vision Standard Definition Clip-On System Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR CO-Mini GEN 3
- Product category: Day/Night Systems Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Day/Night Systems
|
User manual for the Armasight by FLIR CO-Mini GEN 3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|
Product description The CO-Mini GEN 3 Ghost MG Day/Night Vision Standard Definition Clip-On System from Armasight uses image intensification technology and is designed to be used for converting most low-to-mid power daytime sights, scopes, or binoculars to night vision devices. This Clip-On System can be attached in front of a day riflescope (using its quick-release Picatinny mount) or directly onto the day scope (or binocular/telescope) objective lens with the included adapter, without using any tool. The CO-Mini Clip-On System is suitable for use with most commercial and military specification day-time sights, telescopes, or binoculars (up to 6X magnification). This device is bore-sighted for enhanced 1 MOA accuracy, making it easy for you to mount and shoot. The Armasight CO-Mini Clip-On System works well at magnification of 2 to 6X and is intended primarily for use by the most demanding hunter or short-range assaulter, where field of view and ease of use are more important than high magnification. It features a variable gain control, a bright light shut-off, and a wireless remote control. - Simple and quick conversion of daytime scope, sight, or binoculars to night vision
- Mounts in front of a riflescope, with no re-zeroing required
- Equipped with a wireless remote control
- Powered by a single alkaline 1.5V AA or a 3V CR123A lithium battery
- Bright light cut-off system
In the Box Armasight by FLIR CO-Mini GEN 3 Ghost MG Day/Night Vision Standard Definition Clip-On System AWReC (Advanced Wireless Remote Control) #94 Battery Adapter (1 x CR123A 3V / 1 x 2AA 1.5V) IR850 Detachable Long-Range IR Illuminator (1 x CR123A 3V) Lens Cap Lens Tissue Light-Suppressor 1, 2, and 3 Mount for IR illuminator #60 Lithium Battery CR123A Picatinny Adapter for AWReC (Advanced Wireless Remote Control) Quick-Release Mount Soft Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR CO-Mini GEN 3 Ghost MG Day Night Vision Standard Definition Clip-On System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR CO-Mini Specs | Intensifier Tube | Gen 3 (Ghost) MG White Phosphor Manual Gain 47 to 57 lp/mm | | Magnification | 1x (recommended to use with up to 10x daytime optics) | | Battery Life | 60 hours (3 V) / 30 hours (1. 5 V) | | Lens System | F1:1.44, 38 mm | | Field of View | 12° | | Range of Focus | 10 to infinity | | Controls | Direct | | Infrared Illuminator | Detachable long-range IR Illuminator | | Power Supply | 1 x 1.5 V AA type battery or 1 x 3 V CR123A type battery | | Environmental Rating | Water-proof | | Temperature | Operating & Storage: -59.8 to +120.2°F (-51 to +49°C) | | Dimensions (L x W x H) | 4.9 x 2.7 x 2.2" (124.0 x 69.0 x 56.0 mm) | | Weight | 1.06 lb (0.48 kg) | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 17.0 x 12.0 x 6.0" |
