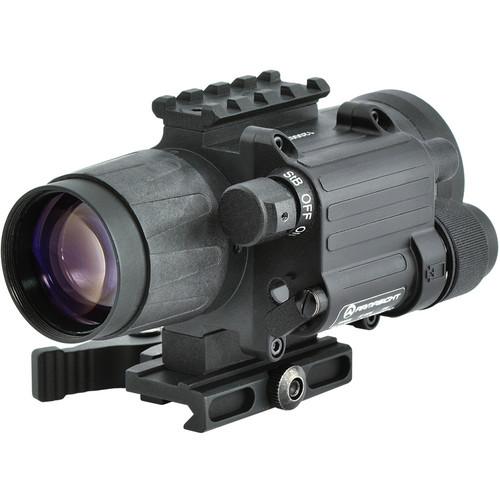

User Manual for Armasight by FLIR CO-Mini GEN 3P MG Night Vision Mini Clip-On System Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR CO-Mini GEN 3P
- Product category: Day/Night Systems Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Day/Night Systems
|
User manual for the Armasight by FLIR CO-Mini GEN 3P contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|
Product description The ARMASIGHT CO-Mini GEN 3P MG Night Vision Mini Clip-On System is designed for short-to-medium ranges. The CO-MINI Clip-On System uses image intensification technology and is designed to convert most low-to-mid power daytime sights, scopes, or binoculars into the ones with night vision. The CO-MINI system can be mounted in seconds and without tools. It can be attached in front of a day rifle scope (using its quick release Picatinny mount) or directly onto the day scope (or binocular/ telescope) objective lens with the included adapter.
It is suitable for use with most commercial and military specification daytime sights, telescopes, or binoculars (up to 6x magnification). Because the CO-MINI system is mounted in front of your own day scope, the shooter’s eye relief is not altered, and shot release and follow-through remain intuitive. Moreover, the unit is factory bore-sighted to more than 1 MOA accuracy, so no alteration in zero is experienced, and it is as simple as mount-focus-shoot, just as in daytime.
The CO-MINI Clip-On System is primarily intended for use by a demanding hunter or long-range target shooter. Its MIL-STD-810 housing makes it suitable for outdoor use. The system features variable gain control, bright light shut-off, and wireless remote control. This night vision clip-on system is designed to make long range night shooting just as easy and accurate as shooting over the same terrain during daylight hours with your day scope alone. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Controls and/or the U.S. Department of Commerce. - Simple and quick conversion of daytime scope, sight, or binoculars to night vision scope
- Mounts in front of a riflescope with no re-zeroing required
- Equipped with wireless remote control and variable gain control
- Powered by a single alkaline 1.5V AA or 3V CR123A lithium battery
- Bright-light cut-off system
UPC: 818470016113 In the Box Armasight by FLIR CO-Mini GEN 3P MG Night Vision Mini Clip-On System AWReC (Advanced Wireless Remote Control) CR123A, 3V / 1x 2AA 1.5V Battery Adapter IR850 Detachable Long Range Infrared Illuminator Lens Cap Lens Tissue Light Suppressor 1 Light Suppressor 2 Light Suppressor 3 Mount for IR Illuminator CR123A Lithium Battery Picatinny Adapter for AWReC Quick-Release Mount Soft Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR CO-Mini GEN 3P MG Night Vision Mini Clip-On System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR CO-Mini Specs | IIT Generation | Gen 3 High Performance ITT PINNACLE | | Resolution | 64 to 72 lp/mm | | Magnification | 1x (recommended to use with up to 10x day time optics) | | Photocathode Type | Thin-filmed auto-gated IIT | | Battery Life | 60 hours (3 V) / 30 hours (1. 5 V) | | Lens System | F1:1.44, 38 mm | | Field of View | 12° | | Range of Focus | 10 to infinity | | Diopter Adjustment | No | | Controls | Direct | | Bright Light Cut-off | Yes | | Infrared Illuminator | Detachable long range IR illuminator | | Indicators | Low Battery: Yes | | Power Supply | 1 x 1.5 V AA-type battery or 1 x 3 V CR123A-type battery | | Environmental Rating | Waterproof | | Operating Temperature | -59.8 to 120.2°F (-51 to 49°C) | | Dimensions (L x W x H) | 4.9 x 2.7 x 2.2" (124.0 x 69.0 x 56.0 mm) | | Weight | 1.06 lb (0.48 kg) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 57 owners. Add your rating and experience with the product.
