User Manual for Armasight by FLIR CO-MR GEN 2 ID MG Night Vision Clip-On System Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR CO-MR GEN 2
- Product category: Day/Night Systems Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Day/Night Systems
 |
User manual for the Armasight by FLIR CO-MR GEN 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|

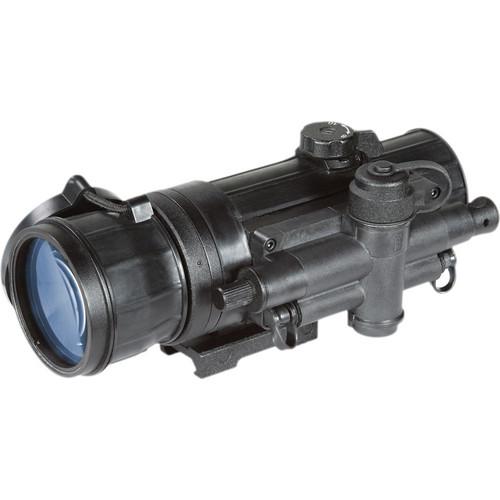

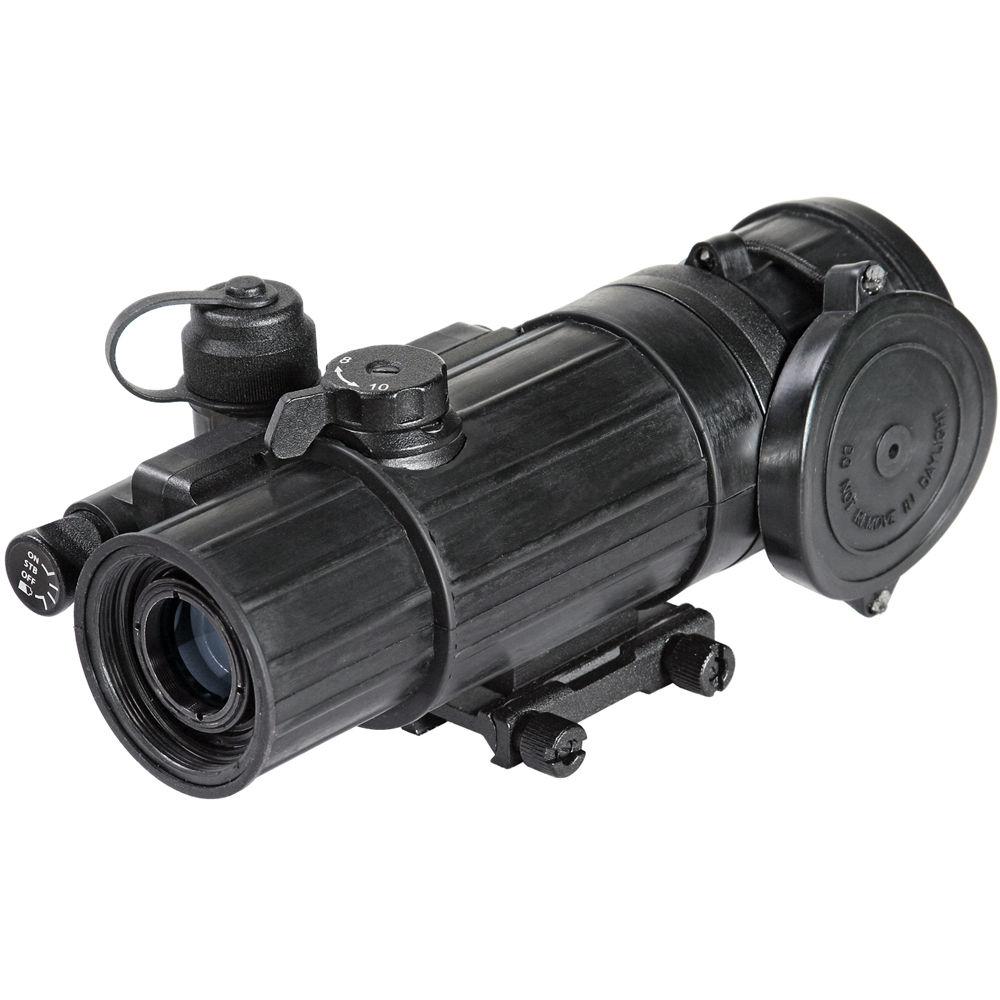

Product description The ARMASIGHT CO-MR GEN 2+ ID MG Night Vision Clip-On System is an advanced Night Vision Clip-On System for shooting at night over the middle distance.
The CO-MR (Clip-On – Medium Range) converts your existing day scope into a night vision one and provides superior target acquisition and aiming capabilities for the demanding sports shooter, varmint hunter, or military, law enforcement, or security personnel.

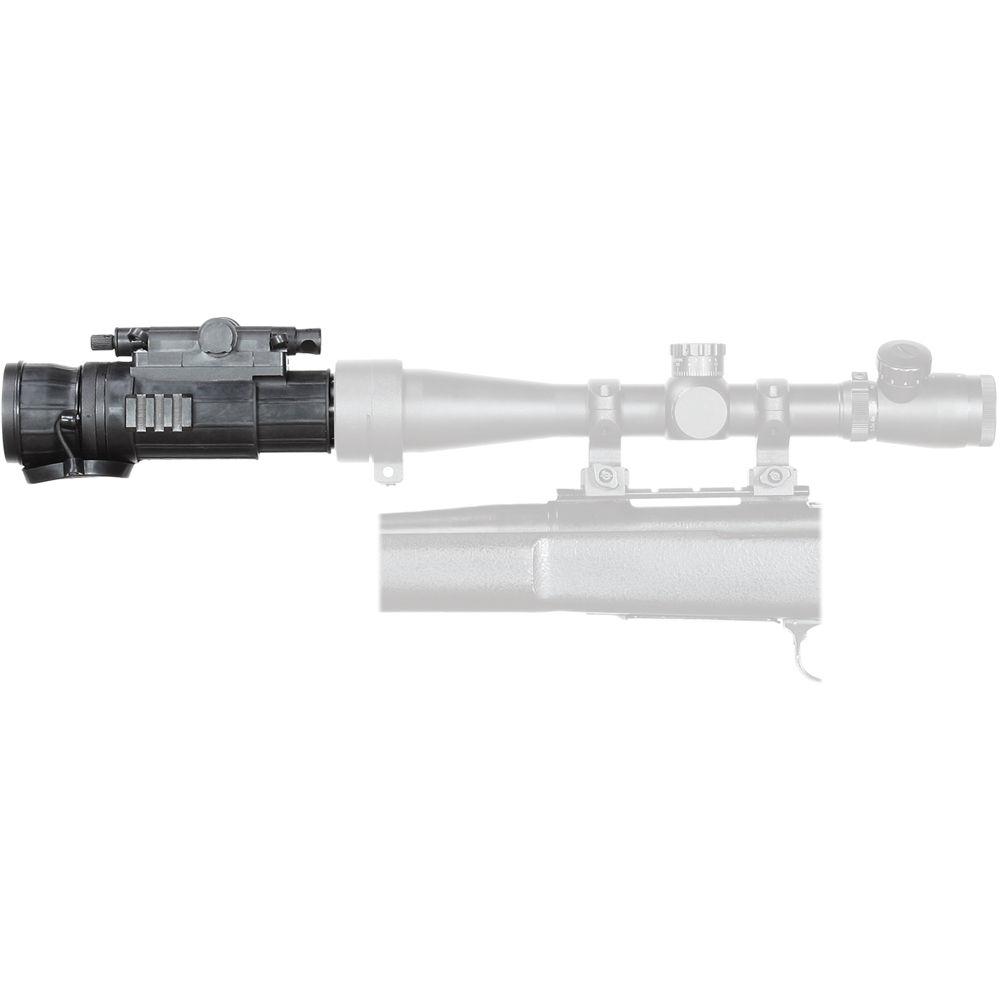

The CO-MR system eliminates the traditional requirement of removing your existing day scope from your rifle and replacing it with a dedicated night vision sight (which would also involve re-zeroing). The CO-MR clip-on system simply mounts in front of your own standard day optical sight.
Factory bore-sighted to tolerances of less than 1 MOA and hence no re-zeroing is required. The CO-MR allows the user to maintain consistent eye relief and shooting position, and because the user views his or her own day scope reticle (which he / her is familiar with), so no re-training is required. A wireless remote control unit can be placed anywhere on the user’s weapon that is convenient, allowing activation of the CO-MR system quickly and with no fuss.
It is recommended for use with day scopes of up to 6 to 7x magnification. The clip-on system is equipped with a locking (but quick-disconnect) mounting system that provides the user with an easy and quick way to attach / detach the CO-MR system on a standard weaver or Picatinny rail. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITARvccbecyvrwxcyqvytdwsrdebcrrqwbrs), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Controls and/or the U.S. Department of Commerce. - Simple and quick conversion of daytime scope, sight, or binoculars to night vision scope
- Mounts in front of a riflescope with no re-zeroing required
- Equipped with wireless remote control and variable gain control
- Powered by a single alkaline 1.5V AA or 3V CR123A lithium battery
- Automatic brightness control
- Bright-light cut-off system
UPC: 818470015987 In the Box Armasight by FLIR CO-MR GEN 2+ ID MG Night Vision Clip-On System AWReC (Advanced Wireless Remote Control) CR123A, 3V / 1x 2AA 1.5V Battery Adapter IR850 Detachable Long Range Infrared Illuminator Lens Cap Lens Tissue Light Suppressor 1 Light Suppressor 2 Light Suppressor 3 Mount for IR Illuminator CR123A Lithium Battery Picatinny Adapter for AWReC Quick-Release Mount Soft Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR CO-MR GEN 2 ID MG Night Vision Clip-On System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR CO-MR Specs | IIT Generation | Gen 2+ | | Resolution | 47 to 54 lp/mm | | Magnification | 1x (recommended to use with up to 10x day time optics) | | Battery Life | 60 hours (3 V); 30 hours (1. 5 V) | | Lens System | F1:1.51, 112 mm | | Field of View | 9° | | Range of Focus | 15 m to infinity | | Diopter Adjustment | No | | Controls | Direct | | Bright Light Cut-off | Yes | | Infrared Illuminator | Detachable long range IR illuminator | | Indicators | Low Battery: Yes | | Power Supply | 1 x 1.5 V AA-type battery or 1 x 3 V CR123A-type battery | | Environmental Rating | Waterproof | | Operating Temperature | -59.8 to 120.2°F (-51 to 49°C) | | Dimensions (L x W x H) | 7.1 x 3.2 x 3.2" (180.0 x 80.0 x 80.0 mm) | | Weight | 1.50 lb (0.69 kg) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 52 owners. Add your rating and experience with the product.
