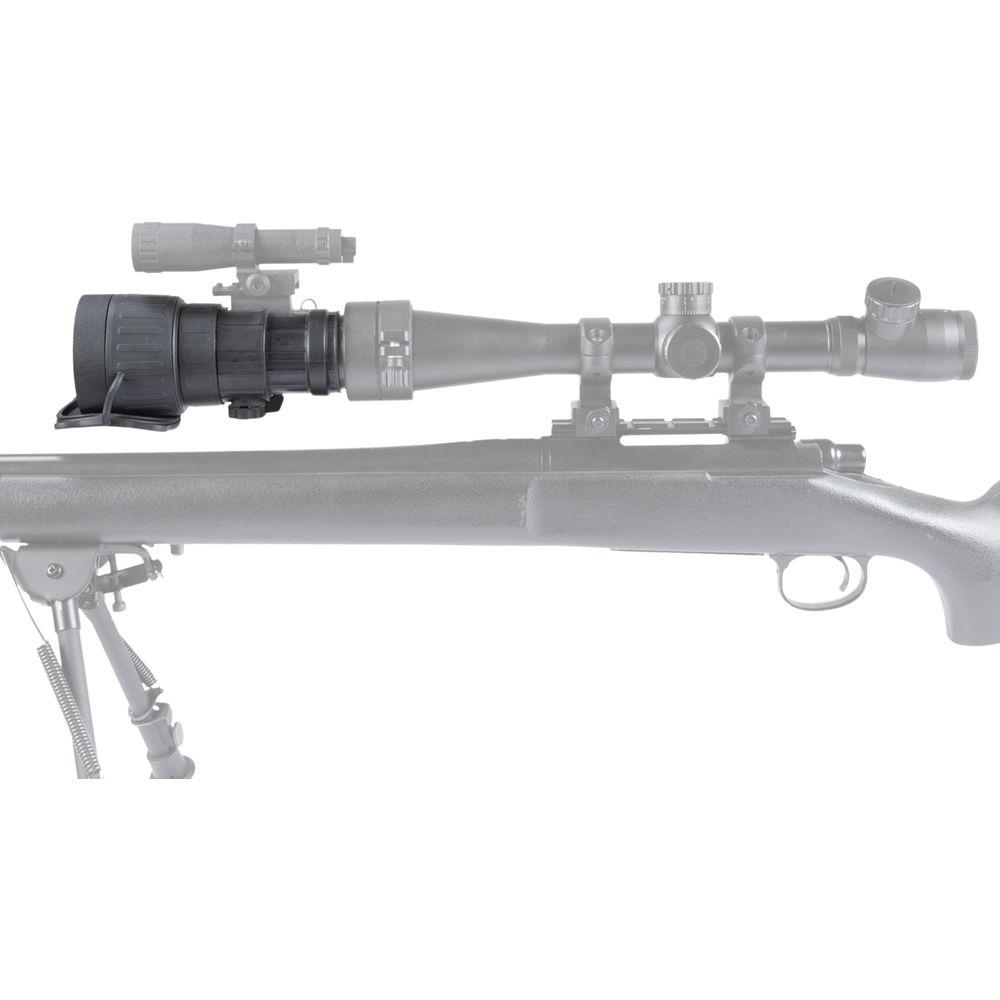

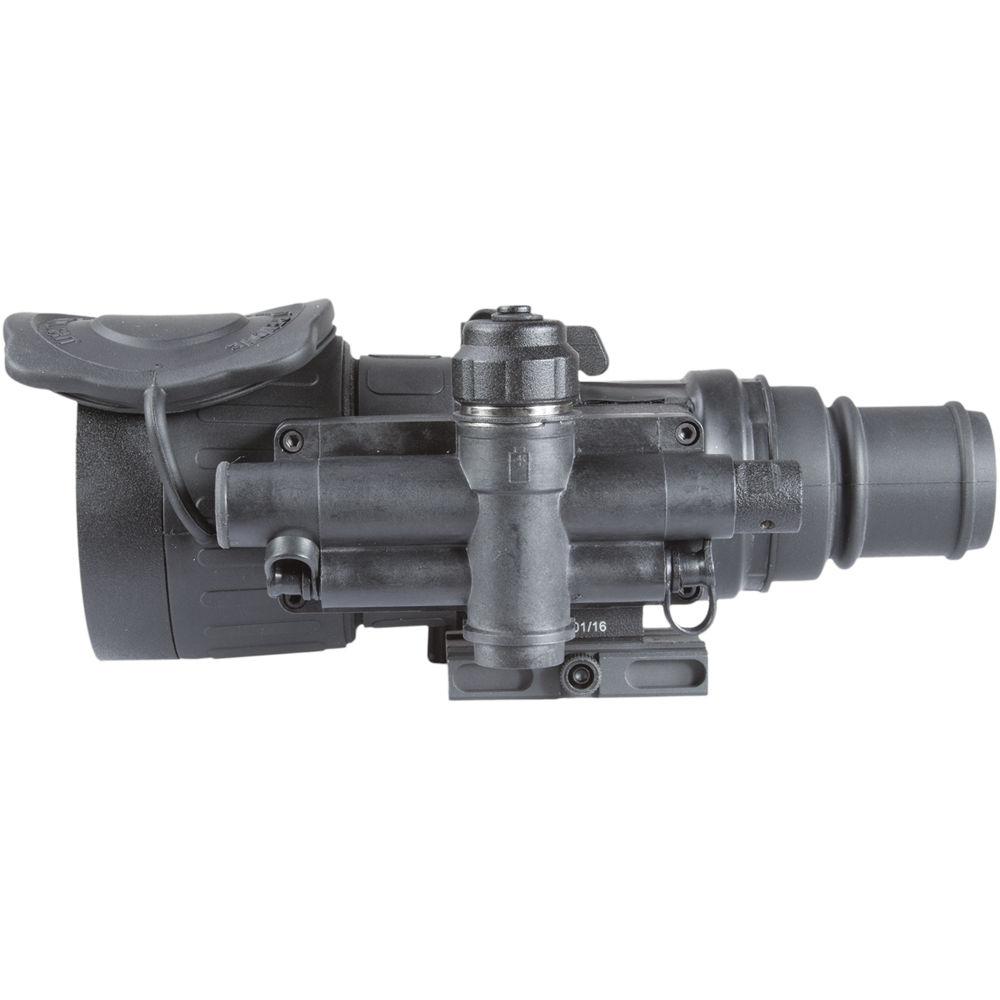

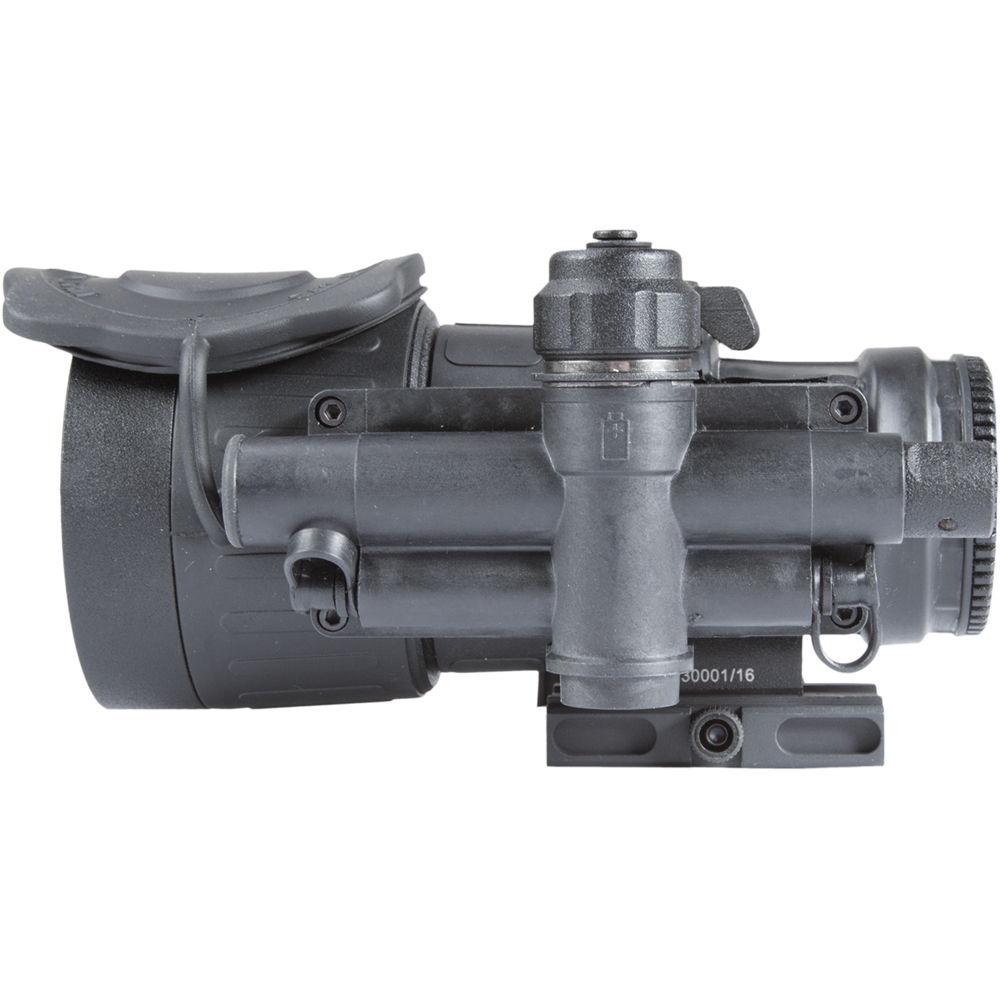

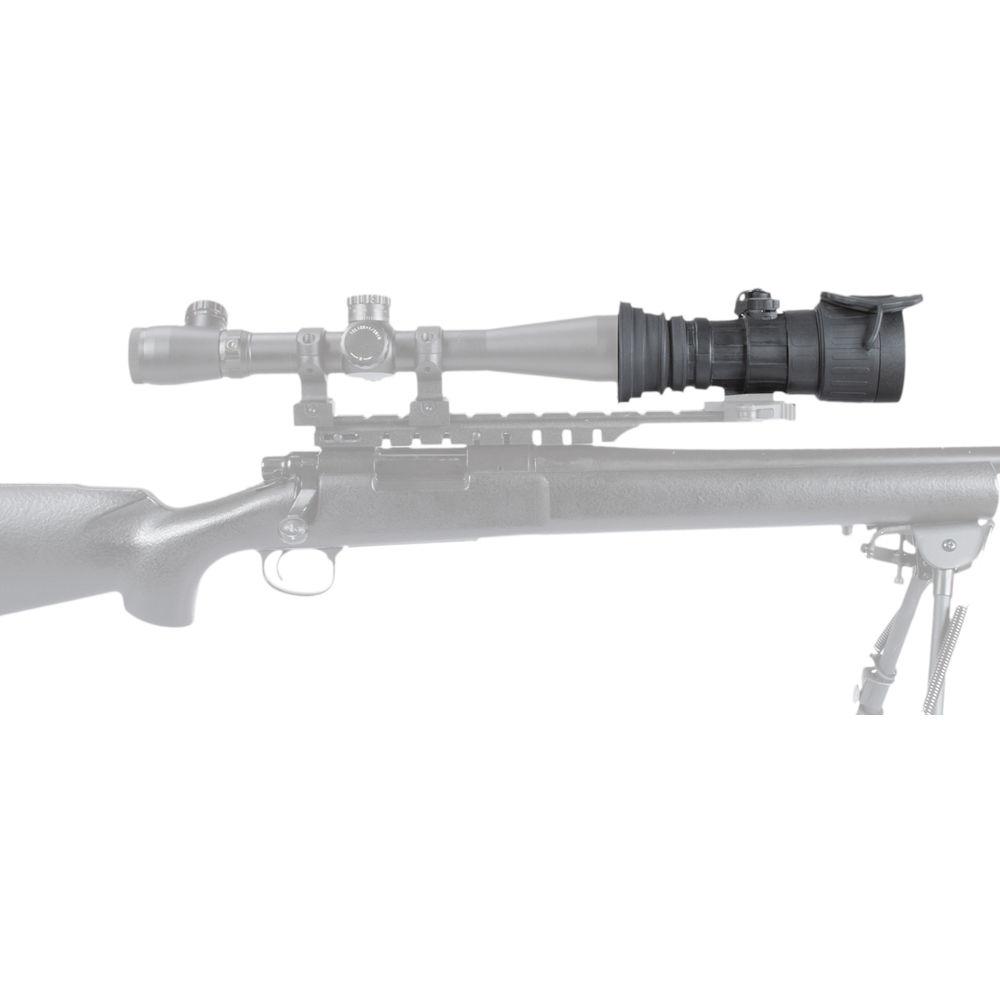

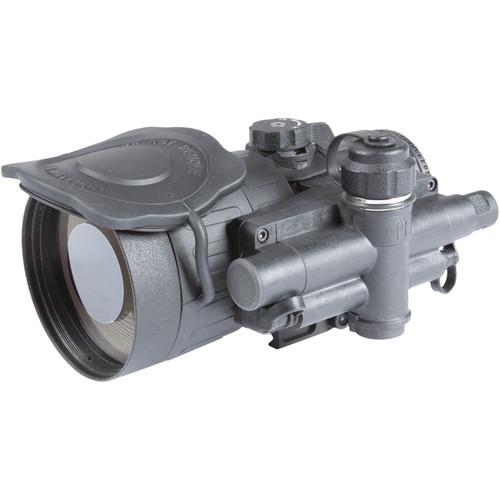

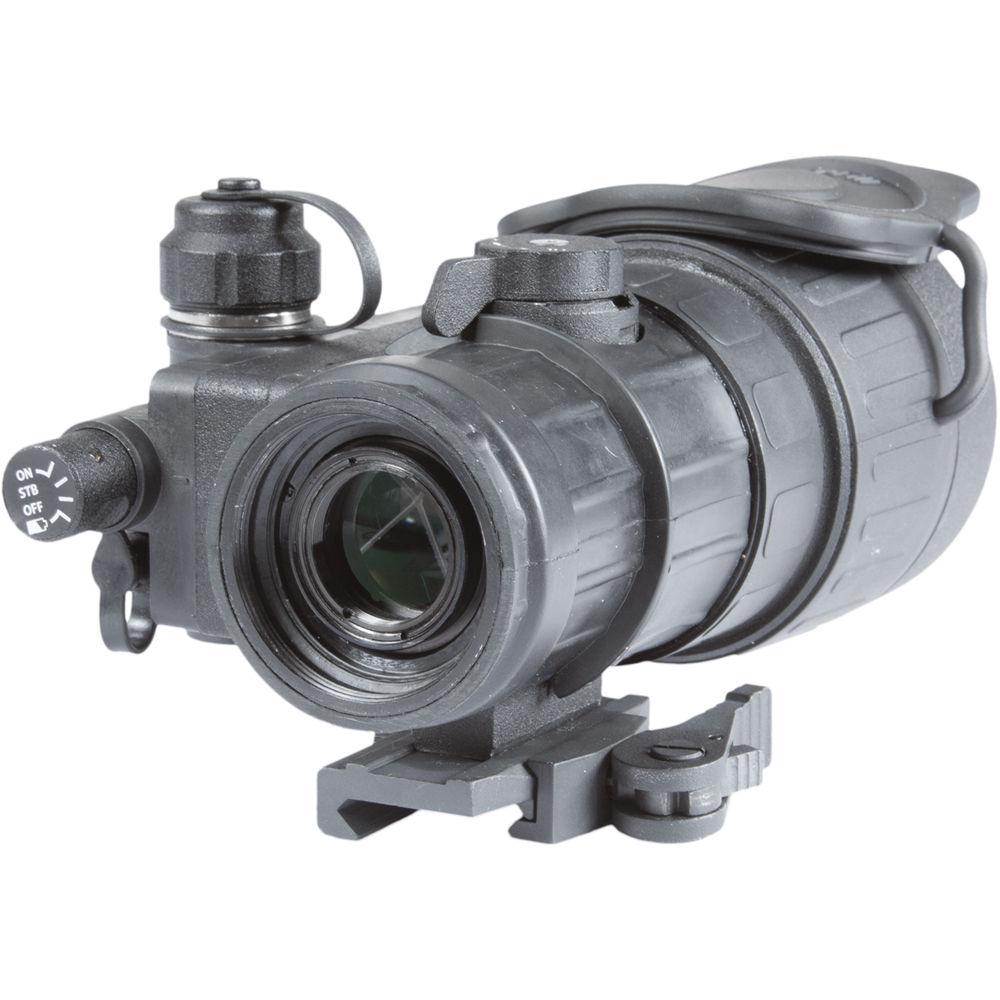

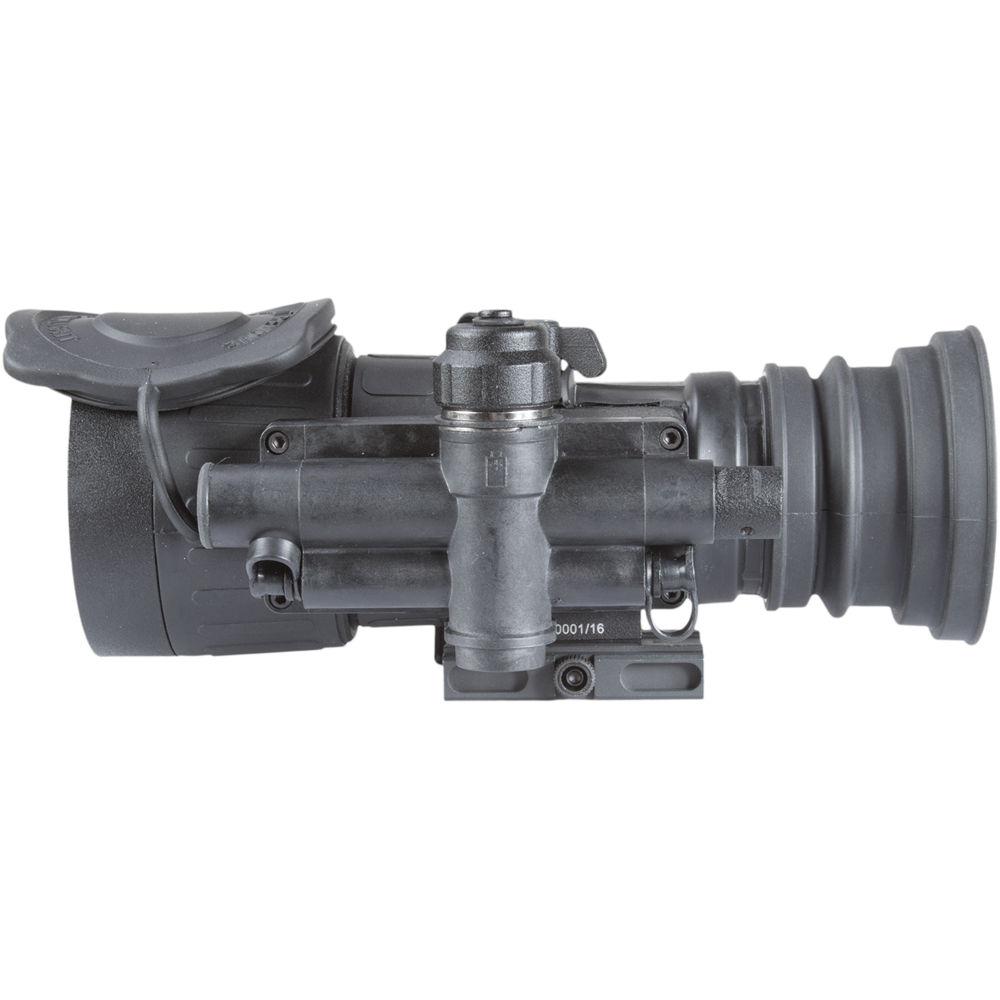

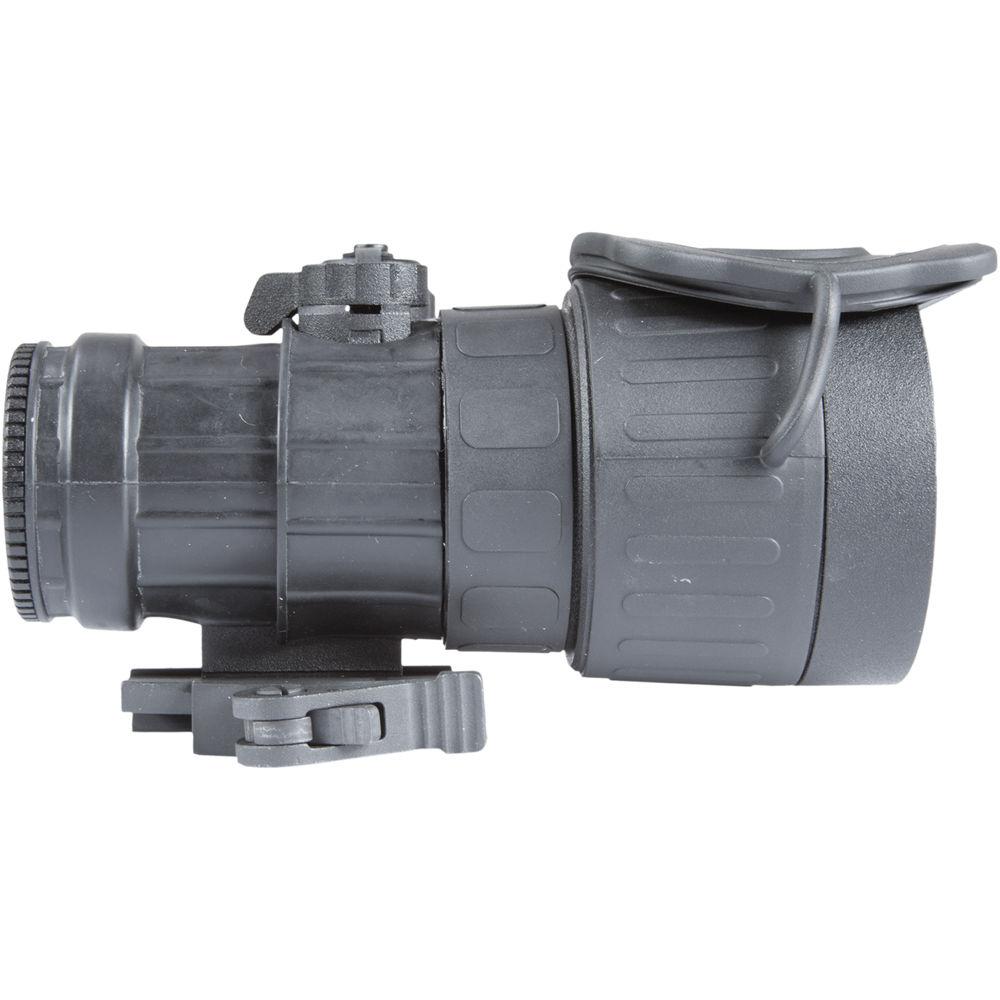

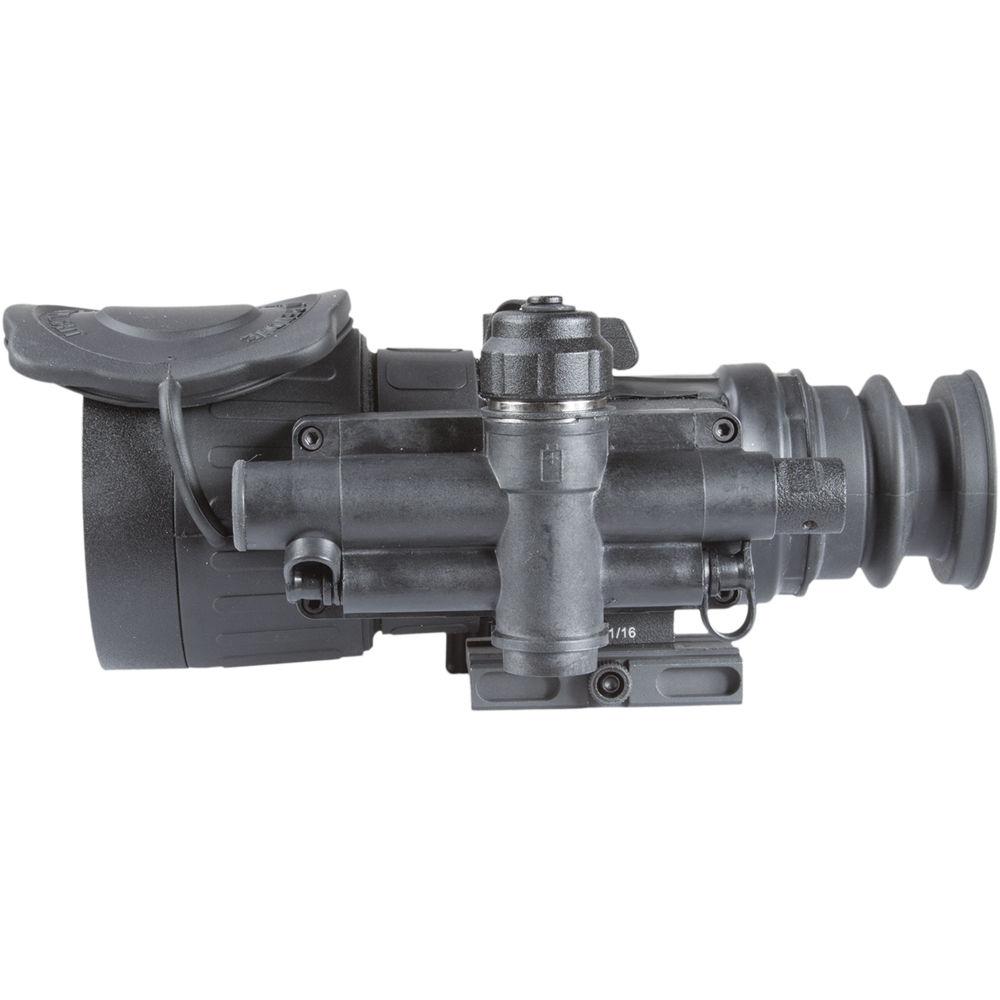

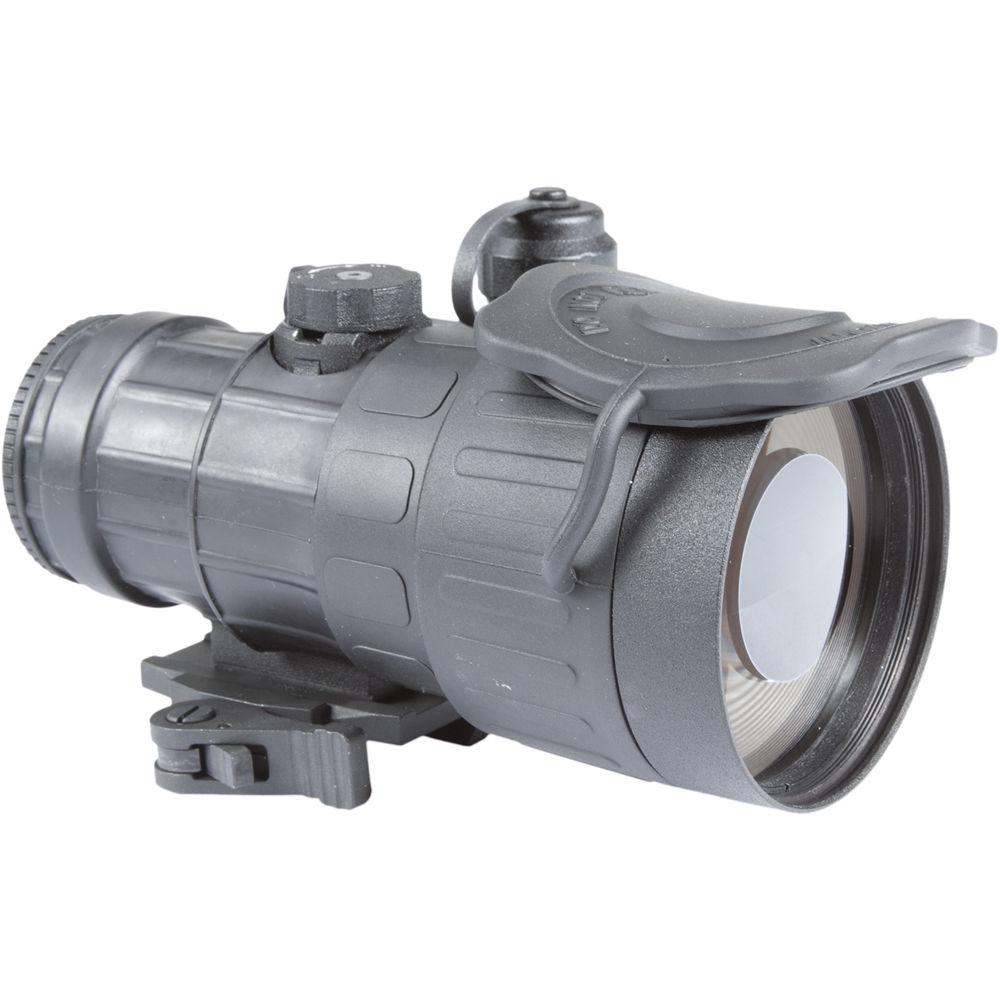

Product description The CO-X 2nd Gen Standard Definition (SD) Night Vision Riflescope Clip-On Attachment from Armasight converts your day riflescope into a night vision device. It can be wirelessly operated and features a 2nd generation intensifier tube. The Armasight second generation intensifier tube technology incorporates a microchannel plate, multi-alkaline photocathode, built-in power supply, and an 18mm format screen - improving reliability, image brightness, and quality compared to first generation devices. The Standard Definition (SD) feature offers resolution of 45 - 51 lp/mm. To extend the life of the intensifier tube and protect it from overexposure to bright light or accidental turn-on during daylight, the device is equipped a bright light cut-off function.
The optical system offers a catadioptric lens design that helps reduce the weight and length of your system. With a f/1.44 F-stop, and a focal lengths of 80mm, it provides a wide aperture for collecting night light and improves visibility. To enable you to make long range night observations or improve visibility and image brightness in complete darkness, this night vision device includes a XLR-IR850 infrared illuminator for additional illumination of your targets. The illuminator is detachable and includes a rechargeable battery and a charger. The optical system also offers a 12° angular field of view and a 33' minimum focus distance. The clip-on system is powered by the included lithium-ion CR123A battery.
The housing is lightweight, durable, waterproof, and resistant to extreme temperatures. Using the included tools, mounts, and adapters, the CO-X can be mounted directly to the objective bell of the riflescope or on a Picatinny rail. Also included are a soft carrying case and tethered objective cap. - Intensifier Tube
-
- 2nd generation intensifier tube
- Standard Definition (SD)
- Manual gain
- Resolution of 45-51 lp/mm
- XLR-IR850 detachable infrared Illuminator included
- Optical Performance
-
- Magnification: 1x
- Catadioptric lens system
- Lens system: 80mm f/1.44
- Field of view: 12°
- Close focus: 33'
- Use and Handling
-
- Bright light cut-off function
- Wireless remote control
- Bright light indicator
- Construction Details
-
- Compatible with Picatinny rails
- Withstands extreme temperatures
- Tethered objective cover
- Lockable quick release mount
UPC: 849815005493 In the Box Armasight by FLIR CO-X 2nd Gen Standard Definition (SD) Night Vision Riflescope Clip-On Attachment - XLR-IR850 X-Long Range Illuminator (Dovetail to Weaver Adapter #21) dfbbasruytzeztesysxdcvxasdq
- Soft Carrying Case
- CR123 Lithium-Ion Battery
- Locking Single Lever Quick-Release Picatinny Mount
- М4x8 Flat Head Socket Cap Screw
- Wireless Remote Control
- Picatinny Adaptor Wireless Remote Control
- Light Suppressor for 25.4-42mm Objectives
- Light Suppressor for 47-50mm Objectives
- Light Suppressor for 4x32 ACOG
- Light Suppressor for Day Scope
- Mount for IR illuminator
- Special Wrench
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR CO-X 2nd Gen Standard Definition Night Vision Riflescope Clip-On Attachment in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR NSCCOX00012MDS1 Specs | Magnification | 1x | | Intensifier Tube | 2nd generation
Standard Definition
Resolution: 45-51 lp/mm
Manual gain | | Lens System | f/1.44
Focal length: 80mm | | Angle of View | 12° | | Linear Field of View | 637.4' @ 1000 yd (212.6 m @ 1000 m) | | Minimum Focus Distance | 33' (10 m) | | Exit Pupil Diameter | 21 mm | | Weatherproofing | Waterproof, submersible to 33' (10 m) for 30 min | | Power Source | 1 x AA alkaline battery/30 h max
1 x CR123A battery/60 h max | | Infrared Illuminator | LED
850 nm
500 mW
Beam Divergence: 8 - 12°
Water-Resistant
Battery: 1 x CR123A/High: 1.5 h, Low: 14 h max | | Operating Temperature | -40 - 122°F (-40 - 50°C) | | Storage Temperature | -58 - 122°F (-50 - 50°C) | | Dimensions | 6 x 4 x 3.3' (152 x 100 x 85 mm) | | Weight | 25 oz (710 g) |
