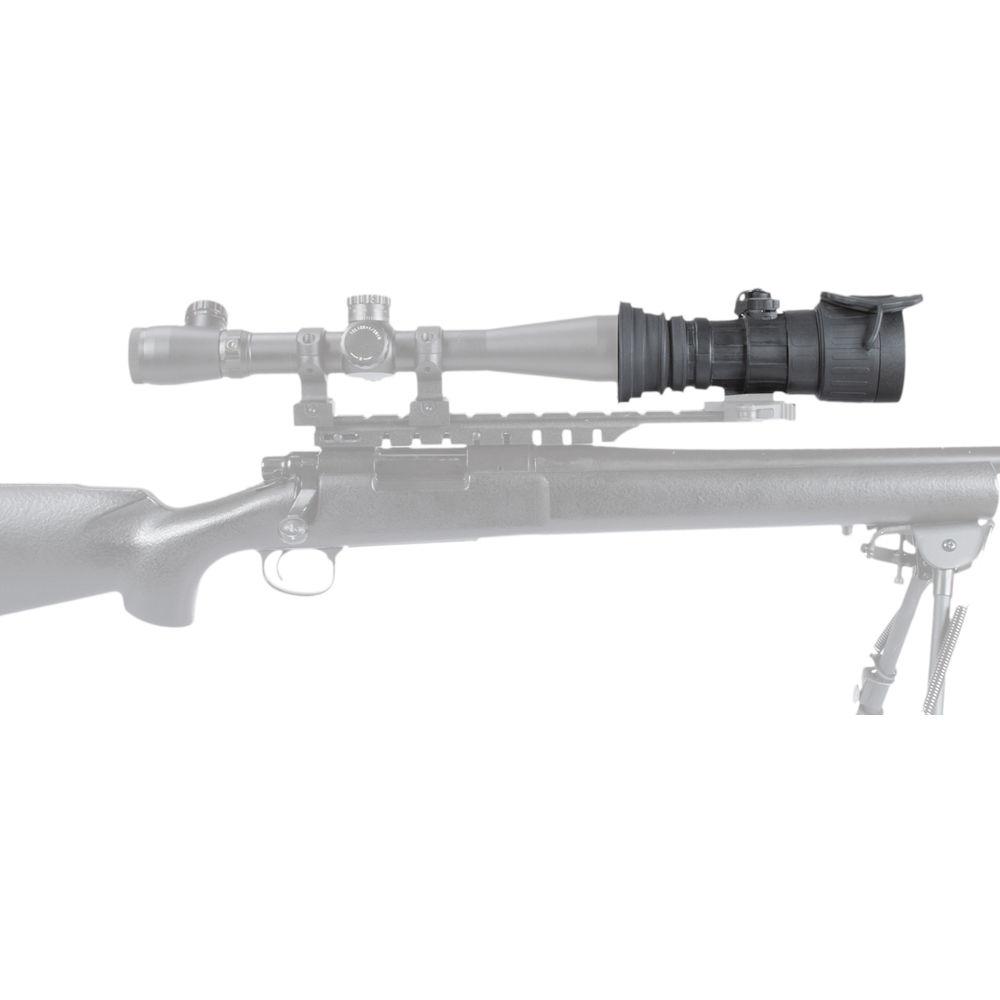

User Manual for Armasight by FLIR CO-X GEN 3 Alpha AG Night Vision Riflescope Clip-On Attachment Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR CO-X GEN 3
- Product category: Day/Night Systems Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Day/Night Systems
 |
User manual for the Armasight by FLIR CO-X GEN 3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|

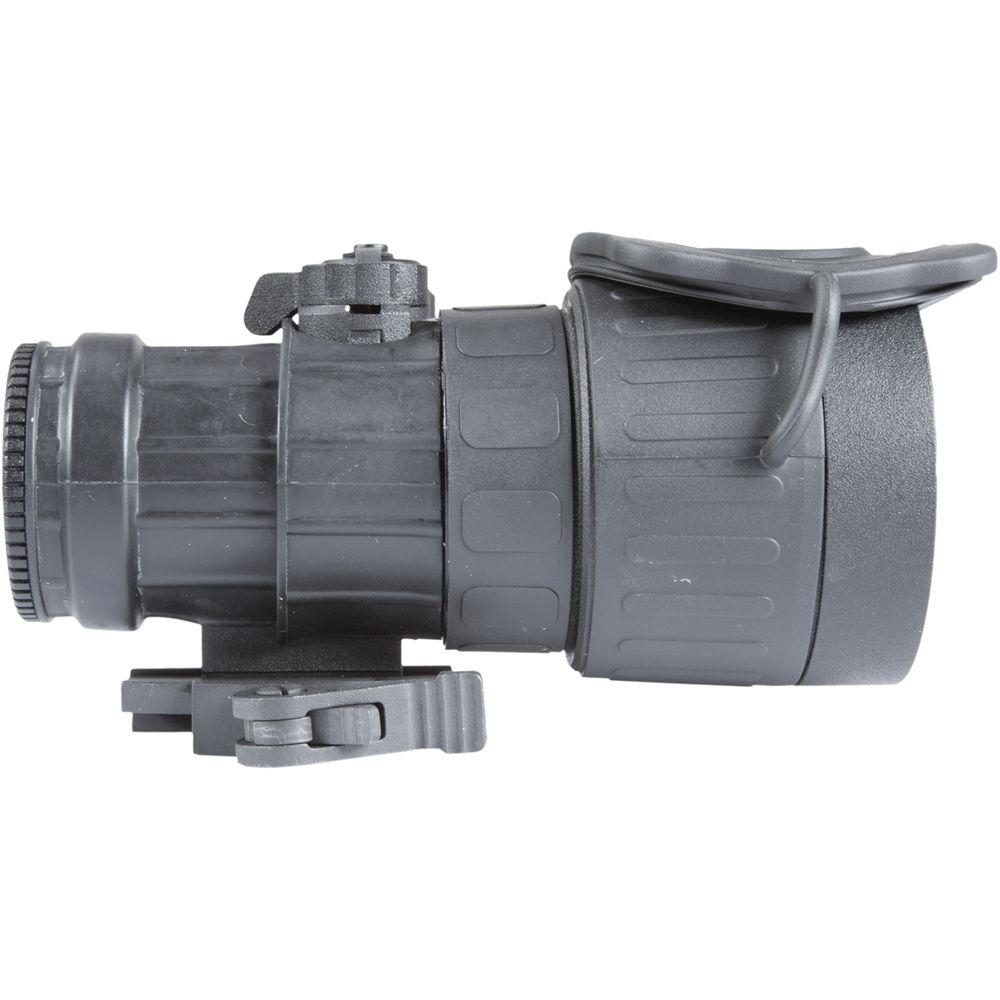

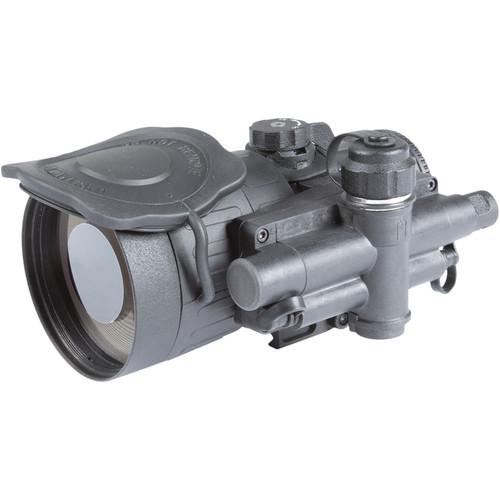

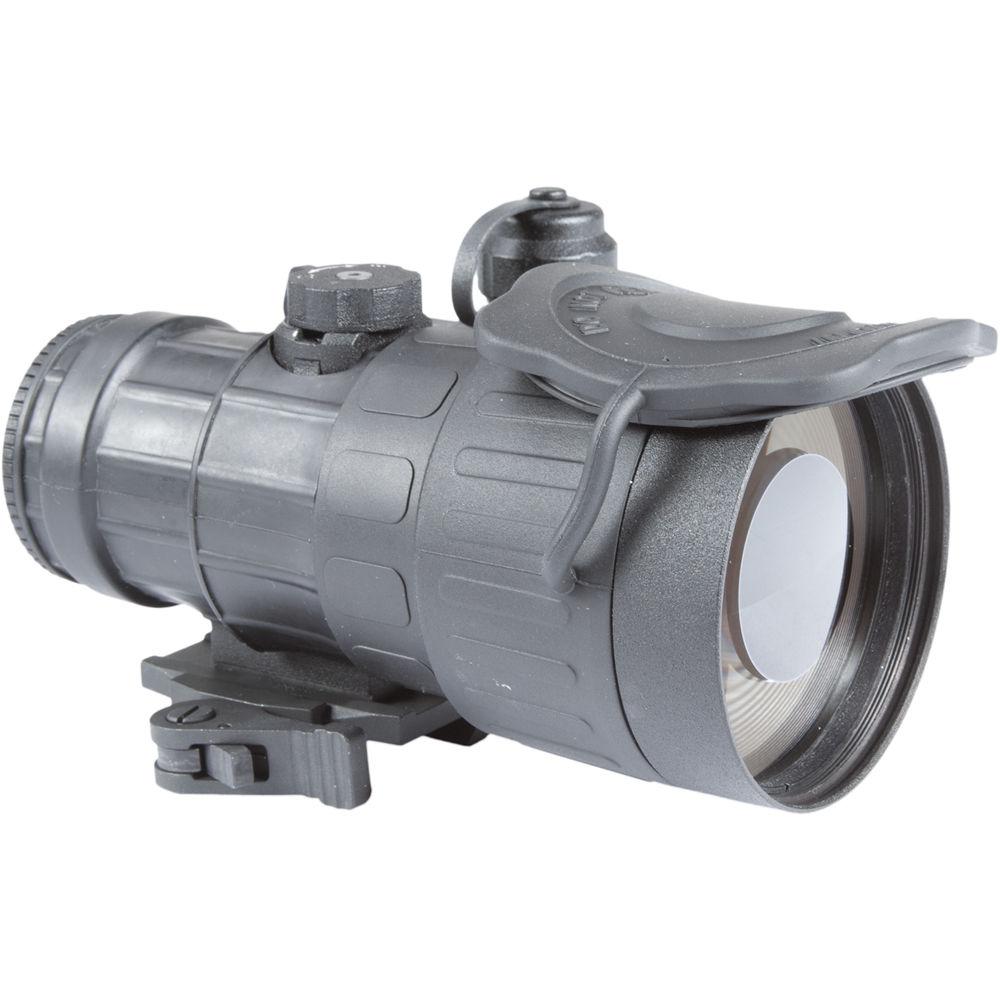

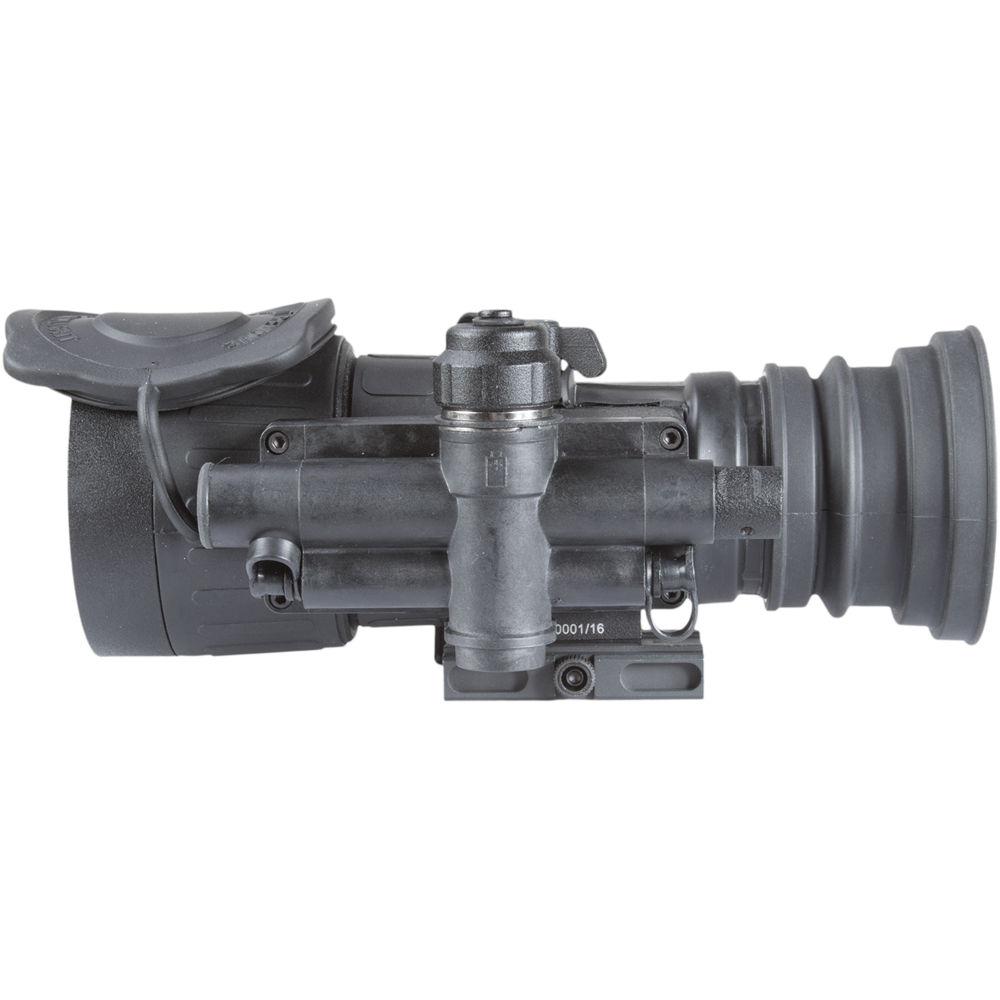

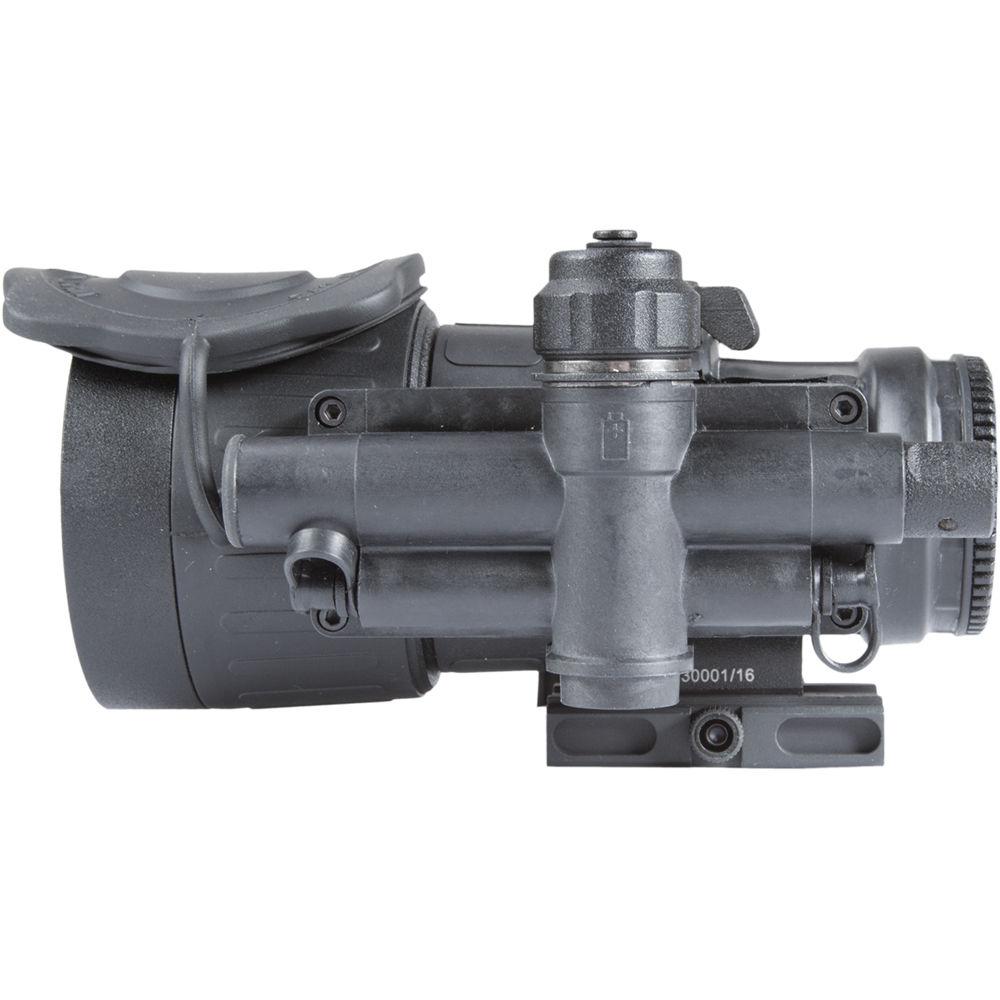

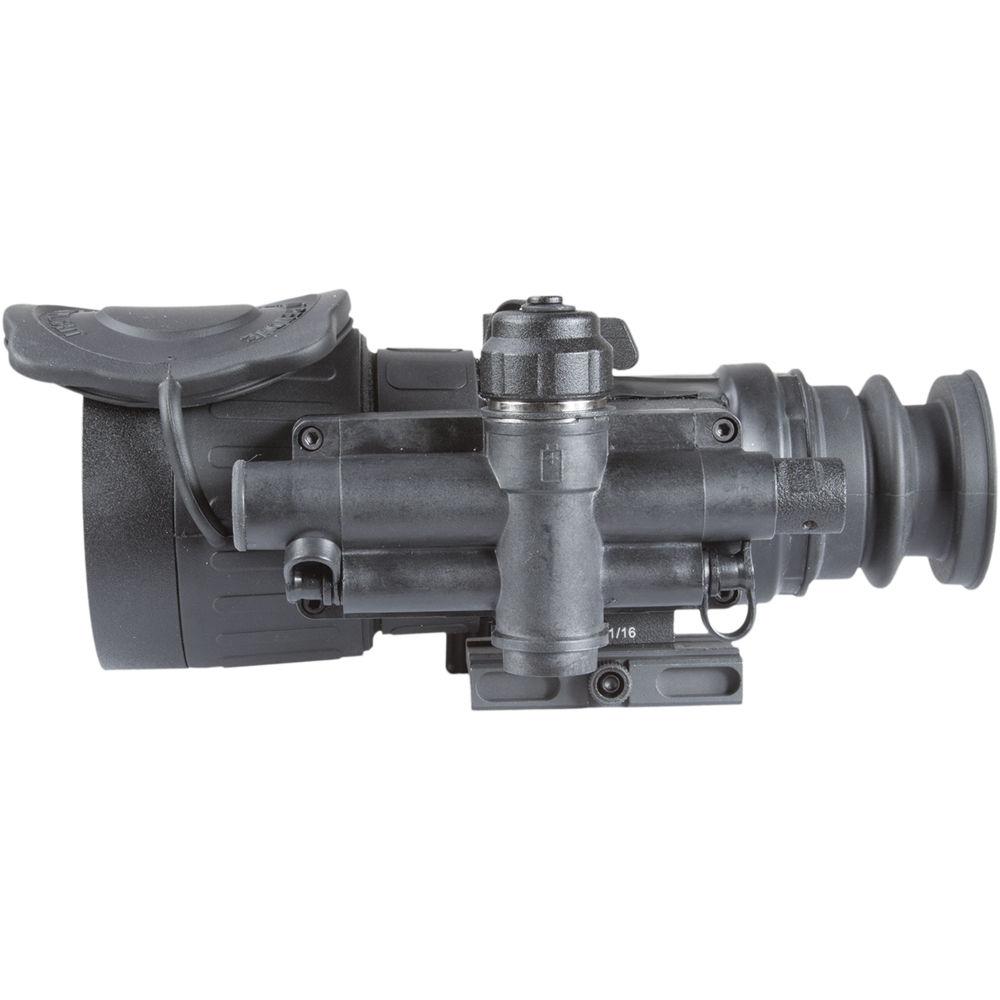

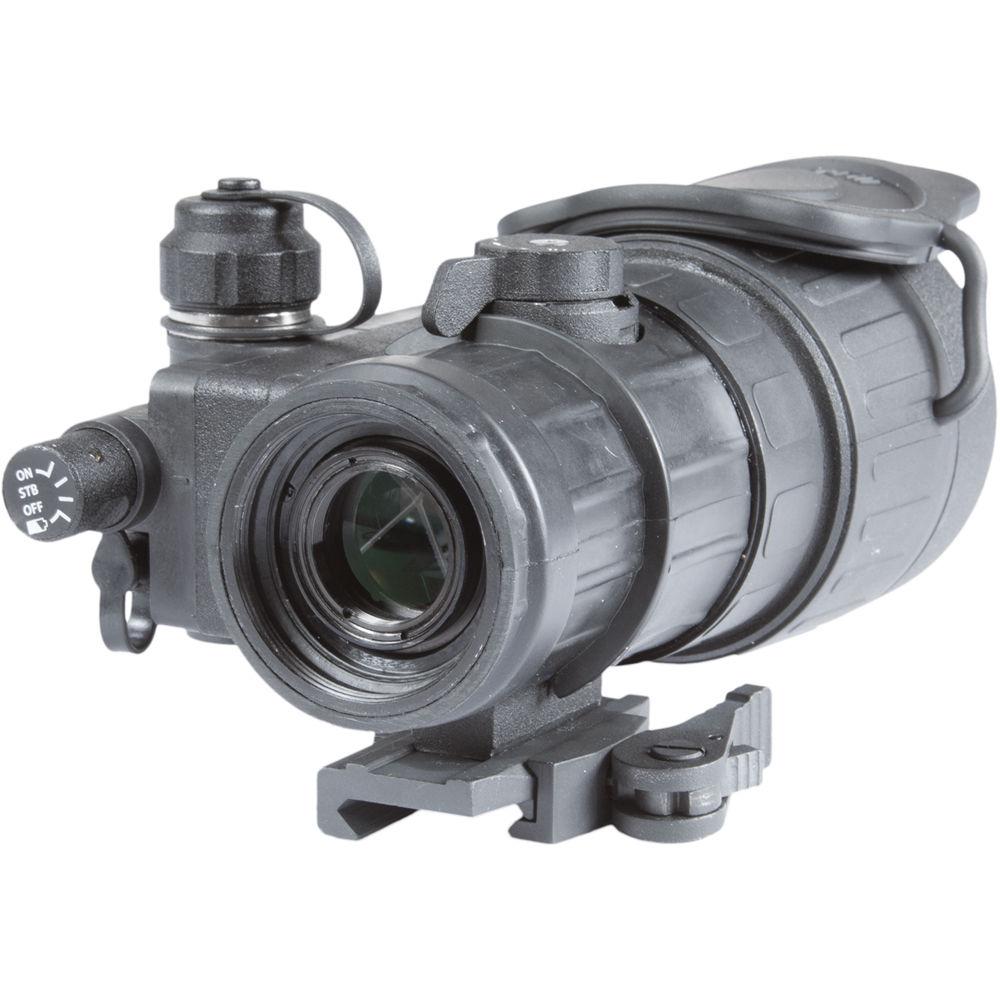

Product description The CO-X GEN 3 Alpha AG Night Vision Riflescope Clip-On Attachment from Armasight converts your day riflescope into a night vision deivce. It can be wirelessly operated and features a 3rd generation Alpha intensifier tube with a Gallium Arsenide photocathode, automatic gain, resolution of 64-72 lp/mm, and an SNR of 16-30. The tube utilizes a microchannel plate, thin film GaAs photocathode, and a completely self-contained high-voltage power supply. To extend the life of the intensifier tube and to protect it from overexposure to bright light or accidental turn-on during daylight, the device is equipped the Bright Light Cut-off function.
The optical system offers a catadioptric lens design that reduces weight and length of your system. With f/1.44 F-number and a focal lengths of 80mm, it provides a wide aperture for collecting night light and improves visibility. To enable you to make long range night observations or improve visibility and image brightness in complete darkness, this night vision device includes a XLR-IR850 infrared illuminator for additional illumination of your targets. The illuminator is detachable and includes a rechargeable battery and a charger. The optical system also offers a 13° angular field of view and a 33' minimum focus distance. The is powered by the included lithium-ion CR123A battery.

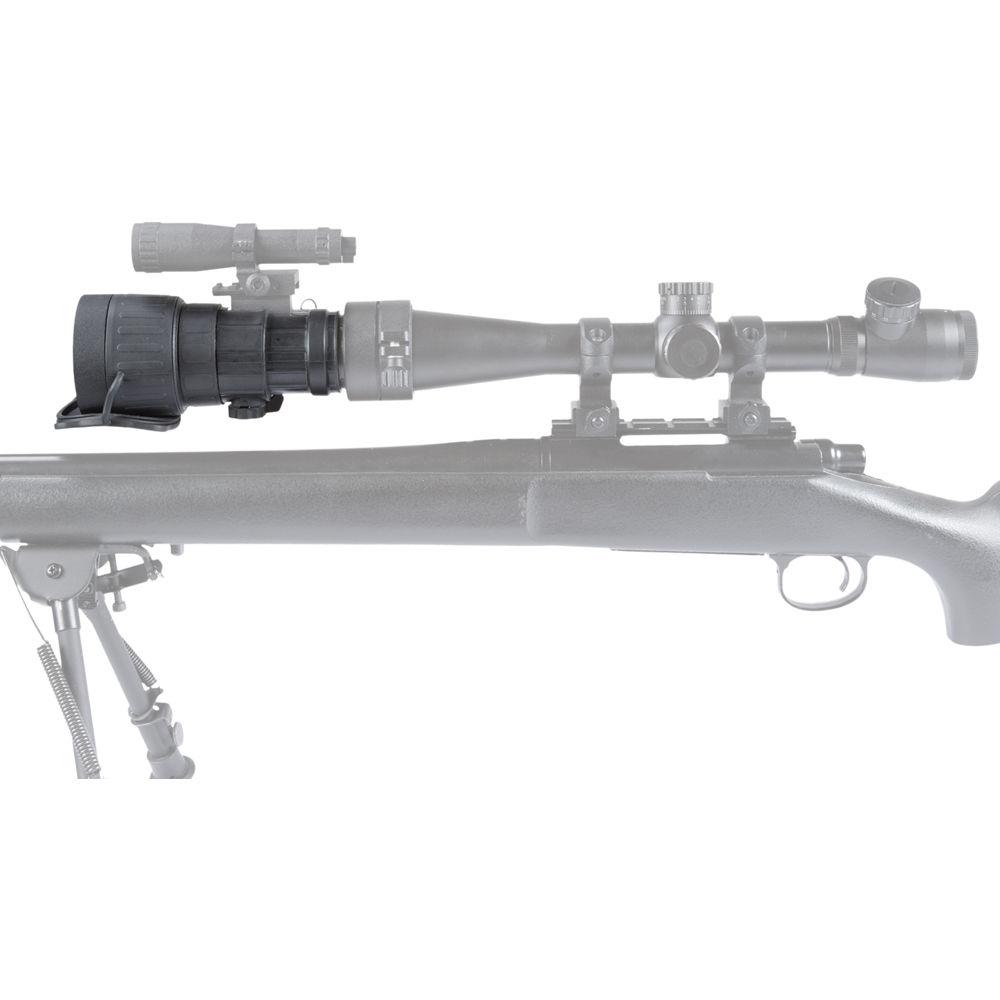

The housing is lightweight, durable, waterproof, resistant to extreme temperatures. Using the included tools, mounts, and adapters, the CO-X can be mounted directly to the objective bell of the riflescope or on a Picatinny rail. Also included are as soft carrying case and tethered objective cap. - Intensifier Tube and Illuminator
-
- 3rd generation Alpha intensifier tube
- Automatic gain
- Thin film Gallium Arsenide photocathode
- Resolution of 64-72 lp/m and SNR of 16-30
- XLR-IR850 detachable infrared Illuminator included
- Optical Performance
-
- Magnification: 1x
- Catadioptric lens system
- Lens system: 80mm f/1.44
- Field of view: 12°
- Close focus: 33'
- Use and Handling
-
- Bright light cut-off function
- Wireless remote control
- Bright light indicator
- Low battery indicator
- Construction Details
-
- Compatible with Picatinny rails
- Withstands extreme temperatures
- Tethered objective cover
- Lockable quick-release mount
- Waterproof
UPC: 849815005455 In the Box Armasight by FLIR CO-X GEN 3 Alpha AG Night Vision Riflescope Clip-On Attachment - XLR-IR850 X-Long Range Illuminator (Dovetail to Weaver Adapter #21) rvzvvexrycuzuwzb
- Soft Carrying Case
- CR123 Lithium-Ion Battery
- Locking Single Lever Quick-Release Picatinny Mount
- М4x8 Flat Head Socket Cap Screw
- Wireless Remote Control
- Picatinny Adaptor Wireless Remote Control
- Light Suppressor for 25.4-42mm Objectives
- Light Suppressor for 47-50mm Objectives
- Light Suppressor for 4x32 ACOG
- Light Suppressor for Day Scope
- Mount for IR illuminator
- Special Wrench
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR CO-X GEN 3 Alpha AG Night Vision Riflescope Clip-On Attachment in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR 3 Alpha Specs | Intensifier Tube | 3rd generation Alpha MG
Automatic gain
Thin film Gallium Arsenide photocathode
Resolution: 64-72 lp/mm, SNR: 16-30 | | Magnification | 1x | | Angular Field of View | 12° | | Linear Field of View | 63' @ 10 yd (21 m @ 100 m) | | Lens System | f/1.44
Focal length: 80mm | | Exit Pupil Diameter | 21 mm | | Minimum Focus Distance | 33' (10 m) | | Infrared Illuminator | LED
850 nm
500 mW
Beam divergence: 8 - 12°
Water resistant
Battery: 1 x CR123A/High: 1.5 hr, Low: 14 hr max | | Battery / Runtime | 1 x AA alkaline battery/30 hr max
1 x CR123A battery/60 hr max | | Weatherproofing | Waterproof, submersible to 33' (10 m) for 30 min | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Storage Temperature | -58 to 122°F (-50 to 50°C) | | Dimensions | 6 x 4 x 3.3' (152 x 100 x 85 mm) | | Weight | 25 oz (710 g) |
