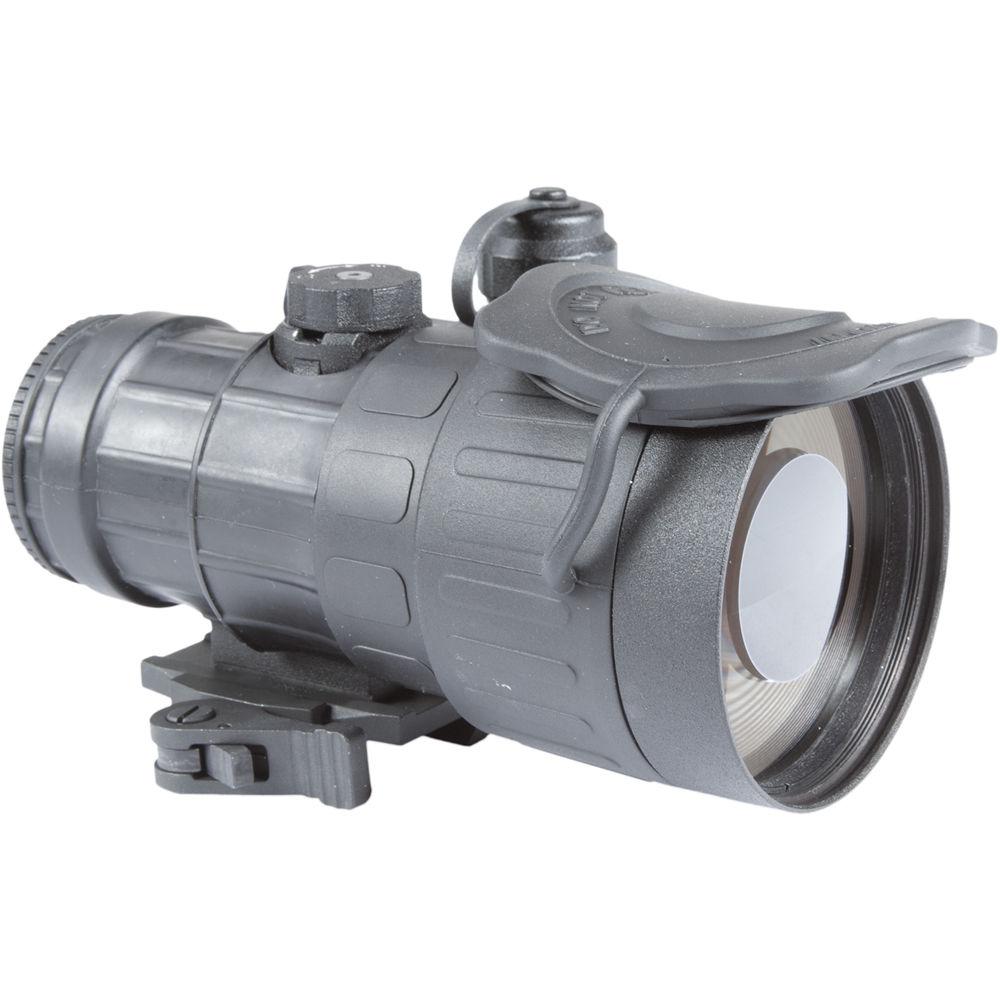

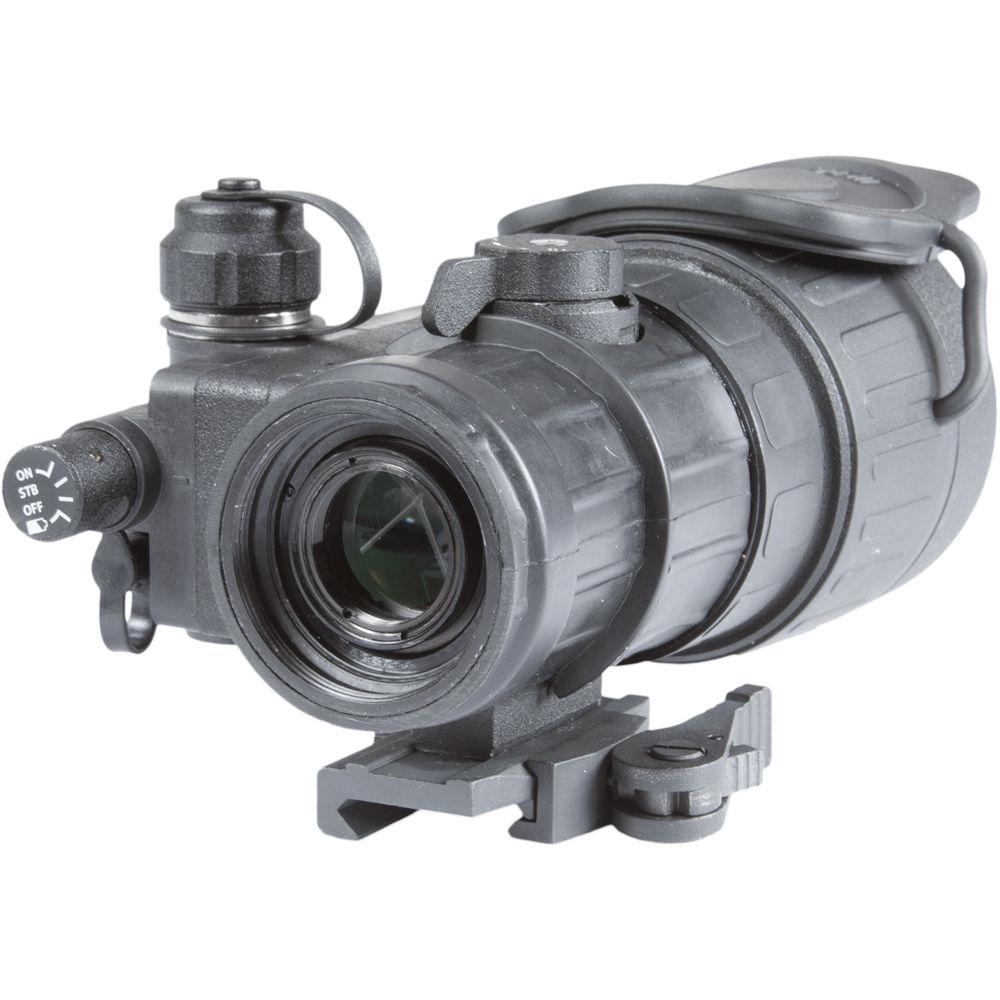

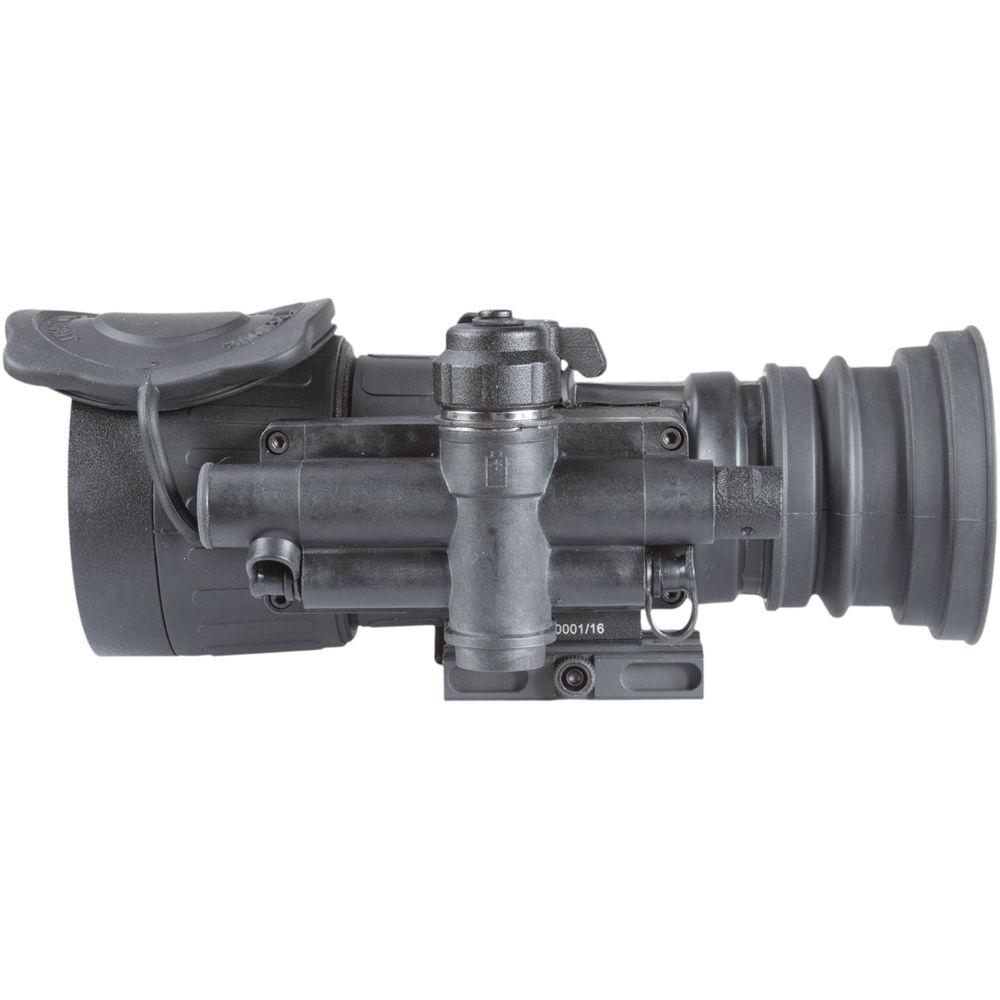

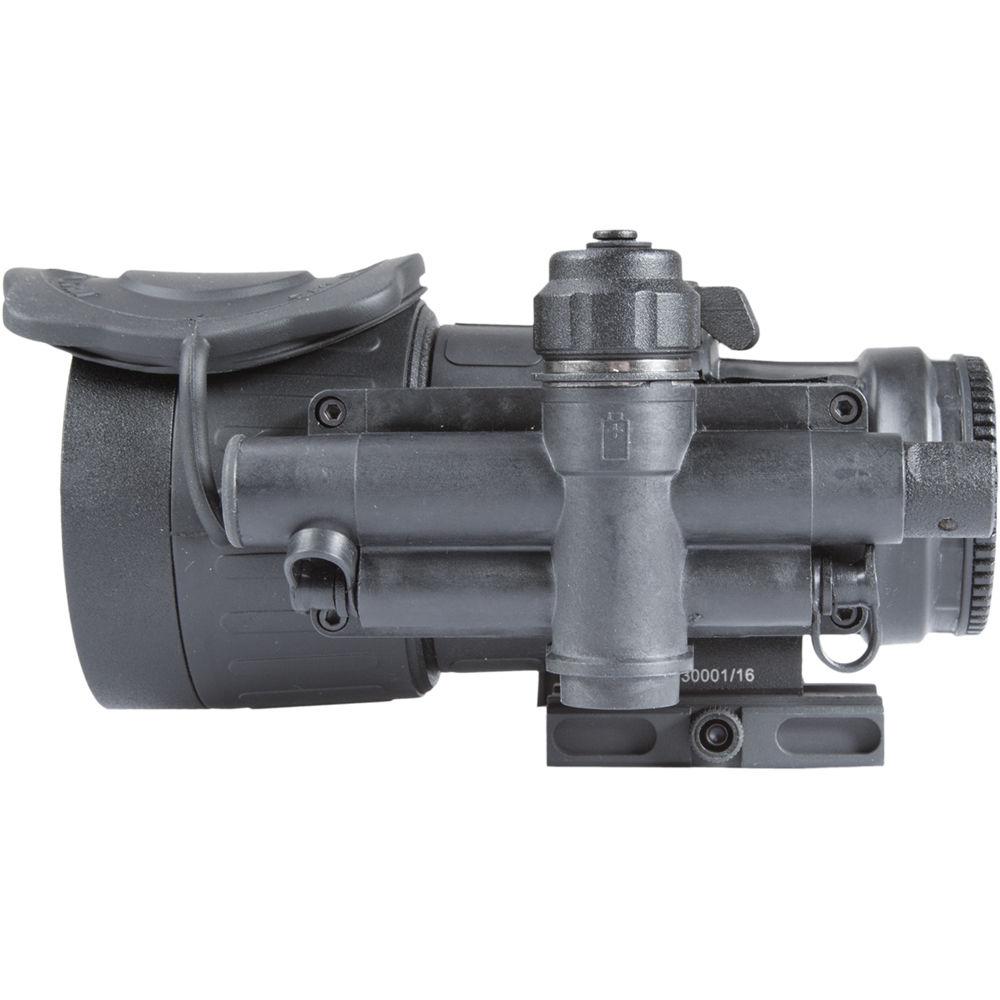

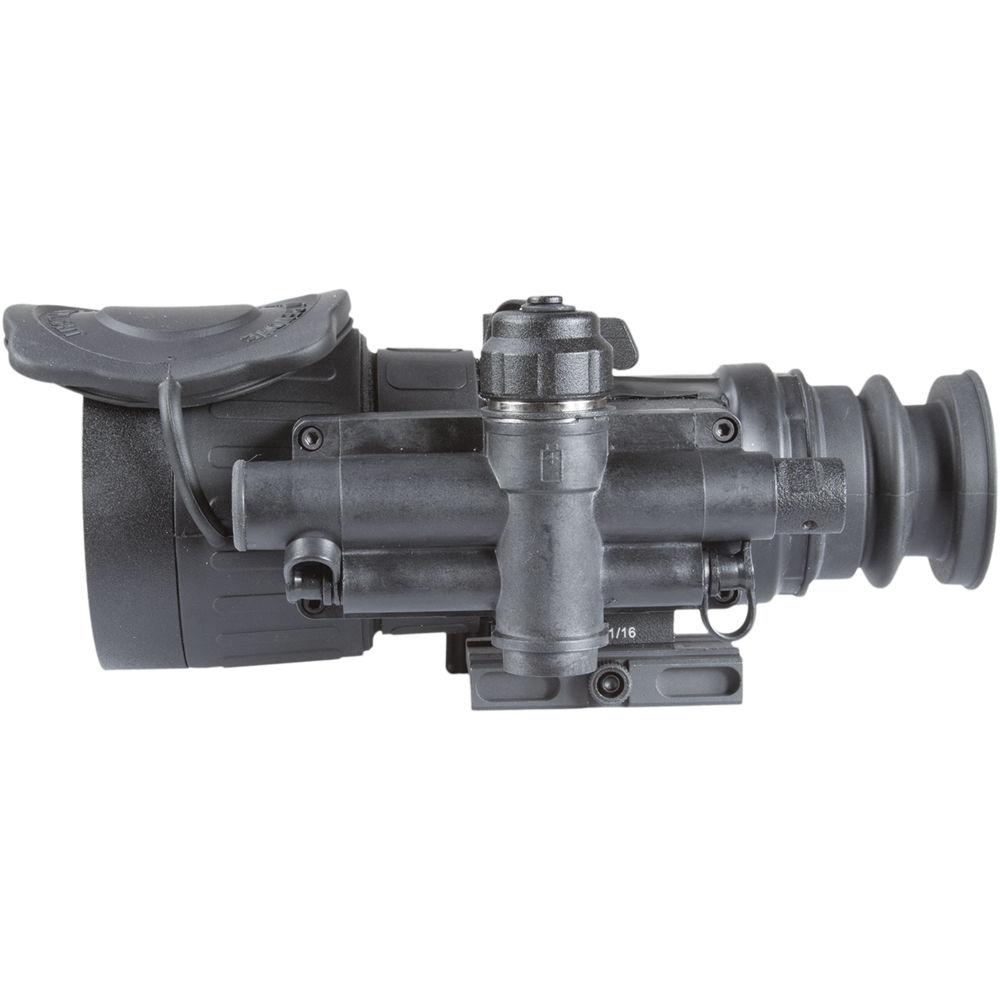

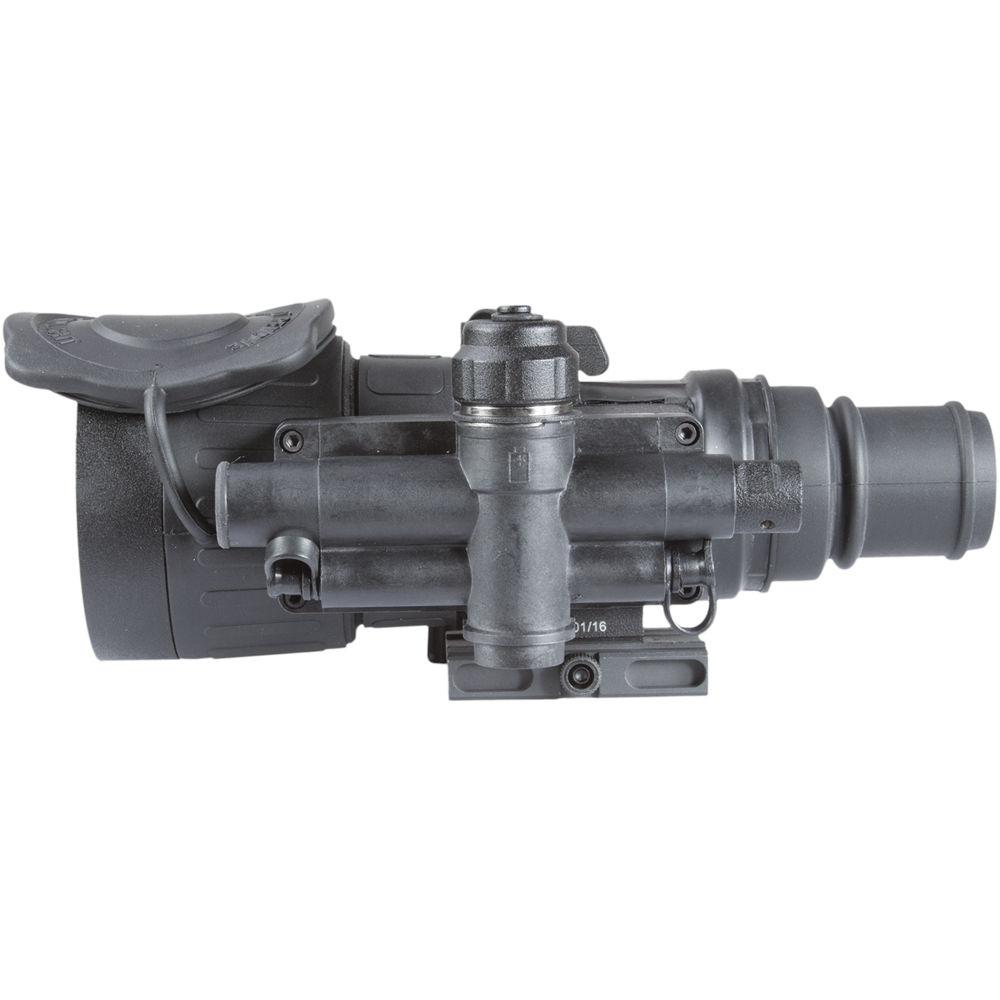

Product description The CO-X GEN 3 Pinnacle AG Night Vision Riflescope Clip-On Attachment from Armasight converts your day riflescope into a night vision deivce. It can be wirelessly operated and features a 3rd generation Pinnacle intensifier tube with a Gallium Arsenide photocathode, automatic gain, resolution of 64-72 lp/mm, and an SNR of 16-30. The 3rd generation ITT Pinnacle image intensifier tube utilizes a gated power supply that provides outstanding autogated performance. The Pinnacle tube minimizes the halo effect often associated with light interference caused by sources of bright light. To extend the life of the intensifier tube and to protect it from overexposure to bright light or accidental turn-on during daylight, the device is equipped the Bright Light Cut-off function.
The optical system offers a catadioptric lens design that reduces weight and length of your system. With f/1.44 F-number and a focal lengths of 80mm, it provides a wide aperture for collecting night light and improves visibility. To enable you to make long range night observations or improve visibility and image brightness in complete darkness, this night vision device includes a XLR-IR850 infrared illuminator for additional illumination of your targets. The illuminator is detachable and includes a rechargeable battery and a charger. The optical system also offers a 13° angular field of view and a 33' minimum focus distance. The is powered by the included lithium-ion CR123A battery.

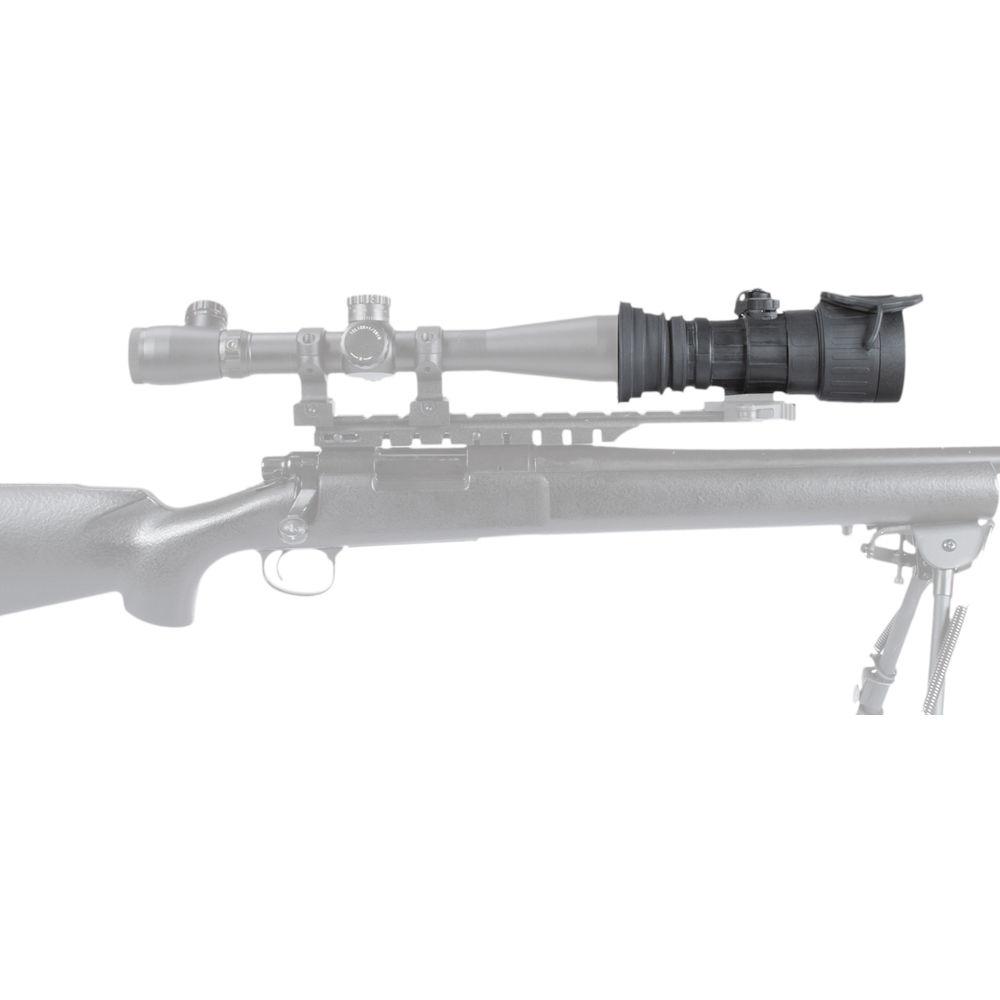

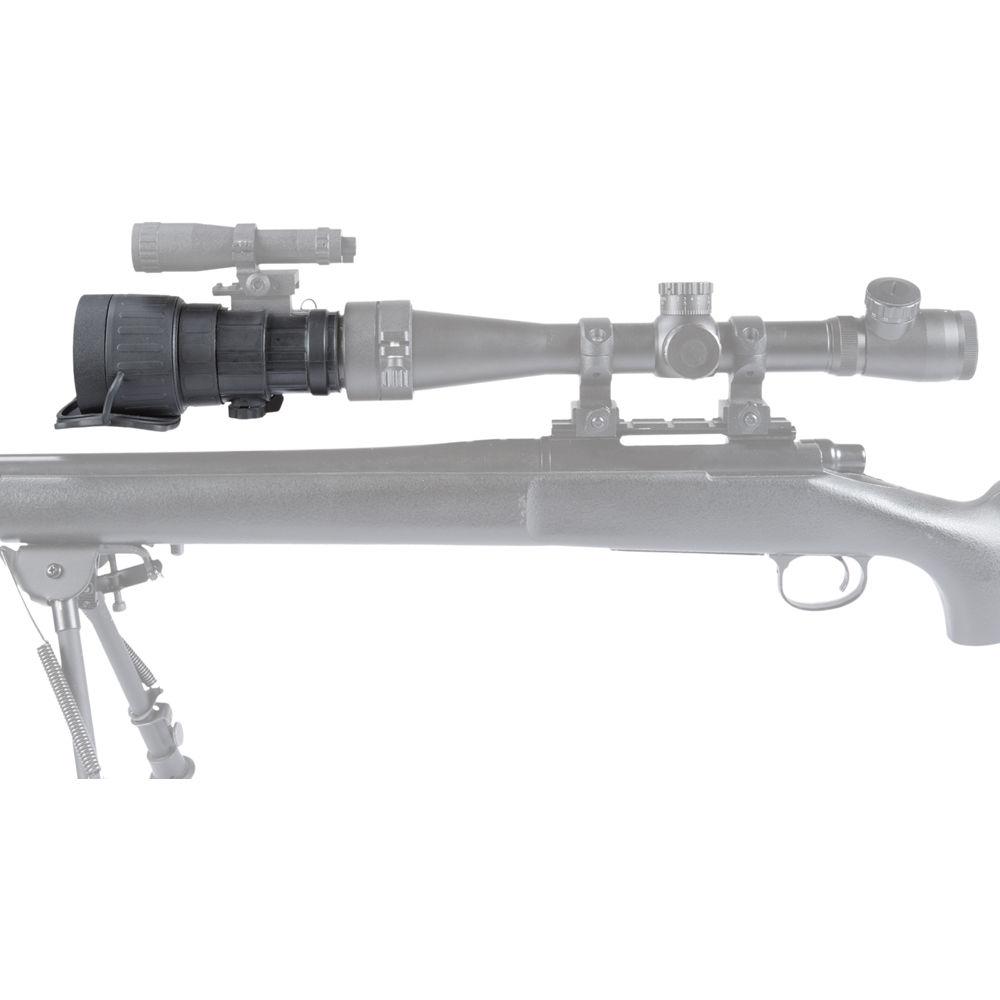

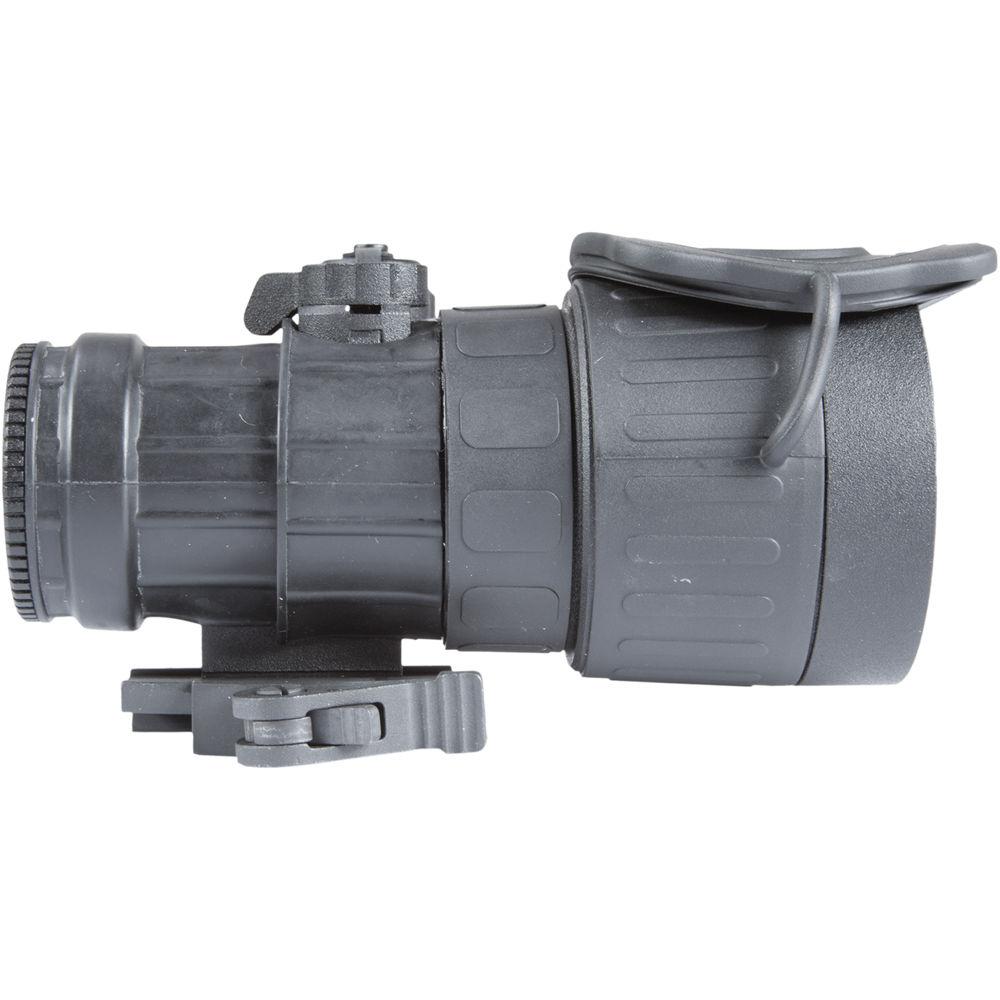

The housing is lightweight, durable, waterproof, resistant to extreme temperatures. Using the included tools, mounts, and adapters, the CO-X can be mounted directly to the objective bell of the riflescope or on a Picatinny rail. Also included are as soft carrying case and tethered objective cap. - Intensifier Tube and Illuminator
-
- 3rd generation autogated Pinnacle intensifier tube
- Automatic gain
- Gallium Arsenide photocathode
- Resolution of 64-72 lp/mm, and an SNR of 16-30
- Minimized halo effect caused by sources of bright light
- XLR-IR850 detachable infrared Illuminator included
- Optical Performance
-
- Magnification: 1x
- Catadioptric lens system
- Lens system: 80mm f/1.44
- Field of view: 12°
- Close focus: 33'
- Use and Handling
-
- Bright light cut-off function
- Wireless remote control
- Bright light indicator
- Low battery indicator
- Construction Details
-
- Compatible with Picatinny rails
- Withstands extreme temperatures
- Tethered objective cover
- Lockable quick-release mount
- Waterproof
UPC: 849815005479 In the Box Armasight by FLIR CO-X GEN 3 Pinnacle AG Night Vision Riflescope Clip-On Attachment - XLR-IR850 X-Long Range Illuminator (Dovetail to Weaver Adapter #21)
- Soft Carrying Case
- CR123 Lithium-Ion Battery
- Locking Single Lever Quick-Release Picatinny Mount
- М4x8 Flat Head Socket Cap Screw
- Wireless Remote Control
- Picatinny Adaptor Wireless Remote Control
- Light Suppressor for 25.4-42mm Objectives
- Light Suppressor for 47-50mm Objectives
- Light Suppressor for 4x32 ACOG
- Light Suppressor for Day Scope
- Mount for IR illuminator
- Special Wrench
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR CO-X GEN 3 Pinnacle AG Night Vision Riflescope Clip-On Attachment in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR 3 Pinnacle Specs | Intensifier Tube | 3rd generation autogated Pinnacle
Automatic gain
Gallium Arsenide photocathode
Resolution: 64-72 lp/mm, SNR: 16-30 | | Magnification | 1x | | Angular Field of View | 12° | | Linear Field of View | 63' @ 10 yd (21 m @ 100 m) | | Lens System | f/1.44
Focal length: 80mm | | Exit Pupil Diameter | 21 mm | | Minimum Focus Distance | 33' (10 m) | | Infrared Illuminator | LED
850 nm
500 mW
Beam divergence: 8 - 12°
Water resistant
Battery: 1 x CR123A/High: 1.5 hr, Low: 14 hr max | | Battery / Runtime | 1 x AA alkaline battery/30 hr max
1 x CR123A battery/60 hr max | | Weatherproofing | Waterproof, submersible to 33' (10 m) for 30 min | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Storage Temperature | -58 to 122°F (-50 to 50°C) | | Dimensions | 6 x 4 x 3.3' (152 x 100 x 85 mm) | | Weight | 25 oz (710 g) | | | | Box Dimensions (LxWxH) | 12.0 x 10.0 x 6.0" |
