User Manual for Armasight by FLIR CO-XLR-LRF 2nd Gen MG Night Vision Extended Long-Range Clip-On Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR CO-XLR-LRF 2nd Gen
- Product category: Day/Night Systems Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Day/Night Systems
 |
User manual for the Armasight by FLIR CO-XLR-LRF 2nd Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|

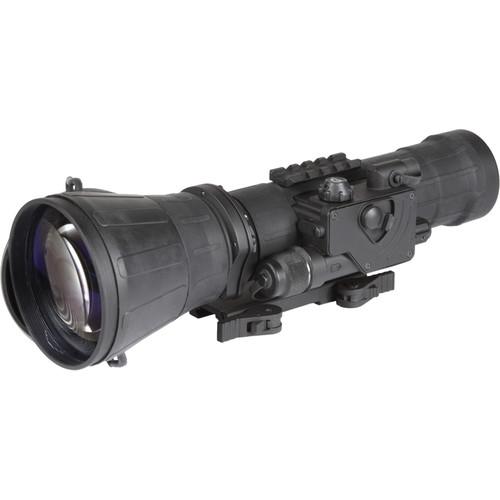

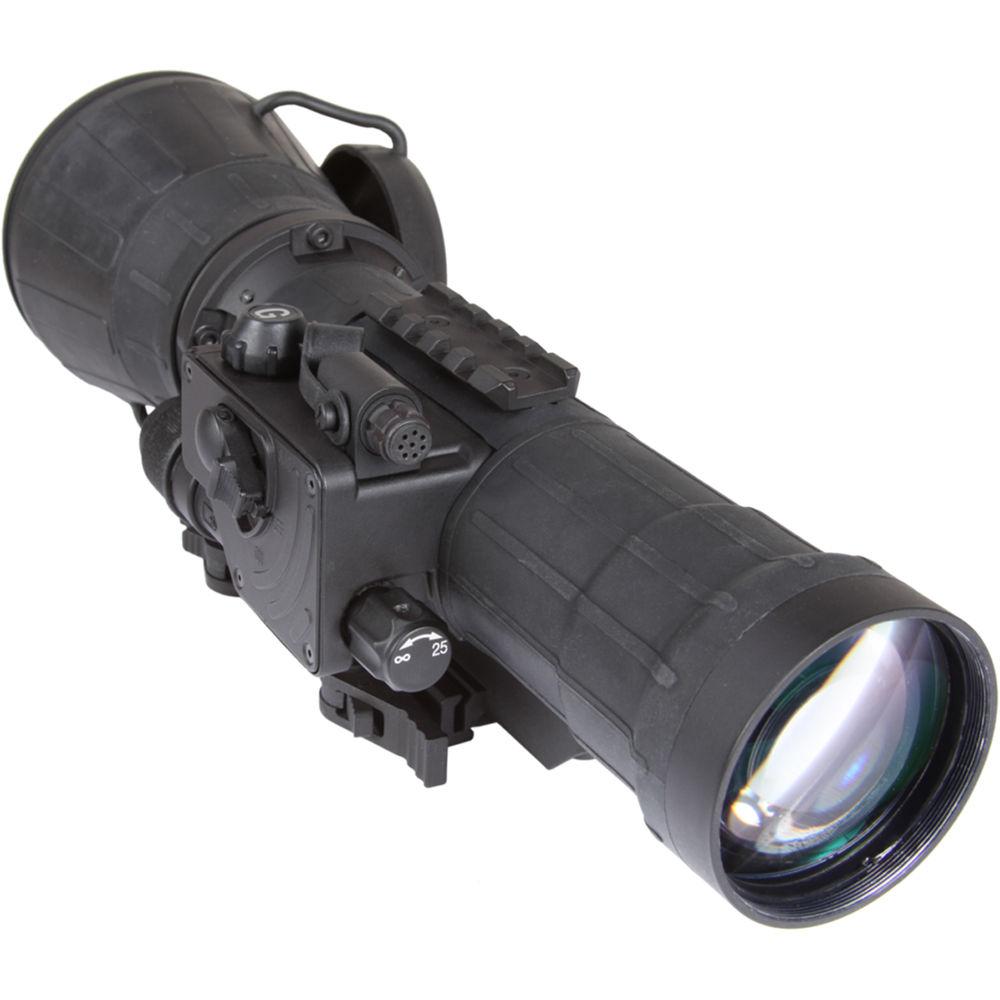

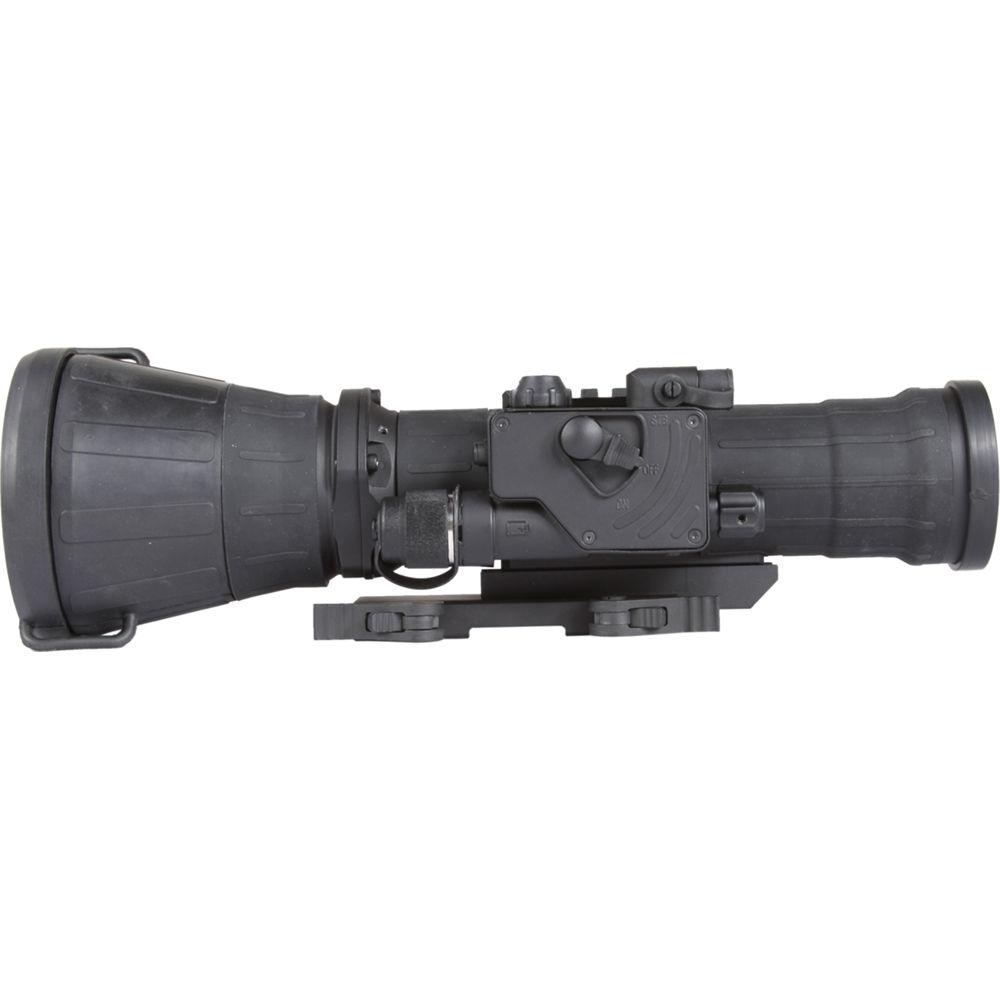

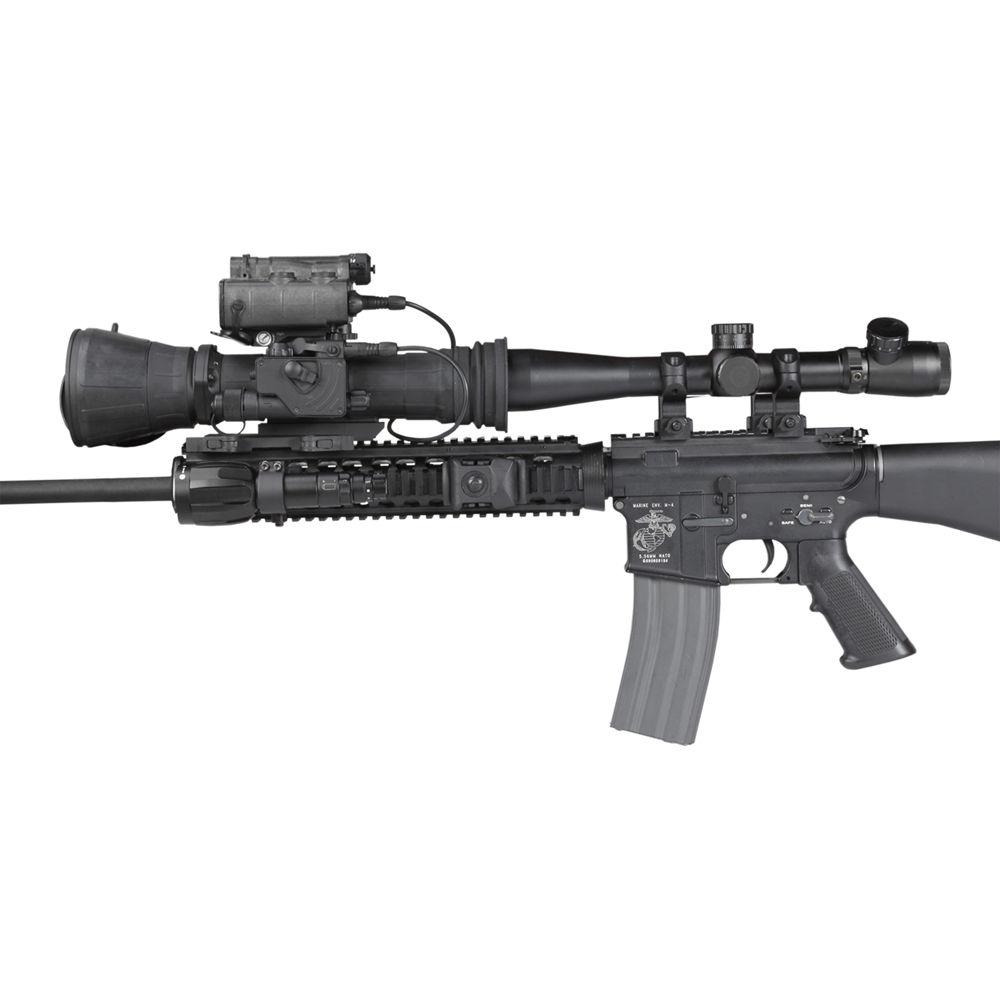

Product description Armasight's CO-XLR-LRF 2nd Gen MG Night Vision Extended Long-Range Clip-On allows you to expand your operations to nighttime by adding night vision capability to your day riflescope. At the core of the device is a 2nd generation intensifier tube with a multi-alkali photocathode and Manual Gain control (MG). The Armasight's High Definition (HD) designation indicates that the tube will provides higher resolution than a typical 2nd generation tube. To extend the life of this device and protect it from an accidental burnout from bright light, this NVD is equipped with a bright light cut-off function. The 1x optical system has an f/1.8 F-number and a focal length of 145mm, providing a wide aperture that collects more infrared light to improve visibility. The XLR classification of this clip-on stands for Extended Long Range and allows it to be used with day optics of up to 16x magnification. Enabling you to make operations in total darkness, this night vision device includes a XLR-IR850 infrared illuminator that can cast additional infrared light of your targets.

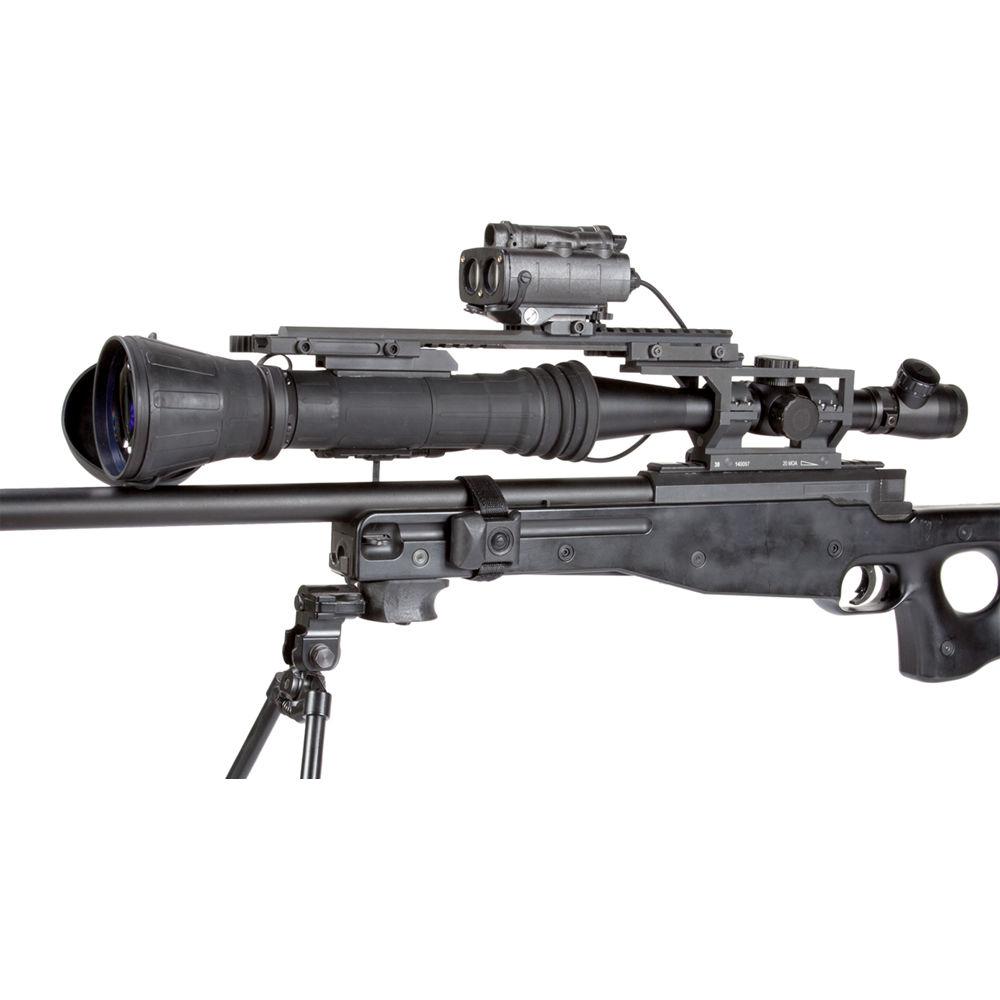

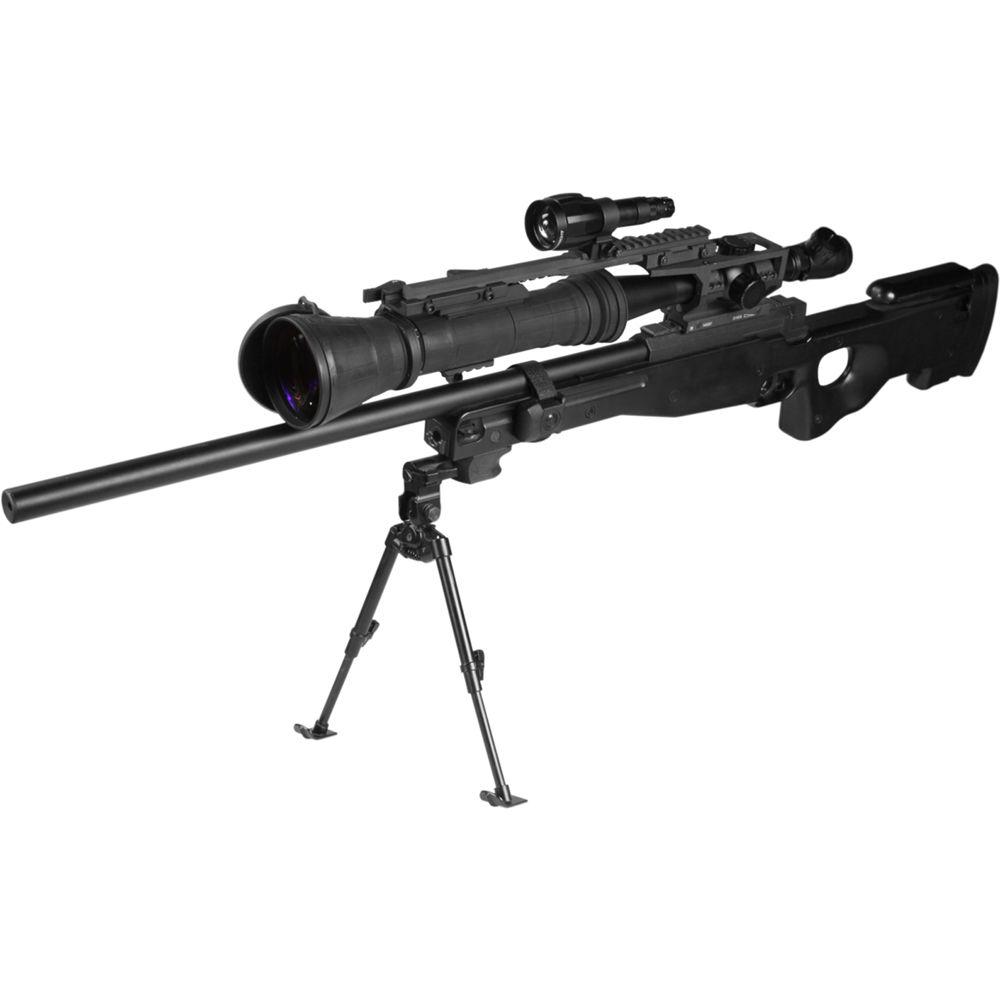

To withstand the rigors of harsh environments and demanding situations, the device is outfitted with a housing that is durable, waterproof, and resistant to extreme temperatures. Its design allows you to mount the clip-on directly to the objective bell of your day riflescope or on a Picatinny rail. - Intensifier Tube and Illuminator
-
- 2nd generation HD tube
- MG - Manual Gain
- Multi-alkali photocathode
- Resolution of 55-72 lp/mm

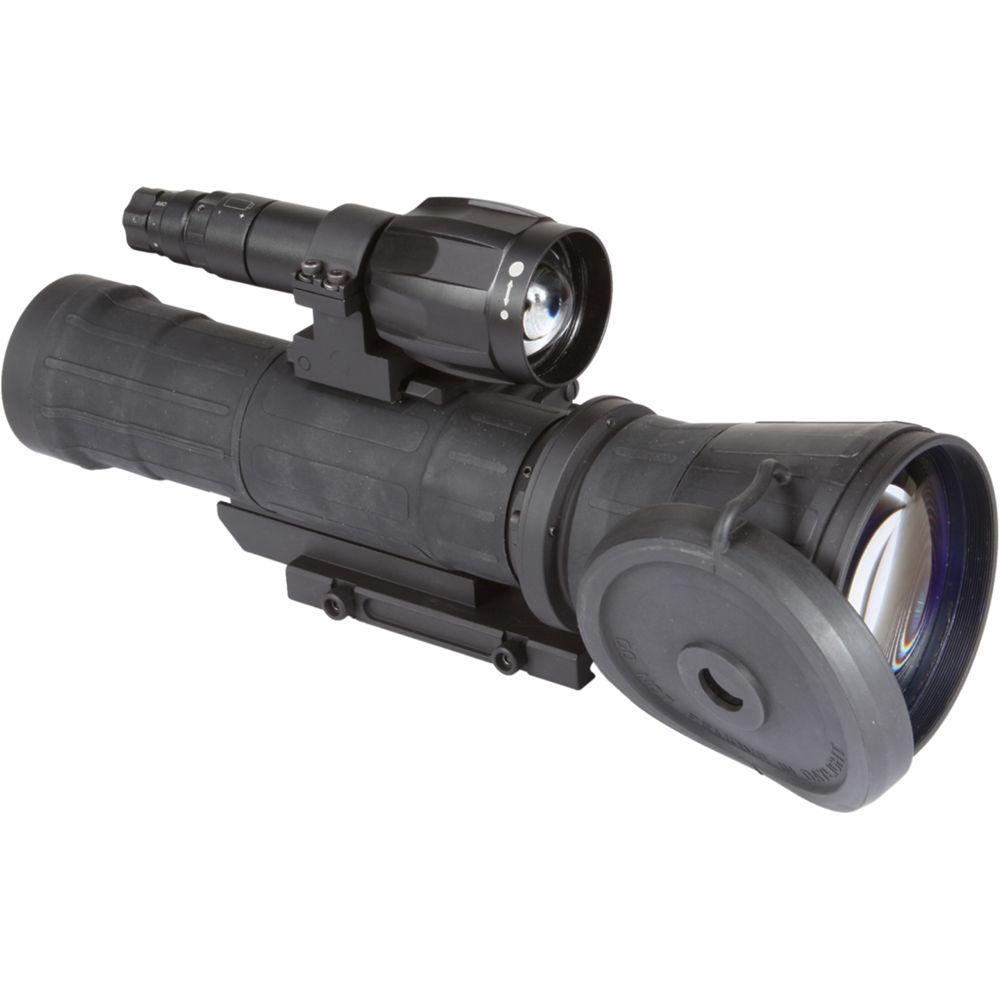

- XLR-IR850 detachable infrared Illuminator included
- High Definition (HD) designation for higher than typical resolution
- Optical Performance
-
- Magnification: 1x
- Recommended day optics: Up to 16x
- Lens system: 145mm, f/1.8
- Field of view: 7°
- Close focus: 27 yd
- Use and Handling
-
- Bright light cut-off function
- Manual Gain Control (MG)

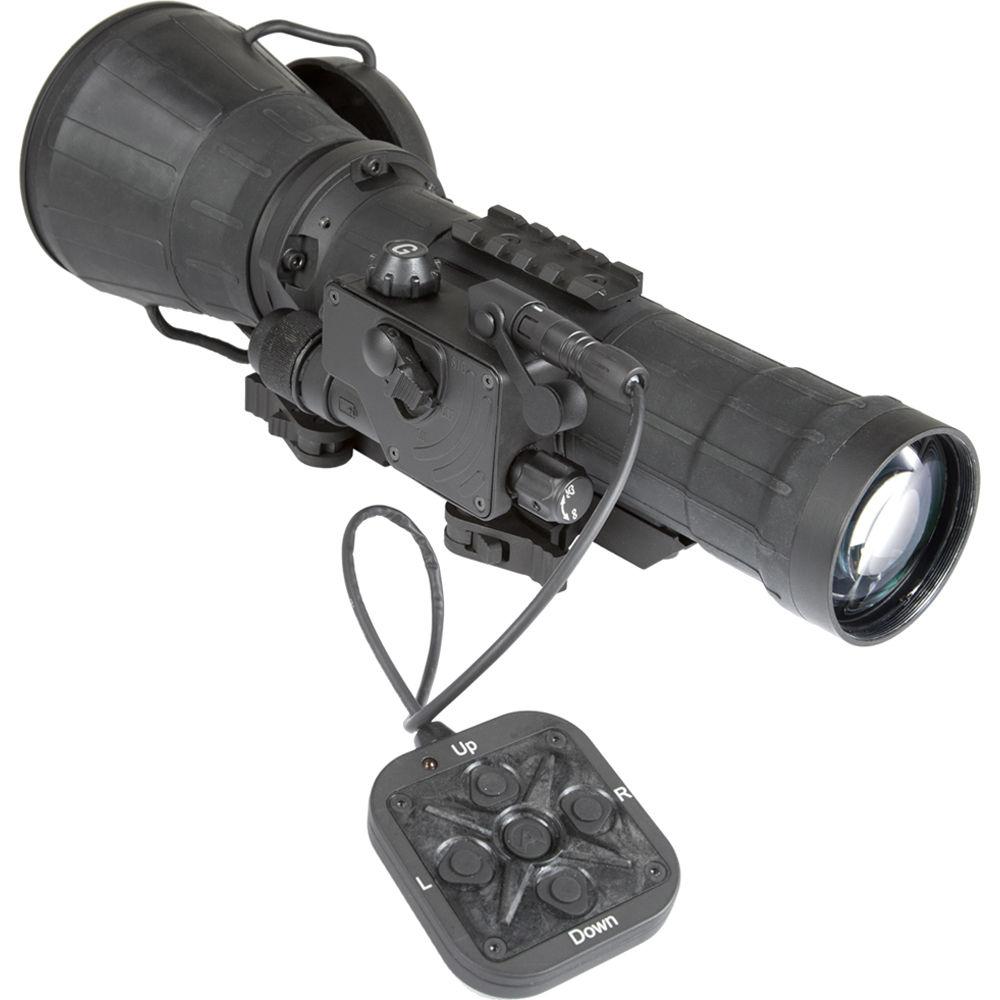

- Wireless remote control
- Bright light indicator
- Low battery indicator
- Compatible with optional AMRF2200 Advanced Modular Range Finder
- Construction Details
-
- Compatible with Picatinny rails
- Top-mounted Picatinny accessory rail
- Withstands extreme temperatures
- Tethered objective cover
- Lockable quick release mount
- Waterproof and impact-resistant
UPC: 849815006483 In the Box Armasight by FLIR CO-XLR-LRF 2nd Gen MG Night Vision Extended Long-Range Clip-On (HD, Matte Black) XLR-IR850 X-Long Range Illuminator (Dovetail to Weaver Adapter #21) Soft Carrying Case CR-123 Lithium-Ion Battery QR Picatinny Mount Battery Adapter for CR-123A/AA Wireless Remote Control Picatinny Adaptor Wireless Remote Control Light-Suppressor Adjustment-Control-Device Special Wrench Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR CO-XLR-LRF 2nd Gen MG Night Vision Extended Long-Range Clip-On in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR NSCCOXLRF129DH1 Specs | Intensifier Tube | 2nd generation HD tube
MG - Manual Gain
Multi-alkali photocathode
Resolution: 55-72 lp/mm | | Magnification | 1x
16x day optics recommended | | Angular Field of View | 7° | | Lens System | f/1.8
Focal Length: 145mm | | Exit Pupil Diameter | 50 mm | | Minimum Focus Distance | 27 yd / 25 m | | Infrared Illuminator | External | | Battery / Runtime | 1 x AA alkaline battery/60 h max
1 x CR-123A battery/60 h max | | Weatherproofing | Waterproof | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -58 to 122°F / -50 to 50°C | | Dimensions | 12.0 x 4.0 x 3.7' / 304 x 104 x 94 mm
Height of Optical Axis Above Rail: 1.57" / 40 mm | | Weight | 2.9 lb / 1.3 kg |
