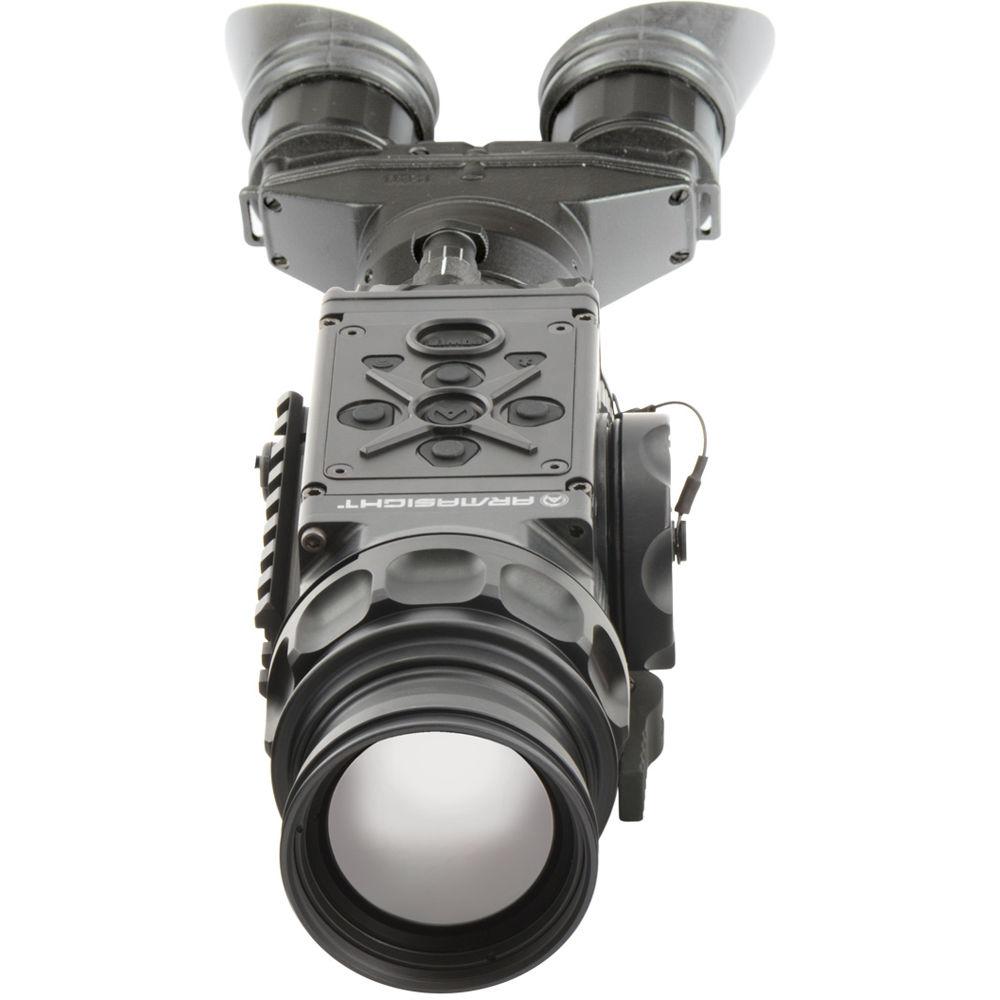

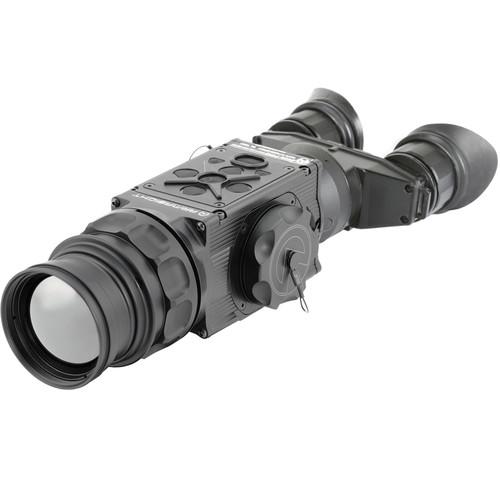

Product description See through smoke, fog, and dust, day or night, with the Command Pro 336 4-16x50 Thermal Bi-Ocular from Armasight by Flir. Its FLIR Tau 2 uncooled microbolometer detects long-wave infrared and allows you to see heat emanating from humans, animals, jet or combustion engines. It also offers visibility in total darkness through fog, smoke, foliage, and dust. The sensor has resolution of 336x256, 17µm pixel size, and refresh rate of 30 Hz. The optical system features a 50mm f/1.4 germanium lens with 3.3x magnification with the default NTSC format and digital zoom of up to 4x. To help you with aiming and fast target acquisition, this device offers a multi-color digital reticle.

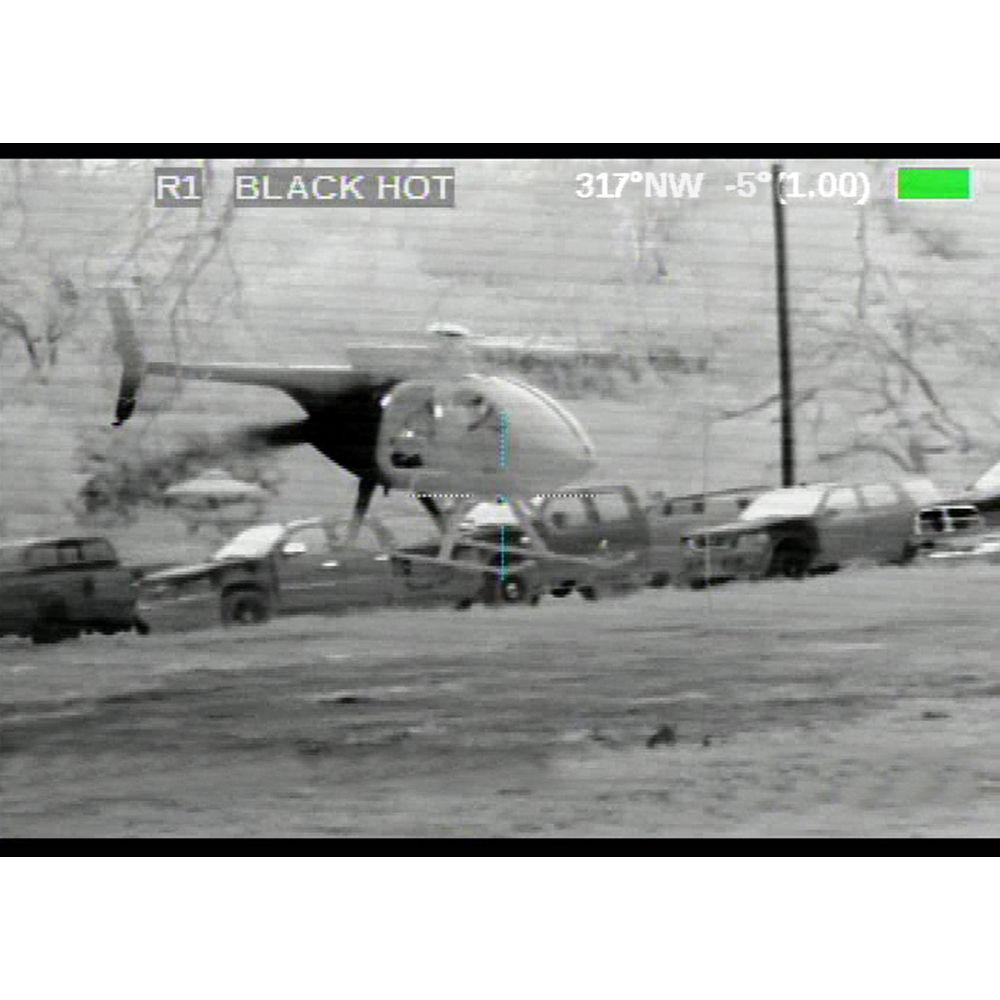

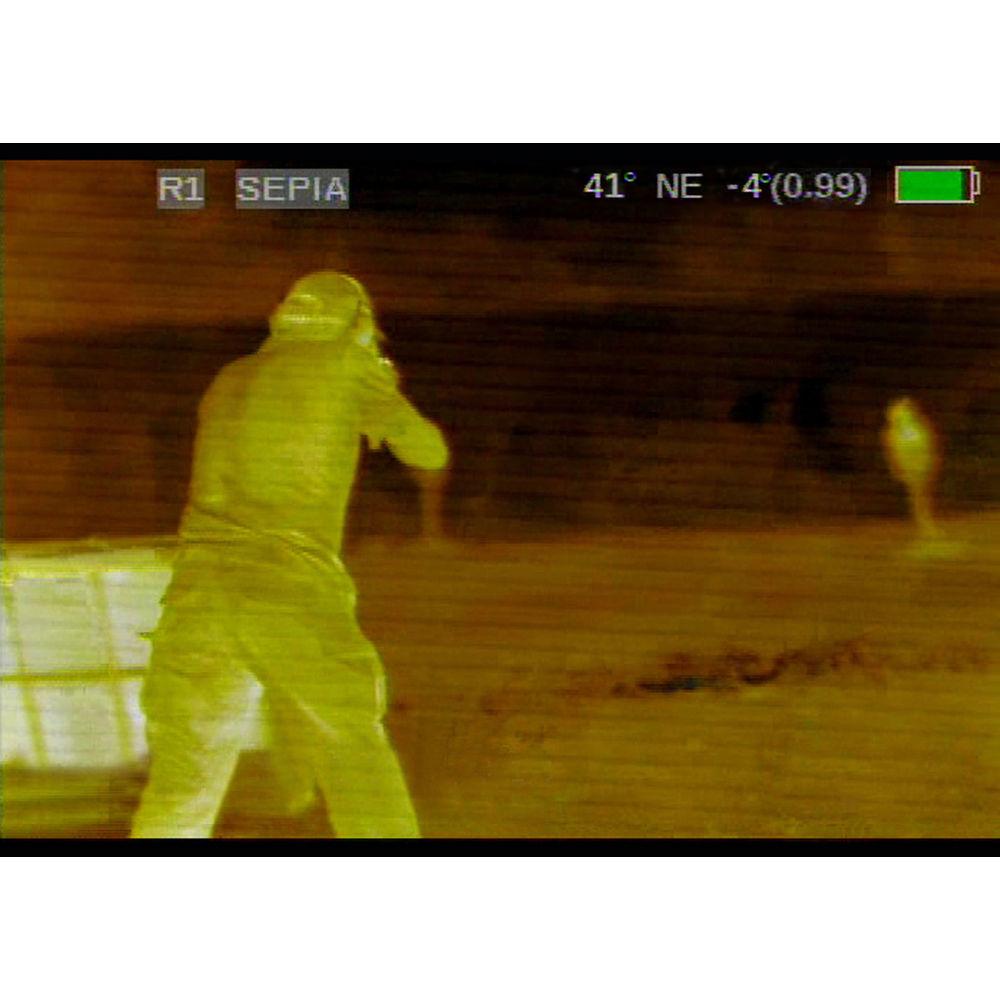

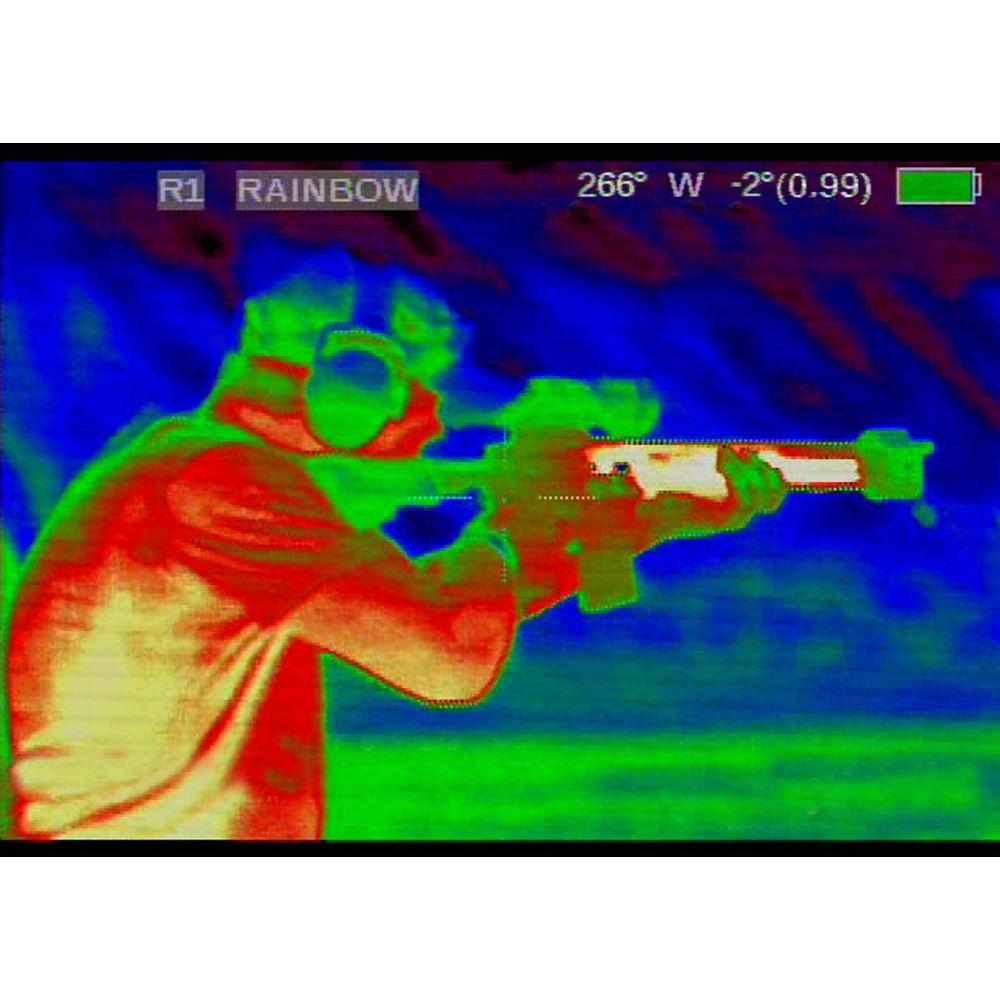

The built-in AMOLED SVGA 060 video display features 800x600-pixel resolution and allows several viewing palettes: White Hot, Black Hot, Sepia, Fusion, Rainbow, and Rain. For documenting your observations, the scope is capable of relaying videos through a video-out port in NTSC and PAL formats. Use the 9-pin connector cable for updating the device software and to relay videos. Additionally, the operating system allows you to enhance video outputs with a selection of imaging filter algorithms. This imager also features Bluetooth compatibility, a wireless remote control, digital compass, digital inclinometer, and a battery status indicator.
To withstand rigors of the battlefields, this device can operate in extreme temperatures and has a durable waterproof and fog-resistant aluminum housing. In addition to handheld operation, you can mount it on Picatinny or Weaver-style rails via the included mount. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Controls and/or the U.S. Department of Commerce. - Thermal Imager
-
- Uncooled Tau 2 sensor
- 7-14µm spectral response
- Array size: 336x256
- Pixel Size: 17μm
- Resolution: 0.34 mrad
- Optical Performance
-
- Lens system: 50mm f/1.4
- Germanium objective lens
- 3.3x magnification in default NTSC format
- 4x magnification in optional PAL format
- Digital zoom: 1x, 2x, 4x
- Angle of view: 6.5 x 5°
- Exit pupil: 14 mm
- Eye relief: 16 mm
- Close focus: 16.4'
- Display
-
- 800x600 AMOLED SVGA 060 color display
- 30 Hz refresh rate
- Eight discrete brightness levels
- NTSC and PAL video output formats
- Image palettes: White Hot, Black Hot, Sepia, Fusion, Rainbow, and Rain

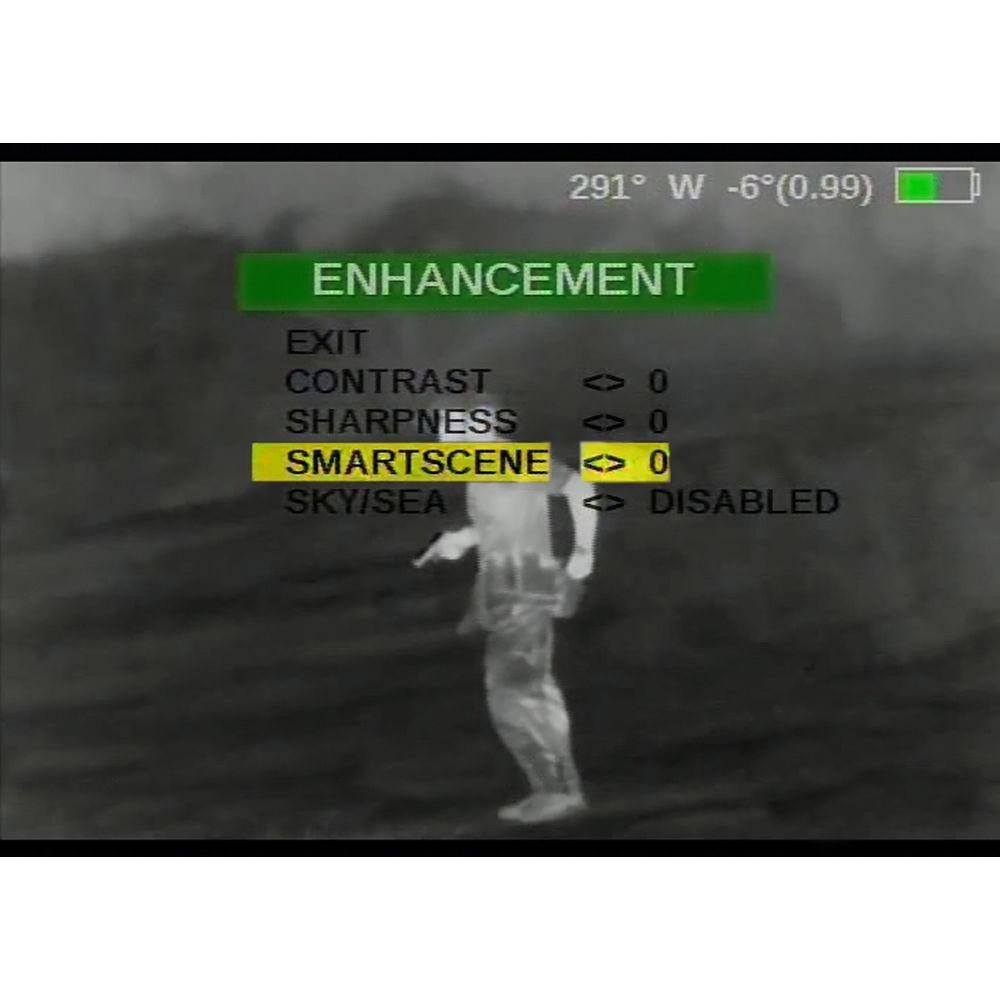

- Special User-Adjustable Imaging Tools
-
- Active Contrast Enhancement (ACE)
- Second Generation Digital Detail Enhancement (DDE)
- Smart Scene Optimization (SSO)
- Linear Automatic Gain Control (AGC)
- SKY/SEA Information-Based Histogram Equalization (IBHEQ)
- User-Controlled Manual Non-Uniformity
- Correction/Flat-Field Correction (UCMNUC/FFC)
- Silent Shutterless NUC (SSN)
- Use and Handling
-
- Bluetooth allows connecting to compatible devices
- Fast 3-second start-up
- Digital compass
- Digital inclinometer
- Digital angle cosine indicator
- Battery status indicator
- Construction Details
-
- Lightweight and durable aluminum housing
- Compatible with Picatinny rails using included adapter
- Wide winged rubber eyecups
- Knurled adjusters and rings
- Waterproof and fogproof

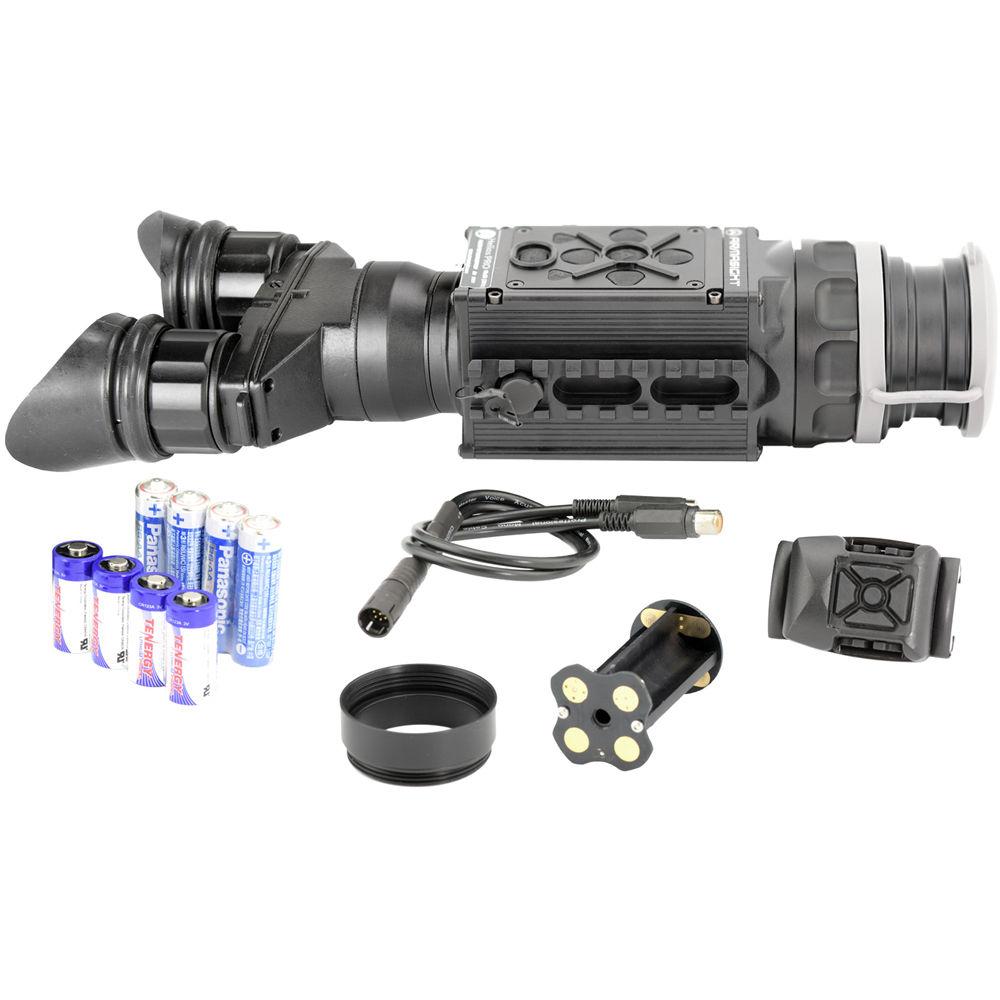

In the Box Armasight by FLIR Command Pro 336 4-16x50 Thermal Bi-Ocular (30 Hz) - Picatinny Adapter
- Tethered Lens Cap
- Wireless Remote Control
- Picatinny Adapter for Remote Control
- 4 x CR-123A Batteries
- Battery Cartridge
- Battery Box Extension Ring
- Armasight Key
- Video Cable
- Carrying Case
- Limited 3-Year Warranty
- Limited 10-Year Warranty on FLIR Detector
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Command Pro 336 4-16x50 Thermal Bi-Ocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR Helios Pro 336 Specs | Array Configuration | 336x256 FLIR Tau 2 | | Spectral Range | 7-14 µm | | Pixel Size | 17 µm | | Resolution | 0.34 mrad | | Refresh Rate | 30 Hz | | Magnification | NTSC: 3.3x
PAL: 4x
Digital zoom: 1x, 2x, 4x | | Angle of View | 6.5 x 5° | | Lens System | 50mm, f/1.4 | | Minimum Focus Distance | 16.4' / 5 m | | Eye Relief | 16 mm | | Exit Pupil | 14 mm | | Display | 800x600 AMOLED SVGA 060 | | Diopter Adjustment | ±5 | | Battery / Runtime | 4 x CR-123A Lithium Batteries / Runtime: 7 h maximum
4 x AA Lithium Batteries / Runtime: 7 h maximum
External Power Supply: 6 V, 600 mAh | | Operating Temperature | -59 to 134°F (-51 to 57°C) | | Storage Temperature | -70 to 185°F (-57 to 85°C) | | Weatherproofing | Waterproof and fog-resistant | | Dimensions | 9.5 x 4 x 2.4" (241 x 102 x 60 mm) | | Weight | 37 oz (1.05 kg) |
