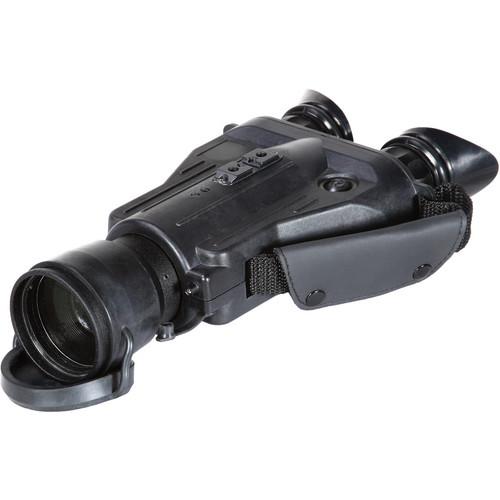

User Manual for Armasight by FLIR Discovery 3x Gen 3-Bravo NV Bi-Ocular Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR Discovery 3x Gen
- Product category: Night Vision Bi-Oculars Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Night Vision Bi-Oculars
|
User manual for the Armasight by FLIR Discovery 3x Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|
Product description The Discovery 3x Gen 3-Bravo NV Bi-Ocular from Armasight is a rugged lightweight night vision biocular useful for mid-range surveillance and tactical applications. This weather-sealed image intensification device is engineered to perform in a range of environments from campground to battleground. The grade-B Gen 3 image intensifier features 62-72 lp/mm resolution, and automatic highlight cut-off circuitry that protects the tube and operator's eyes from damage. A detachable long-range IR illuminator maximizes the capability of the Discovery 3x by allowing the operator to paint their field of view with infrared light and enhance their situational awareness. The user-friendly design features adjustable diopters, low battery indicator in the field of view, and a tripod mount for comfort during extended-duration observation and missions. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Image Intensifier
- Gen 3-Bravo intensifier tube boasts 62-72 lp/mm resolution and only moderate spotting caused by cosmetic blemishes on the microchannel plate. The tube is Mil-Std 810 compliant and ready for years of performance in a wide range of environmental conditions.
- Lens System
- Fully multi-coated all glass optics transmit clear and bright images through the 80mm f/1.65 objective. The 3.0x magnification lens delivers a 12 degree field of view mid-range focal length that still allows the operator to maintain situational awareness in the field.
- Detachable IR Illuminator
- Use the included infrared illumination device as an efficient tool for extending the visible range of this night vision biocular system.
- Mil-Std 810 Compliant
- Use this rugged NV device in a wide range of conditions, from the rainforest to the desert.
In the Box Armasight by FLIR Discovery 3x Gen 3-Bravo NV Bi-Ocular Detachable IR Illuminator Instruction Manual Soft Case Lens Cap Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Discovery 3x Gen 3-Bravo NV Bi-Ocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR NSBDISCOV333DB1 Specs | Intensifier Tube | Gen 3 (Grade bravo) | | Resolution | 62 - 72 lp/mm | | Magnification | 3.0x | | Angle/Field of View | 12° | | Lens System | 80 mm f/1.65 | | Minimum Focus Distance | 16.4 ft (5 m) | | Exit Pupil | 14 mm | | Dioptric Correction | +/- 5 | | Infrared Illuminator | Detachable long-range illuminator | | Power Supply | (1) CR123 or (1) AA with integrated adapter | | Runtime | 50 hours (CR123) or 25 hours (AA) of continuous operation at room temperature | | Weatherproofing | Mil-Std 810F water/fog compliant | | Operating Temperature | -60 to 120°F (-51 to 49°C) | | Dimensions | 9 x 6 x 3" (22.9 15.2 x 7.6 cm) | | Weight | 2.2 lb (1 kg) |
