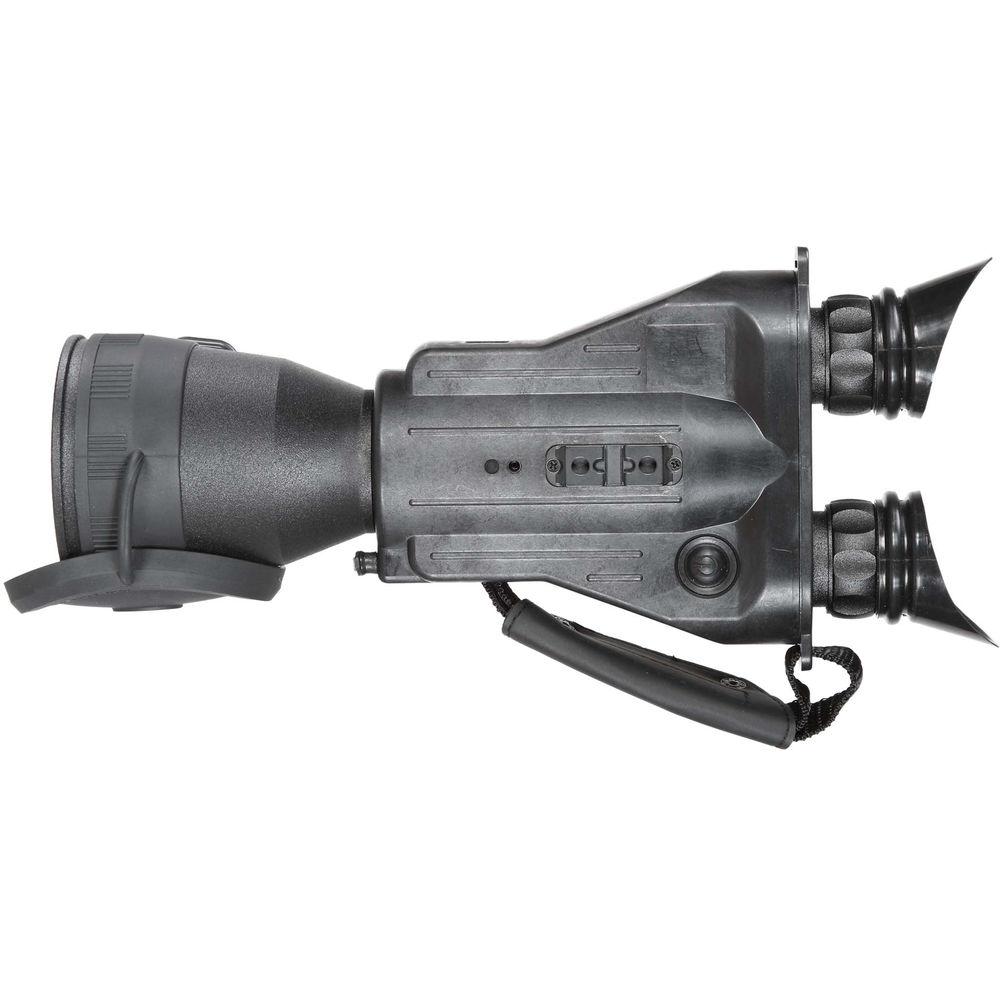

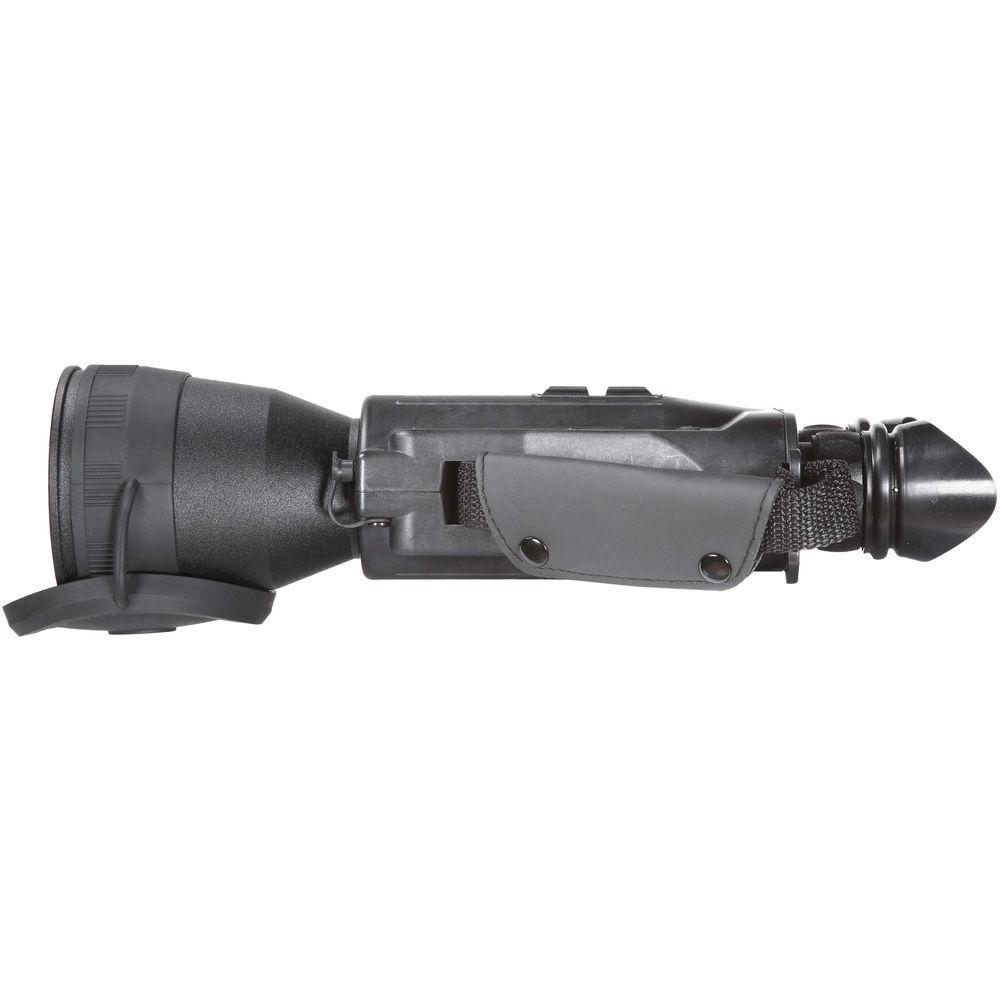

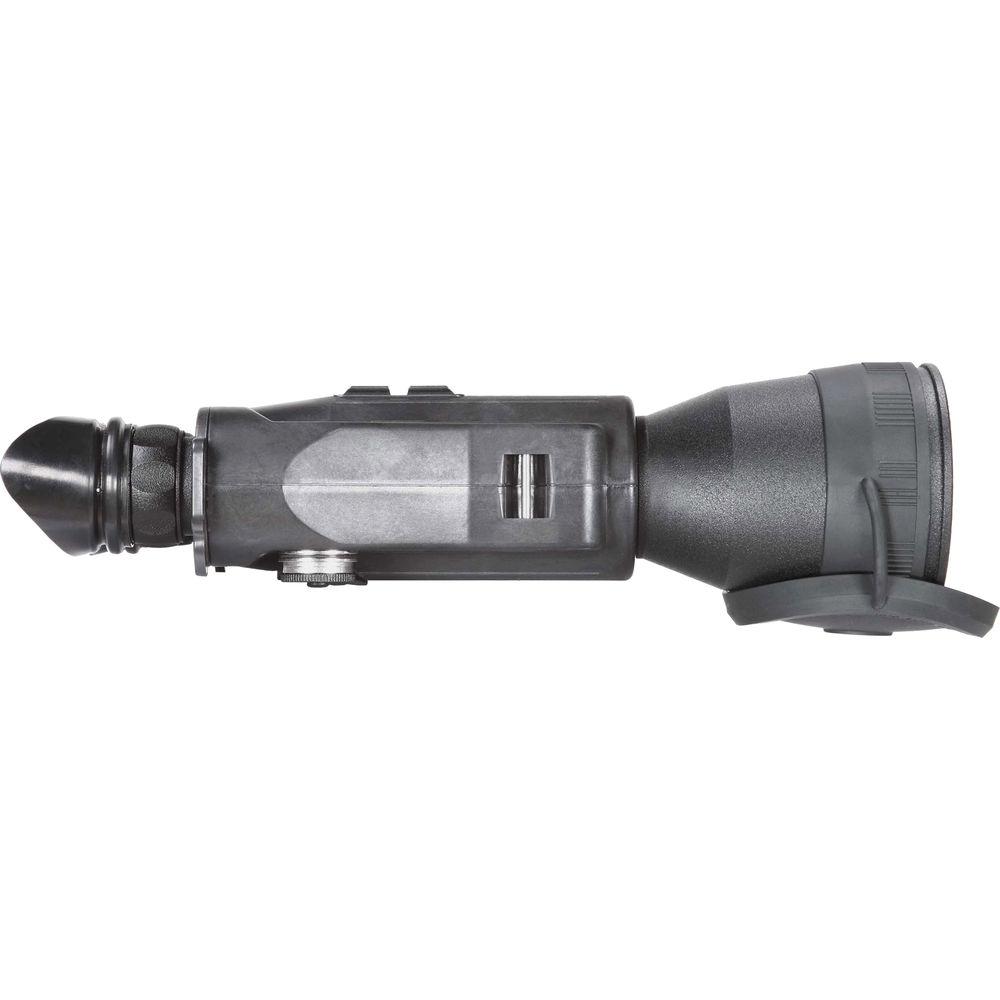

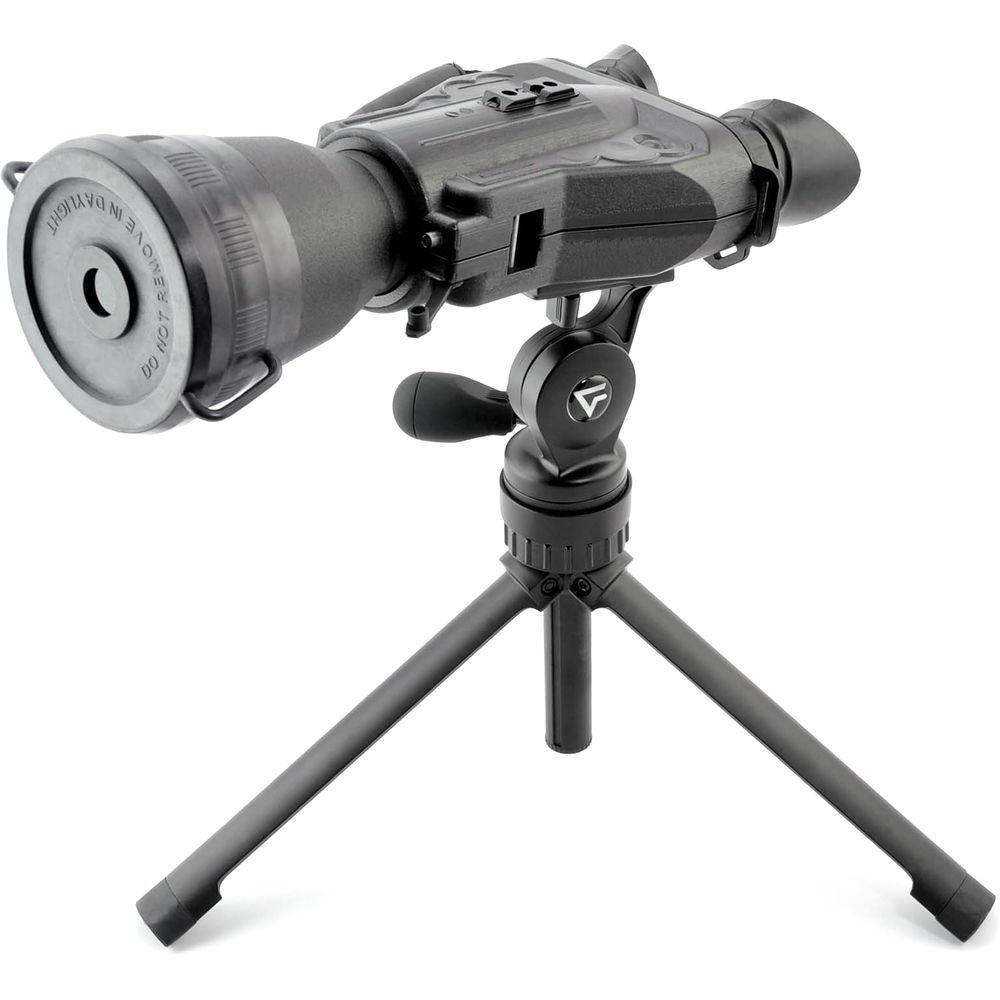

Product description The Discovery 5x Gen 2+ HD Night Vision Bi-Ocular from Armasight is a generation 2+ NVD capable of up to 72 lp/mm resolution. The Armasight Gen 2+ HD multi-alkali photocathode's performance approximates a 3rd generation image intensifier tube; it also features Automatic Brightness Control, which continuously adjusts image brightness to optimize the displayed image quality. This night vision device comes with a hand strap, neck strap, and features a standard 1/4"-20 tripod mount.A 108mm f/1.15 lens system displays a 9.5° field of view and can be focused as close as 10', making the Discovery Gen 2+ HD bi-ocular ideal for close-range and other viewing tasks. The bi-ocular configuration is designed to allow the user to keep both eyes open for more comfortable long-duration viewing. Combined with a removable IR illuminator and weather-resistant housing, this bi-ocular is well-equipped for observations—low light or no light, indoor or outdoor. - Optical Performance
-
- Magnification: 5x
- Lens system: 108mm f/1.15; multi-coated, all-glass optics
- Field of view: 9.5°
- Exit Pupil Diameter: 14 mm
- Eye Relief: 17 mm
- Focus range: 10' to infinity
- Image Intensifier
-
- Gen 2+ HD intesifier tube
- 55-72 lp/mm resolution
- Multi-alkali tube displays standard green NV image
- Automatic Brightness Control dynamically optimizes image brightness
- Bright Light Cut-Off protects tube and viewer's eyes from excessive light levels
- Use and Handling
-
- In-view low-battery indicators

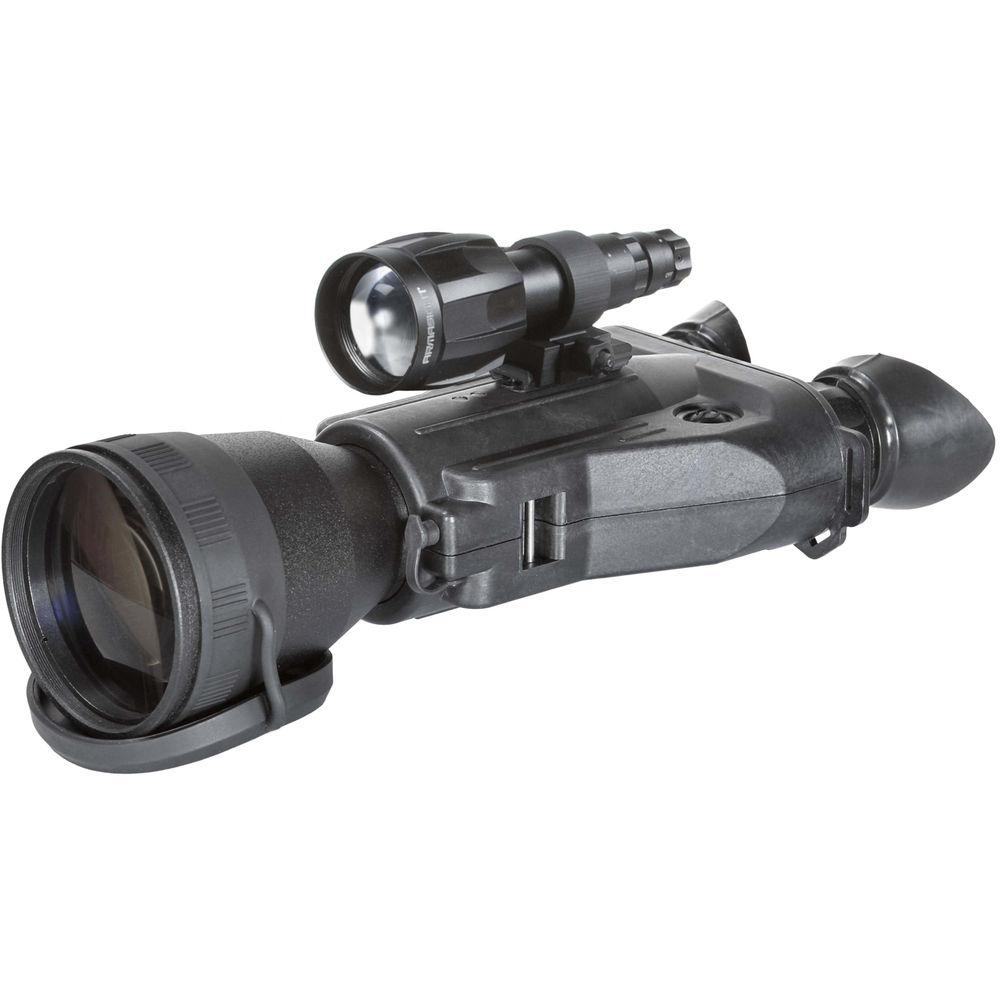

- Detachable IR illuminator with flood lens
- Tripod mountable (1/4"-20 socket)

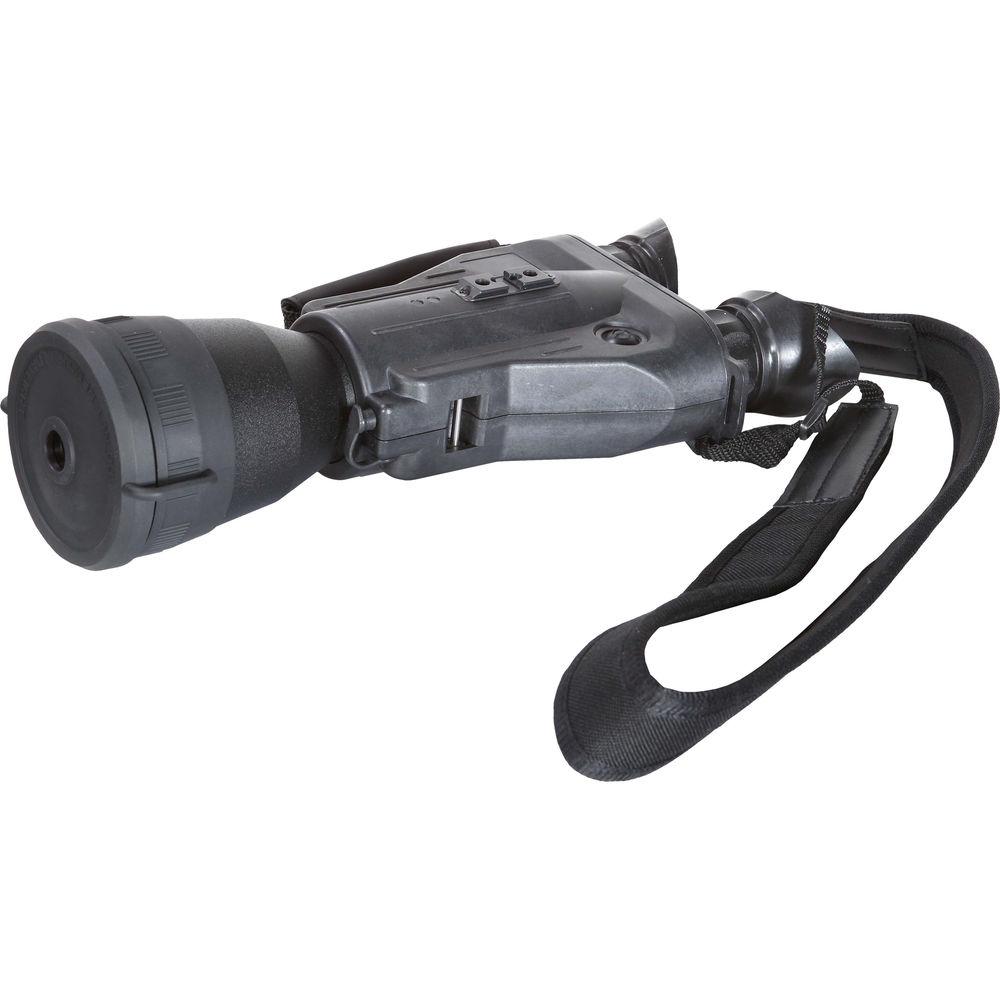

- Hand and neck straps
- Construction Details
-
- Operating temperature: -60 to 120°F
UPC: 818470010142 In the Box Armasight by FLIR Discovery 5x Gen 2+ HD Night Vision Bi-Ocular Objective Lens Cap Rubber Eye Cups Light Sensor Cap Hand Strap Neck Strap CR123A Lithium Battery IR850 Detachable Long Range Infrared Illuminator Nylon Case for Storage and Carry Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Discovery 5x Gen 2 HD Night Vision Bi-Ocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

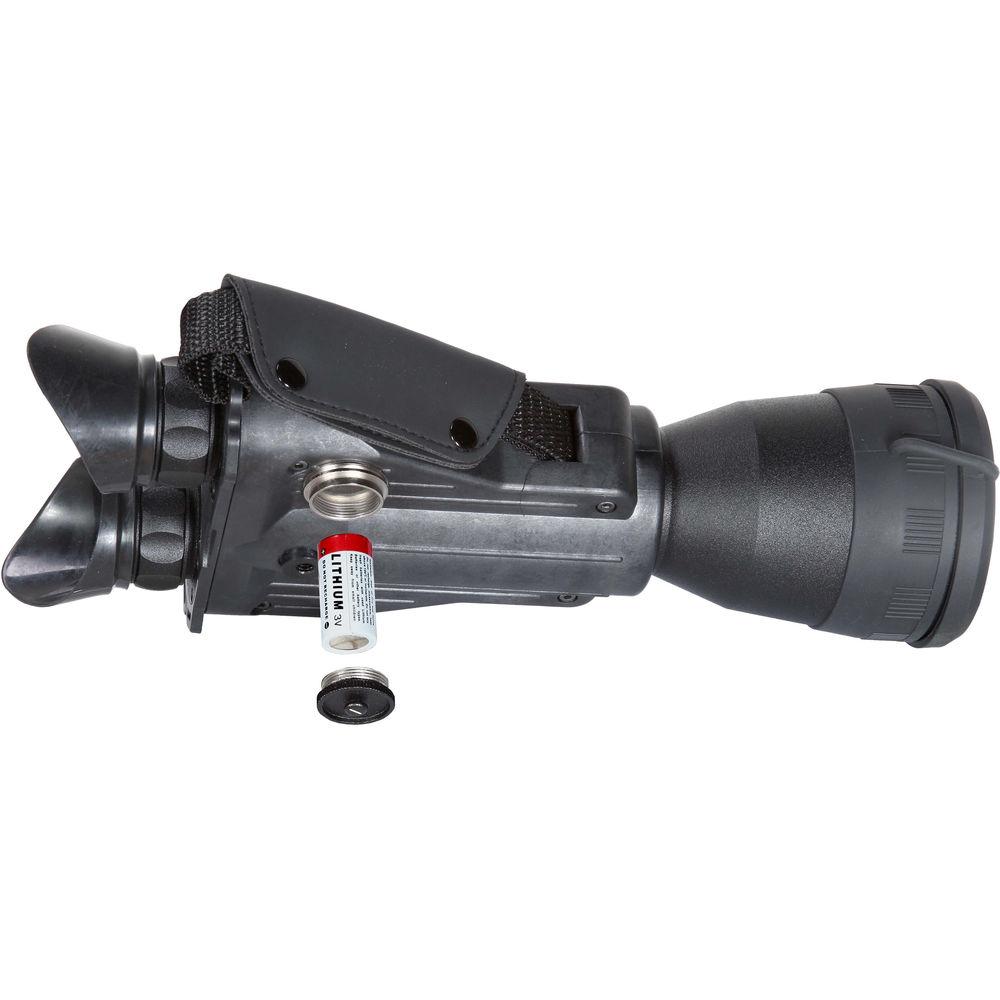

Technical parametersArmasight by FLIR NSBDISCOV523DH1 Specs | Intensifier Tube | Gen 2+ HD Multi-Alkali | | Resolution | 55-72 lp/mm | | Magnification | 5x | | Field of View | 9.5° | | Lens System | 108mm f/1.15 | | Focus Range | 10' / 3.1 m to infinity | | Eye Relief | 17 mm | | Exit Pupil | 14 mm | | Dioptric Correction | ±5 | | Infrared Illuminator | Yes | | Power Supply | Single CR123 lithium 3 V | | Runtime | Up to 50 hours | | Operating Temperature | -60 to 120°F / -51 to 49°C | | Storage Temperature | -58 to 140°F / -50 to 60°C | | Dimensions | 12 x 5.5 x 3.3" / 305 x 140 x 86 mm | | Weight | 2.8 lbs / 1.3 kg | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 12.0 x 7.0 x 7.0" |
