User Manual for Armasight by FLIR Discovery 5x Gen 2 White Phosphor QS Night Vision Bi-Ocular Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR Discovery 5x Gen
- Product category: Night Vision Bi-Oculars Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Night Vision Bi-Oculars
 |
User manual for the Armasight by FLIR Discovery 5x Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|

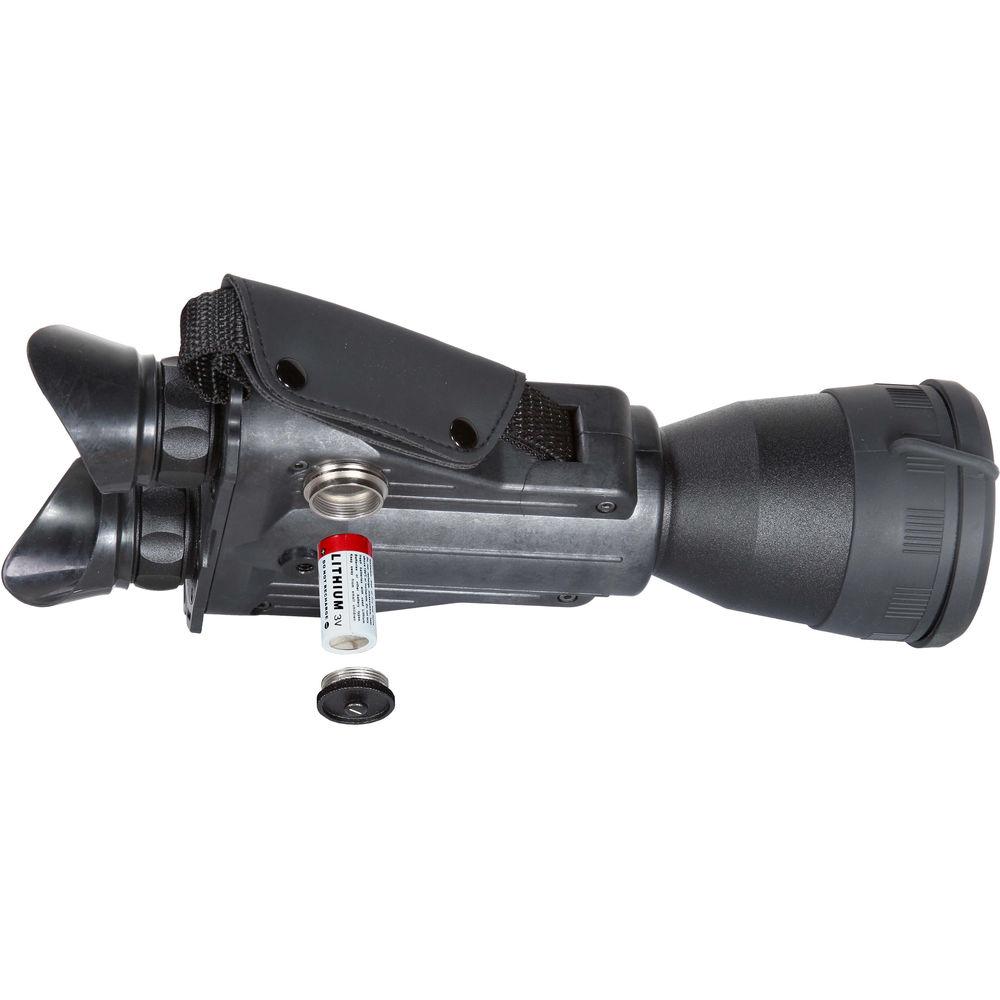

Product description Intended for night observations, the Discovery 5x Gen 2 QS Night Vision Bi-Ocular from Armasight features a 2nd generation intensifier tube and a large 5x objective lens. The Armasight second generation intensifier tube technology incorporates a microchannel plate, multi-alkaline photocathode, built-in power supply, and 18 mm format screen, which improve reliability, image brightness, and quality compared to first generation devices. The white phosphor Quick Silver (QS) device offers black and white images with resolution of 47 - 54 lp/mm. The Armasight Discovery is equipped with Automatic Brightness Control (ABC), which automatically adjusts the brightness of the image tube to achieve the highest quality image resolution under varying light conditions. The Bright Light Cut-off function will protect the intensifier tube from overexposure to sudden bright light or accidental exposure to daylight.
The lens system with an F-number of f/1.5 and a focal lengths of 108mm provides a wide aperture for collecting night light and improves visibility. To enable you to make long range night observations or improve visibility and image brightness in complete darkness, this night vision device includes a XLR-IR850 infrared illuminator for additional illumination of your targets. The illuminator is detachable and includes a rechargeable battery and a charger. To help you reduce image jitter due to shaking of hands, which becomes significant at higher magnifications, the bi-ocular can be attached to a 1/4"-20 tripod. The optical system also offers a 9.5° angular field of view, a 33' minimum focus distance, and a -5 to +5 diopter adjustment. The is powered by one CR123A battery.
The lightweight and durable housing is resistant to water, shock, and extreme temperatures. It also features one accessory mounting point on the top, a wide winged eyecups, and a tethered objective lens cover. - Intensifier Tube and Illuminator
-
- 2nd generation intensifier tube
- Quick Silver (QS) white phosphor technology provides black and white images
- Resolution of 47 - 54 lp/mm
- XLR-IR850 detachable infrared Illuminator included
- Use and Handling
-
- ABC-Automatic brightness control
- Bright light cut-off
- Automatic Shut-off System
- Low battery LED indicator
- Optical Performance
-
- Multicoated optics
- Magnification: 5x
- Lens system: 108mm, f/1.5
- Field of view: 9.5°
- Close focus: 33'
- Construction Details
-
- Mountable to 1/4"-20 tripod
- Withstands extreme temperatures
- Winged rubber eyecups
- Tethered objective cover
- Water resistant
- Fog resistant
UPC: 818470015826 In the Box Armasight by FLIR Discovery 5x Gen 2 White Phosphor QS Night Vision Bi-Ocular - XLR-IR850 X-Long Range Illuminator (Dovetail to Weaver Adapter #21)
- Lanyard
- 2 x Hand Straps
- CR123A Battery
- Hard Packing Box
- Lens Tissue
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Discovery 5x Gen 2 White Phosphor QS Night Vision Bi-Ocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR NSBDISCOV5QGDI1 Specs | Intensifier Tube | 2nd generation
Quick Silver white phosphor
Resolution: 47 - 54 lp/mm | | Magnification | 5x | | Angular Field of View | 9.5° | | Lens System | f/1.5
Focal length: 108mm | | Minimum Focus Distance | 33' (10 m) | | Exit Pupil | 14 mm | | Eye Relief | 0.67" (17 mm) | | Dioptric Correction | ±5 | | Infrared Illuminator | Yes | | Battery / Runtime | 1 x CR123A battery / 60 hr max | | Weatherproofing | Water-resistant | | Operating Temperature | -60 to 120°F (-51 to 49°C) | | Storage Temperature | -58 to 140°F (-50 to 60 °C) | | Dimensions | 12 x 5.5 x 3.3" (305 x 140 x 86 mm) | | Weight | 46 oz (1.3 kg) |
