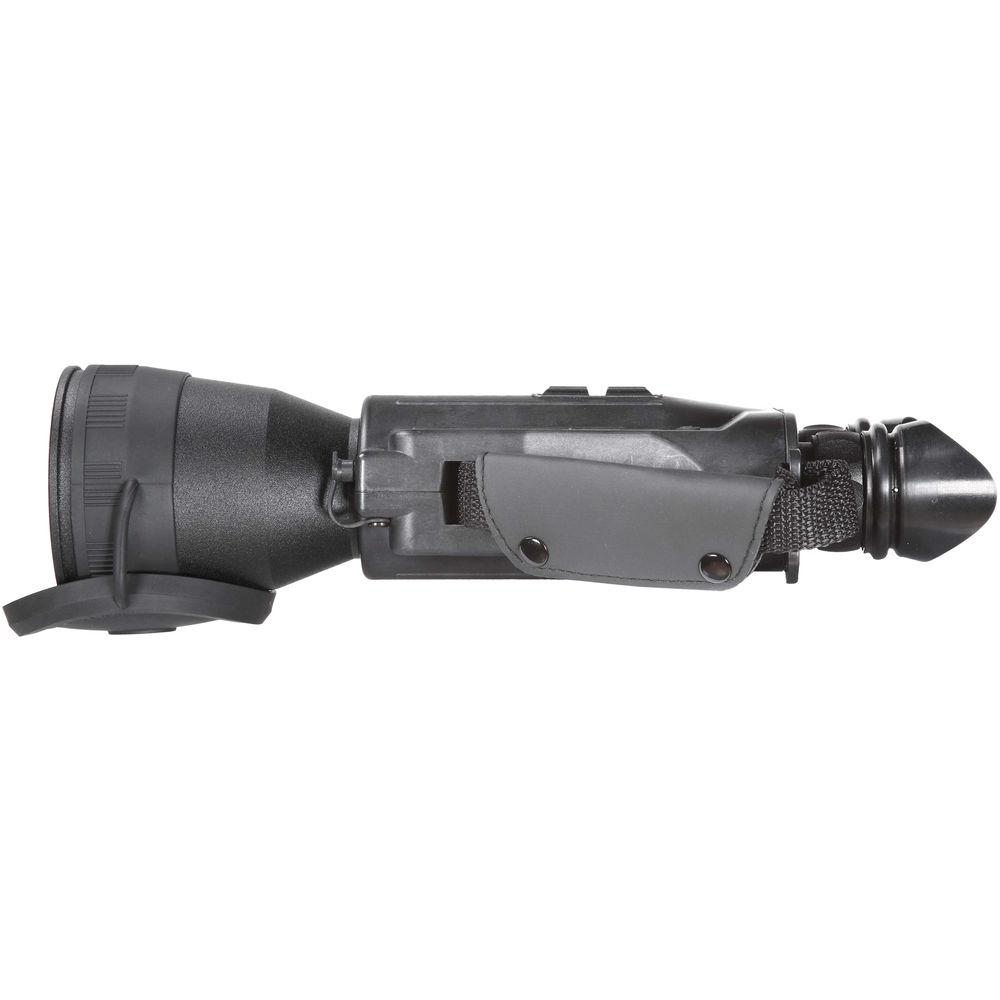

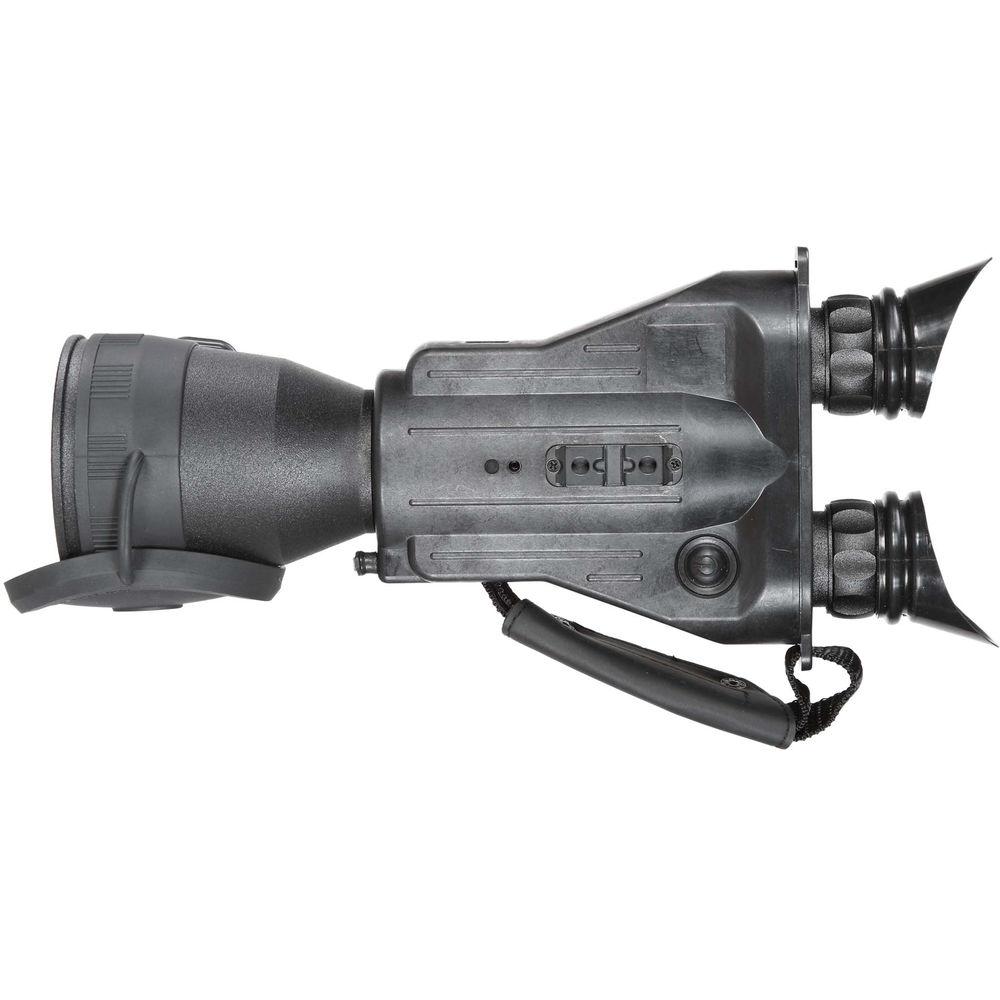

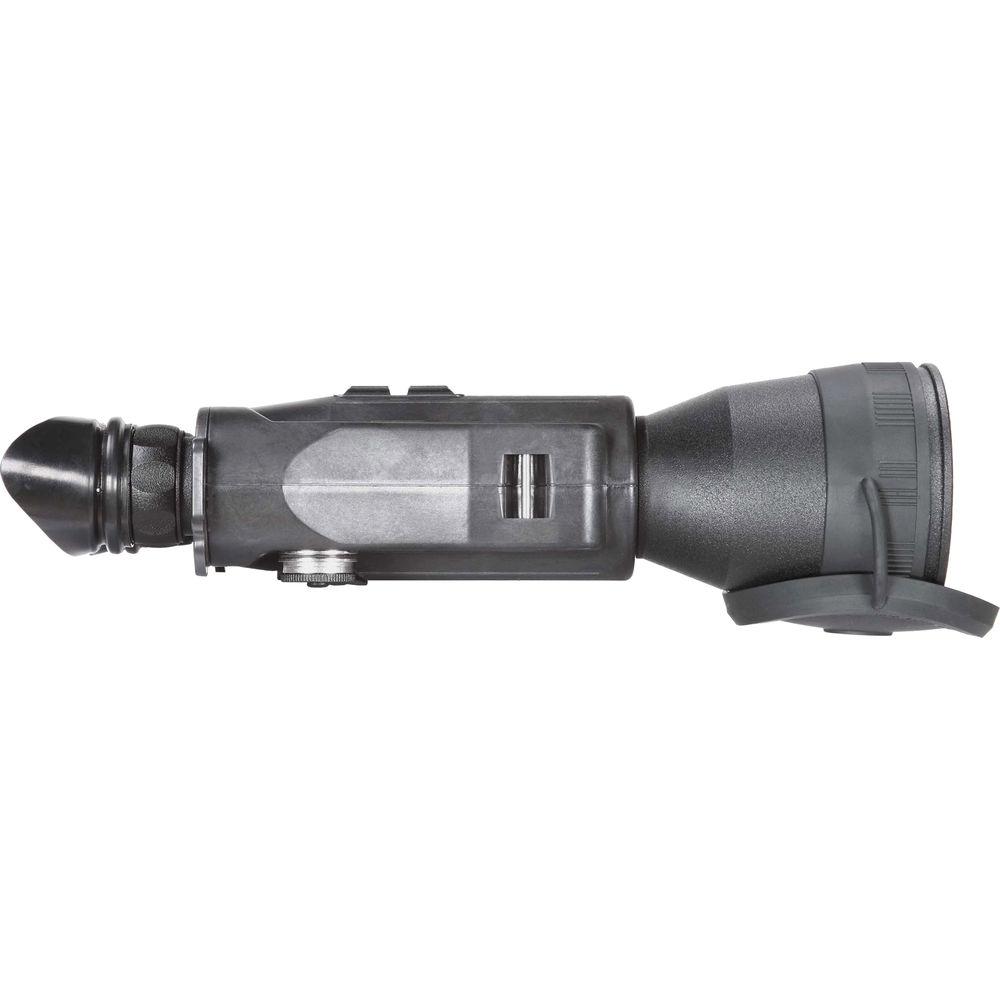

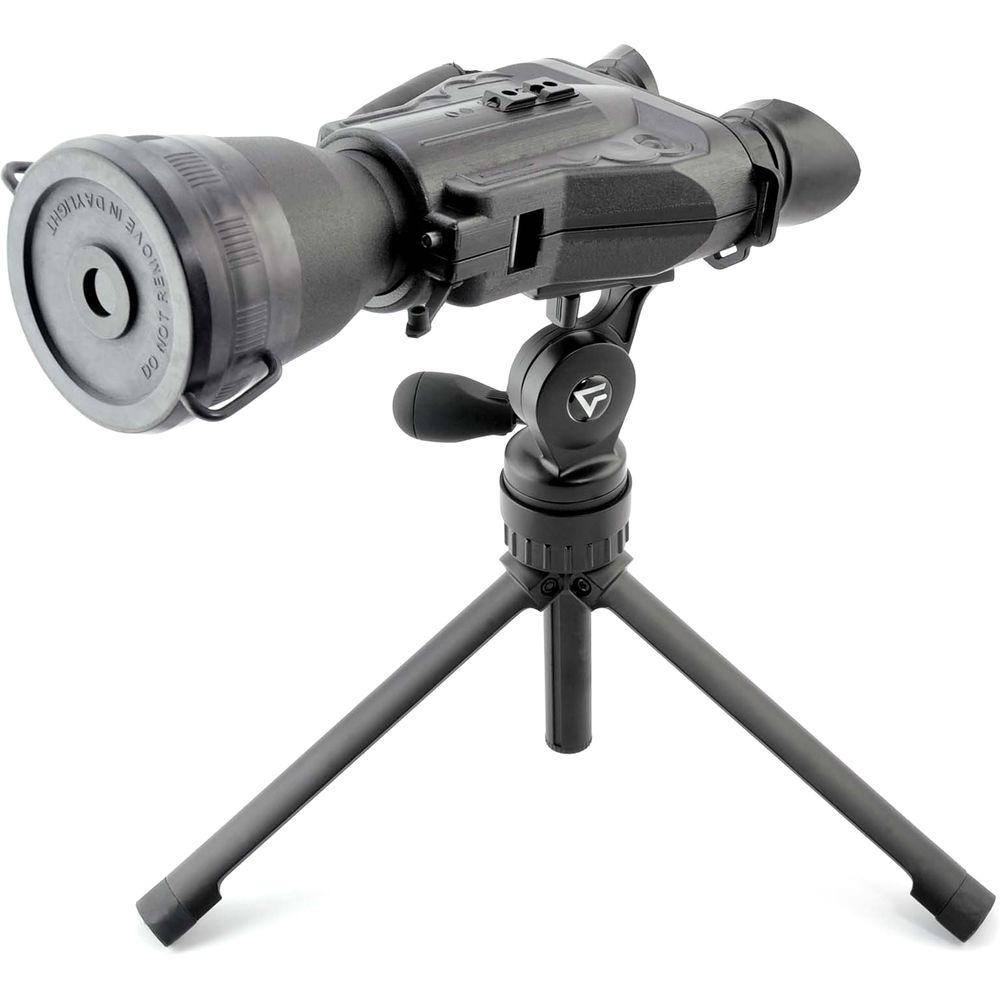

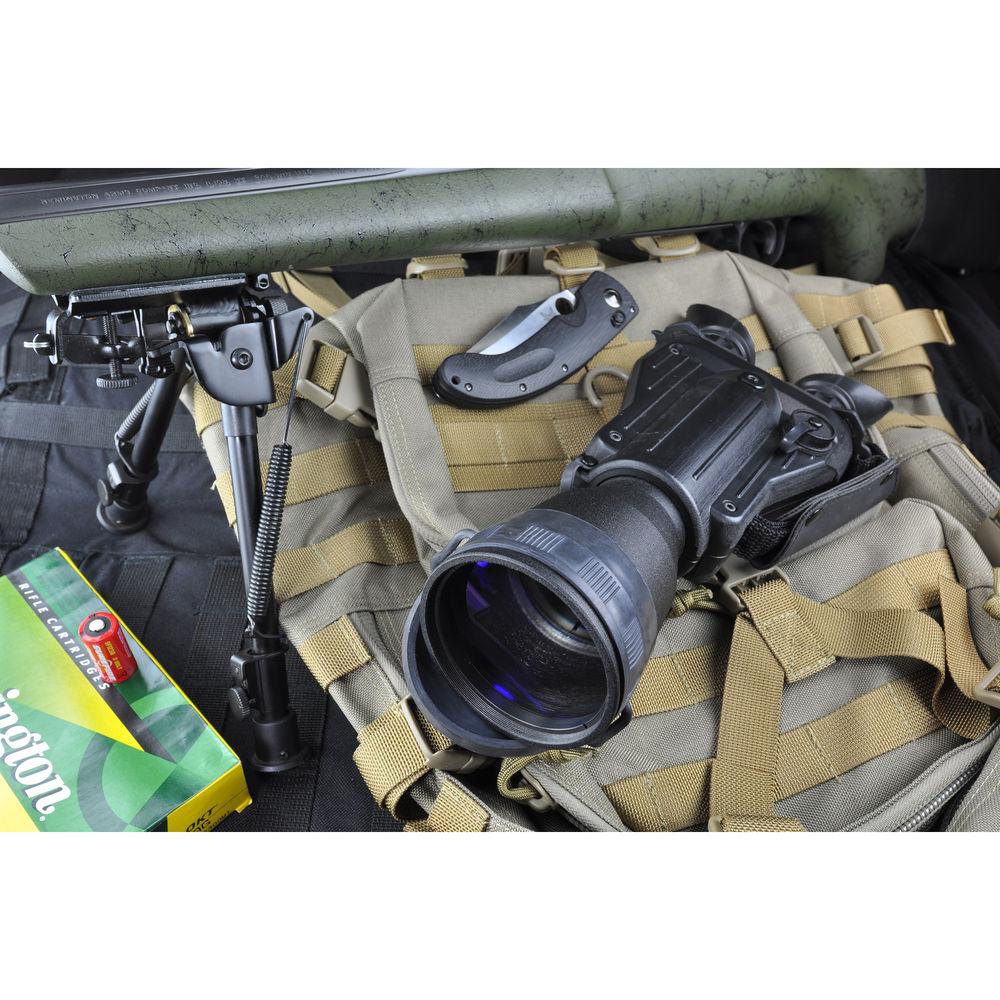

User Manual for Armasight by FLIR Discovery5x GEN 3P Night Vision Biocular Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR Discovery5x GEN 3P
- Product category: Night Vision Bi-Oculars Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Night Vision Bi-Oculars
 |
User manual for the Armasight by FLIR Discovery5x GEN 3P contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|
Product description The ARMASIGHT Discovery5x GEN 3P Night Vision Biocular is a long range night vision biocular system with enhanced capability and performance. It is designed for extended reach night-time observation, surveillance, and perimeter security.
This Discovery Night Vision Biocular utilizes a high-performance 5x lens, and features up to 72 lp/mm resolution Gen 2 or Gen 3 image intensifier tube, an on-board infrared illuminator, a and photo-sensor-based bright-light system cut-off switch. Its rugged and lightweight housing is cold weather, water, salt fog, shock, and altitude resistant, making it a suitable choice for hunting, law enforcement, and defense applications. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Controls and/or the U.S. Department of Commerce. - Rugged, lightweight, and versatile design
- Fast, multi-coated, all-glass optics
- Dual eye viewing system for long viewing in night-time sessions

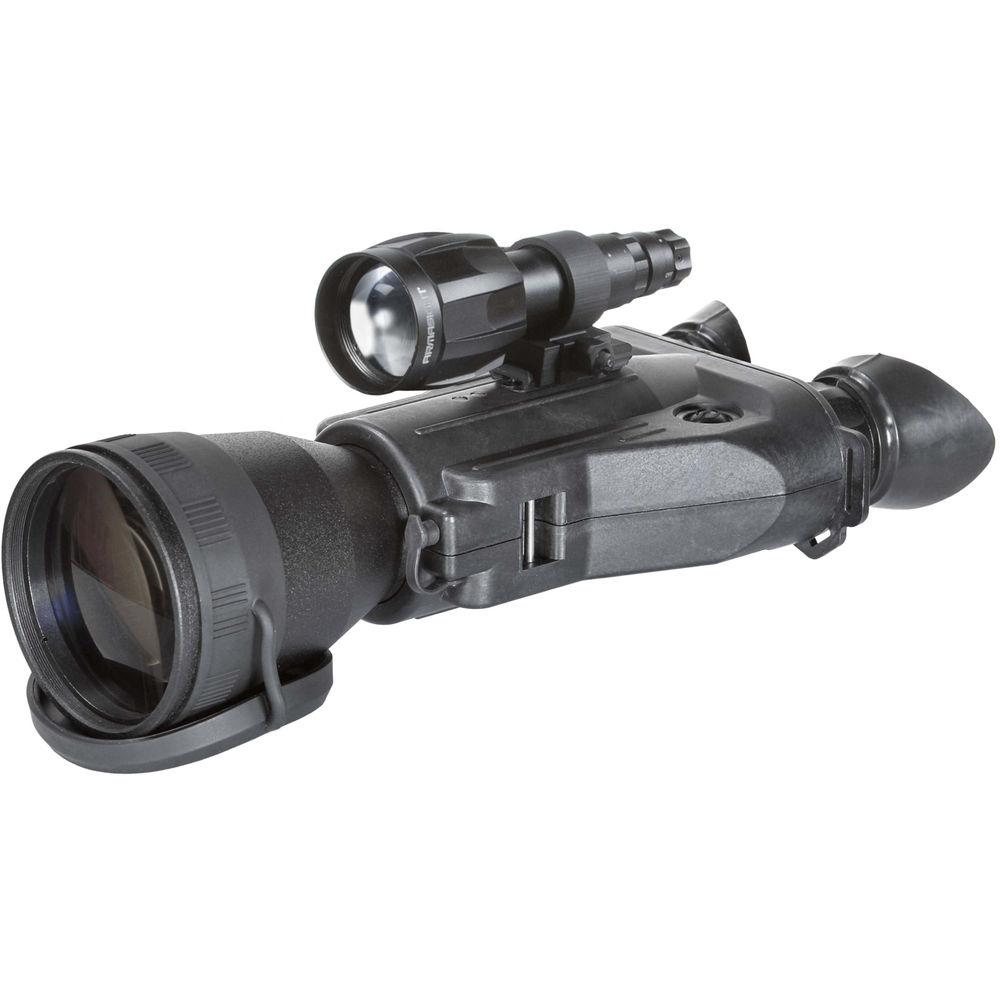

- Detachable long range infrared illuminator

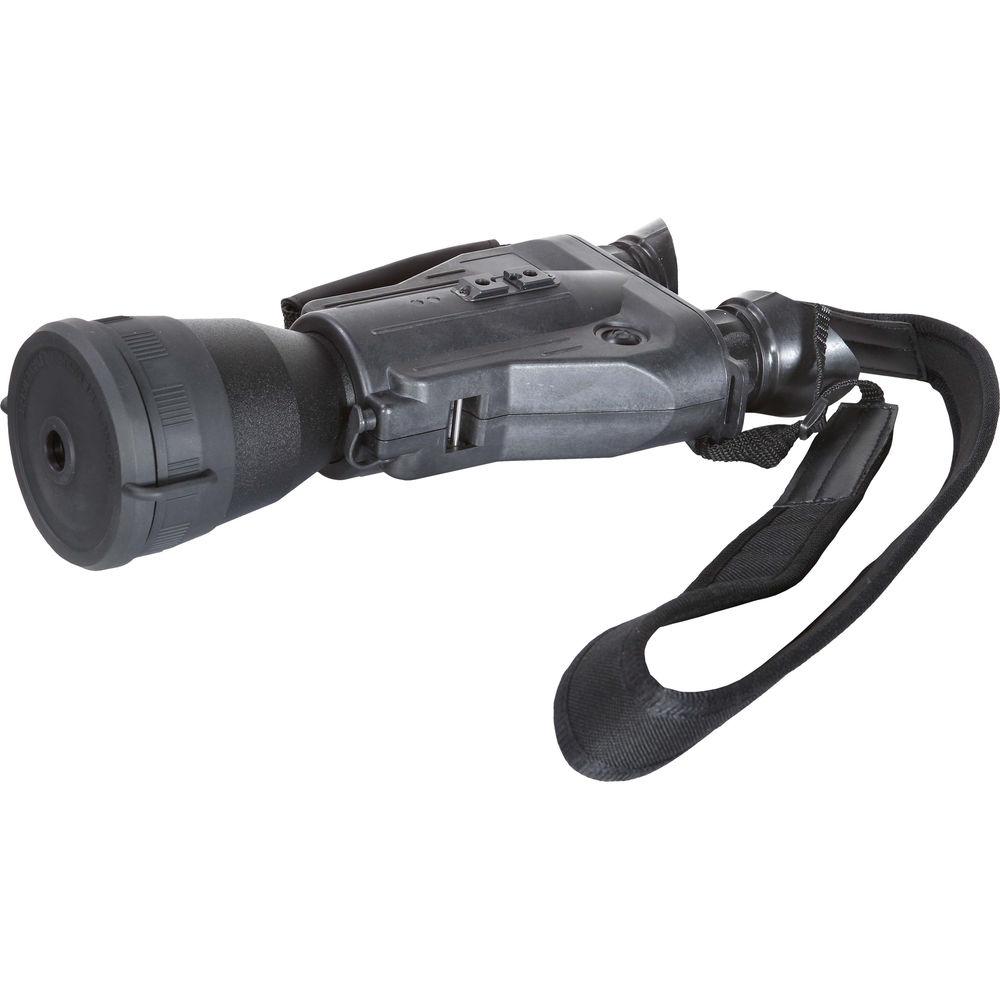

- Hand straps and neck strap for comfortable use

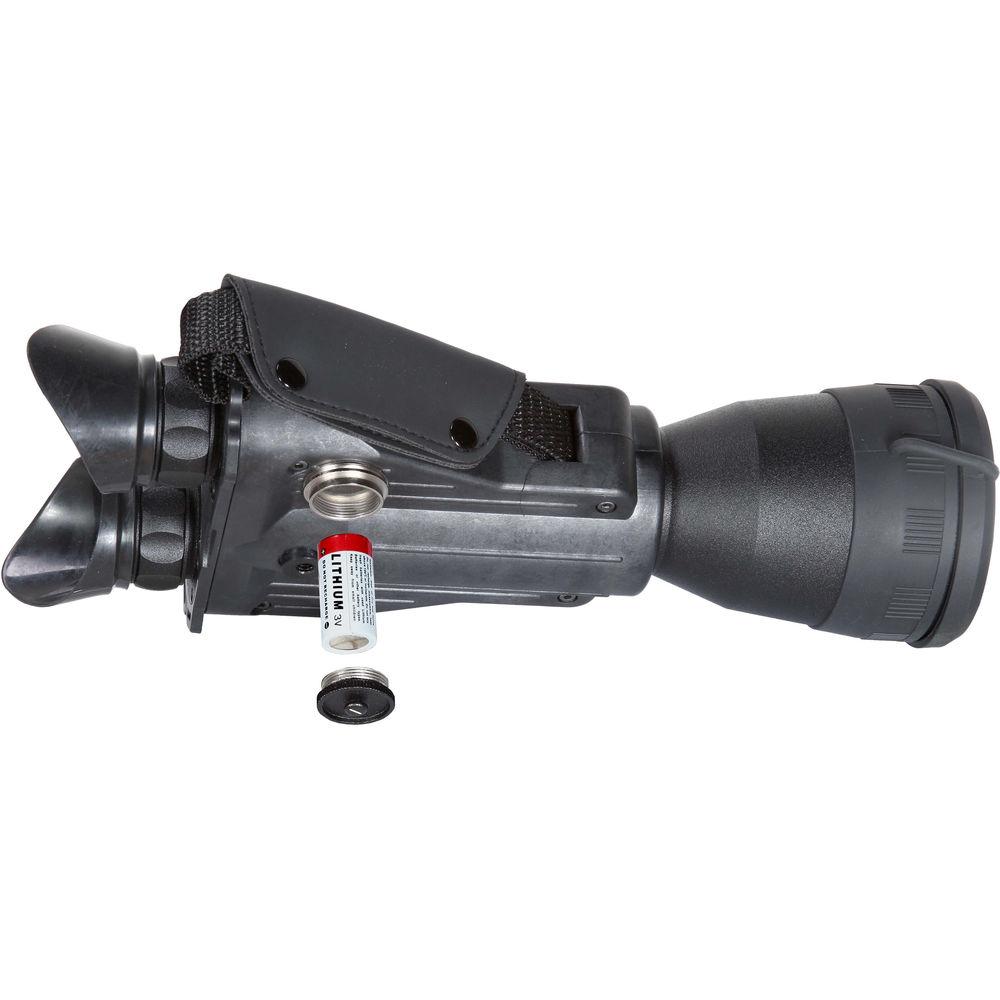

UPC: 818470010180 In the Box Armasight by FLIR Discovery5x GEN 3P Night Vision Biocular IR850 Detachable Long Range Infrared Illuminator Lens Cap Lens Tissue Neck Lanyard CR123A Lithium Battery Packing Box Soft Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Discovery5x GEN 3P Night Vision Biocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR NSBDISCOV5P3DA1 Specs | IIT Generation | Gen 3 High Performance ITT PINNACLE | | Resolution | 64 to 72 lp/mm | | Magnification | 5x | | Photocathode Type | Thin-filmed auto-gated IIT | | Battery Life | 50 (3 V) hours | | Lens System | F1.5, 108 mm | | Field of View | 9.5° | | Range of Focus | 10 to infinity | | Diopter Adjustment | +5, -5 dpt | | Controls | Digital | | IR Indicator | Yes (in FOV) | | Indicators | Low Battery: Yes (LED indicator) | | Power Supply | 1x 3 V CR123A-type battery | | Environmental Rating | MIL-810F compliant | | Operating Temperature | -59.8 to 120.2°F (-51 to 49 °C) | | Storage Temperature | -58 to 140°F (-50 to 60°C) | | Dimensions (L x W x H) | 12.00 x 5.51 x 3.38" (305.00 x 140.00 x 86.00 mm) | | Weight | 2.86 lb (1.30 kg) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 07 owners. Add your rating and experience with the product.
