Product description Increase your stealth and illuminate your path using the Extra-Long-Range Multi-Functional IR Illuminator-Flashlight from Armasight by FLIR. This robust device ships with two LED illumination heads (850nm infrared and a broadband white) that can be easily interchanged and operated in one of the three power modes: low, medium, and high. Each of the LED modules attaches directly to the handle and offers a focus adjustment, which allows you to control beam cone width. With each head attached, this illuminator can be operated as a handheld device or can be mounted to a firearm via an optional Picatinny/Weaver adapter. Using the single included 18650 rechargeable battery, you will obtain up to four hours of uninterrupted runtime. Also available for this device are an optional wireless remote control and two optional color LED modules (green and red).

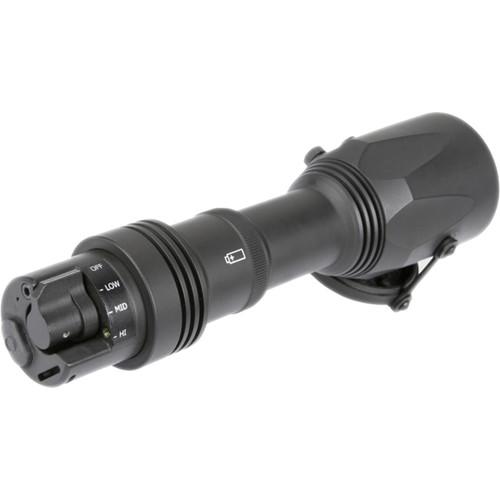

The housing is crafted from lightweight and durable aluminum and treated with an anodized finish. It contains a few noteworthy features like heat-dissipating slits close to the LED head, a narrow middle section for a slip-free grip, and two tailcap switches: a pushbutton and a rotary selector. While the pushbutton allows you to activate momentary and constant on, the rotary selector provides switching between off, low, medium, and high power outputs. For protection from weather and damage to the lens, the housing is water-resistant and has a tethered lens cover. - Light Performance
-
- Low IR: 433mW
- Medium IR: 650mW
- High IR: 1300mW
- Low White: 203 lumens
- Medium White: 305 lumens
- High White: 610 lumens
- Included interchangeable LED modules: IR and white light
- Optional interchangeable LED modules: green and red
- Adjustable beam angle: 3.8 - 28° IR, 4.6 - 32° white light
- Switching
-
- Tailcap activation push button: Constant and momentary on
- Tailcap rotary power selector switch: Off, low power, medium power, and high power
- Use and Handling
-

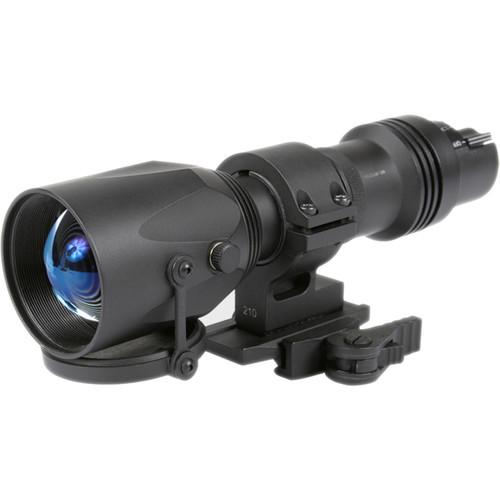

- Can be used as a hand-held device or mounted using optional adapters
- Optional afocal doubler lens increases illumination range
- Optional wireless remote control is available
- Flashing LED indicates a low battery power
- Construction
-
- Aluminum body
- Anodized finish
- Extended protective bezel
- Tethered lens cover
- Water-resistant
- Impact-resistant
- Heat-dissipating slits
- One 18650 rechargeable battery included
- Battery charger included

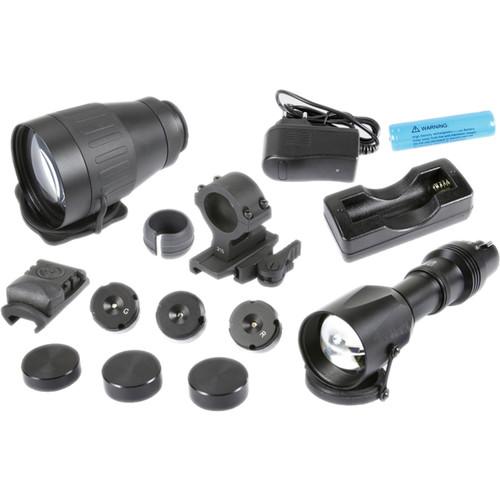

UPC: 849815007923 In the Box Armasight by FLIR Extra-Long-Range Multi-Functional IR Illuminator-Flashlight (Matte Black) - Charger
- 18650 Rechargeable Battery
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Extra-Long-Range Multi-Functional IR Illuminator-Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR IAIFAION000001 Specs | Light Source | Interchangeable LED Modules:
Included IR: 850 nm
Included White: broadband
Optional Green: 528 nm
Optional Red: 625 nm | | Max Output Power | Included IR: 1300 mW
Included White: 610 lm
Optional Green: 160 lumens
Optional Red: 150 lumens | | Beam Divergence | Included IR: 3.8 - 28°
Included White: 4.6 - 32°
Optional Green: 3.8 - 28°
Optional Red: 3.8 - 28° | | Focusing | Yes | | Output Modes | Off
Low Power: 1/3 of max power
Mid Power: 1/2 max power
Hi Power: full power (IR and white only) | | Wireless Connectivity | Yes | | Battery / Runtime | 1 x 18650 (3.7 V) rechargeable battery / 4 hours | | Operating Temperature Range | -4 to 122°F / -20 to 50°C | | Storage Temperature | -58 to 158°F / -50 to 70°C | | Waterproofing | Water-resistant | | Dimensions | 7.1 x 1.8 x 1.8" / 80.0 x 46.0 x 46.0 mm | | Weight | 9.2 oz / 262.0 g |
