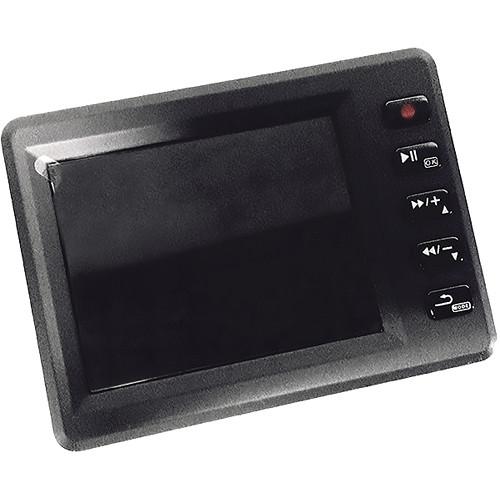

User Manual for Armasight by FLIR HD DVR Digital Video Recorder Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR HD DVR Digital
- Product category: Thermal Imaging Accessories Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Thermal Imaging Accessories
|
User manual for the Armasight by FLIR HD DVR Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|
Product description Document your surveillance findings with the versatile HD DVR Digital Video Recorder from Armasight. The recorder is especially designed to work with Armasight digital night vision and thermal imagers, but can also be used with other compatible devices. It highlights a high definition video recording at 30 fps with a maximum resolution of 1920x1080p and can also record up to 60 fps with a resolution of 848x480.
The front panel accommodates a 2.5" Color TFT LCD display with a resolution of 960x240 for live observations or reviews and a five-button control panel. On the left side, you will find a selection of ports to external devices: a mini-HDMI input for a digital video input, a micro-USB port for connecting to your PC and charging, and an analog video and audio input. The recorder also has a built-in internal microphone and a sound speaker. For saving your videos and photos, the device offers a SDHC memory slot with capacity of up to 64GB.
Designed to be used on the go, the recorder is extremely lightweight and compact, weighting only 2.5 oz and measuring 2.9x2.1". To offer you options and provide a self-contained solution for your needs, this recorder has a 1/4"-20 socket for mounting on a tripod and ships with a belt clip, 1400mAh rechargeable battery, AC charger, and ships with a bundle of cables and accessories. -
- 2.5" TFT display with 960x240 resolution
- Up to 1920x1080 video recording resolution at 30 fps
- Motion-activated recording feature
- SDHC external memory slot supports up to 64GB
- NTSC/PAL video output standards, MOV digital format
- Ports for external analog audio and video inputs
- Mini-HDMI video input port
- Internal 1400mAh rechargeable battery with 2.5 hours runtime
- Micro-USB charging port
- Built-in microphone and speaker
- 1/4"-20 socket for tripod connection
- Included belt clip
UPC: 849815006179 In the Box Armasight by FLIR HD DVR Digital Video Recorder - AC Wall Charger
- 1400mAh Battery
- Wired Remote Control
- VGA Video Cable
- USB Cable
- 2 x Bags of Extra Buttons
- Hook & Loop Holster
- Button Cover
- Belt Clip
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR HD DVR Digital Video Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR ATAM000005 Specs Display | 2.5" TFT LCD Resolution: 960x240 | Video Standard | PAL/NTSC | Recording Format | MOV | Codec | H.264 | Recording Resolution | 1920x1080 at 30/25 fps 1440x1080 at 30/25 fps 1280x720 at 30/25 fps 848x480 at 60/50 fps | Photo Resolution | 2592x1944 | Battery / Runtime | 1 x 1400 mAh (3.7 V) rechargeable battery / 2.5 h DC input: 5 V, 1.5 A | Memory | Internal memory: 4GB SDHC memory slot: up to 64GB | Ports | micro-USB 2.0 Mini-HDMI input External mic input: 2.5 mm, 3-ring jack Analog video input: RCA 2.5 mm, 5 V, 300 mA | Tripod | 1/4"-20 socket | Dimension | 2.9 x 2.1 x 0.8" (75 x 55 x 20 mm) | Weight | 2.5 oz (70 g) | | Package Weight | 1.2 lb | Box Dimensions (LxWxH) | 9.1 x 5.2 x 2.9" |
