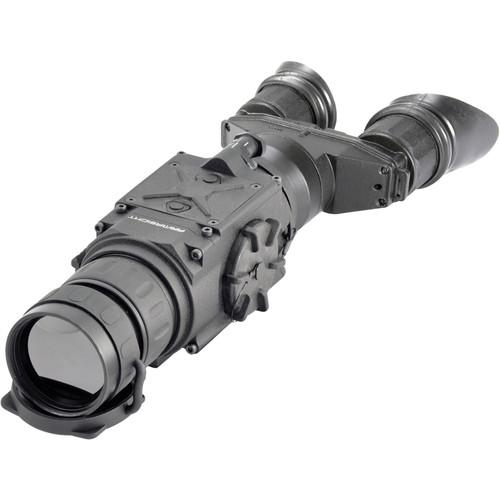

Product description See through smoke, fog, and dust, day or night, with the 30Hz Helios 336 3-12x42 Thermal Bi-Ocular from Armasight. This multi-purpose long-wave infrared handheld thermal imager features a 42mm f/1.1 lens system, 3x optical magnification, and up to 4x digital zoom. Customize the display output with different color modes for different situations or personal preference: White Hot, Black Hot, Rainbow, Fusion, Glowbow, and Ironbow. A video-out port and included cable enable the use of optional external recording or display equipment. Thermal imaging is extremely difficult to detect with other devices, as they emit no visible light or RF energy, unlike laser targeting or near-infrared illumination used with NVDs.The single objective reduces overall weight, while the dual oculars reduce the fatigue associated with a one-eye monocular Complementing the imaging performance and versatility of the Helios is an o-ring sealed aluminum alloy housing that provides waterproof performance. A wireless remote and Picatinny rail adapter are included to allow the user to control the Helios without removing their hands from their weapon. - Imaging Performance
-
- 336x256 uncooled Tau 2 detector
- Pixel size: 17µm
- Resolution: 0.4 mrad
- 30Hz refresh rate
- Magnification: 3x
- Digital zoom: 1x, 2x, and 4x
- Germanium glass objective lens
- Lens system: 42mm f/1.1
- Angle of view: 7.8°x5.9°;
- Exit pupil: 10mm
- Eye relief: 45mm
- Close focus: 16'
- System Features
-
- AMOLED SVGA 060 color display
- NTSC/PAL video output with included cable

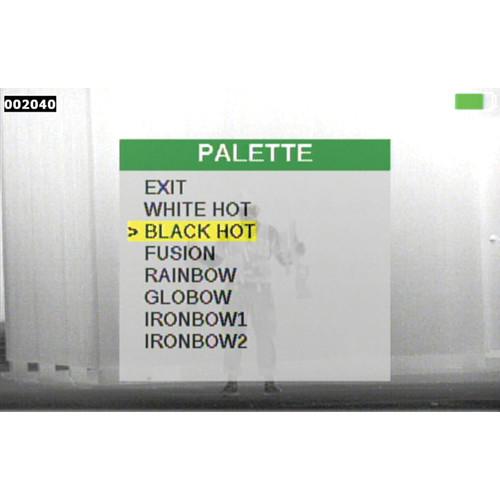

- Color modes: White Hot, Black Hot, Rainbow, Fusion, Glowbow, Ironbow 1 & 2
- Construction Details
-
- Aluminum alloy housing
- O-ring sealed, waterproof
- Operating temperature: -40 to 122°F
- Wireless remote with Picatinny rail mount
- Weight: 28.8 oz
UPC: 849815003888 In the Box Armasight by FLIR Helios 336 3-12x42 Thermal Bi-Ocular (30Hz ) Wireless Remote Control Picatinny Adapter for Wireless Remote Control Video Cable 2 x CR123A Battery Soft Carrying Case Limited 3-Year Warranty Limited 10-Year Warranty on FLIR Detector Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Helios 336 3-12x42 Thermal Bi-Ocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR TAT176BN4HELI31 Specs | Array Configuration | 336x256 FLIR Tau 2 | | Pixel Size | 17 µm | | Resolution | 0.4 mrad | | Refresh Rate | 30 Hz | | Magnification | 3x optical
1x, 2x, 4x digital zoom | | Angle of View | 7.8° x 5.9° | | Lens System | 42mm f/1.1 | | Minimum Focus Distance | 16' / 5 m | | Eye Relief | 45 mm | | Exit Pupil | 10 mm | | Display | AMOLED SVGA 060 | | Battery / Runtime | 2 x CR123A batteries / 3 hr, maximum | | Environmental | Operating temperature: -40 to 122°F / -40 to 50°C
Storage temperature: -58 to 158°F / -50 to 70°C | | Weatherproofing | Waterproof | | Dimensions | 10.1 x 4.3 x 3.0" (25.7 x 11.0 x 7.5 cm) | | Weight | 28.8 oz (816.5 g) | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 12.0 x 7.0 x 7.0" |
